For mitre saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 3 options
Number of teeth 3 options
Width of cut (b1) mm 2.3
Choose a pack size 1 Pcs
Best for Wood Circular Saw Blade offers industrial quality and performs highly demanding applications in wood
Available product options: 3
| Part number | Outer diameter mm | Bore size mm | Width of cut (b1) mm / Base bl. thickness (b2) mm | Number of teeth | Pack quantity | ||
|---|---|---|---|---|---|---|---|

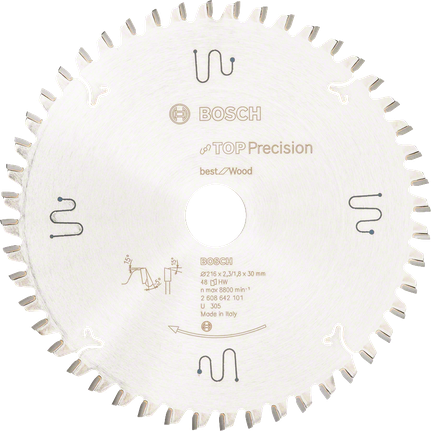

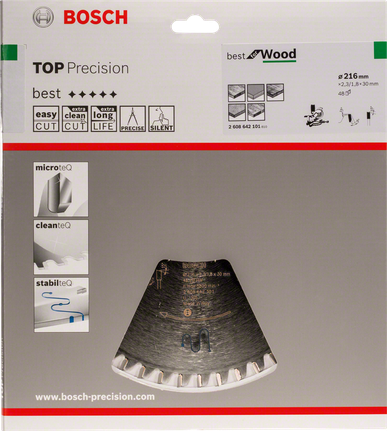

| 2 608 642 101 | 216 | 30 | 2.3/1.8 | 48 | 1 Pcs | Find a local dealer | |

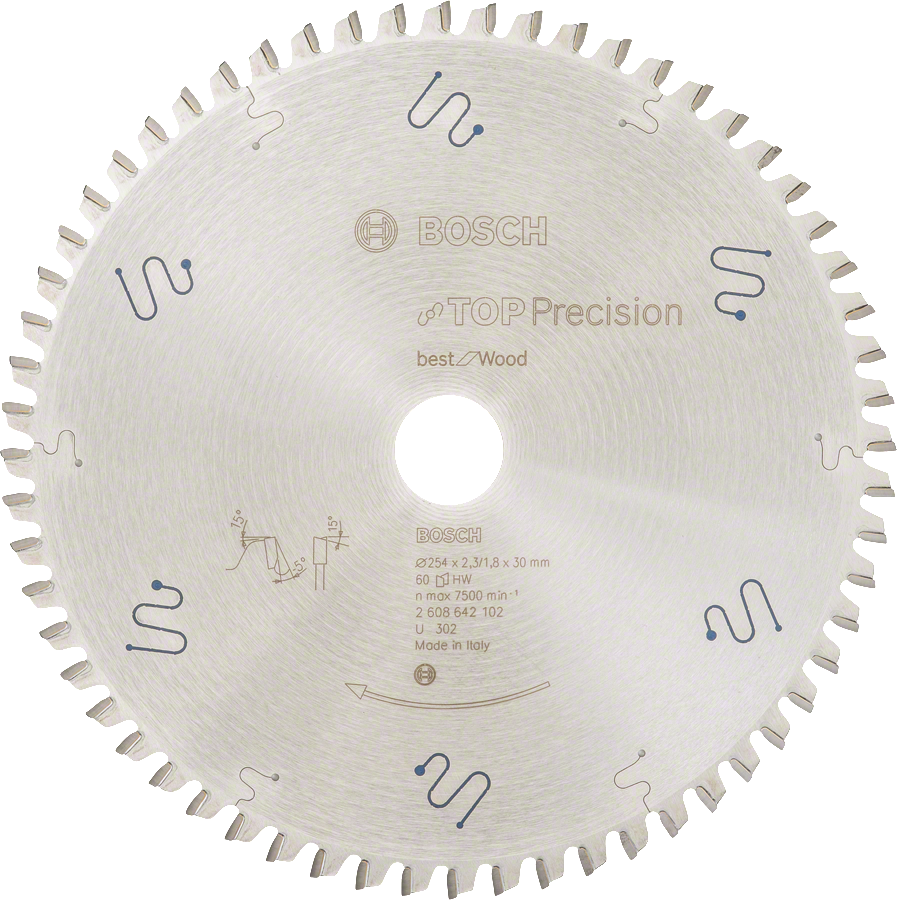

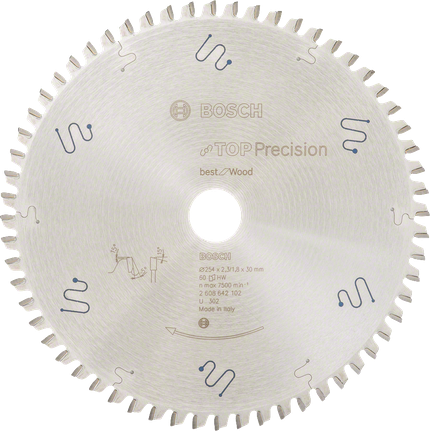

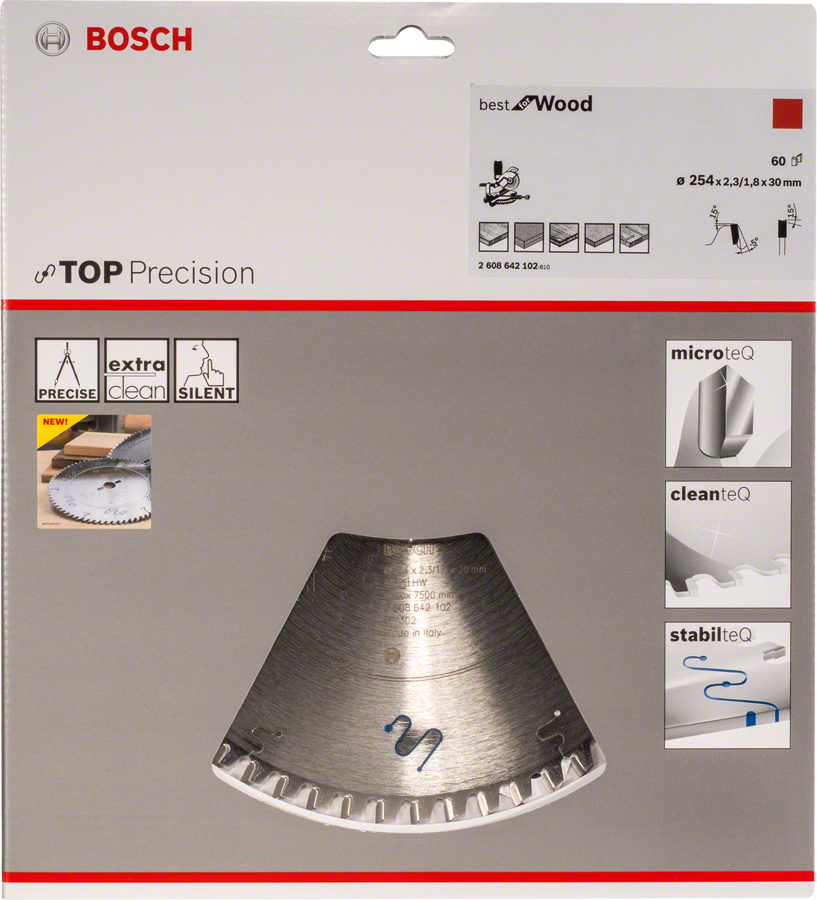

| 2 608 642 102 | 254 | 30 | 2.3/1.8 | 60 | 1 Pcs | Find a local dealer | |

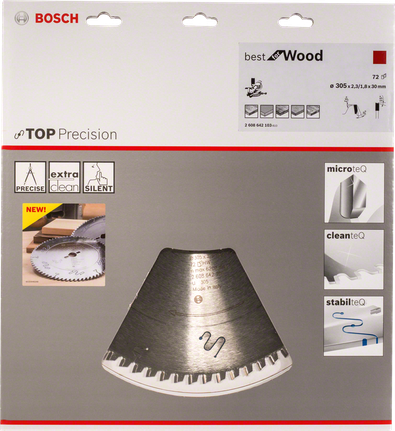

| 2 608 642 103 | 305 | 30 | 2.3/1.8 | 72 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608642101 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, pocket, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 216 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.3/1.8 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8800 |
| Cutting result | Coarse cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608642102 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, pocket, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 254 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.3/1.8 |
| Number of teeth | 60 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 7500 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608642103 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, pocket, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.3/1.8 |
| Number of teeth | 72 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6200 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
