For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 12 options
Number of teeth 8 options
Width of cut (b1) mm 4 options
Choose a pack size 1 Pcs
Expert for Aluminium Circular Saw Blade performs perfect cuts in aluminium
The Expert for Aluminium Circular Saw Blade features HLTCG (High-Low Triple Chip Ground) teeth, which make the blade robust for cutting aluminium.
It is compatible with plunge and hand-held saws
Available product options: 17
![]() |
Part number
![]() |
Outer diameter mm
![]() |
Bore size mm
![]() |
Width of cut (b1) mm / Base bl. thickness (b2) mm
![]() |
Number of teeth
![]() |
Pack quantity
![]() |
![]() |
---|---|---|---|---|---|---|---|
2 608 644 092 | 140 | 20 | 1.8/1.3 | 42 | 1 Pcs | Find a local dealer | |
2 608 644 093 | 150 | 20 | 2.6/1.6 | 42 | 1 Pcs | Find a local dealer | |
2 608 644 094 | 160 | 20 | 2.2/1.6 | 52 | 1 Pcs | Find a local dealer | |
2 608 644 095 | 165 | 20 | 2.6/1.6 | 52 | 1 Pcs | Find a local dealer | |
2 608 644 096 | 165 | 30 | 2.6/1.6 | 52 | 1 Pcs | Find a local dealer | |
2 608 644 097 | 180 | 30 | 2.6/1.6 | 56 | 1 Pcs | Find a local dealer | |
2 608 644 098 | 184 | 16 | 2.6/1.6 | 48 | 1 Pcs | Find a local dealer | |
2 608 644 099 | 184 | 20 | 2.6/1.6 | 56 | 1 Pcs | Find a local dealer | |
2 608 644 100 | 184 | 30 | 2.6/1.6 | 56 | 1 Pcs | Find a local dealer | |
2 608 644 101 | 190 | 20 | 2.6/1.6 | 56 | 1 Pcs | Find a local dealer | |
2 608 644 102 | 190 | 30 | 2.6/1.6 | 56 | 1 Pcs | Find a local dealer | |
2 608 644 103 | 200 | 30 | 2.8/1.8 | 60 | 1 Pcs | Find a local dealer | |
2 608 644 104 | 200 | 32 | 2.8/1.8 | 60 | 1 Pcs | Find a local dealer | |
2 608 644 105 | 210 | 30 | 2.8/1.8 | 72 | 1 Pcs | Find a local dealer | |
2 608 644 106 | 230 | 30 | 2.8/1.8 | 64 | 1 Pcs | Find a local dealer | |
2 608 644 107 | 235 | 30 | 2.6/1.8 | 80 | 1 Pcs | Find a local dealer | |
2 608 644 108 | 240 | 30 | 2.8/1.8 | 80 | 1 Pcs | Find a local dealer |
out of products

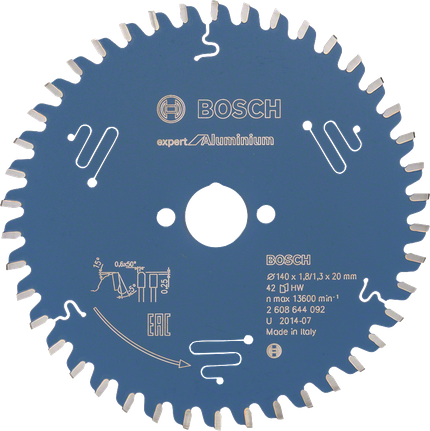

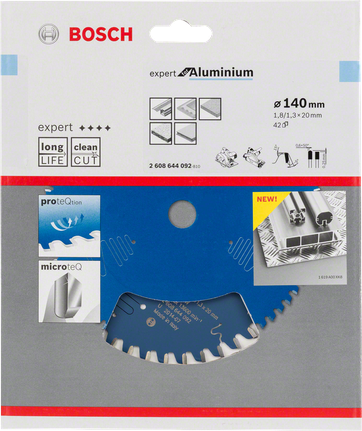

Part number 2608644092 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 140 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.3 |
Number of teeth | 42 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 13600 |
Cutting result | Fine Cut |
Pin hole/Pitch circle diameter | 2/6/32.5 |
Hook angle ° α | -5 |
Relief angle ° β | 15 |
Part number 2608644093 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 150 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 42 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 12700 |
Cutting result | Fine Cut |
Pin hole/Pitch circle diameter | 2/6/32.5 |
Hook angle ° α | -5 |
Relief angle ° β | 15 |
Part number 2608644094 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 160 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
Number of teeth | 52 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 11900 |
Cutting result | Fine Cut |
Pin hole/Pitch circle diameter | 2/6/32.5 |
Hook angle ° α | -5 |
Relief angle ° β | 15 |
Part number 2608644095 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 165 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 52 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 11500 |
Cutting result | Fine Cut |
Pin hole/Pitch circle diameter | 2/6/32.5 |
Hook angle ° α | -5 |
Relief angle ° β | 15 |
Part number 2608644096 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 165 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 52 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 11500 |
Cutting result | Fine Cut |
Pin hole/Pitch circle diameter | 2/7/42 |
Hook angle ° α | -5 |
Relief angle ° β | 15 |

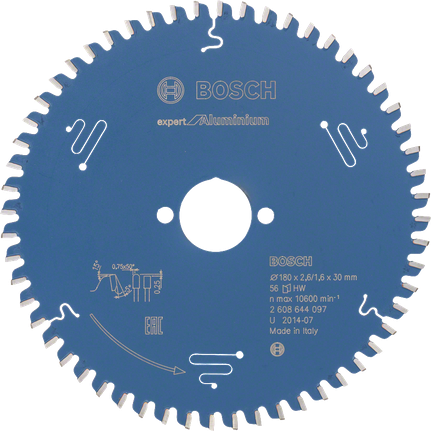

Part number 2608644097 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 180 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 56 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 10600 |
Cutting result | Fine Cut |
Pin hole/Pitch circle diameter | 2/7/42 |
Hook angle ° α | -5 |
Relief angle ° β | 15 |

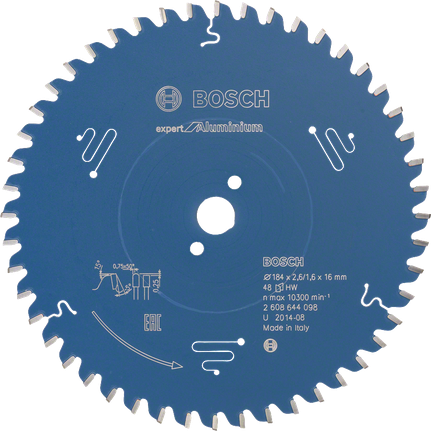

Part number 2608644098 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 184 |
Bore size mm | 16 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 48 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 10300 |
Cutting result | Fine Cut |
Pin hole/Pitch circle diameter | 2/6/32.5 |
Hook angle ° α | -5 |
Relief angle ° β | 15 |

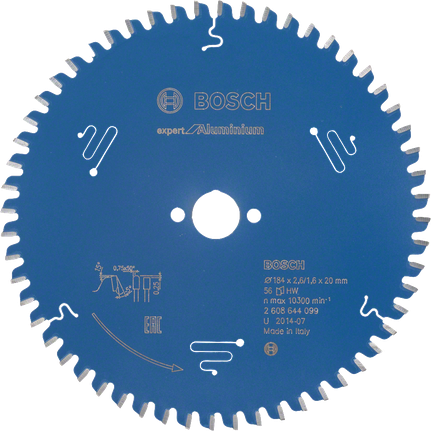

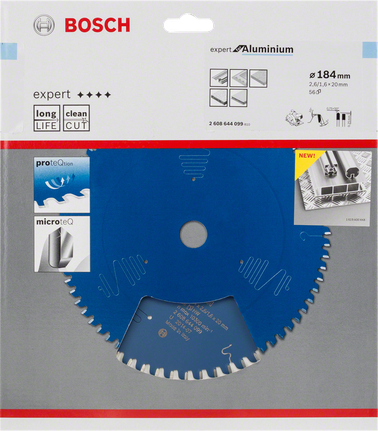

Part number 2608644099 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 184 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 56 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 10300 |
Cutting result | Fine Cut |
Pin hole/Pitch circle diameter | 2/6/32.5 |
Hook angle ° α | -5 |
Relief angle ° β | 15 |

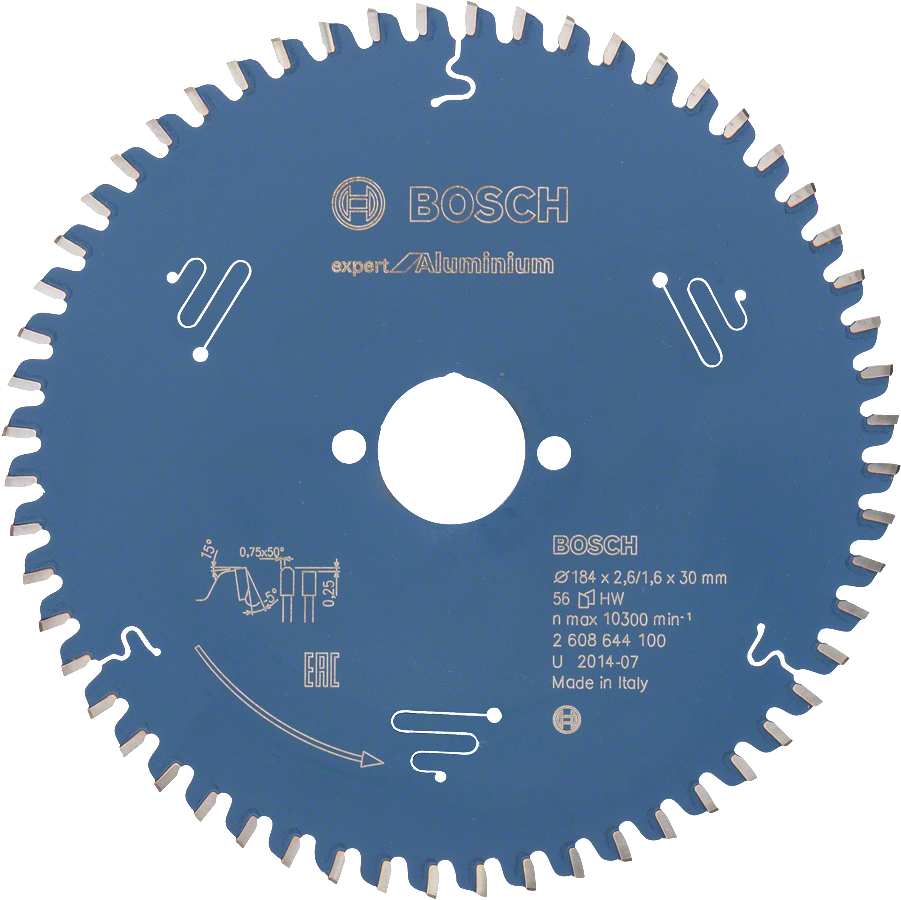

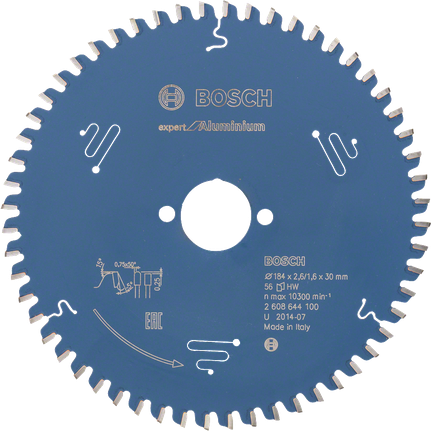

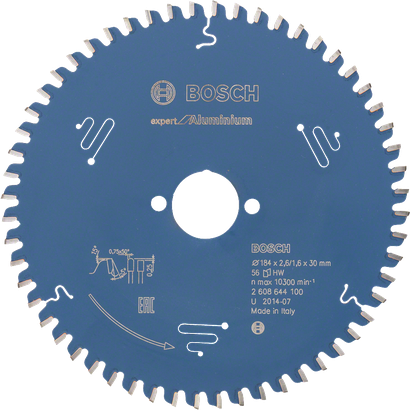

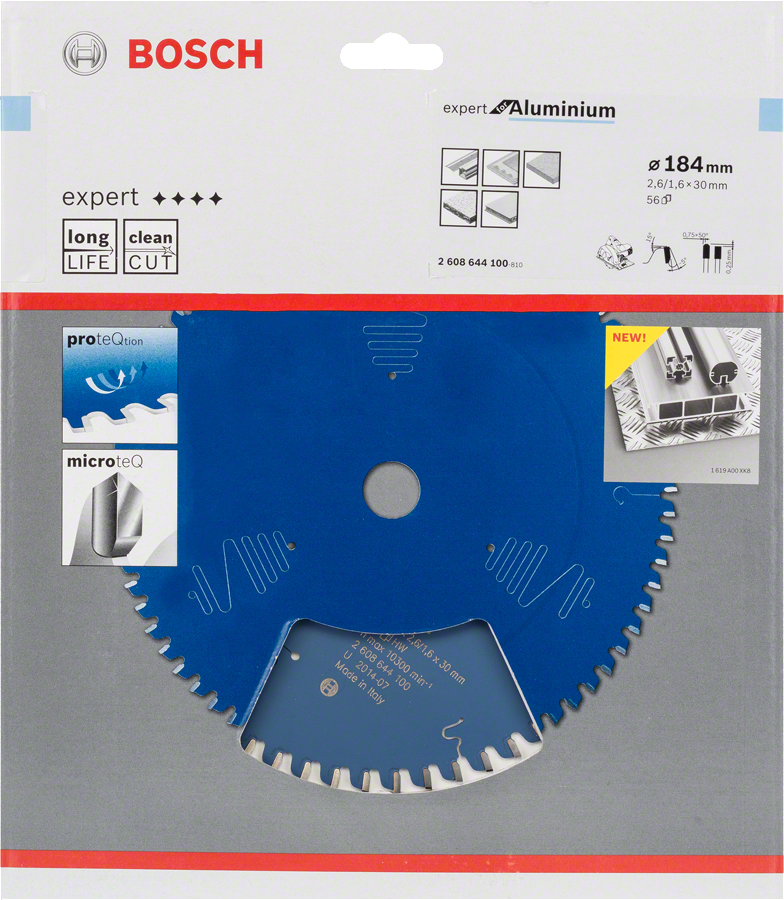

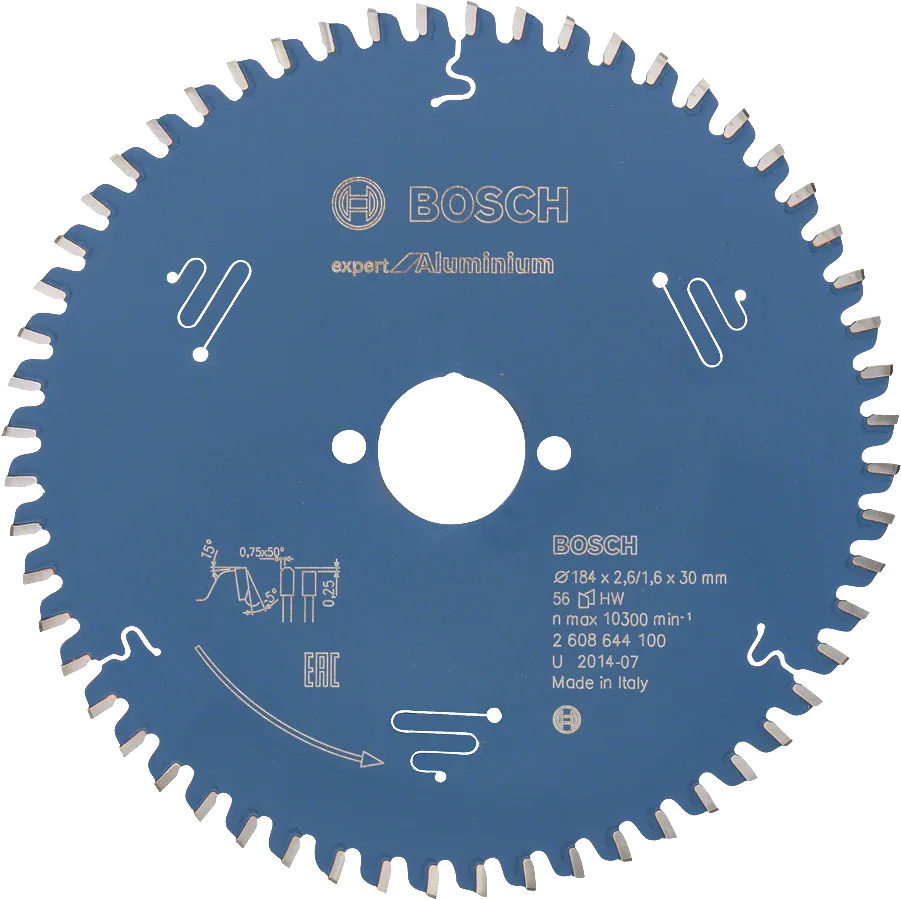

Part number 2608644100 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 184 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 56 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 10300 |
Cutting result | Fine Cut |
Pin hole/Pitch circle diameter | 2/7/42 |
Hook angle ° α | -5 |
Relief angle ° β | 15 |
Part number 2608644101 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 190 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 56 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 10000 |
Cutting result | Fine Cut |
Pin hole/Pitch circle diameter | 2/6/32.5 |
Hook angle ° α | -5 |
Relief angle ° β | 15 |
Part number 2608644102 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 190 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 56 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 10000 |
Cutting result | Fine Cut |
Pin hole/Pitch circle diameter | 2/7/42 |
Hook angle ° α | -5 |
Relief angle ° β | 15 |

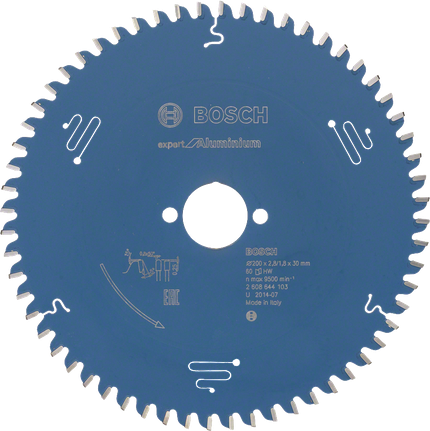

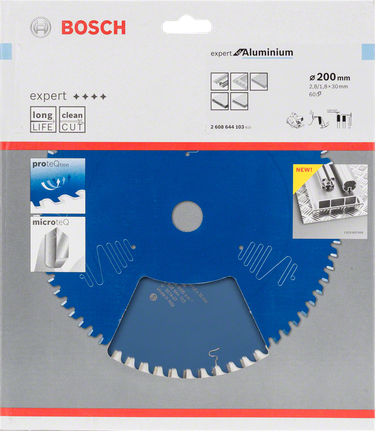

Part number 2608644103 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 200 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
Number of teeth | 60 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 9500 |
Cutting result | Fine Cut |
Pin hole/Pitch circle diameter | 2/7/42 |
Hook angle ° α | -5 |
Relief angle ° β | 15 |

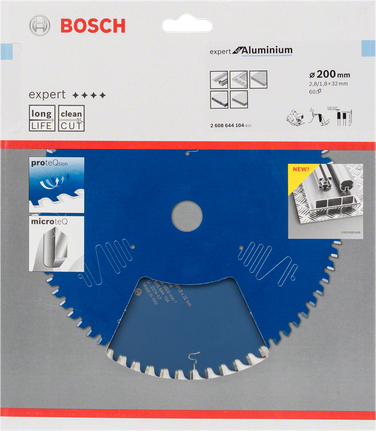

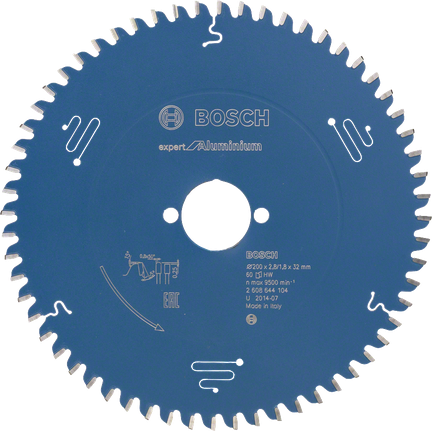

Part number 2608644104 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 200 |
Bore size mm | 32 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
Number of teeth | 60 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 9500 |
Cutting result | Fine Cut |
Pin hole/Pitch circle diameter | 2/7/42 |
Hook angle ° α | -5 |
Relief angle ° β | 15 |
Part number 2608644105 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 210 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
Number of teeth | 72 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 9000 |
Cutting result | Fine Cut |
Pin hole/Pitch circle diameter | 2/7/42 |
Hook angle ° α | -5 |
Relief angle ° β | 15 |

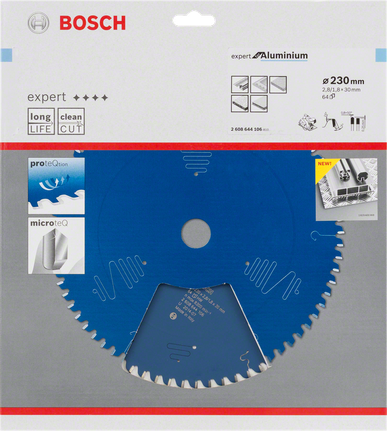

Part number 2608644106 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 230 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
Number of teeth | 64 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 8300 |
Cutting result | Fine Cut |
Pin hole/Pitch circle diameter | 2/7/42 |
Hook angle ° α | -5 |
Relief angle ° β | 15 |
Part number 2608644107 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 235 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.8 |
Number of teeth | 80 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 8100 |
Cutting result | Fine Cut |
Pin hole/Pitch circle diameter | 2/7/42 |
Hook angle ° α | -5 |
Relief angle ° β | 15 |

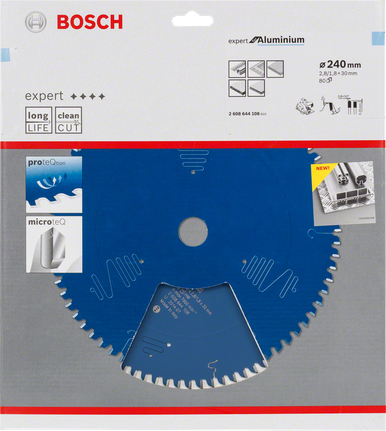

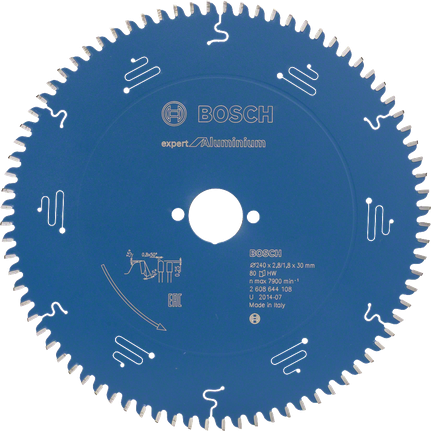

Part number 2608644108 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 240 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
Number of teeth | 80 |
Tooth shape | HLTCG |
Max. rotation speed (RPM) | 7900 |
Cutting result | Fine Cut |
Pin hole/Pitch circle diameter | 2/7/42 |
Hook angle ° α | -5 |
Relief angle ° β | 15 |
