For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 5 options
Number of teeth 4
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs

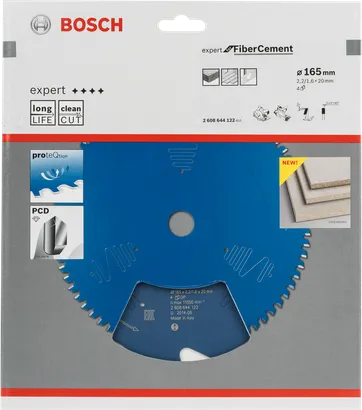

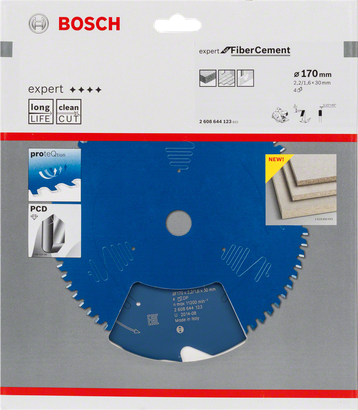

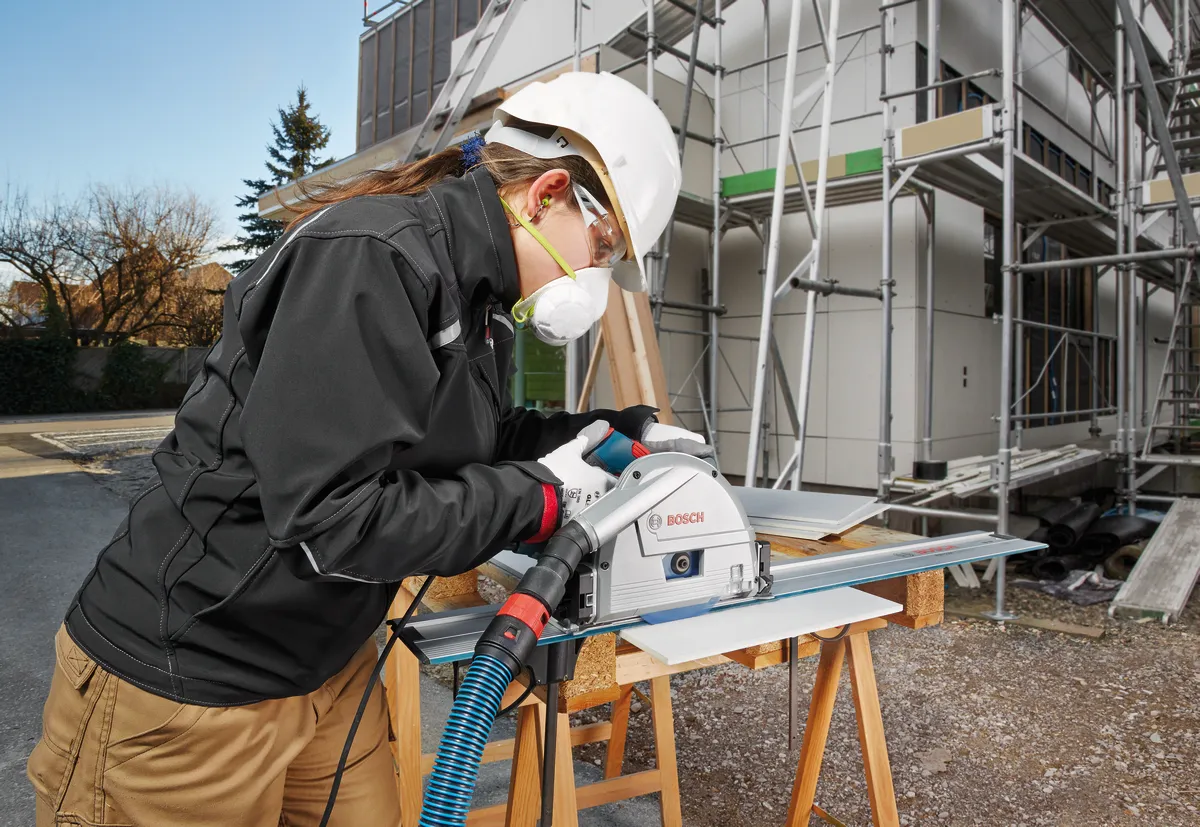

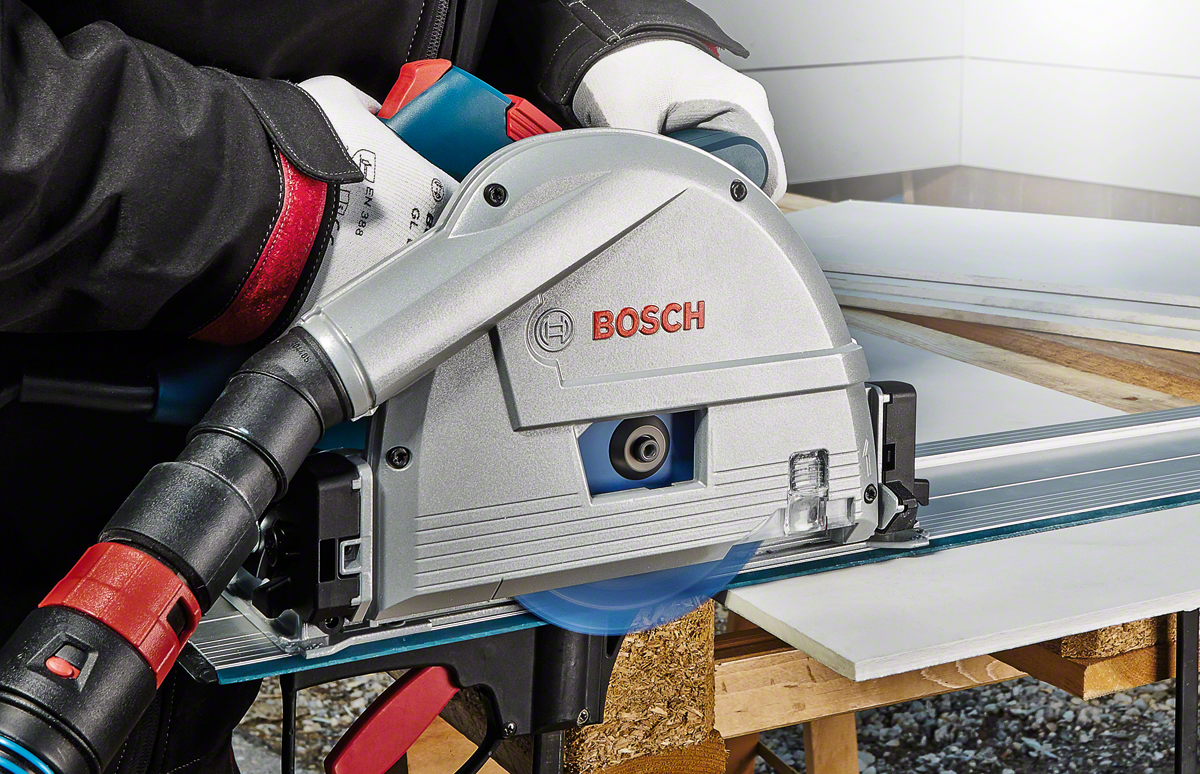

Expert for Fibre Cement Circular Saw Blade is highly durable when cutting fibre cement
Available product options: 6
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|
| 2 608 644 120 | 140 | 20 | 1.8/1.3 | 4 | 1 Pcs | Find a local dealer | |
| 2 608 644 121 | 160 | 20 | 2.2/1.6 | 4 | 1 Pcs | Find a local dealer | |
| 2 608 644 122 | 165 | 20 | 2.2/1.6 | 4 | 1 Pcs | Find a local dealer | |

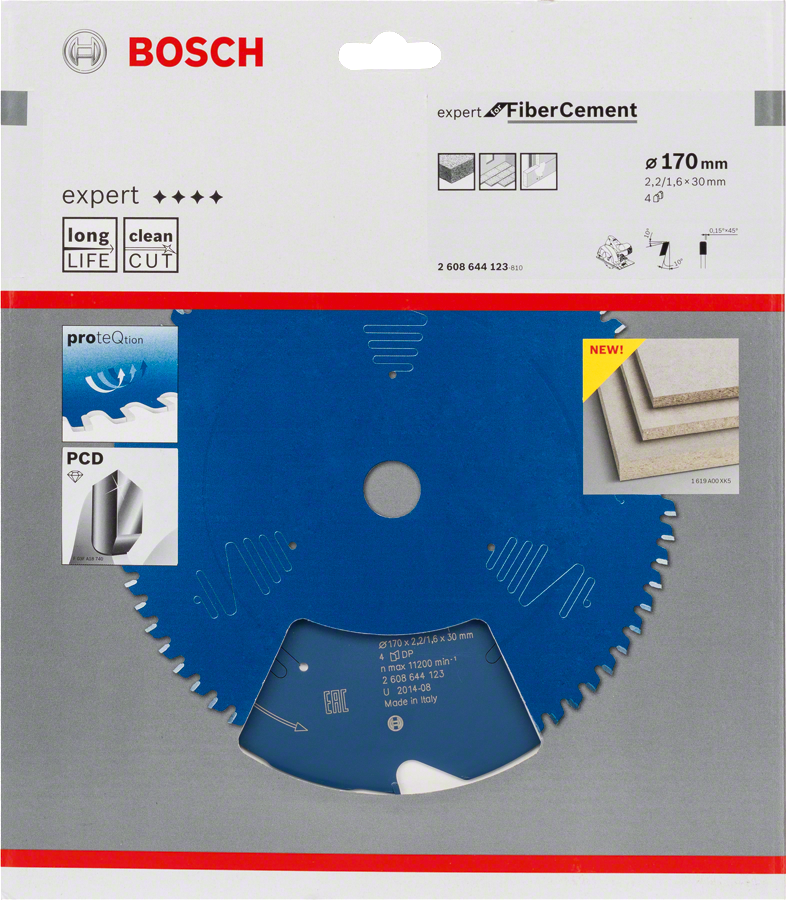

| 2 608 644 123 | 170 | 30 | 2.2/1.6 | 4 | 1 Pcs | Find a local dealer | |
| 2 608 644 124 | 190 | 20 | 2.2/1.6 | 4 | 1 Pcs | Find a local dealer | |
| 2 608 644 125 | 190 | 30 | 2.2/1.6 | 4 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608644120 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 140 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.3 |
| Number of teeth | 4 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 13600 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 10 |
| Relief angle ° β | 10 |
| Part number 2608644121 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 4 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 10 |
| Relief angle ° β | 10 |

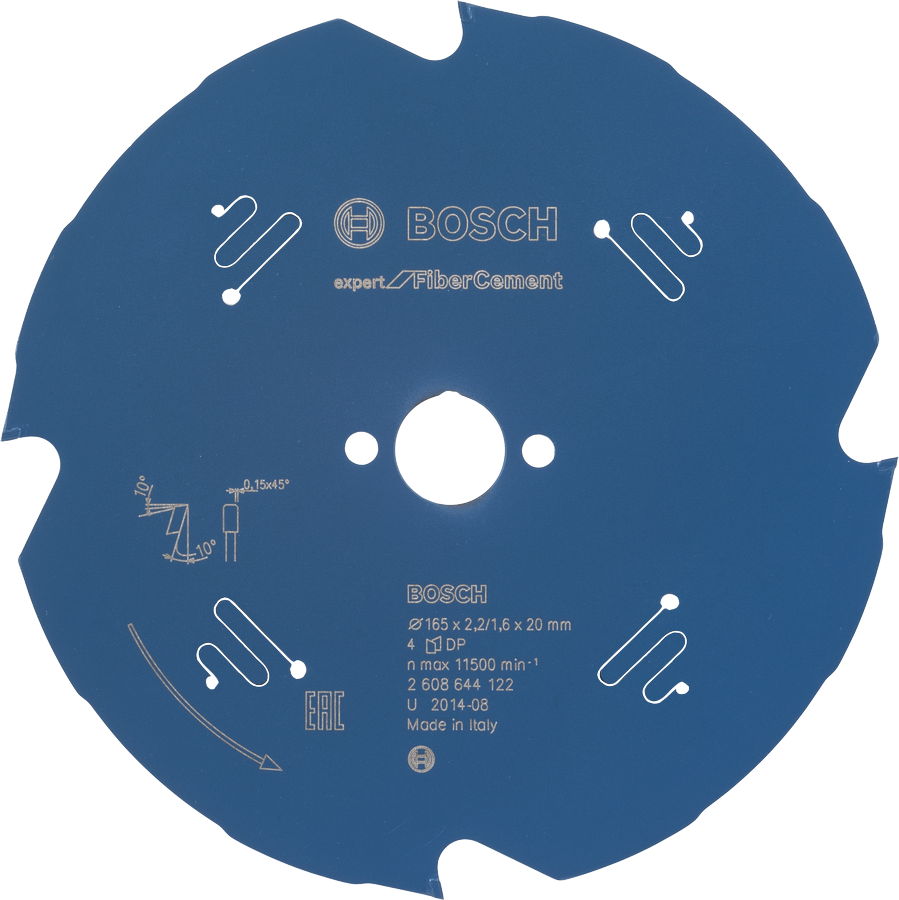

| Part number 2608644122 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 4 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 10 |
| Relief angle ° β | 10 |

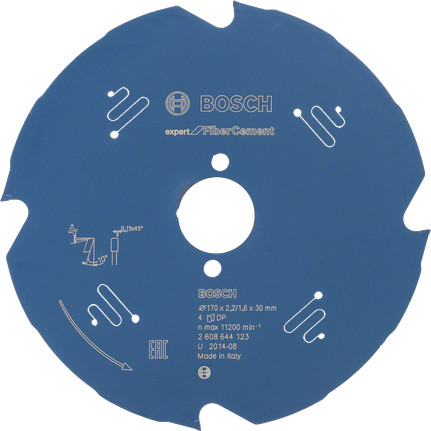

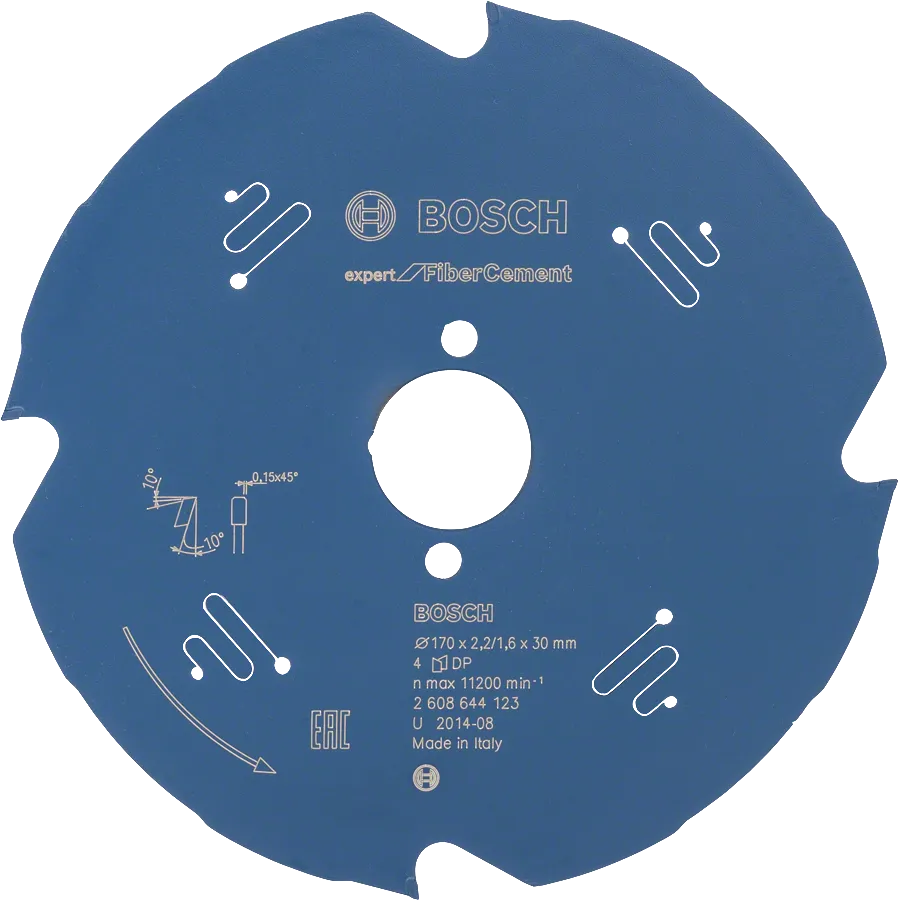

| Part number 2608644123 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 170 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 4 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 11200 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 10 |
| Relief angle ° β | 10 |
| Part number 2608644124 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 4 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 10 |
| Relief angle ° β | 10 |
| Part number 2608644125 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 4 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 10 |
| Relief angle ° β | 10 |
