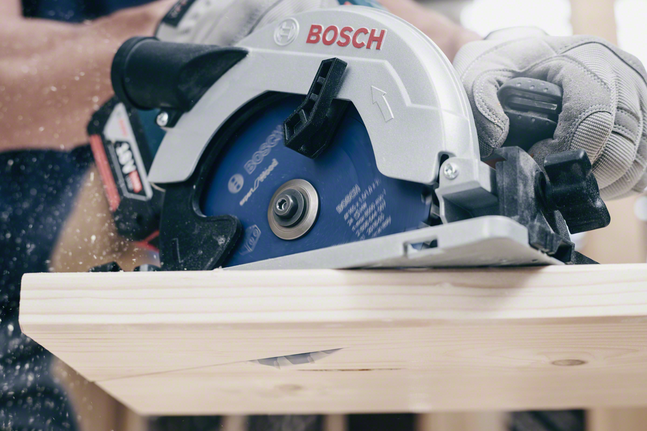

For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 165
Number of teeth 48
Width of cut (b1) mm 1.5
Choose a pack size 1 Pcs

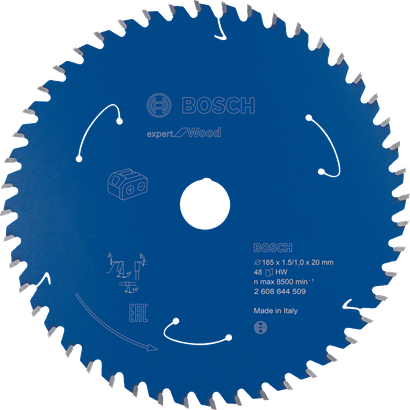

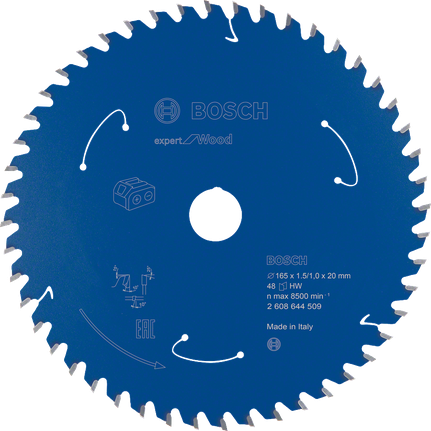

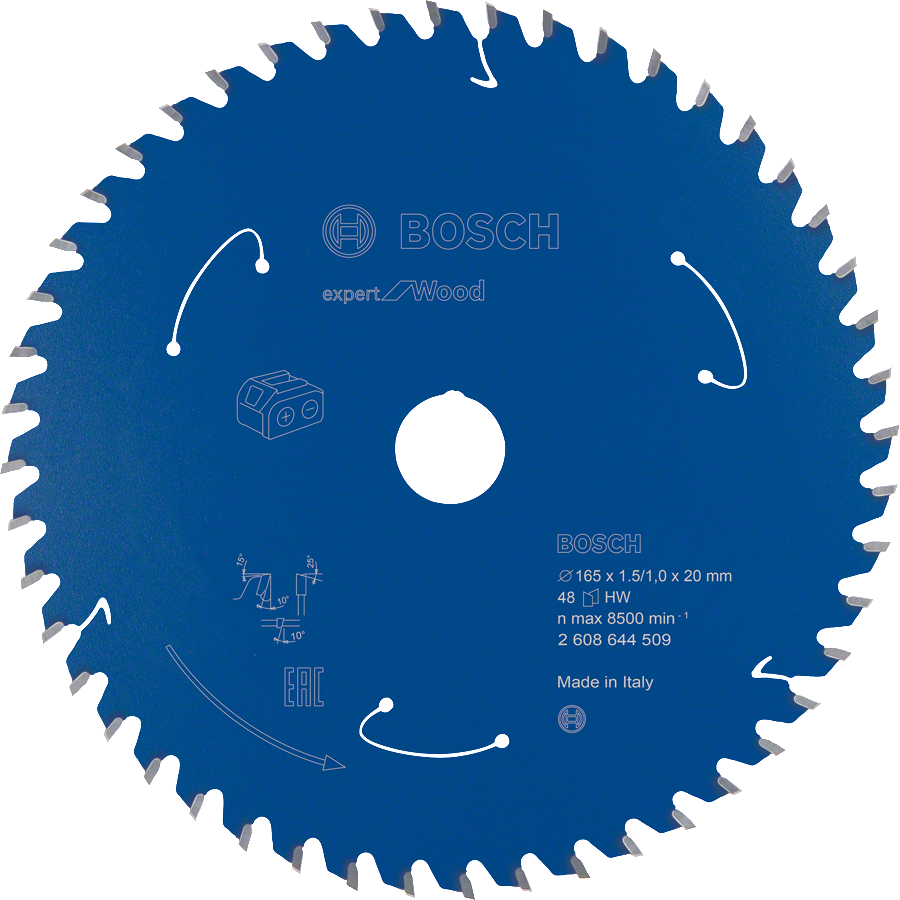

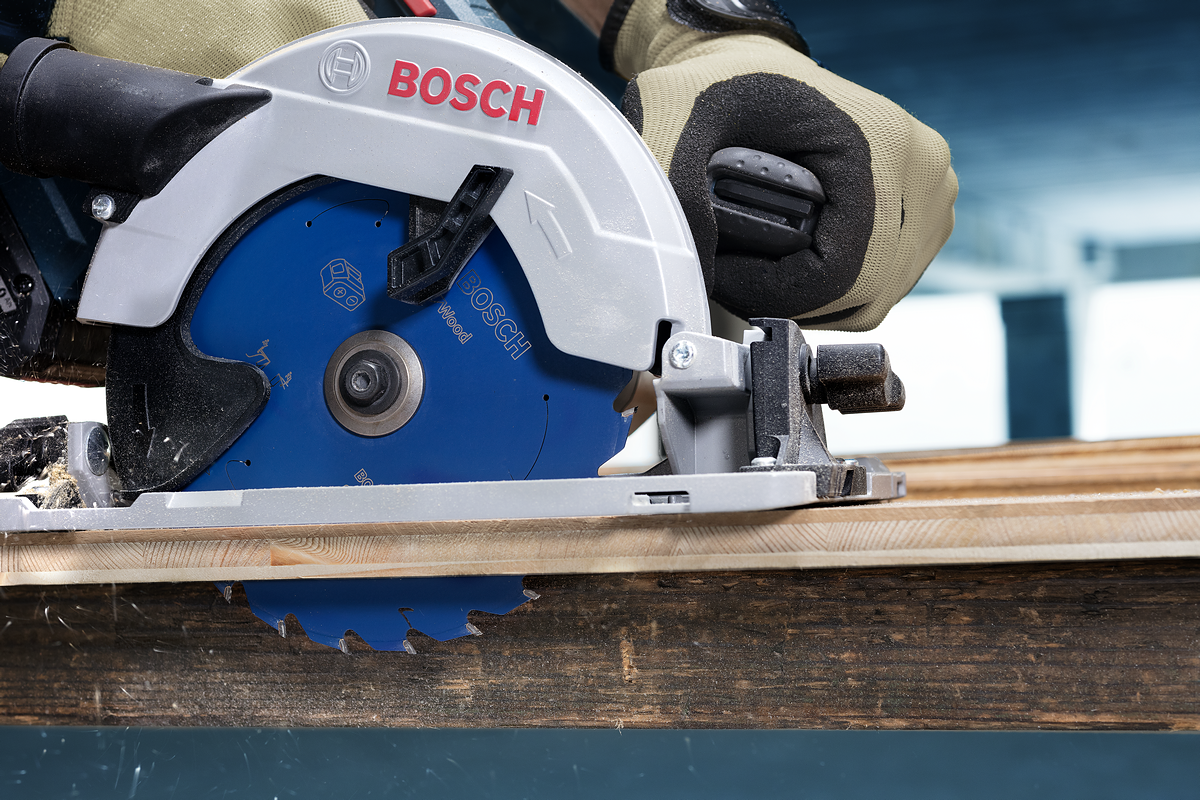

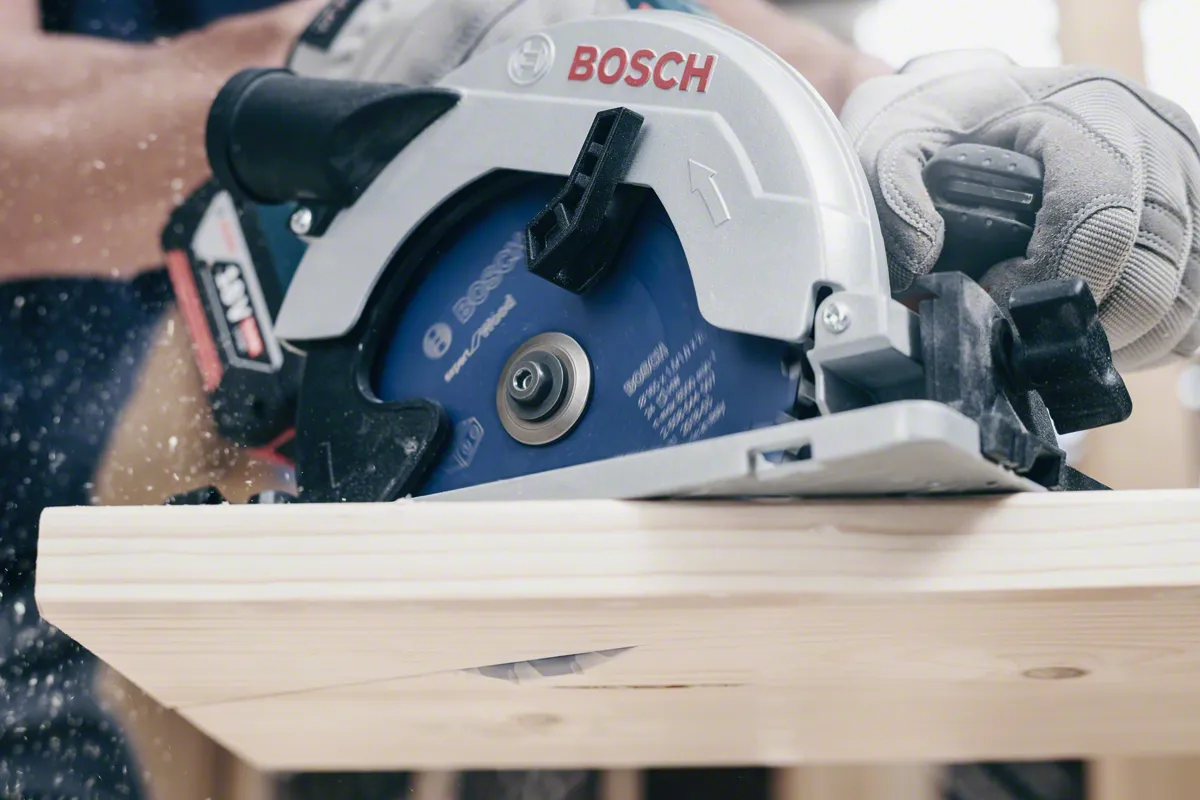

Expert for Wood Circular Saw Blade for cordless saws and dry-cutters maximises battery runtime
Available product options: 1
| Part number | Outer diameter mm | Bore size mm | Bore with reduction ring mm | Width of cut (b1) mm / Base bl. thickness (b2) mm | Pack quantity | ||
|---|---|---|---|---|---|---|---|
| 2 608 644 509 | 165 | 20 | 15.875 | 1.5/1 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608644509 | |
|---|---|

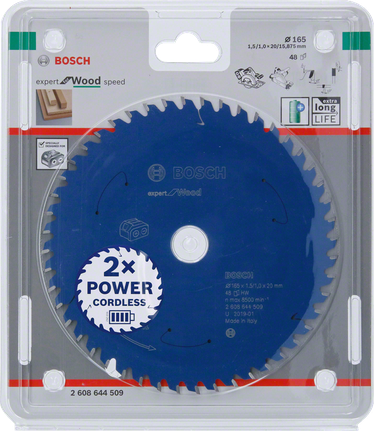

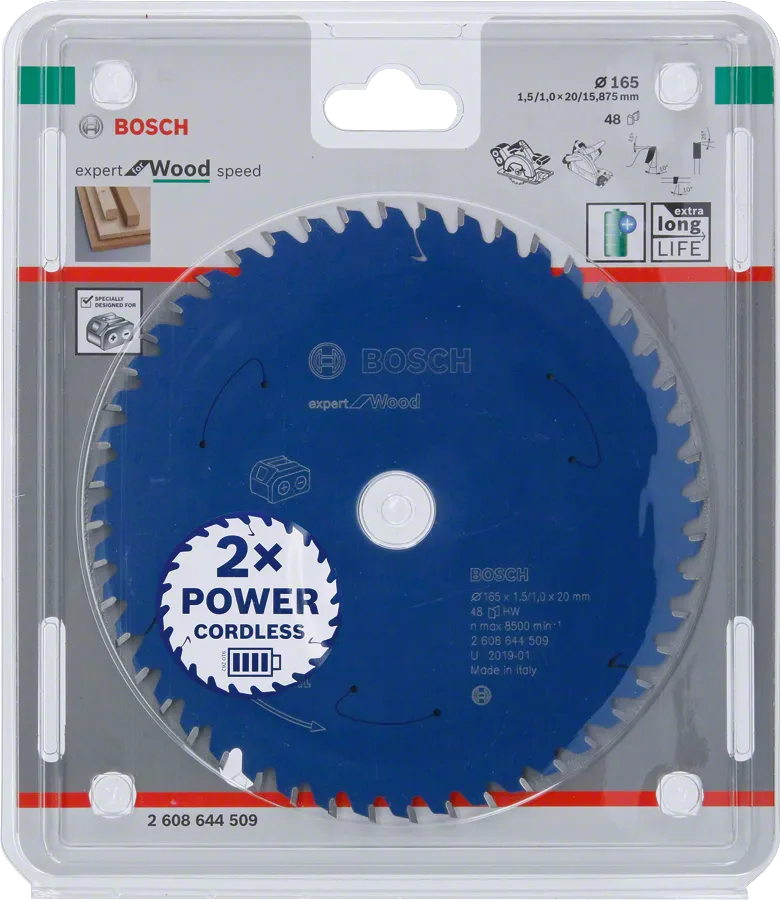

| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 15.875 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.5/1 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
