Shears

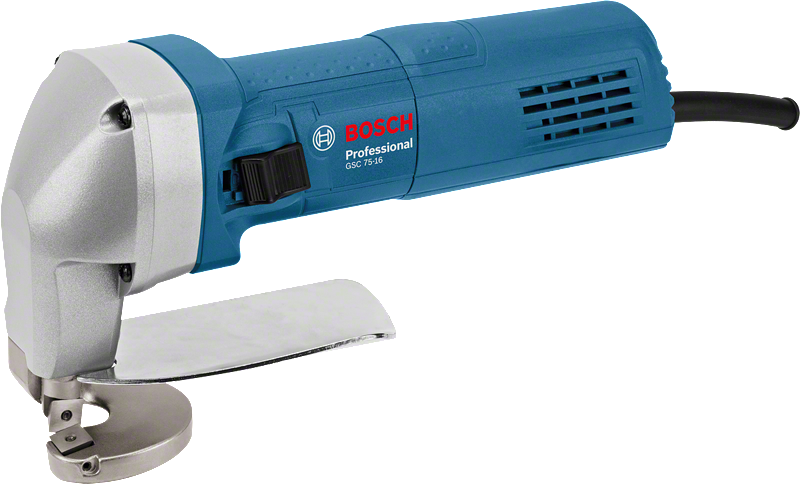

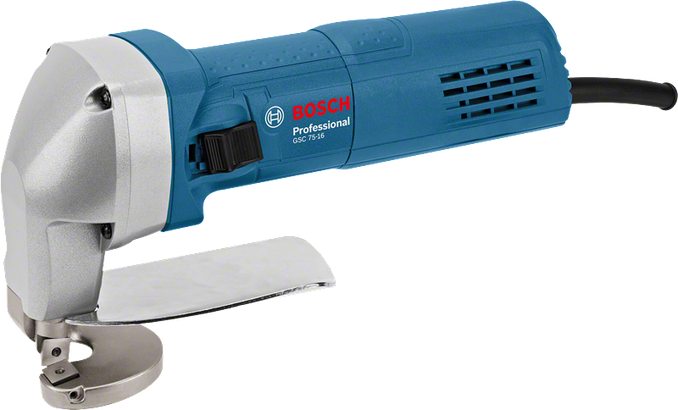

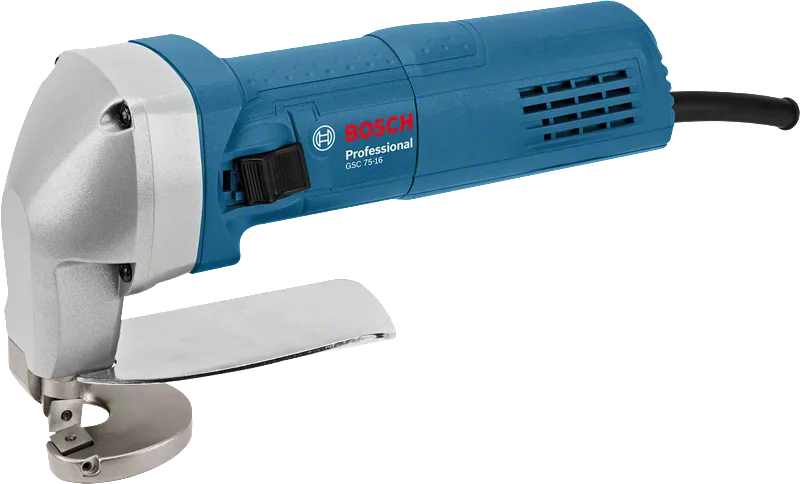

GSC 75-16 Professional

Shear

Powerful and handy for fast and comfortable cutting

  • Optimal tool guidance with a small grip circumference
  • High cutting speed with low exertion of force
  • Excellent manoeuvrability in curves

Your Selection

  • with hex key
Show variant
727,400.00 NGN
Recommended retail price including VAT

Currently not available online

Find a local dealer

with hex key 0 601 500 500
727,400.00 NGN
Recommended retail price including VAT

GSC 75-16 Professional

Your Selection

GSC 75-16
with hex key

Order number: 0 601 500 500

727,400.00 NGN
Recommended retail price including VAT
Find a local dealer

Included in this variant

  • Hex key WAF 3 (spare part number 1 907 950 004)
  • 1 x upper and lower blade for metal shear
    Order number: 2 608 635 243

Technical data

Additional data

Cutting capacity in steel (400 N/mm²), max. 1.6 mm
No-load stroke rate 5,200 spm
Voltage 230 V
Material that can be processed Steel up to 400 N/mm² at 1.6 mm
Smallest radius 35 mm
Stroke rate under load 4,000 spm
Weight 1.7 kg
Cutting capacity in steel (600 N/mm²), max. 1.2 mm
Cutting capacity in steel (800 N/mm²), max. 0.7 mm
Cutting capacity in aluminium (200 N/mm²), max. 2.2 mm
Show more
GSC 75-16

* You can find more information about the deviations in the following link: Technical features of products
