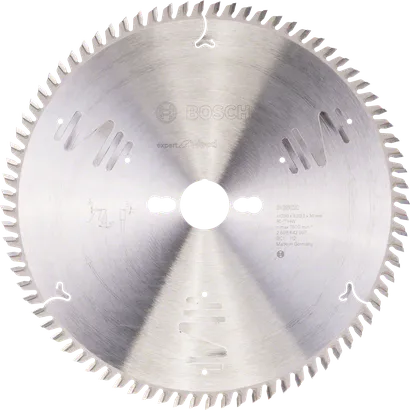

Expert for Wood Circular Saw Blade
For vertical panel sizing saws, For corded table saws
Perfect Reliable Cuts in Wood
- Perfect Reliable Cuts in Wood
- Extra Hard Dura Technology teeth are produced in-house by Bosch from highly durable carbide grains for high performance
- Anti-vibration slots for particularly smooth cutting, considerably less noise and significantly reduced vibration
- Expert for Wood Circular Saw Blades have ATB tooth geometry: high tooth count for clean results, low tooth count for solid
- Bore works with or without reduction rings to fit different sizes
Materials
Select options
Outer diameter mm
Select one option from the listed items below
Number of teeth
Select one option from the listed items below
Width of cut (b1) mm
Select one option from the listed items below
Choose a pack size
Select one option from the listed items below
Select options
Outer diameter mm 3 options
Number of teeth 3 options
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs
Expert for Wood Circular Saw Blade
Perfect Reliable Cuts in Wood
Perfect Reliable Cuts in Wood
- Anti-vibration slots for particularly smooth cutting, considerably less noise and significantly reduced vibration
- Expert for Wood Circular Saw Blades have ATB tooth geometry: high tooth count for clean results, low tooth count for solid
Product Options
Available product options: 4
Expand
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
Availability
|
|---|---|---|---|---|---|---|---|

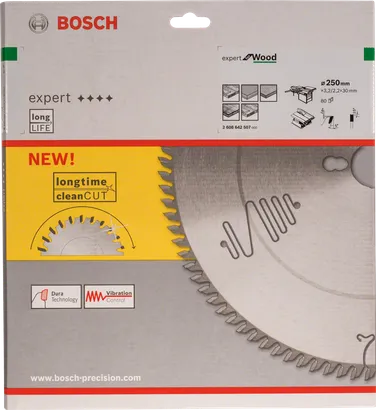

| 2 608 642 506 | 250 | 30 | 3.2/2.2 | 60 | 1 Pcs | Find a local dealer | |
| 2 608 642 507 | 250 | 30 | 3.2/2.2 | 80 | 1 Pcs | Find a local dealer | |
| 2 608 642 510 | 300 | 30 | 3.2/2.2 | 72 | 1 Pcs | Find a local dealer | |
| 2 608 642 513 | 350 | 30 | 3.5/2.5 | 72 | 1 Pcs | Find a local dealer |
out of products
Expert for Wood circular saw blade

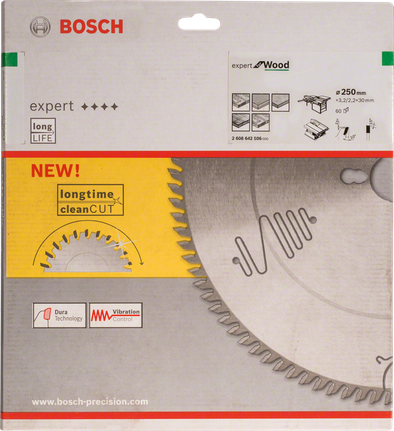

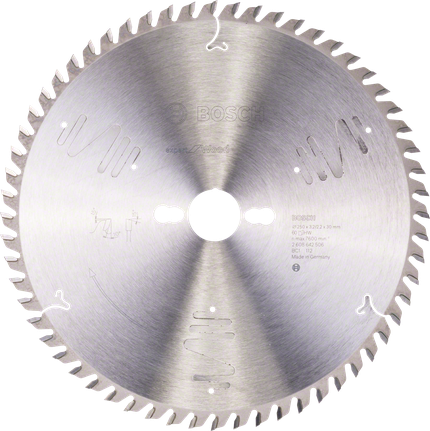

Part number 2608642506
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
250
Bore size mm
30
Width of cut (b1) mm / Base bl. thickness (b2) mm
3.2/2.2
Number of teeth
60
Tooth shape
ATB
Max. rotation speed (RPM)
7600
Cutting result
Fine Cut
Pin hole/Pitch circle diameter
2/7/42 / 2/9/46.4 / 2/10/60
Hook angle ° α
10
Relief angle ° β
15
Expert for Wood circular saw blade

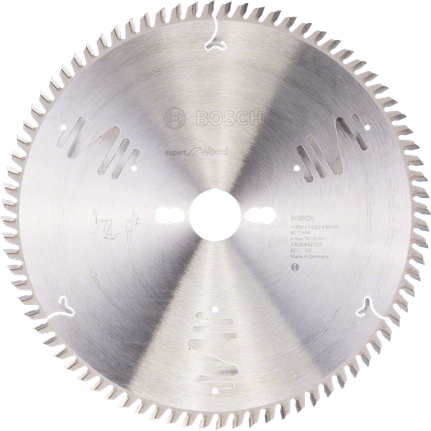

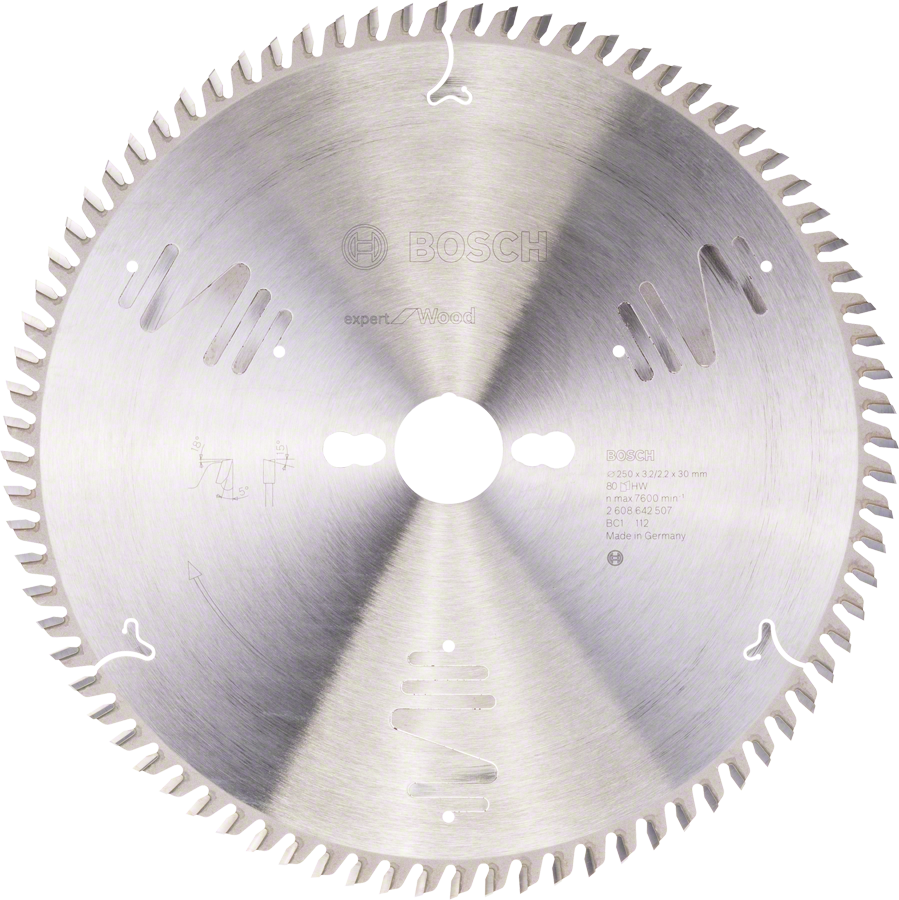

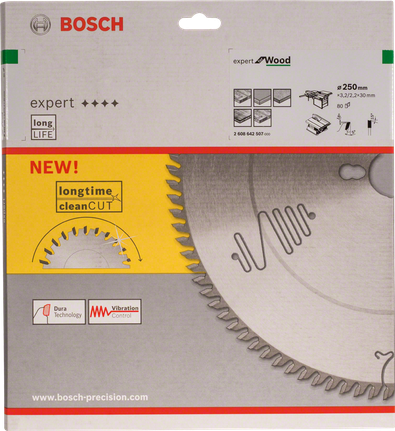

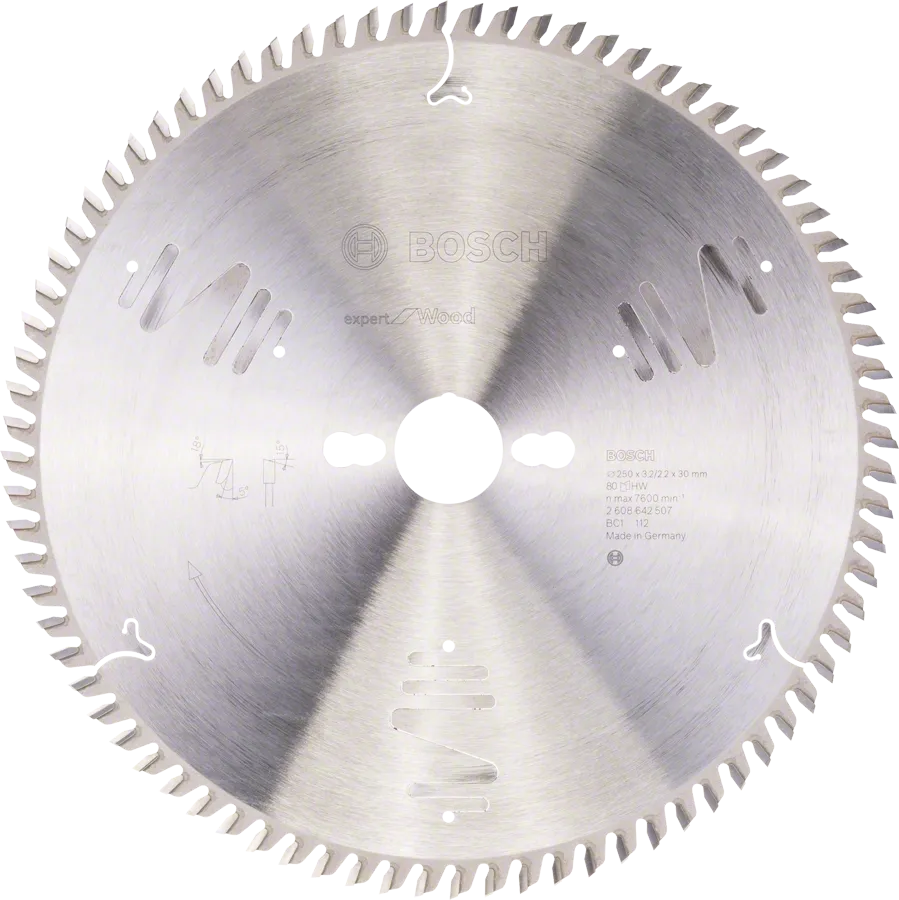

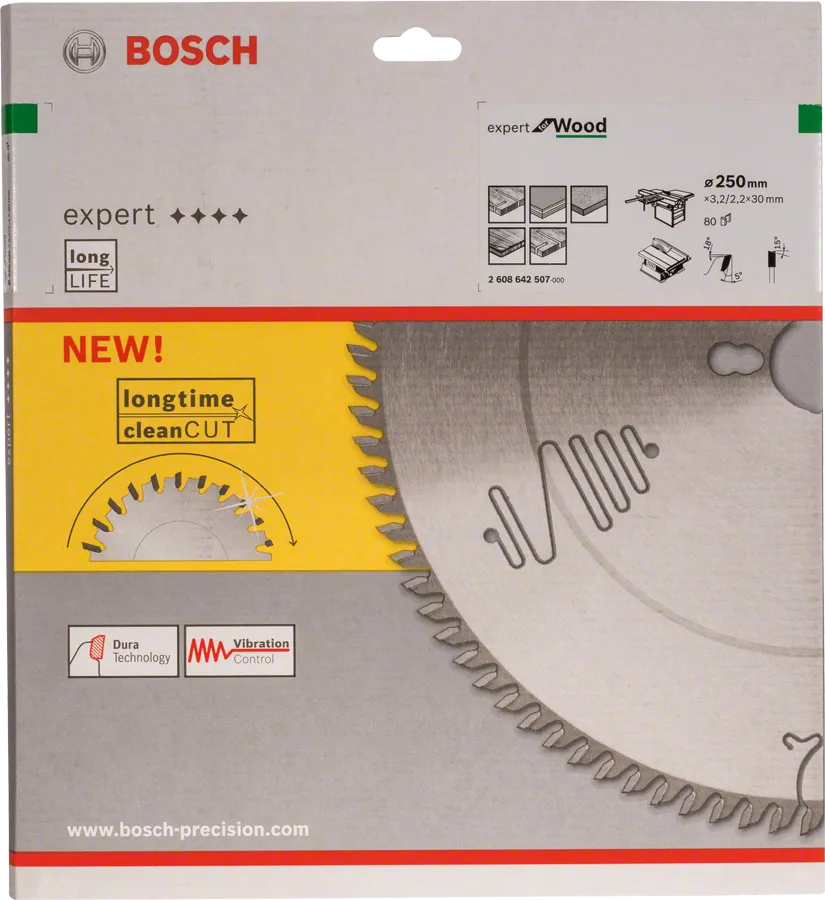

Part number 2608642507
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
250
Bore size mm
30
Width of cut (b1) mm / Base bl. thickness (b2) mm
3.2/2.2
Number of teeth
80
Tooth shape
ATB
Max. rotation speed (RPM)
7600
Cutting result
Fine Cut
Pin hole/Pitch circle diameter
2/7/42 / 2/9/46.4 / 2/10/60
Hook angle ° α
5
Relief angle ° β
18
Expert for Wood circular saw blade

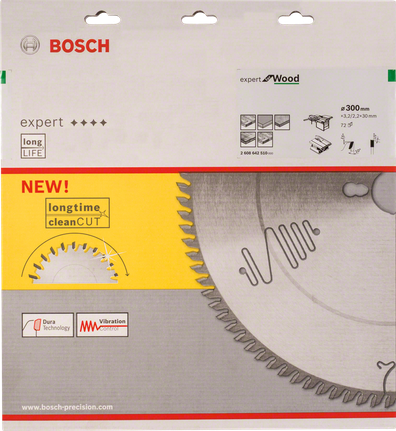

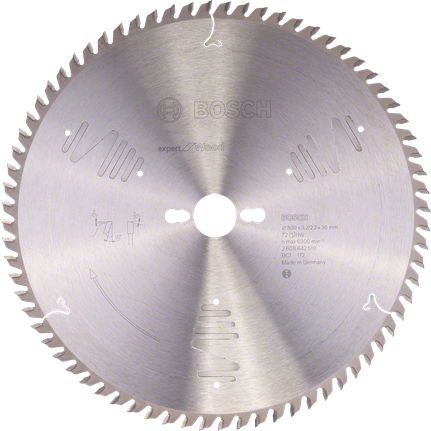

Part number 2608642510
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
300
Bore size mm
30
Width of cut (b1) mm / Base bl. thickness (b2) mm
3.2/2.2
Number of teeth
72
Tooth shape
ATB
Max. rotation speed (RPM)
6300
Cutting result
Fine Cut
Pin hole/Pitch circle diameter
2/7/42 / 2/9/46.4 / 2/10/60
Hook angle ° α
10
Relief angle ° β
15
Expert for Wood circular saw blade

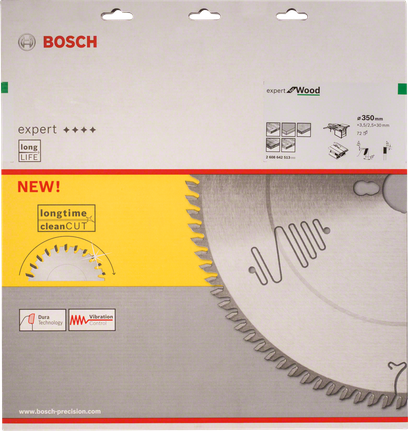

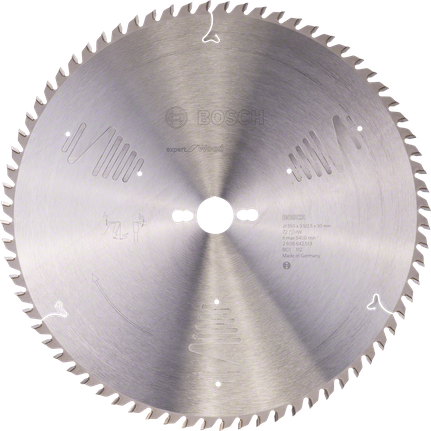

Part number 2608642513
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
350
Bore size mm
30
Width of cut (b1) mm / Base bl. thickness (b2) mm
3.5/2.5
Number of teeth
72
Tooth shape
ATB
Max. rotation speed (RPM)
5400
Cutting result
Fine Cut
Pin hole/Pitch circle diameter
2/7/42 / 2/9/46.4 / 2/10/60
Hook angle ° α
10
Relief angle ° β
15
