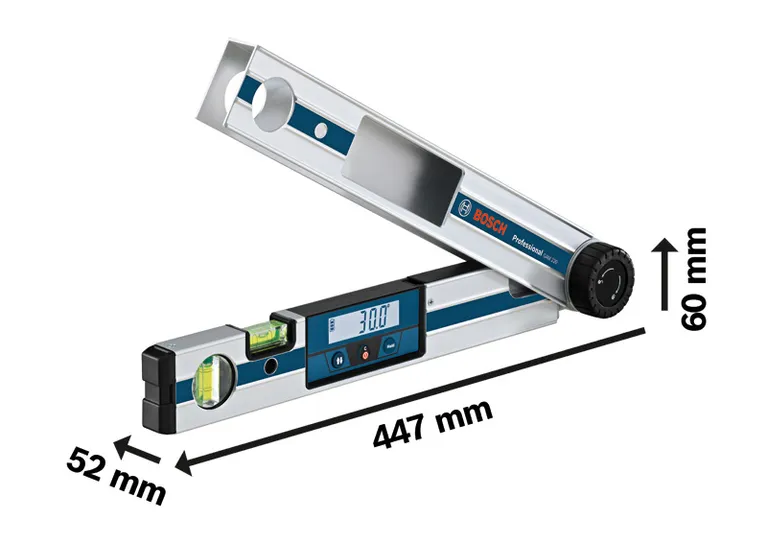

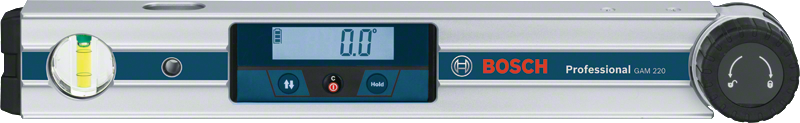

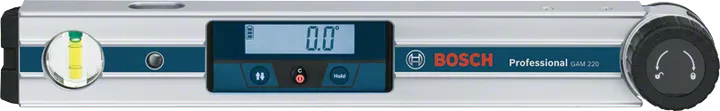

Angle Measurer GAM 220 Professional

Precise and easy angle measurement

91.00 OMR Recommended retail price excluding VAT

Technical data
Additional data
Measurement range 0 – 220°
Arm length 40   cm
Measurement accuracy, angles ± 0.1°
Measurement accuracy, vials ± 0.05°
Accuracy of angle calculation ± 0.1°
Power supply 4 x 1.5 V LR6 (AA)
Battery power, approx. 80   h
Automatic deactivation, approx. 30   min
Weight, approx. 1.3   kg


Precise and easy angle measurement

  • Fast and precise calculation of angles
  • Angles can be transferred precisely onto workpieces by means of a mechanical locking screw


Lock Function GAM Lock function for locking the angle measurer at a certain angle
Hold Hold function for intermediate storage of measured values
Flip Display Rotating readout on display
Display lighting Illuminated display
IP protection 54 Dust and splash protection IP54
Measuring accuracy of angles ± 0.1° Measuring accuracy ± 0.1°
Measuring range of angles 0°–220° Angle measuring range 0°-220°
What’s Included in this Package
with 4 x battery (AA)
with 4 x battery (AA)
Order number: 0 601 076 500
  • 4 x 1.5 V LR6 battery (AA)
91.00 OMR Recommended retail price excluding VAT

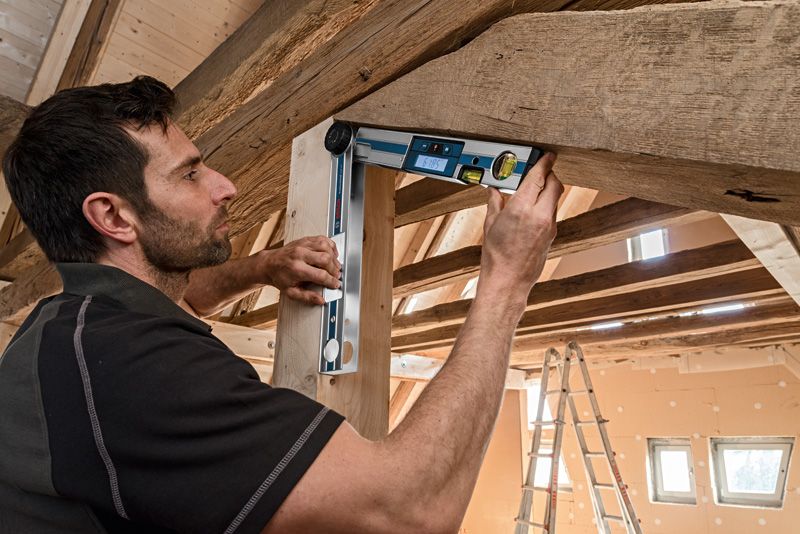

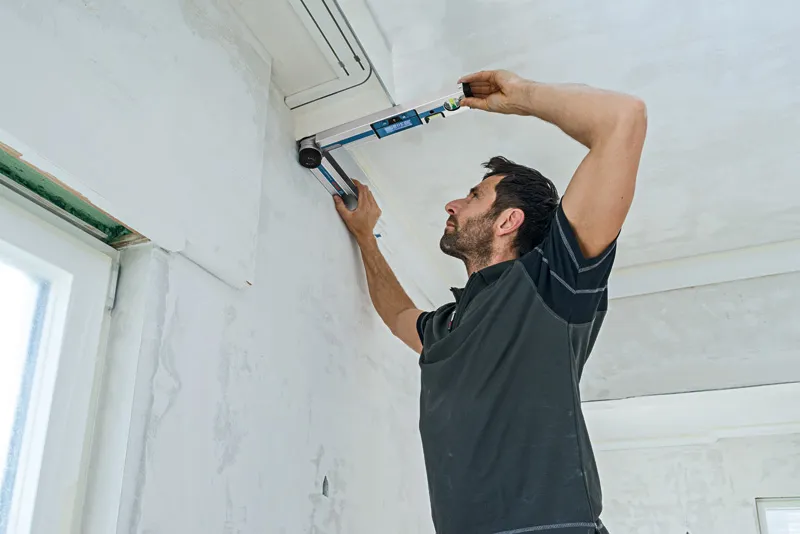

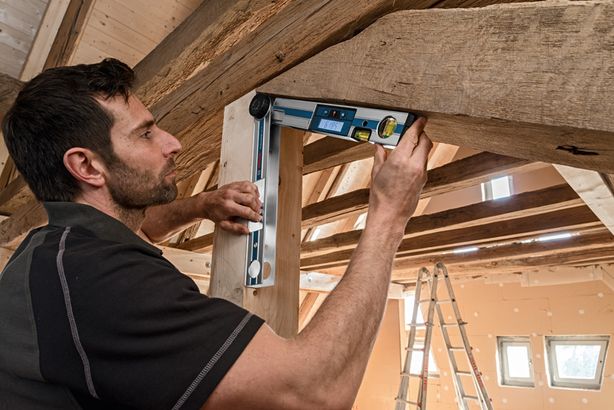

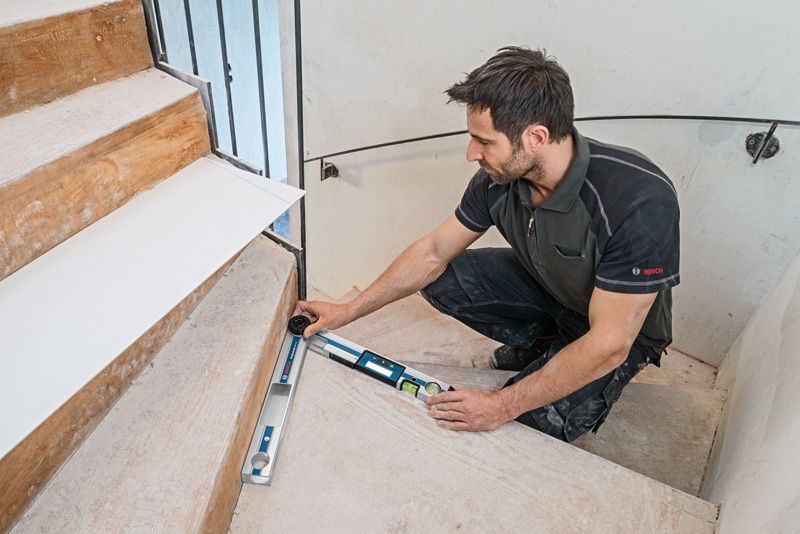

The GAM 220 in action!
