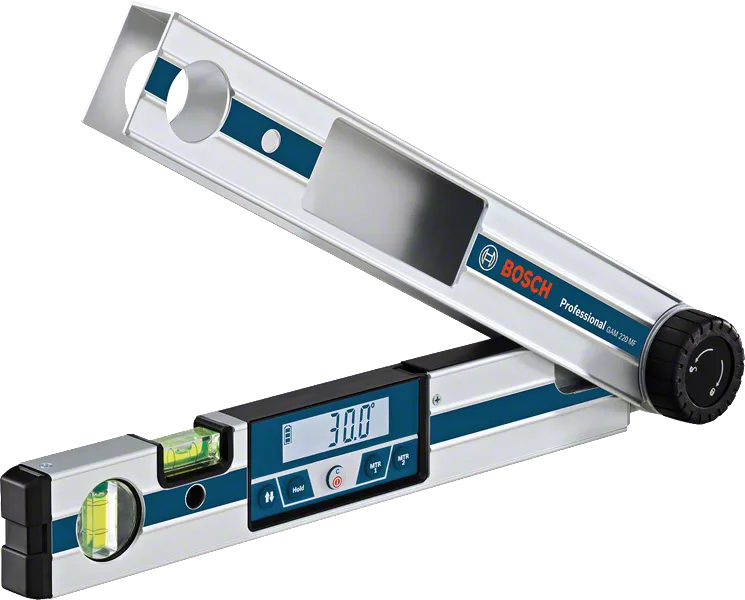

Bosch GAM 220 MF angle measurer with digital display.
GAM 220 MF
GAM 220 MF

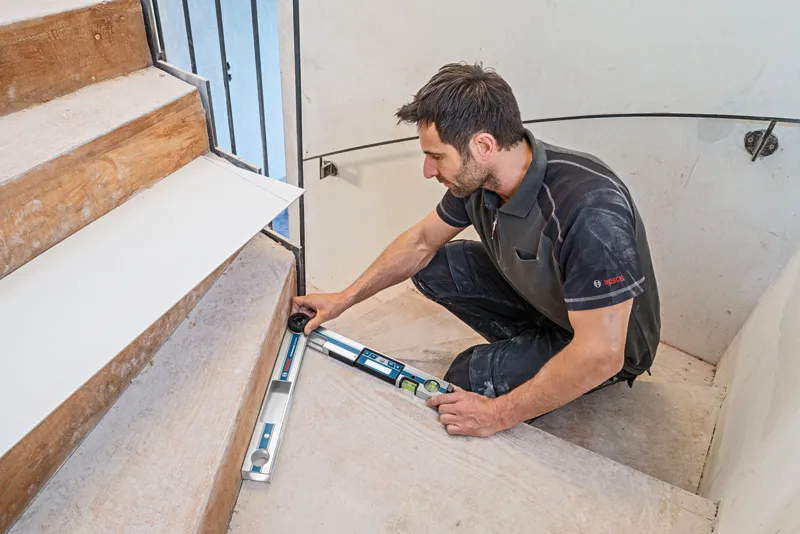

A person measures the angle of a staircase using an angle measurer.

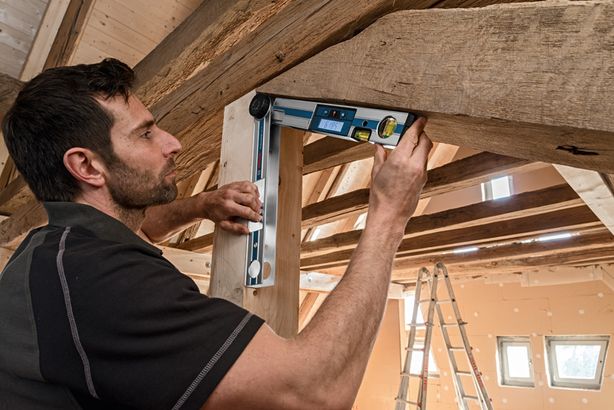

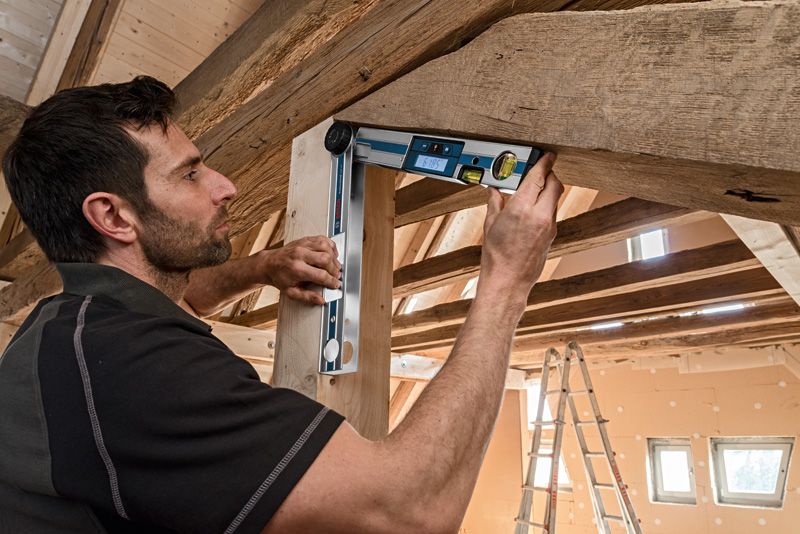

Person checks a wooden beam angle with a digital inclinometer under a timber roof.

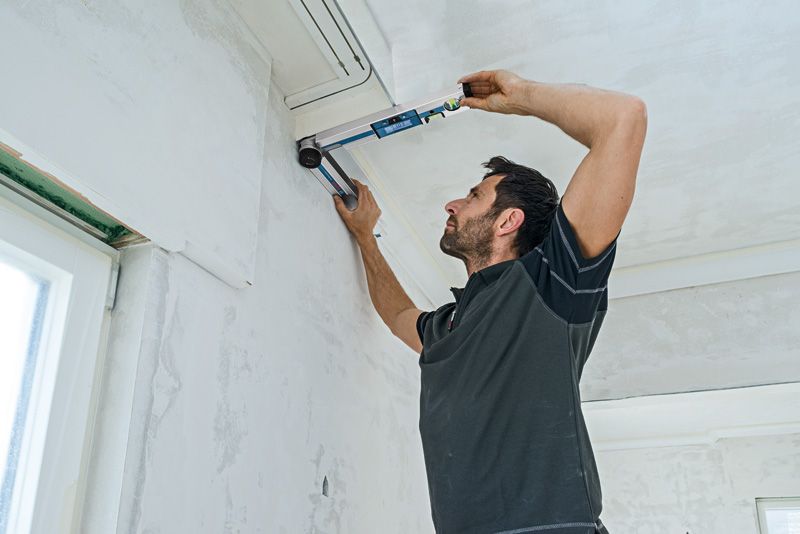

A person measures the angle between a wall and ceiling using an angle measurer.

GAM 220 MF Professional

Angle Measurer

Fast calculation of mitre angles

  • Rapid calculation and transfer of angles by means of memory function for frequently used angle dimensions
  • Automatic calculation of single and double mitre angles without any other tools

Functions & key features

Backlit display
MTR1/MTR2
GAM Lock
IP54 protection
Flip display

Your Selection

  • with 4 x battery (AA), accessory set
Show variant Find a local dealer

with 4 x battery (AA), accessory set 0 601 076 600

GAM 220 MF Professional

Your Selection

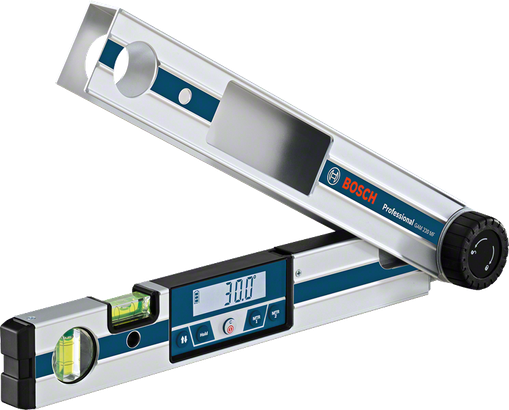

Bosch GAM 220 MF angle measurer with digital display.
with 4 x battery (AA), accessory set

Order number: 0 601 076 600

Find a local dealer

Included in this variant

  • Protective Bag
  • Leg extension
  • 4 x 1.5 V LR6 battery (AA)

Technical data

Additional data

Measurement range
0° - 220°
Arm length
40 cm
Measurement accuracy, angles
± 0.1°
Measurement accuracy, vials
± 0.05°
Accuracy of angle calculation
± 0.1°
Power supply
4 x 1.5 V LR6 (AA)
Battery power, approx.
80 h
Automatic deactivation, approx.
30 min
Weight, approx.
1.2 kg

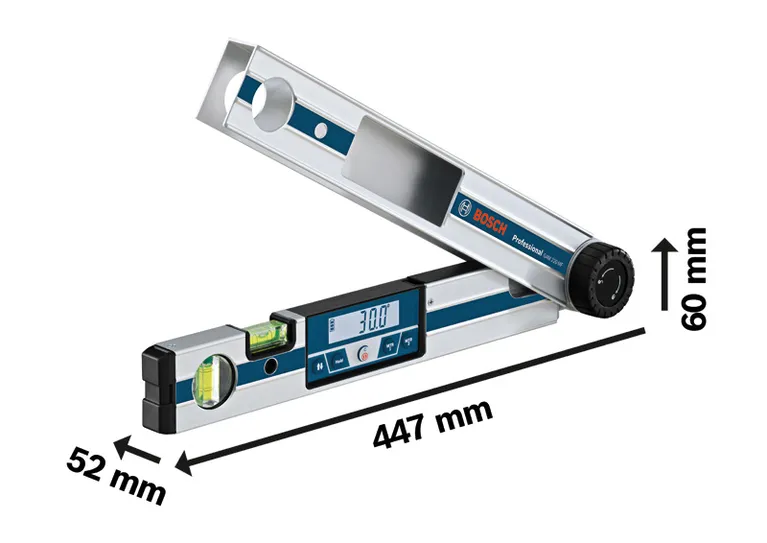

Dimensional diagram

* You can find more information about the deviations in the following link: Technical features of products
