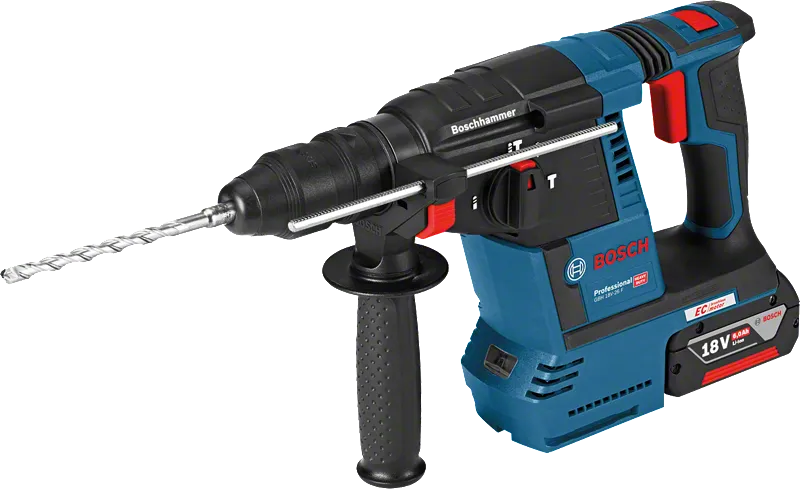

Cordless Rotary Hammer with SDS plus GBH 18V-26 F Professional

More power, more comfort and less dust

Technical data
Additional data
Battery voltage* 18 V
Max. impact energy* 2.6 J
Impact rate at rated speed 0 – 4,350 bpm
Rated speed 0 – 890 rpm
Tool holder SDS plus
Drilling range
Drilling dia. in concrete with hammer drill bits* 4 – 26 mm
Opt. app. range in concrete with hammer drill bits 8 – 16 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 30 mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 13 m/s²
Uncertainty K 1.5 m/s²
Total vibration values (Drilling in metal)
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²
Total vibration values (Screwdriving)
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 91 dB(A); Sound power level 102 dB(A). Uncertainty K= 3 dB.

Advantages

More power, more comfort and less dust

  • 50% more power with the impact force of a corded tool for fast, versatile use (compared to predecessor GBH 18 V-EC)
  • Increased user protection with KickBack Control (KBC) and better control with Electronic Precision Control (EPC)

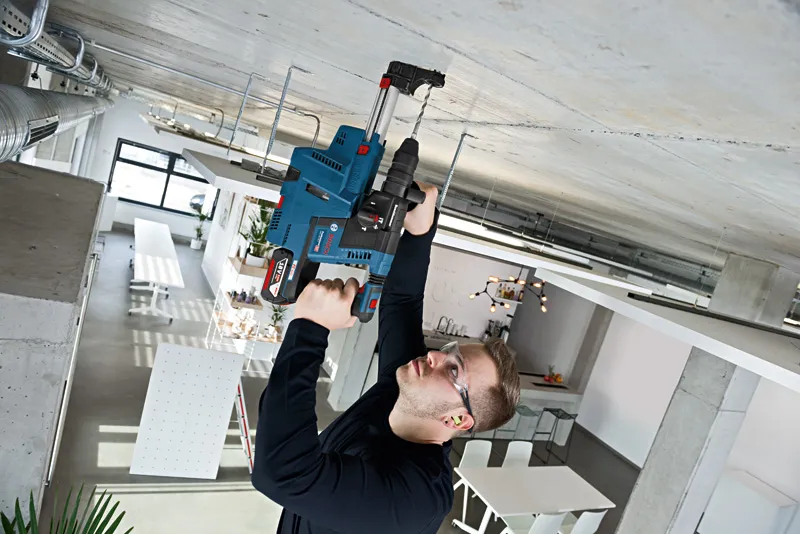

  • Drill without dust thanks to the new integrated, optional GDE 18V-16 dust extraction system

Functions

Longer motor life - more runtime - more power thanks to brushless motor
Auxiliary handle
No self-discharge, no memory effect and a higher energy density thanks to Li-Ion battery technology
Optimal power transmission for small hammers
Optimal protection of the cells against excessive heat due to special, heat conductive housing
Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
Enhanced tool control for superior results in delicate materials even with impact - thanks to performance adjustment with slow ramp-up and reduced maximum performance
Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
Long motor lifetime Long motor lifetime because motor shuts off when overloaded, overheated or blocked
Forward / reverse rotation for inserting and removing screws
Battery charge level indicator shows the level of remaining battery charge
Icon
Comfortable handling of the tool thanks to softgrip

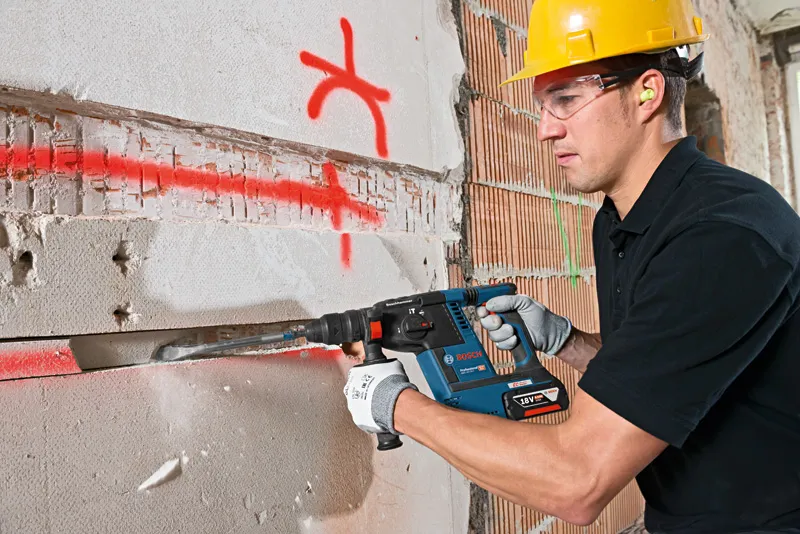

Combi hammer with chisel function No rotary motion; impact effect only
Convenient change of accessories Keyless chuck opens and closes easily
Convenient adjustment of the chisel position enabling you to adapt it to each work situation
Easy and precise control of the RPM thanks to variable speed
Best work results with constant speed thanks to electronic regulation of speed - even under load
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor

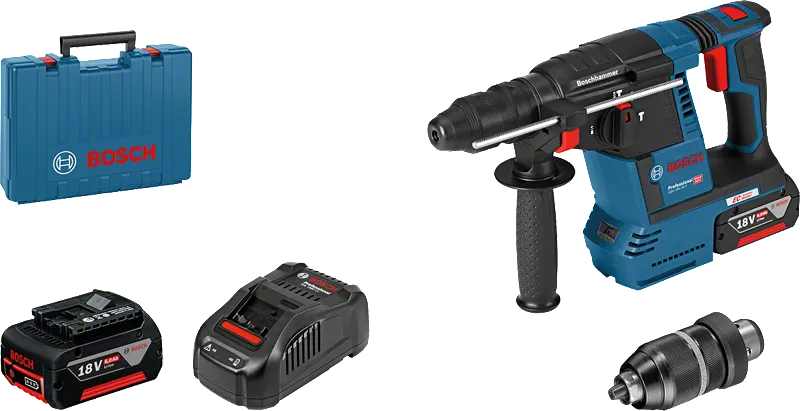

What’s Included in this Package *
in cardboard box with accessory set
in cardboard box with accessory set
Order number: 0 611 910 000
  • Auxiliary handle 2 602 025 141
  • Cardboard box
  • Depth stop 210 mm 1 613 001 010
  • Machine cloth
  • Quick change chuck 13 mm 2 608 572 212
  • SDS plus quick-change chuck 2 608 572 213

* Battery and charger not included

Product variations (2)

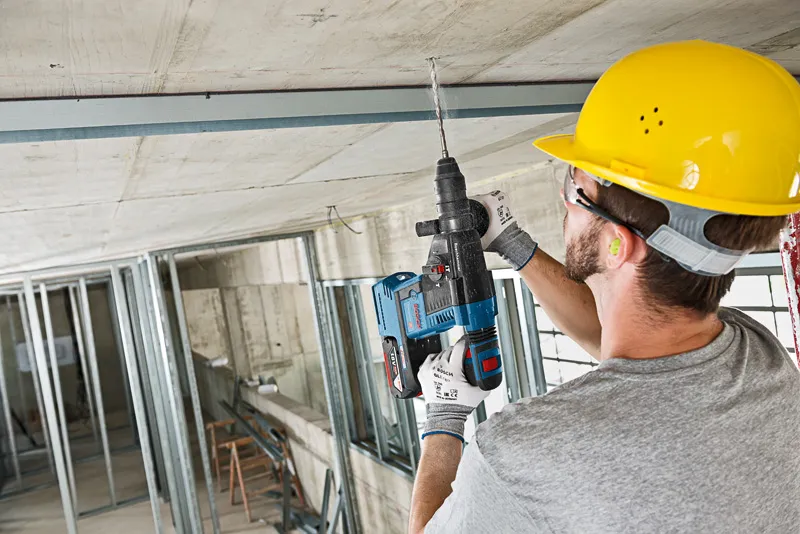

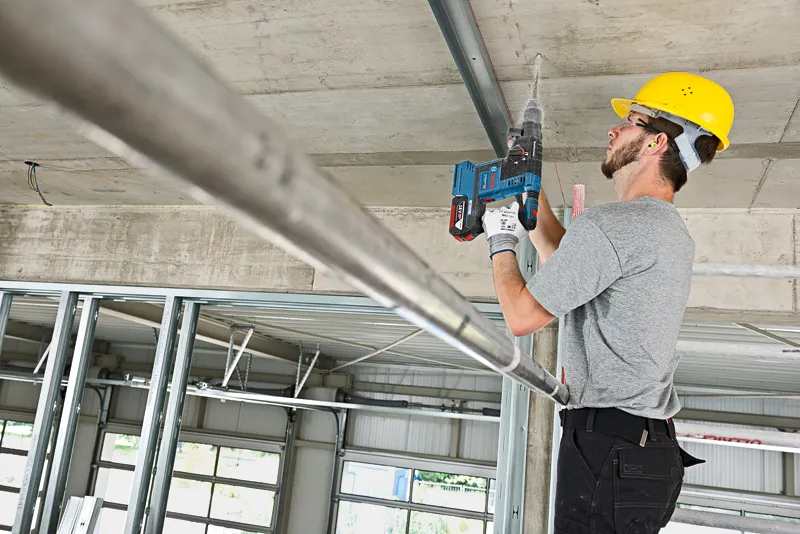

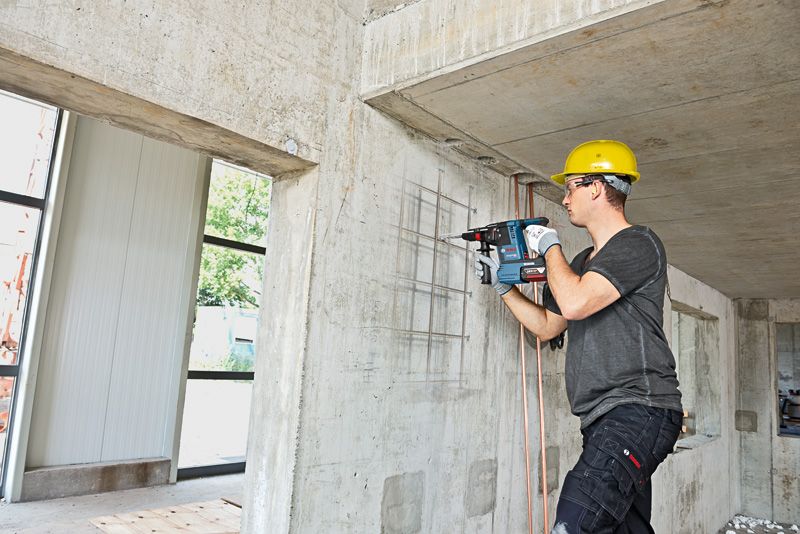

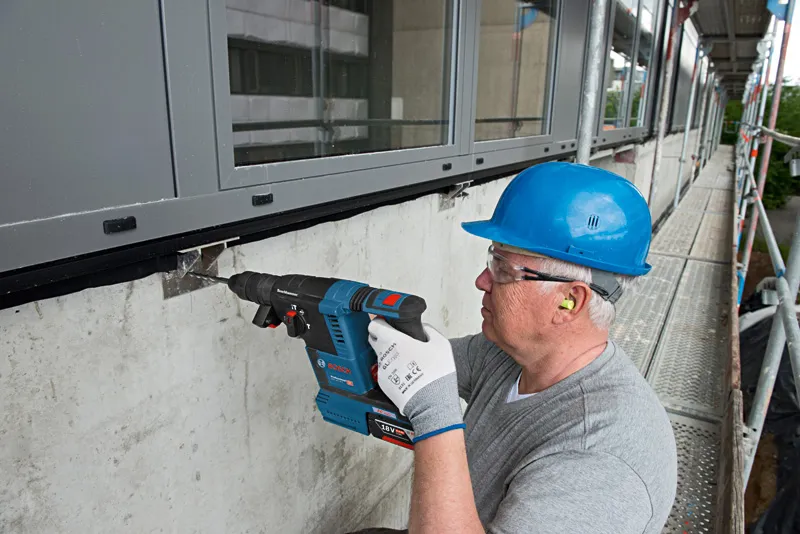

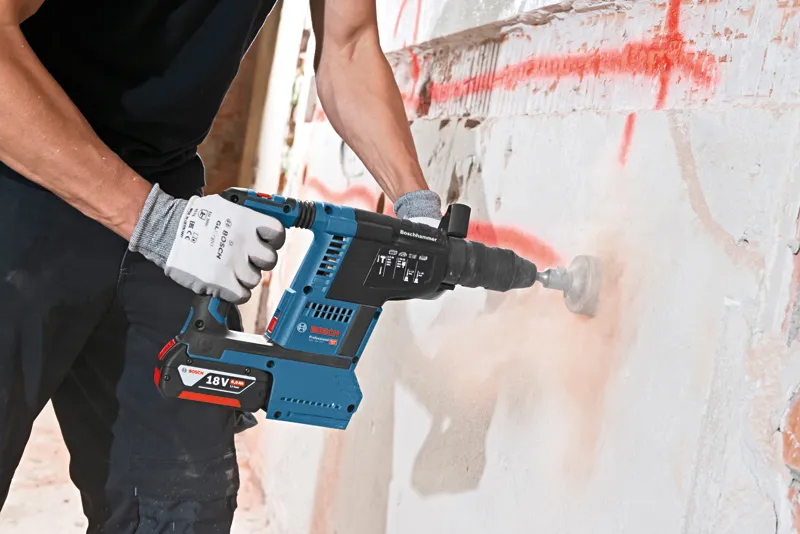

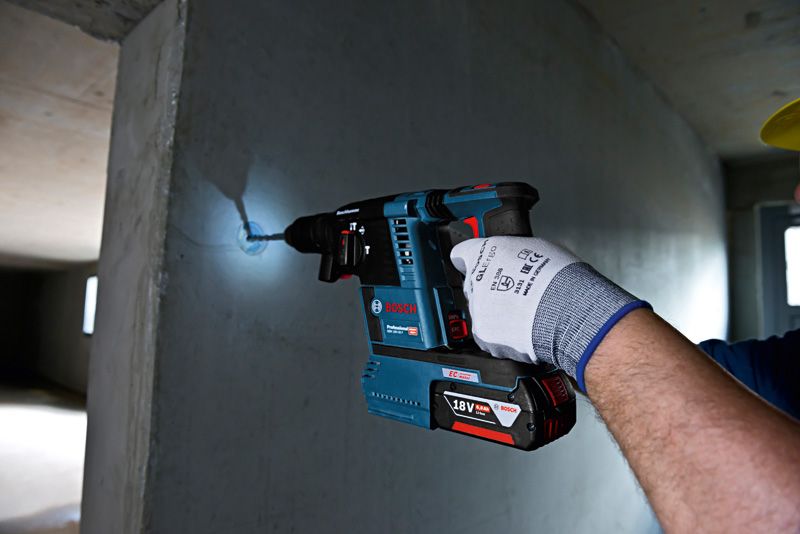

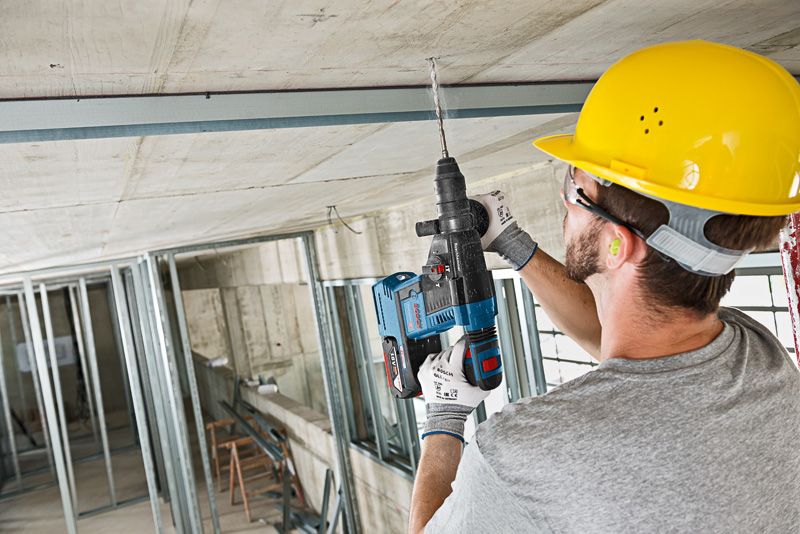

The GBH 18V-26 F in action!
