Combi Laser GCL 2-15 Professional

Compact and versatile for short-distance levelling applications

from  75.00 OMR Recommended retail price excluding VAT.

Technical data
Additional data
Working range* up to 15   m
Accuracy* ± 0.3 mm/m* (*plus use-dependent deviation)
Laser diode 630 – 650 nm, < 1mW
Operating temperature -10 – 50   °C
Storage temperature -20 – 70   °C
Laser class 2
Working range of laser points, max. 10 m (top), 10 m (bottom)
Self-levelling range* ± 4°
Levelling time 4   s
Dust and splash protection IP 54
Power supply 3 x 1.5 V LR6 (AA)
Operating time (max.) 6 h in cross line and point mode, 8 h in cross line mode, 12 h in line and point mode, 16 h in line mode, 22 h in point mode
Tripod thread 1/4", 5/8"

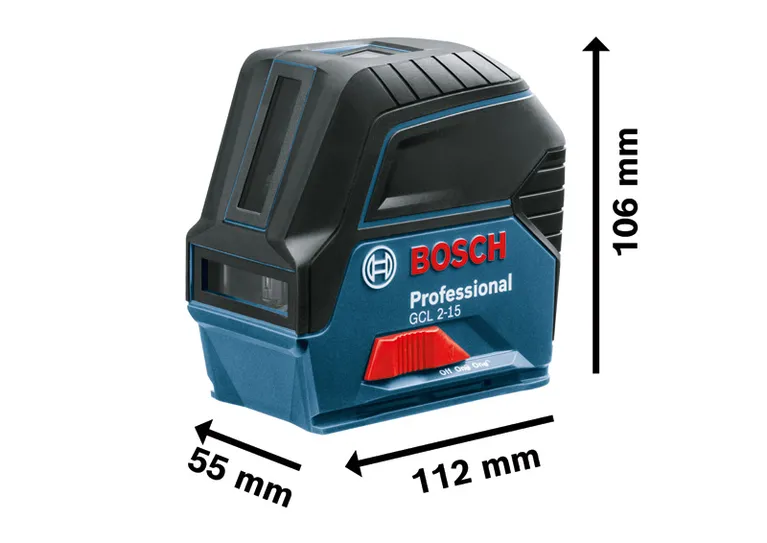

Weight, approx. 0.49   kg
Colour of laser line red

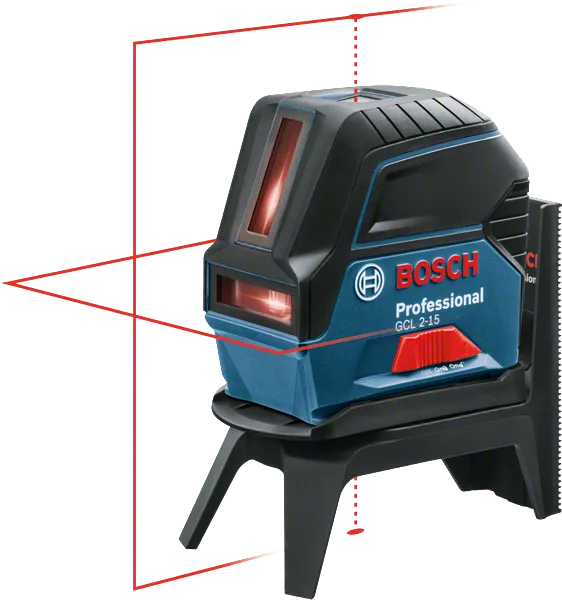

Projection 2 lines / 2 points
Plumb point accuracy ± 0.7 mm/m* (*plus use-dependent deviation)

* Highlighted Data

Advantages

Compact and versatile for short-distance levelling applications

  • Both horizontal and vertical lines are perfect for short-distance levelling applications
  • Enjoy precise transfer applications thanks to two centred plumb points

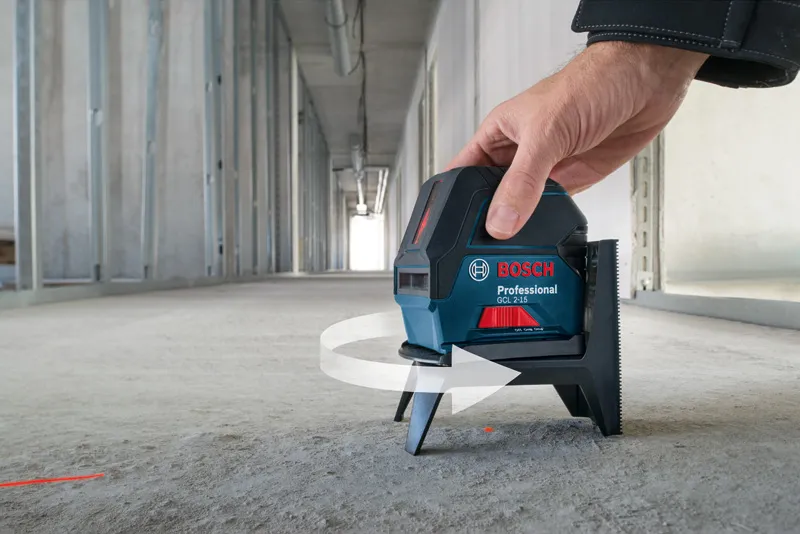

  • Rotating mount RM 1 Professional allows laser lines to be easily positioned around the plumb points

Functions

Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon

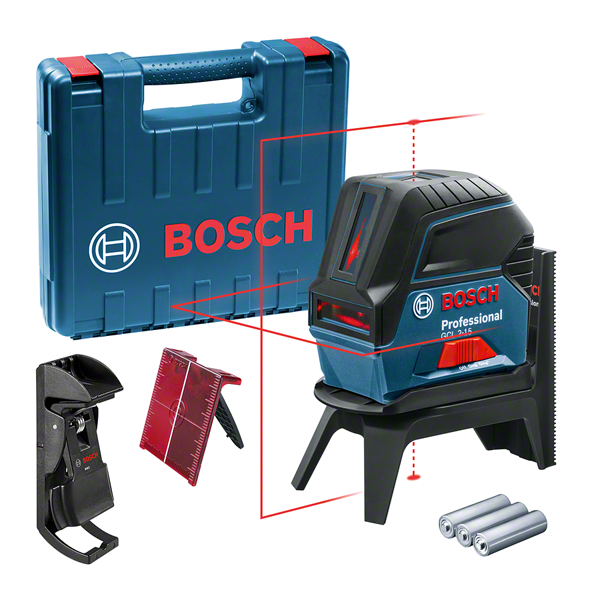

What’s Included in this Package
in carrying case with 3 x battery (AA), clamp
in carrying case with 3 x battery (AA), clamp
Order number: 0 601 066 E02
  • Carrying case 1 608 M00 C1R
  • Ceiling clamp
  • 1/2 L-BOXX inlay for tool 1 608 M00 C1S
  • Laser target plate

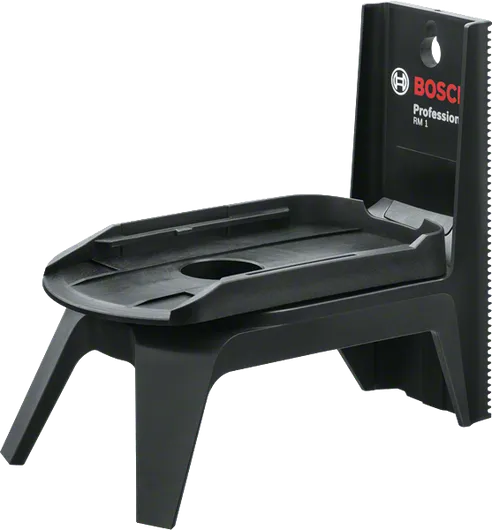

  • Rotating mount RM 1 Professional 0 601 092 600
  • 3 x 1.5 V LR6 battery (AA)
75.00 OMR Recommended retail price excluding VAT.

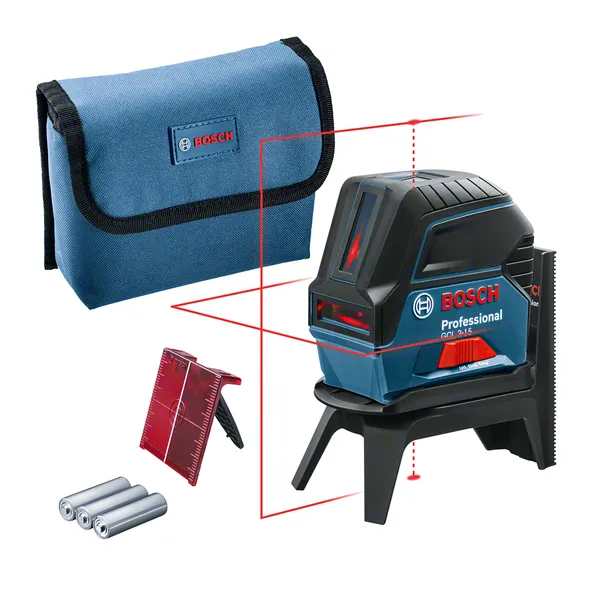

Product variations (2)

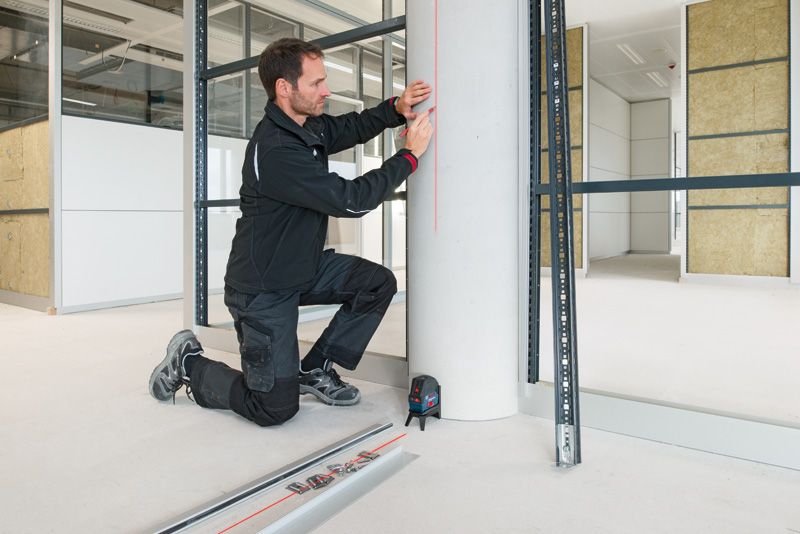

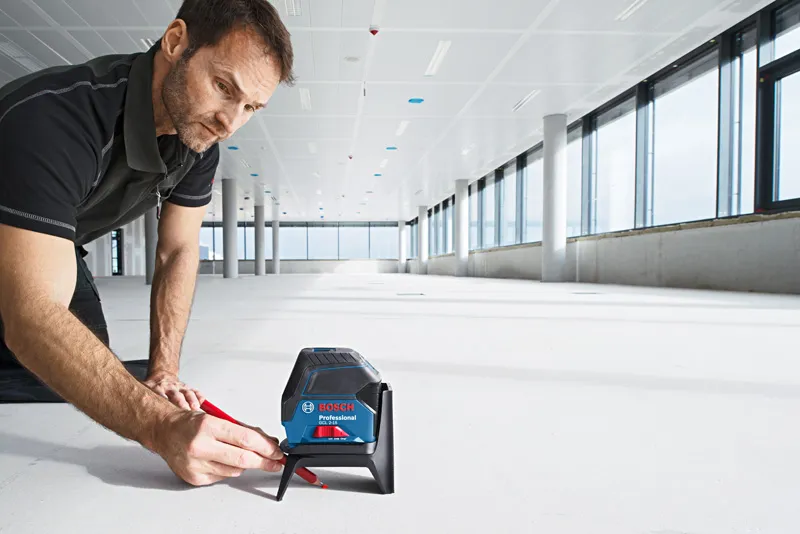

The GCL 2-15 in action!
