Combi Laser GCL 25 Professional

The easy solution for all levelling and transfer jobs over short distances

from  151.00 OMR Recommended retail price excluding VAT

Technical data
Additional data
Accuracy Laser lines and horizontal point beams: ± 0.3 mm/m* ; Vertical point beams: ± 0.5 mm/m* (*plus use-dependent deviation)
Projection 2 lines / 5 points
Operating temperature -10 – 50   °C
Storage temperature -20 – 70   °C
Laser diode 630 – 650 nm, < 1mW
Laser class 2
Self-levelling range ± 4°
Levelling time 4   s
Dust and splash protection IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 30 h
Tripod thread 1/4", 5/8"
Weight, approx. 0.6   kg

Advantages

The easy solution for all levelling and transfer jobs over short distances

  • Extremely versatile: cross line laser and five-point laser in one
  • Easy to operate using intuitive user interface
  • Compact and ergonomic design

Functions

Line configuration
Laser class 2
IP54 dust and splash water protection
Tripod mount for 5/8" and 1/4" tripod thread
Power supply 4 x AA battery
Laser class 2 Laser class for measuring tools.
Working range in cross mode Range of up to 10 m
Working range in point mode Range of up to 30 m

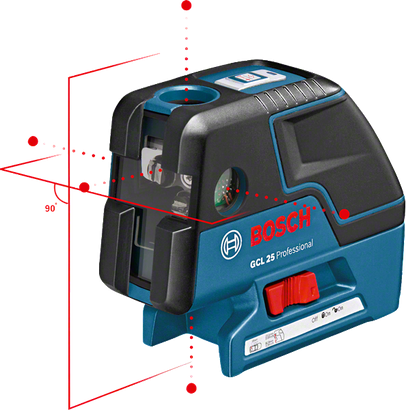

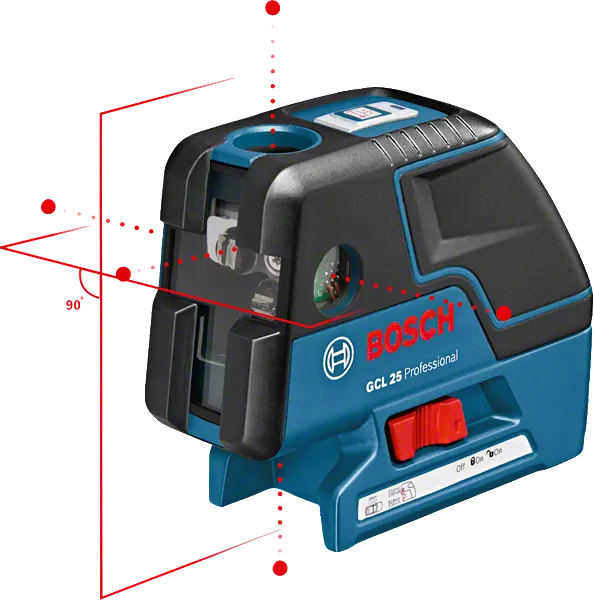

GCL 25 Accurate alignment due to cross line and five-point laser

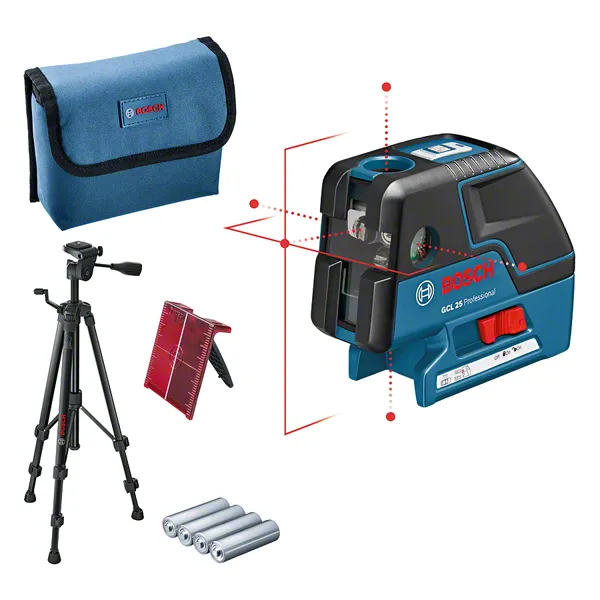

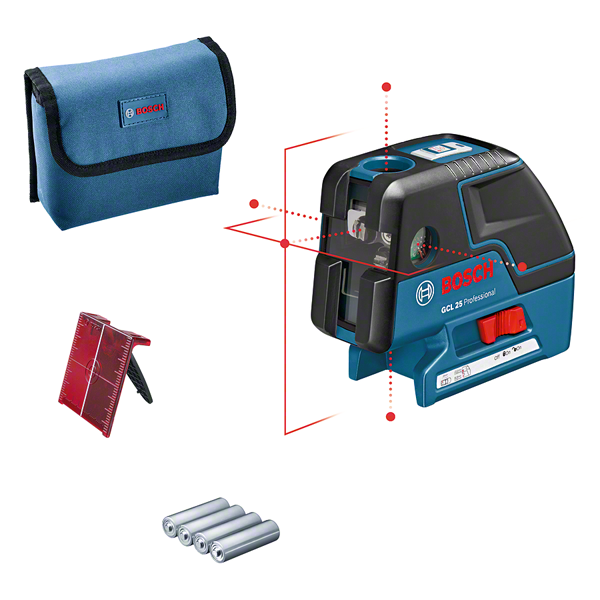

What’s Included in this Package
with 4 x battery (AA), laser target plate
with 4 x battery (AA), laser target plate
Order number: 0 601 066 B00
  • Laser target plate
  • L-BOXX inlay for tool
  • Protective Bag
  • 4 x 1.5 V LR6 battery (AA)
151.00 OMR Recommended retail price excluding VAT
Product variations (2)

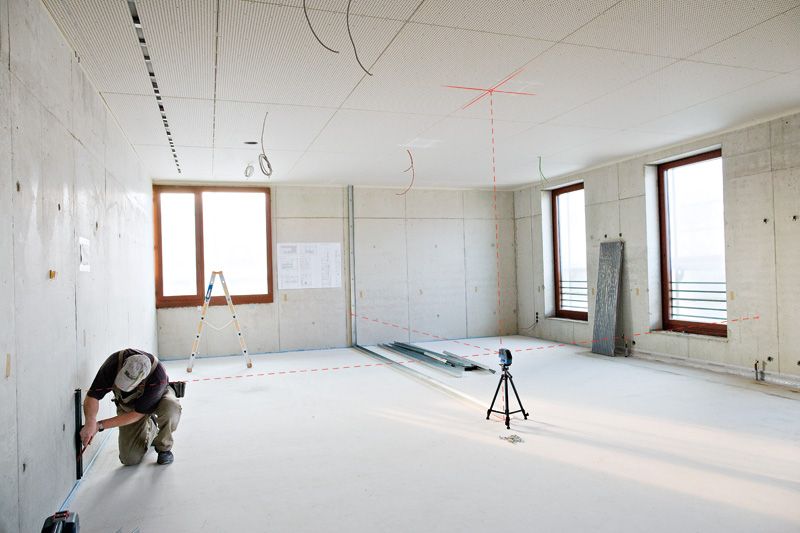

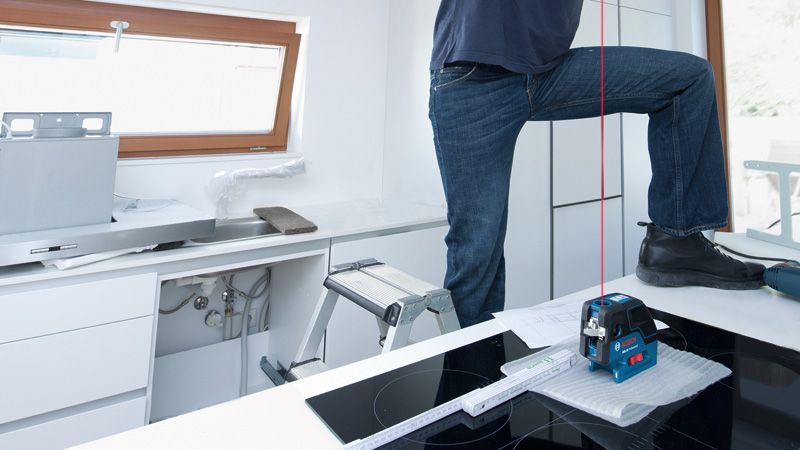

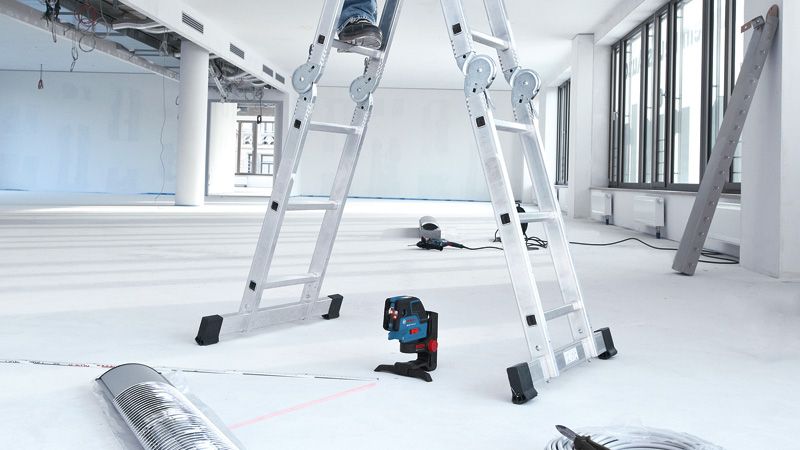

The GCL 25 in action!
