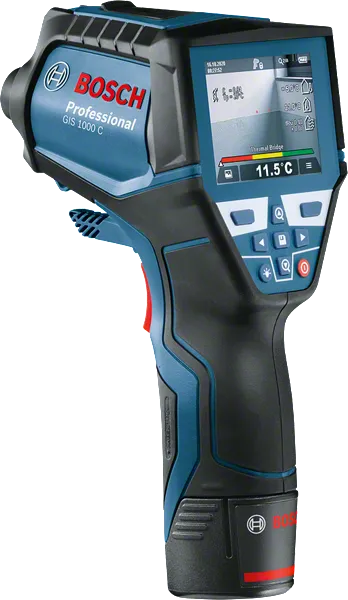

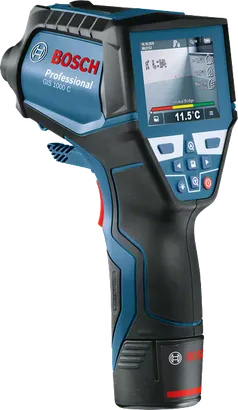

Thermo Detector GIS 1000 C Professional

Accurate measurements and recordings of surface temperature and ambient conditions

Technical data
Additional data
Measurement range* -40 °C … +1000 °C
Measuring accuracy of IR* ±1.0 °C
Optics (Ratio of meas. distance : meas. spot)* 50:1
Measuring distance 50
Measuring spot 1
Resolution 0.1 °C
Measuring accuracy of relative humidity ± 2 %
Laser diode Laser class 2, 635 nm
Frame buffer (number of images) >200
Memory type Internal memory
File format of image .jpg
Data transfer MicroUSB, Bluetooth™, Bluetooth™ Smart
Shock protection 1 m
Weight 0.56 kg
Supported Android devices Smartphone with Android 4.0 or higher, Tablet with Android 4.0 or higher
Supported iOS devices iPad (3rd Gen. or higher), iPad Air (1st Gen. or higher), iPad mini (1st Gen. or higher), iPhone 4S or higher
Display type TFT LCD
Size of display 2,8"
Operating temperature, from -10 °C
Operating temperature, up to 50 °C
Operating temperature -10 – 50°C °C
Storage temperature, from -20 °C
Storage temperature, up to 70 °C
Storage temperature -20 – 70°C °C
Working range, from 0.1 m
Working range, up to 5 m
Working range 0.1 – 5 m

* Highlighted Data

Advantages

Accurate measurements and recordings of surface temperature and ambient conditions

  • Integrated camera instantly shows and documents measured values in photos

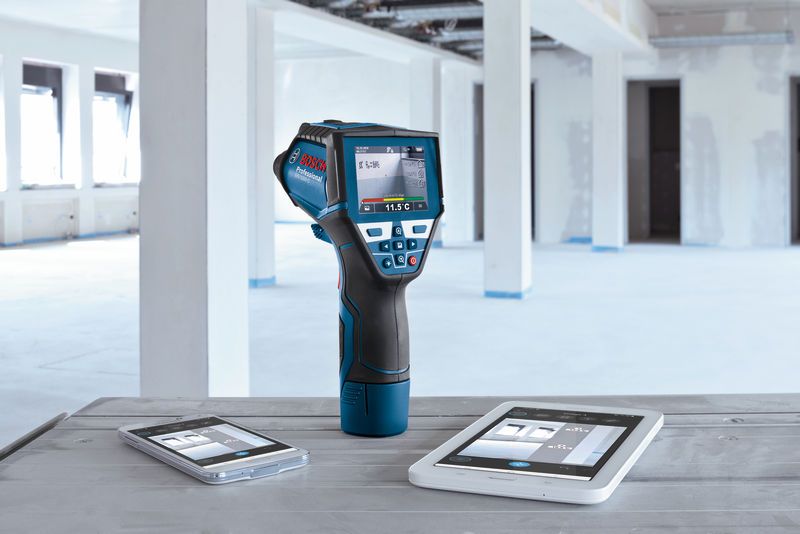

  • Transfers data via Bluetooth® with the Measuring Master App for easy storage and sharing of high-quality documentation
  • Dual Power Source technology allows for use with both a 12 V Li-ion battery or standard alkaline batteries

Functions

Accuracy of ambient temp. Accuracy of ambient temperature ± 1.0°C
D:S Distance:spot ratio = 50:1
Accuracy of surface temp. Measuring accuracy of ± 1.0°C

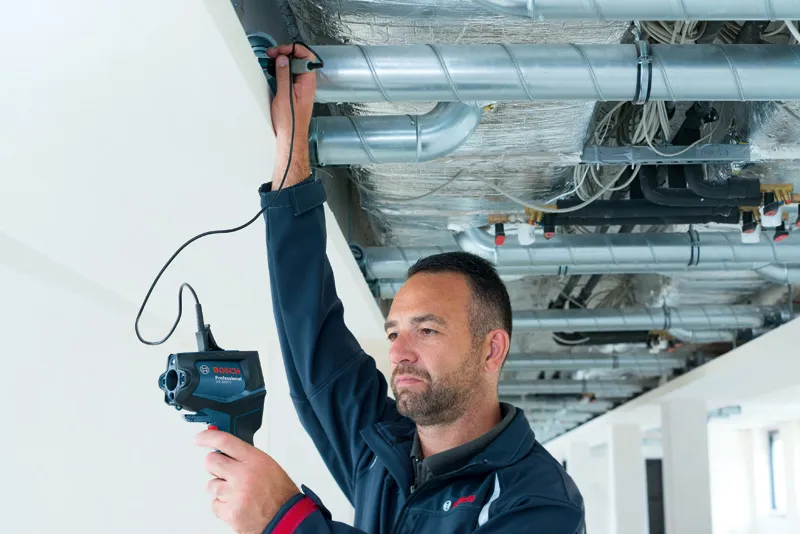

K-Type ready K-type connection for measuring temperature using a probe
Picture Camera for storing and documenting the measuring results directly in the picture.
RH Sensor Accuracy of RH sensor ± 2%
Measuring range Measuring range of –40 to +1000 °C
35-minute charger 1130 CV Battery fully charged after only 35 mins
Battery pack 10.8 V-LI Can be operated with 10.8 V-LI battery
L-BOXX ready L-BOXX ready
Dual Power Can be powered both by 10.8 V LI rechargeable battery and by standard alkaline batteries
Measuring Master Available for Android and iOS
Icon
Icon

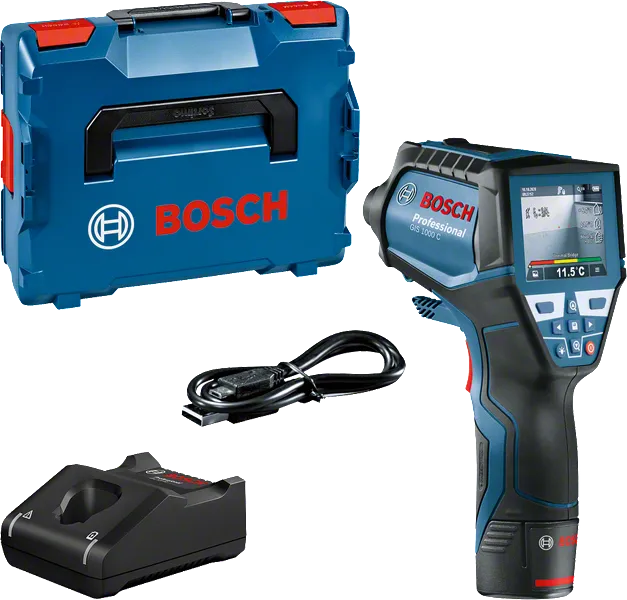

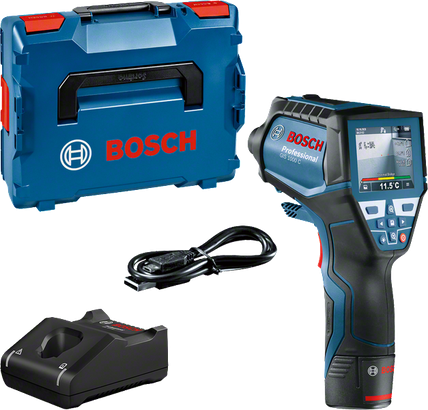

What’s Included in this Package
in L-BOXX with 1 x 1.5 Ah Li-ion battery, Quick-start card
in L-BOXX with 1 x 1.5 Ah Li-ion battery, Quick-start card
Order number: 0 601 083 301
  • L-BOXX 136 1 600 A00 1RR
  • 1 x battery GBA 12V 1.5Ah 1 600 Z00 02W
  • Quick charger GAL 1230 CV 1 600 A00 R44
  • L-BOXX inlay accessories
  • L-BOXX inlay for tool
  • Quick-start card
Product variations (2)

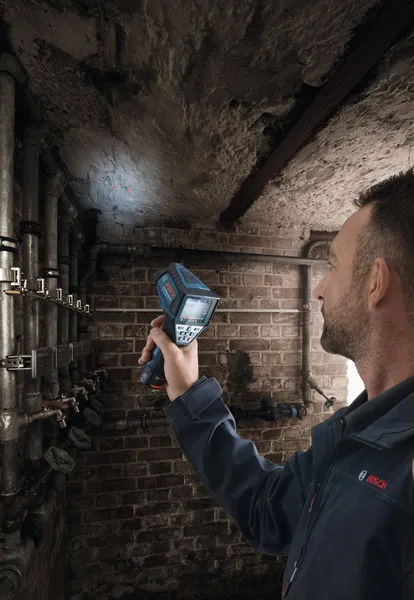

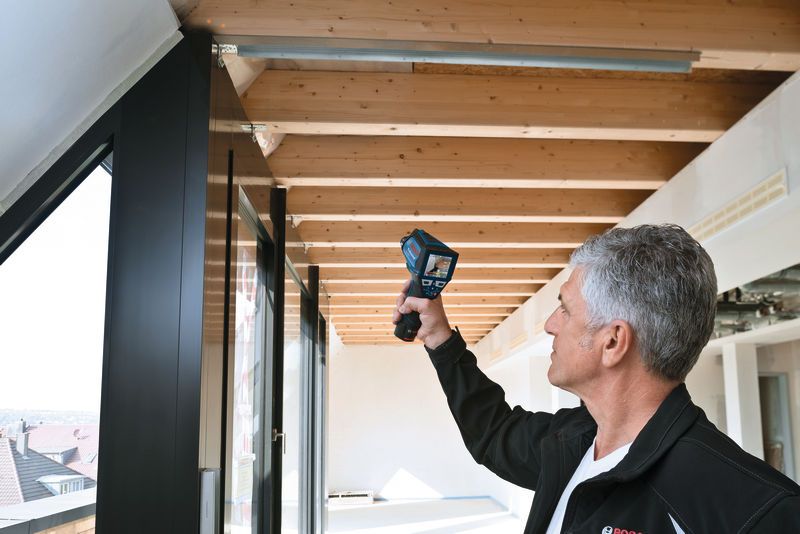

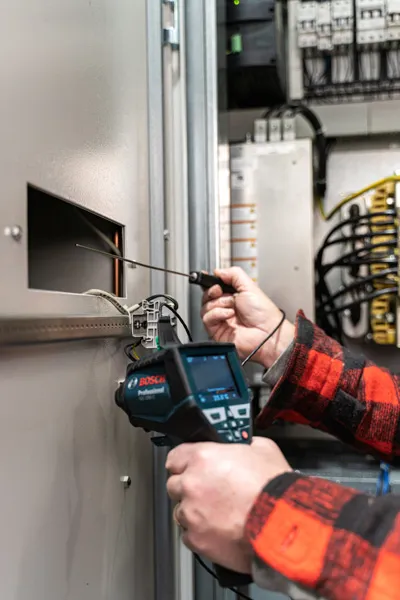

The GIS 1000 C in action!
