Laser measures
GLM 150-27 C
GLM 150-27 C

GLM 150-27 C Professional

Laser Measure

GLM 150-27 C
GLM 150-27 C

Advanced laser measure for long distances even outdoors with smart documentation

  • Precise, long-distance laser measuring thanks to digital camera viewfinder with zoom function
  • Optimal reading on large, high-contrast IPS colour display with flip screen capability

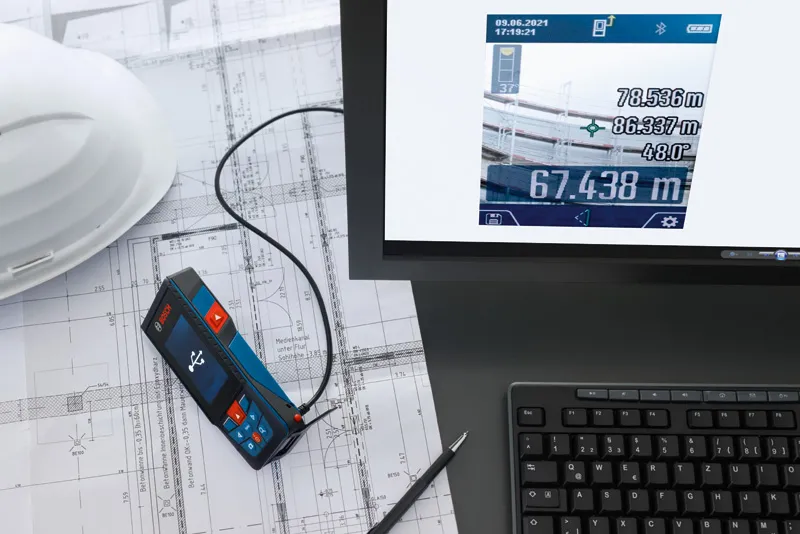

  • Connects via Bluetooth or USB cable for easy data documentation

Functions & key features

Iso-Norm-16331 1-Icon-positive
Real time view
IP54 dust and splash water protection
Get connected – personalise your tool and exchange information with your App. Enables fast connection of tool and Bosch Power Tools App for easy access, customisation, maintenance and asset management.

Your Selection

  • with protective acc.
Show variant
Check availability on location
Find a local dealer
with protective acc. 0 601 072 Z00
Find a local dealer

GLM 150-27 C Professional

Your Selection

with protective acc.

Order number: 0 601 072 Z00

Find a local dealer

Included in this variant

  • Micro USB cable
    Order number: 2 609 120 670
  • Protective Bag
  • Carrying Strap
Your selection

Technical data

Additional data
Dust and splash protection IP 54
Measurement time, typical < 0.5 s
Laser diode 650 nm, < 1 mW
Measurement range 0.08 – 150.00 m
Laser class 2
Measurement accuracy, typical ± 1.5 mm* (*plus use-dependent deviation)
Measurement range of incline measurement 0 – 360° (4 x 90°)
Measuring accuracy (typical) ± 0.2°* (*plus use-dependent deviation)
Measurement time, max. 4 s
Power supply 1 x 3.6 V Li-Ion battery (3120 mAh)
Automatic deactivation 5 min
Weight, approx. 0.21 kg
Units of measurement m/cm/mm/ft/inch/ft-inch
Memory capacity (values) 50

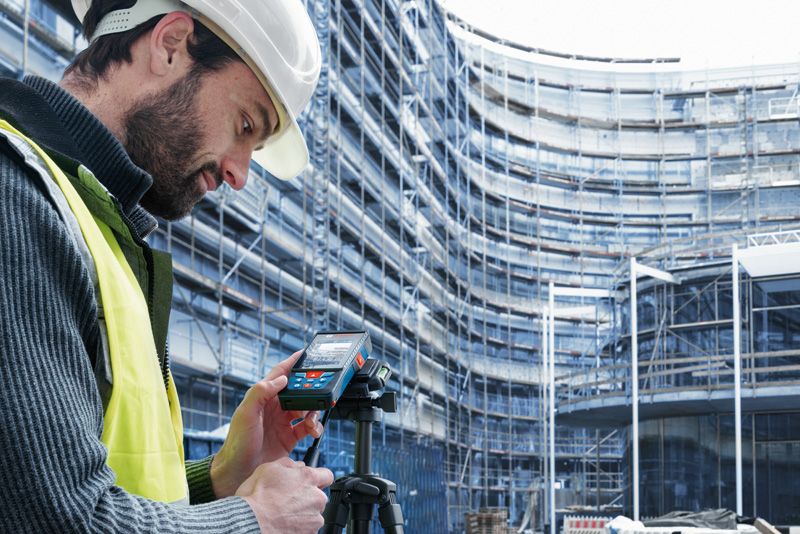

Tripod thread 1/4"
Digital viewfinder integrated
Data transfer Bluetooth™ 4.2 Low Energy
Laser colour Red
Measuring range, up to 150 m

GLM 150-27 C Professional: Further information

Product Highlights

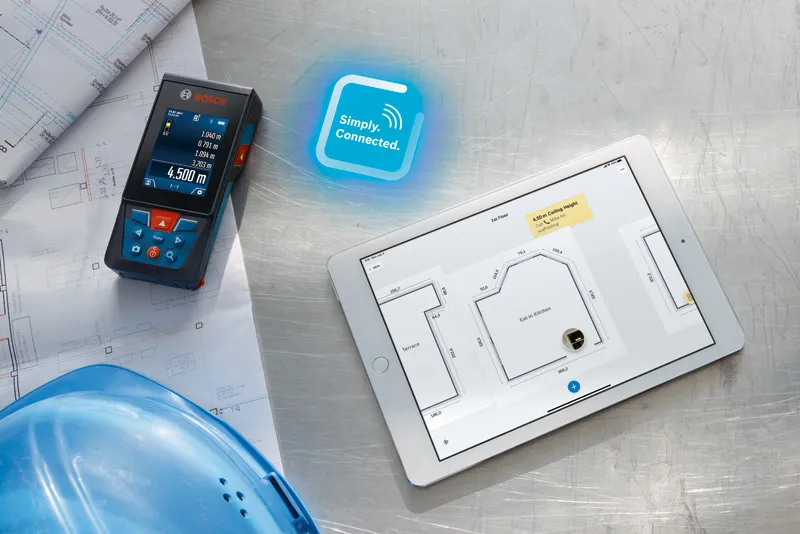

This robust outdoor laser measure has a digital camera viewfinder with a zoom function for accurately measuring distances up to 150 m. Measurements and pictures are automatically saved and easy to read thanks to a large, high-contrast 2.8" IPS colour display that rotates between portrait and landscape view. For convenient documentation, all data can be transferred via Bluetooth to the Bosch MeasureOn App or via USB connection to a PC. With IP54 protection, scratch-resistant display glass, and user-friendly interface, this laser measure is the handy all-rounder for demanding jobsites.

Equipment & Application

Architects, construction managers, or HVAC installation professionals will reach for this smart laser measure for its long-distance capability, easy readability, and convenient documentation.

Additional Information

The GLM 150-27 C laser measure has an integrated lithium-ion battery, ensuring long operating time and more flexibility.

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Order number

Part number

3601K72Z00

Product name

GLM 150-27 C

Description

Laser Measure

Yes, the part number matches.
I'm looking for a spare part for this product.

Go to spare part

No, the part number does not match.
I'm looking for a spare part for a different product.

Browse spare parts catalogue

Fits to GLM 150-27 C Professional

Laser viewing glasses (red)

Laser viewing glasses (red)

Laser Goggles

Improve the visibility of the red laser beam and make it easier to work in adverse lighting conditions

Variants: 1
from  3.00 OMR Recommended retail price excluding VAT
BT 150

BT 150

Building Tripod

Absolutely secure stance on any floor

Variants: 1
from  17.00 OMR Recommended retail price excluding VAT

Downloads

User Manual

Instruction manual | GLM 150-27 C | GLM 100-25 C (PDF 8.7 MB) Quick guide | GLM 100-25 C | GLM 150-27 C (PDF 25.0 MB) Instruction manual | GLM 100-25 C | GLM 150-27 C (Online version)
