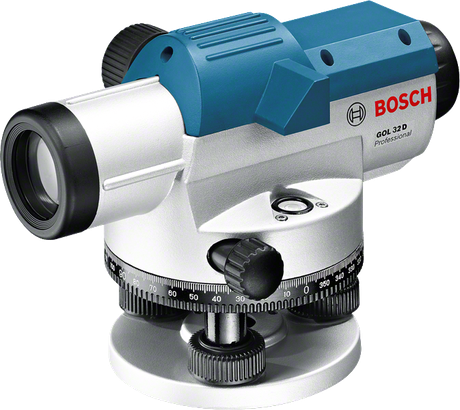

Optical Level GOL 32 D Professional

Robust and reliable – ideal for outdoor use

96.00 OMR Recommended retail price excluding VAT

Technical data
Additional data
Accuracy ± 1 mm at 30 m
Unit of measure 360 degrees
Magnification 32 x
Working range 120   m
Dust and splash protection IP 54
Tripod thread 5/8"
Operating temperature -10 – 50   °C
Storage temperature -20 – 70   °C
Weight, approx. 1.5   kg
Working range, value 120   m

Advantages

Robust and reliable – ideal for outdoor use

  • Ideal for outdoor use due to a robust housing with dust and splash protection (IP54)
  • Fast aperture for a sharp image of the target
  • Compensator lock for safe transport

Functions

Levelling accuracy ± 1 mm @ 30 m* (*plus use-dependent deviation)
Magnification 32x
Working range up to 120 m
IP54 dust and splash water protection

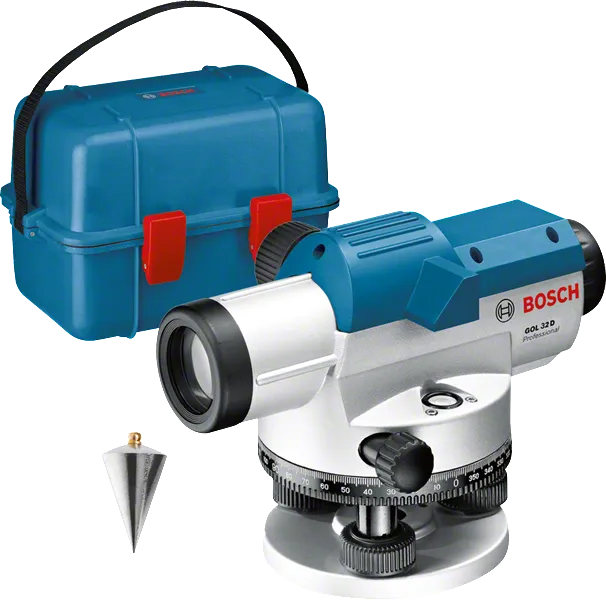

What’s Included in this Package
in carrying case with accessory set
in carrying case with accessory set
Order number: 0 601 068 500
  • Adjusting pin
  • Hex key
  • Carrying case 1 600 A00 0LF
  • Lens cover
  • Plumb bob
96.00 OMR Recommended retail price excluding VAT
