Diamond drilling systems

GSB 162-2 RE Professional

Impact Drill

Powerful in every application – even when diamond dry drilling

  • Very high torque for power-demanding applications
  • Bosch high-performance motor (1500 W) with high overload capacity for the toughest applications
  • Optimised speed for fast work progress when non-impact drilling with diamond core cutters up to 162 mm

Functions & key features

Prevents autonomous restart of the tool after power blackout. Only through new, conscious activation will the tool be ready to use
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox

Your Selection

  • in carrying case with auxiliary handle, Accessory
Show variant
240.00 OMR
Recommended retail price excluding VAT
Find a local dealer

in carrying case with auxiliary handle, Accessory 0 601 18B 070
240.00 OMR
Recommended retail price excluding VAT

GSB 162-2 RE Professional

Your Selection

GSB 162-2 RE
in carrying case with auxiliary handle, Accessory

Order number: 0 601 18B 070

240.00 OMR
Recommended retail price excluding VAT
Find a local dealer

Included in this variant

  • Voltage 240 V
  • Keyed chuck 16 mm
    Order number: 1 608 571 057
  • Auxiliary handle
    Order number: 2 608 025 205

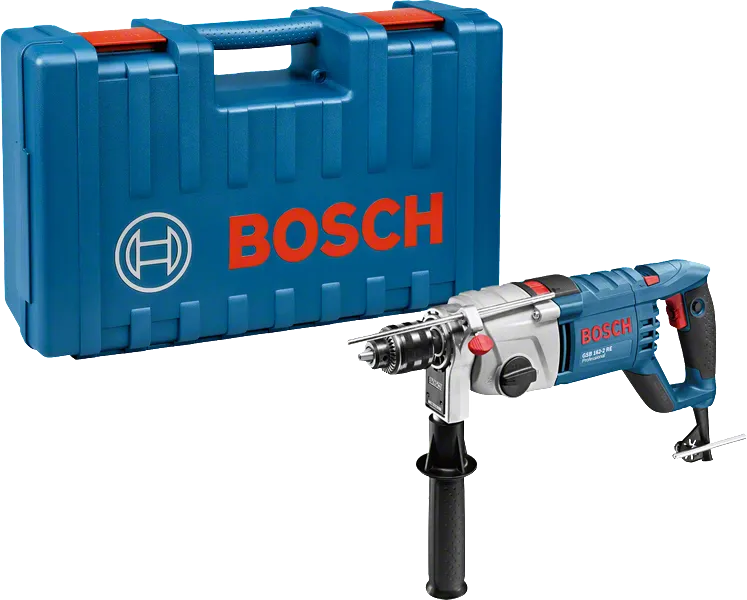

  • Carrying case
  • Depth stop (spare part number 2 600 460 045)

Technical data

Additional data

Rated input power 1500 W
Voltage, electrical 240 V
Bit holder 5/8"-16 UNF
No-load speed, 1st gear 0 – 750 rpm
No-load speed, 2nd gear 1,800 rpm
Power output 840 W
Weight 4.8 kg
Impact rate at no-load speed 0 – 12,750 / 30,600 bpm
Rated speed 555 / 1,300 rpm
Rated torque 17.0 / 5.0 Nm
Drill spindle connecting thread 5/8"-16 UNF
Chuck capacity, min./max. 3 – 16 mm
Show more
GSB 162-2 RE

* You can find more information about the deviations in the following link: Technical features of products

GSB 162-2 RE Professional: Further information

Product Highlights

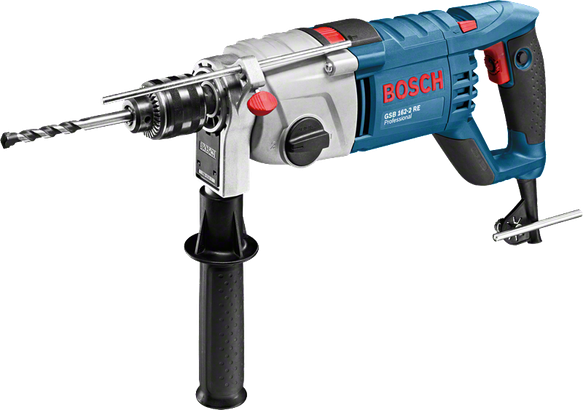

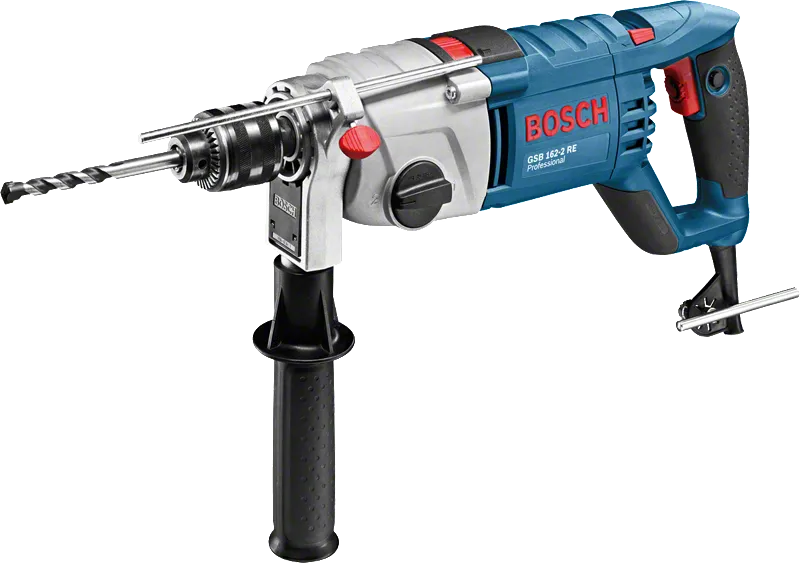

The GSB 162-2 RE Professional is a high-powered 2-gear corded impact drill designed for the toughest applications including diamond dry-drilling. Its extremely strong 1,500 W motor with a high overload capacity and high torque is ideal for intense and heavy-duty applications. Its speed is specifically optimised to enable a fast drilling progress up to 162 mm in diameter even when using diamond core cutters in the non-impact function. The impact drill’s rotation control clutch ensures an increased level of user protection even when working in the toughest materials.

Equipment & Application

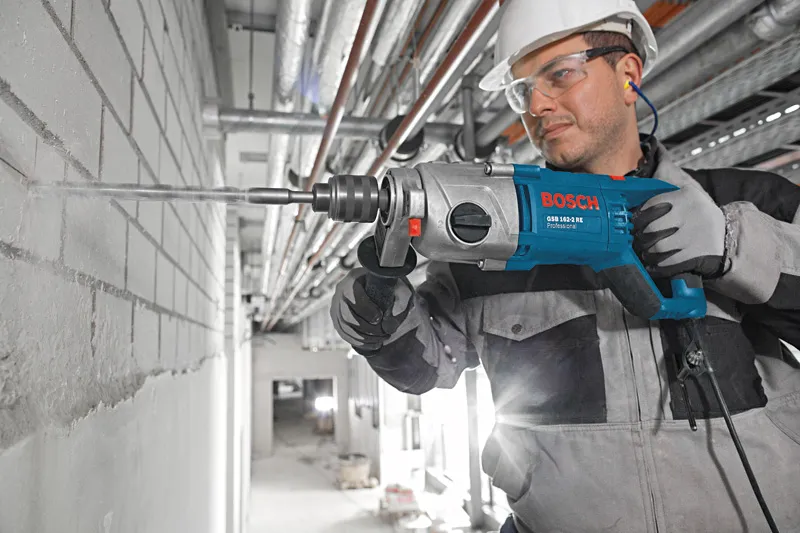

This tool is intended for drilling and diamond dry-drilling in concrete, stone, and masonry.
