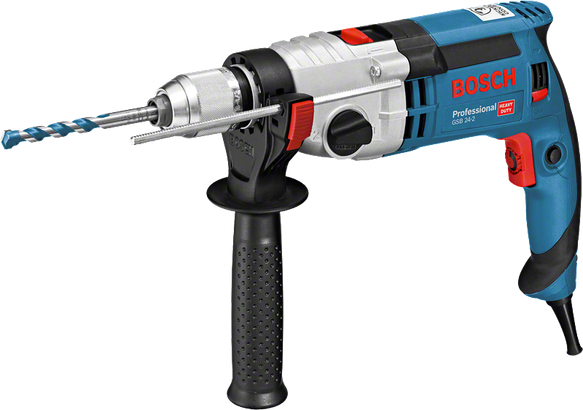

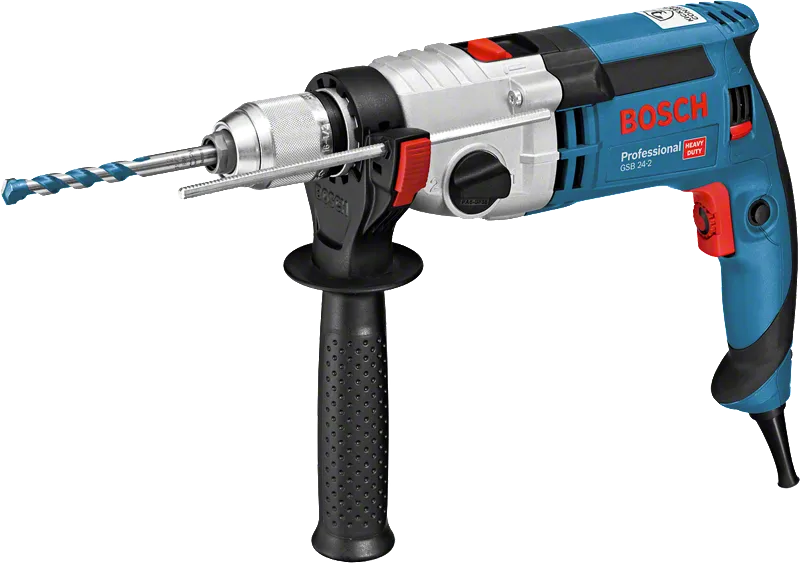

Impact Drill GSB 24-2 Professional

The powerful tool for toughest applications - now with the intelligent KickBack Control.

from  112.00 OMR Recommended retail price excluding VAT.

Technical data
Additional data
Rated input power* 1,100   W
Weight 2.9   kg
No-load speed, 1st gear 0 – 900   rpm
No-load speed, 2nd gear 3,000   rpm
Power output 630   W
Rated speed 580 / 1,900   rpm
Rated torque 9.6 / 3.2   Nm
Chuck capacity, min./max. 1.5 – 13   mm
Tool dimensions (width) 90   mm
Tool dimensions (length) 335   mm
Tool dimensions (height) 220   mm
Impact rate at no-load speed 0 – 15,300 / 51,000   bpm
Max. torque 40.0 / 14.5   Nm
Drilling range
Drilling diameter in concrete 22 / 13   mm
Drilling diameter in wood* 40 / 25   mm
Drilling diameter in steel 16 / 8   mm
Drilling dia. in stone 24 / 16   mm
Drilling diameter in masonry* 24 / 16   mm

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.

Advantages

The powerful tool for toughest applications - now with the intelligent KickBack Control.

  • Heavy-duty applications with large diameters due to the 1,100 W Bosch high-performance motor and high torque

Functions

Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Metal chuck 1.5 - 13.0 mm
Forward / reverse rotation for inserting and removing screws
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Convenient change of accessories Keyless chuck opens and closes easily
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox
Comfortable handling of the tool thanks to softgrip
What’s Included in this Package
with chuck
with chuck
Order number: 0 601 19C 801
  • Keyless chuck 13 mm 2 608 572 150
  • Auxiliary handle 2 602 025 193
  • Depth stop 210 mm 1 613 001 010

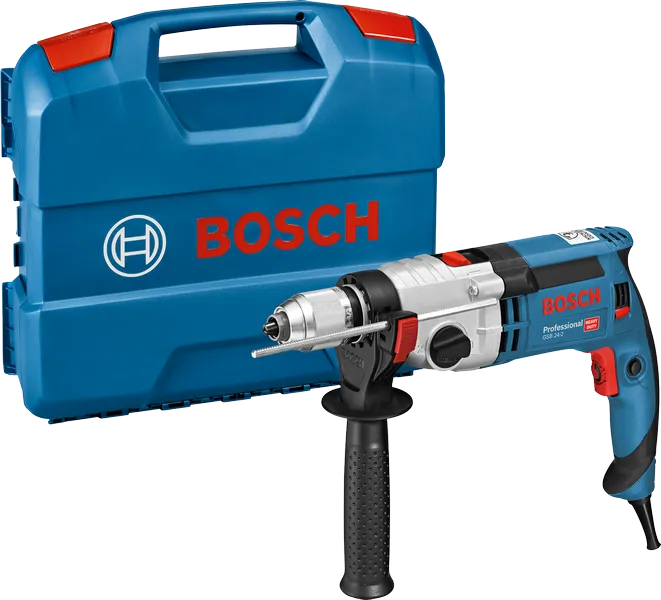

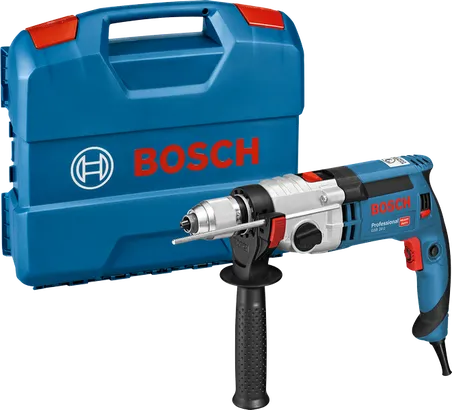

  • L-Case 1 600 A00 M7X
112.00 OMR Recommended retail price excluding VAT.
Product variations (2)

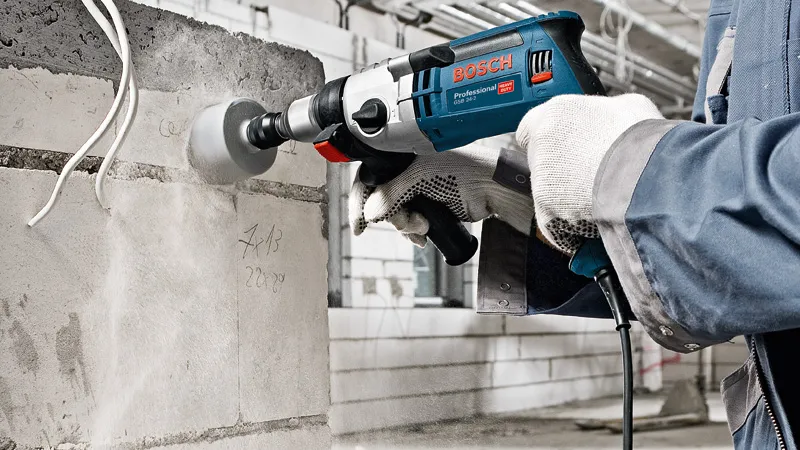

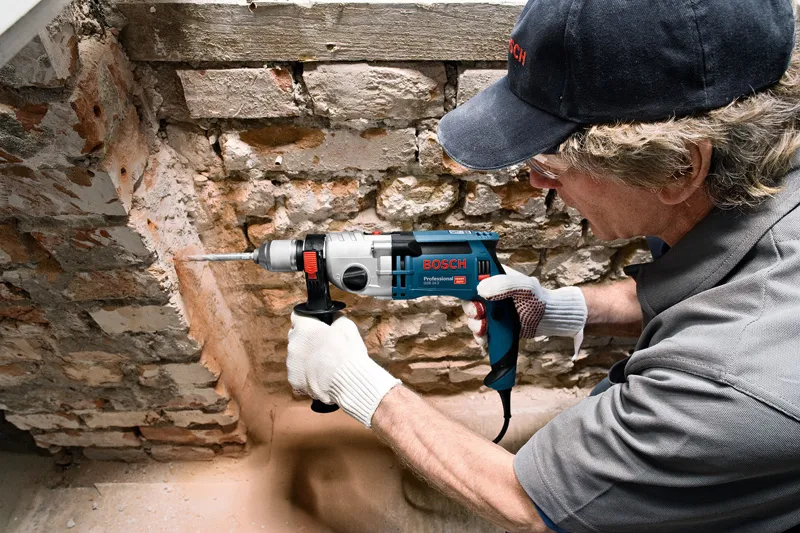

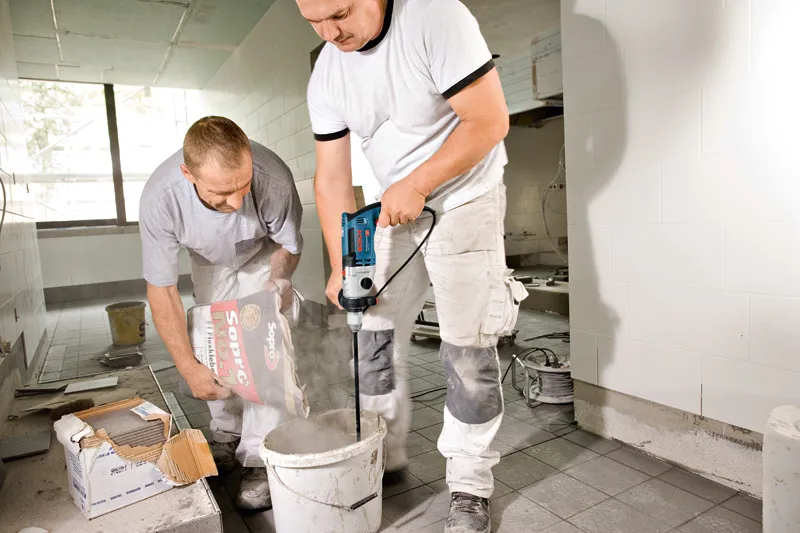

The GSB 24-2 in action!
