Laser Receiver LR 1G Professional

Increased benefit with accessories

64.00 OMR Recommended retail price excluding VAT

Technical data
Additional data
Range of 0 – 150   m
Power supply 1 x 9 V 6LR61 Block
Dust and splash protection IP 65
Remote control -
Receiver -
Weight, approx. 250   g
Measuring accuracy (fine/rough) ± 1 mm/± 3 mm
Type of receiver Rotation lasers

Advantages

Increased benefit with accessories

  • Handy receiver for indoor and outdoor use for ranges of up to 150 m in combination with GRL 300 HVG Professional rotation laser
  • Visual and audible indication of green laser beam plane

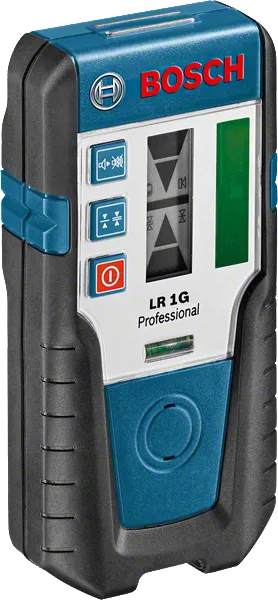

  • Dust and splash protection (IP65)

Functions

Green beam detection
Measuring accuracy ± 1.0/3.0 mm
Easy attachment due to magnets on the top of the receiver
Two sided display for convenient laser detection
IP65 dust tight and water jets protection
Strong Magnets Strong magnets for better mounting
Sound Activation Audible alignment of the laser beam level
Battery Indicator Battery indicator
Accuracy Measuring accuracy ± 3.0 mm
Accuracy Measuring accuracy ± 1.0 mm
Working range of LR 1 Range with receiver 400 m
Reception range 4.0 cm Reception range 4 cm
Two Sided Display Display on front and back

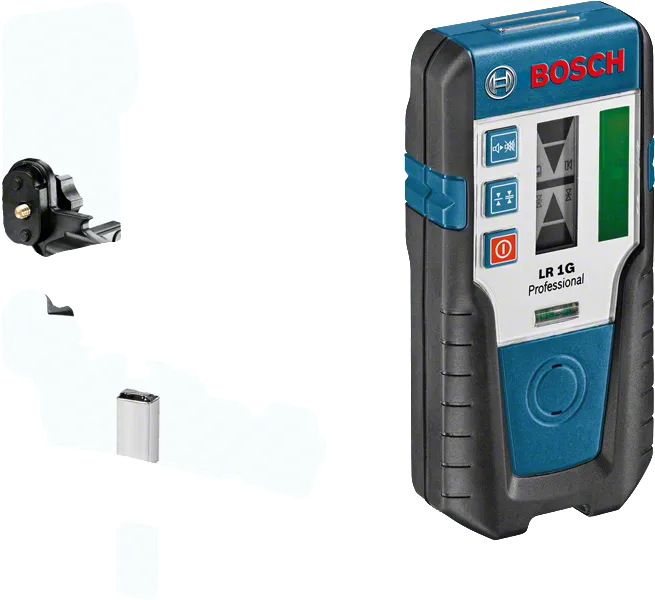

What’s Included in this Package
with Accessory
with Accessory
Order number: 0 601 069 700
  • 1 x 9 V block battery (6LR61)
64.00 OMR Recommended retail price excluding VAT
The LR 1G in action!
