Technical data
| Additional data | |
|---|---|
| Rated input power* | 880 W |
| Impact energy* | 3.2 J |
| Impact rate at rated speed | 0 – 4,000 bpm |
| Rated speed | 0 – 900 rpm |
| Weight | 3.1 kg |

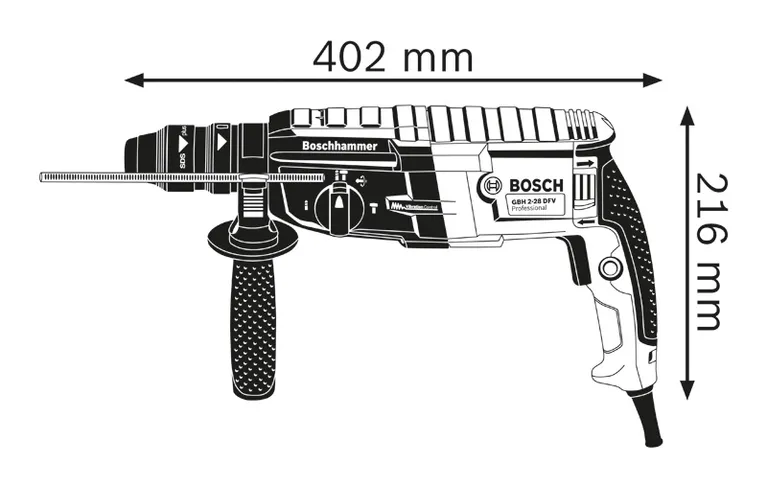

| Tool dimensions (length) | 402 mm |
| Tool dimensions (height) | 216 mm |
| Tool holder | SDS plus |
| Drilling range | |
|---|---|
| Drilling dia. concrete, hammer drill bits* | 4 – 28 mm |
| Opt. appl. range concrete, hammer drill bits | 8 – 16 mm |
| Drilling diameter in concrete with core cutters | 68 mm |
| Max. drilling diameter masonry, core cutters | 68 mm |
| Max. drilling diameter in metal | 13 mm |
| Max. drilling diameter in wood | 30 mm |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
Advantages
Top performance with intelligent KickBack Control
- Best performance in its class with improved power
- Increased user protection with KickBack Control (KBC) in order to minimise the risk of injury
- Active vibration damping with counter oscillator for minimal vibration levels
Functions

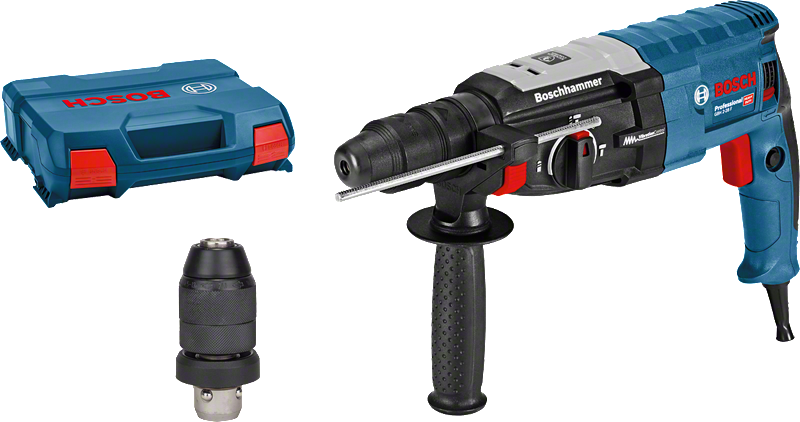

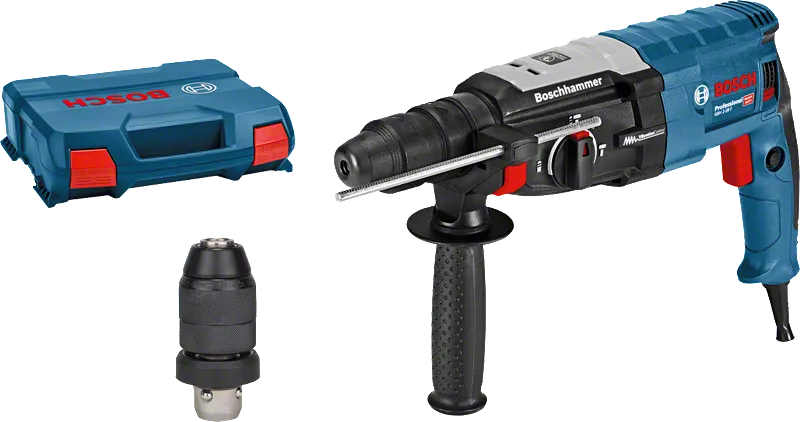

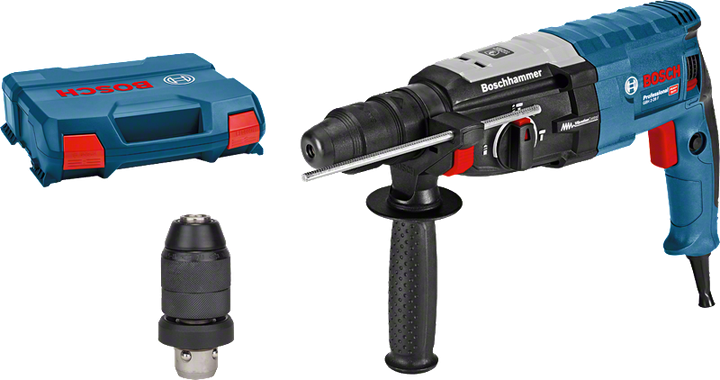

What’s Included in this Package
in carrying case with auxiliary handle
Order number:
0 611 267 6P0
- Auxiliary handle 2 602 025 141
- Carrying case
- Depth stop 210 mm 1 613 001 010
- Machine cloth
- Quick change chuck 13 mm 2 608 572 212
- SDS plus quick-change chuck 2 608 572 213
254.00 EUR
Recommended retail price excluding VAT.
