Combi Laser GCL 2-50 C Professional

Smart functions for maximum productivity

from  362.00 EUR Recommended retail price excluding VAT

Technical data
Additional data
Working range with receiver, value 50   m
Accuracy ± 0.3 mm/m* (*plus use-dependent deviation)
Projection 2 lines / 2 points
Battery voltage 12   V
Laser diode 635 – 650 nm
Operating temperature -10 – 50   °C
Storage temperature -20 – 70   °C
Laser class 2
Working range 20   m
Working range with receiver 50 m
Working range of laser points, max. 10 m (top), 10 m (bottom)
Self-levelling range ± 4°
Dust and splash protection IP 54 *** (***except for the lithium-ion battery and AA1 battery adapter)
Power supply 12 V Li-ion or 4 x 1.5 V LR6 (AA)
Operating time (max.) 18 h (Li-Ion) and 10 h (4 x AA) in cross-line and point operation, 25 h (Li-Ion) and 16 h (4 x AA) in cross-line operation, 35 h (Li-Ion) and 28 h (4 x AA) in line operation, 60 h (Li-Ion) and 32 h (4 x AA) in point operation
Tripod thread 1/4"
Weight, approx. 0.6   kg
Colour of laser line red
Color of plumb points red
Plumb point accuracy ± 0.7 mm/m* (*plus use-dependent deviation)
Compatible laser receivers LR 6 + 7
Working range, value 20   m

Advantages

Smart functions for maximum productivity

  • Bluetooth®-connection paired with Levelling Remote App offers remote-control adjustment of the tool via a smartphone
  • Dual Power Source allows for a 12 V-Li-ion battery or standard alkaline batteries for increased flexibility
  • Precise alignment of laser lines around centred plumb points with the manual RM 2 or motorised RM 3

Functions

Simply.Connected. - Simply. Efficient. thanks to smartphone connection and Bosch App
Dual power source
Working with receiver for higher working range
Easy line positioning around the plumb dot
Slide mechanism
Icon
Icon
Icon
Laser class 2 Laser class for measuring tools.
Icon
 All Bosch Professional 10.8V tools, batteries & chargers are 100% compatible with all Bosch Professional 12V tools, batteries & chargers
Icon
Icon
Easy line positioning around the plumb dot
Slide mechanism

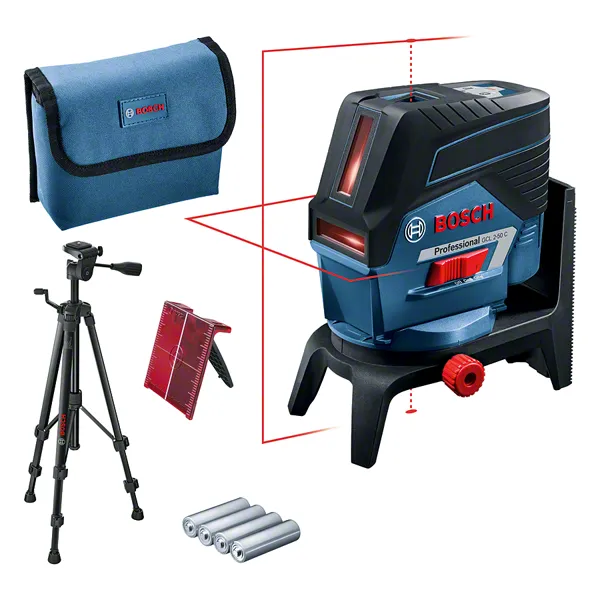

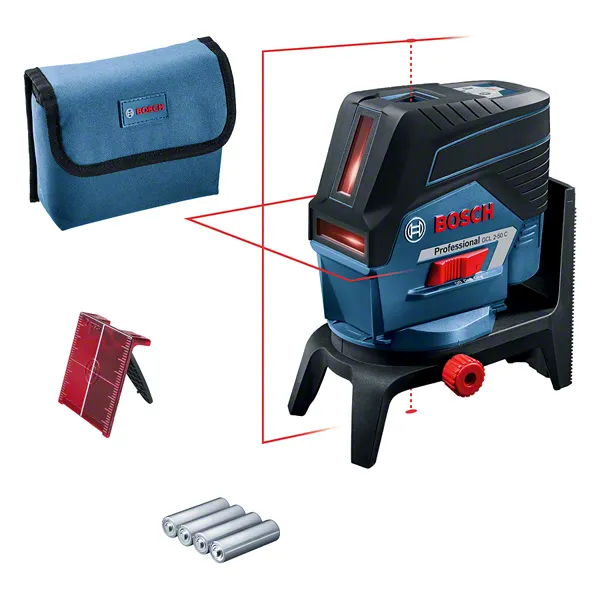

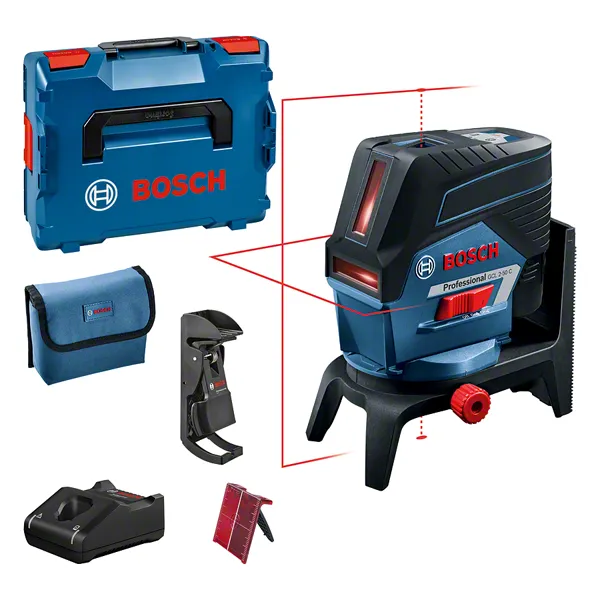

What’s Included in this Package
in L-BOXX 136 with Accessory, clamp
in L-BOXX 136 with Accessory, clamp
Order number: 0 601 066 G03
  • Ceiling clamp
  • Laser target plate
  • L-BOXX 136 1 600 A01 2G0
  • Protective Bag
  • Rotating mount RM 2 Professional 0 601 092 700
  • 1 x battery GBA 12V 2.0Ah 1 600 Z00 02X
  • Quick charger GAL 12V-40 Professional 1 600 A01 9R3
362.00 EUR Recommended retail price excluding VAT
Product variations (3)
The GCL 2-50 C in action!
