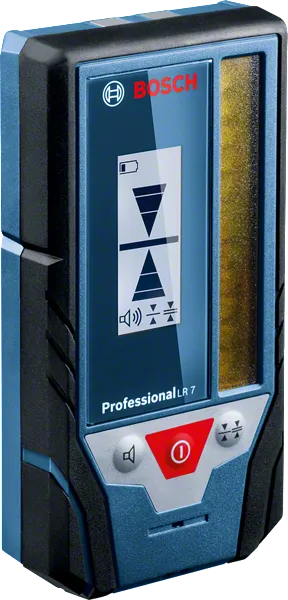

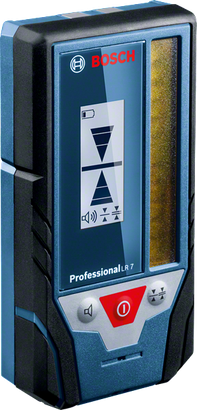

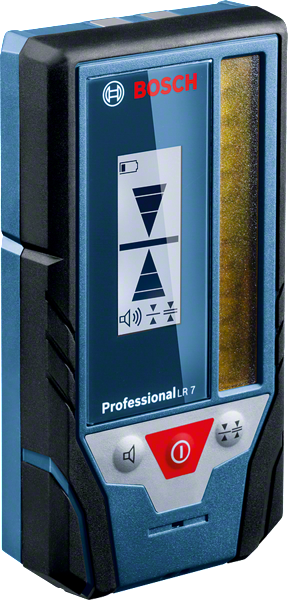

Laser Receiver LR 7 Professional

787.00 EUR Recommended retail price excluding VAT.

Technical data
Additional data
Range of* 5 – 50   m
Power supply* 2 x 1.5 V LR6 (AA)
Dust and splash protection* IP 54
Remote control -
Receiver +
Range, from 5   m
Range, up to 50   m
Weight, approx. 150   g

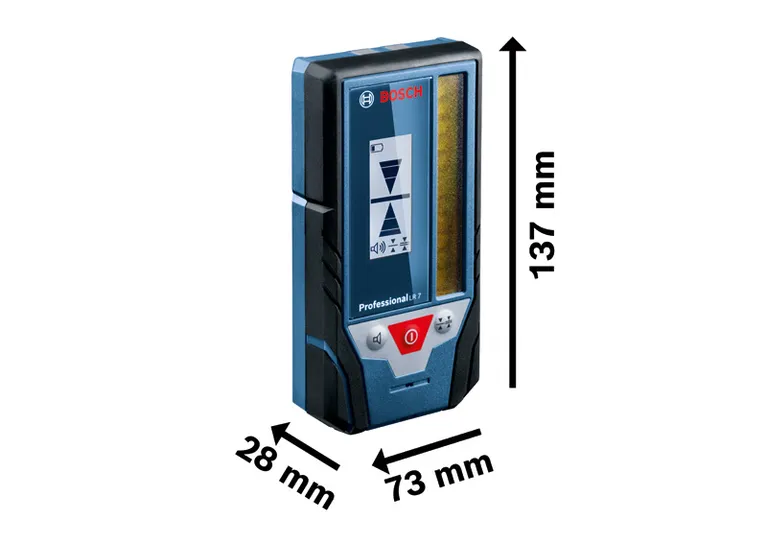

Tool dimensions (width) 28   mm
Tool dimensions (length) 73   mm
Tool dimensions (height) 137   mm
Measuring accuracy, fine ± 1 mm
Measuring accuracy, rough ± 3 mm
Measuring accuracy (fine/rough) ± 1 mm/± 3 mm

* Highlighted Data

Advantages

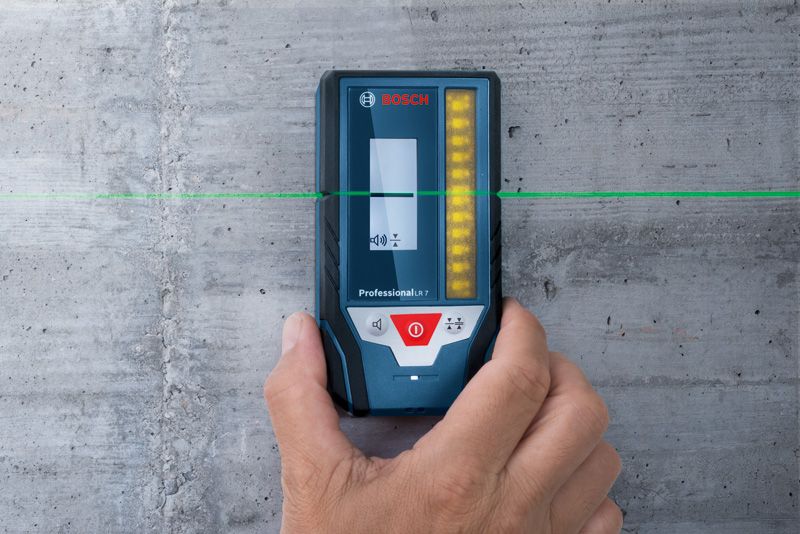

  • Ability to detect green and red laser lines
  • Large 8cm reception area for fast detection of laser line
  • Alignment of the laser beam plane, visual (display and LEDs) and audible signals, for working in various lighting conditions

Functions

Icon
Icon
Icon
Icon
Icon
Icon
Icon

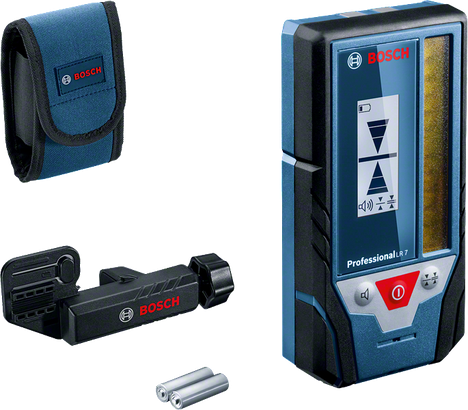

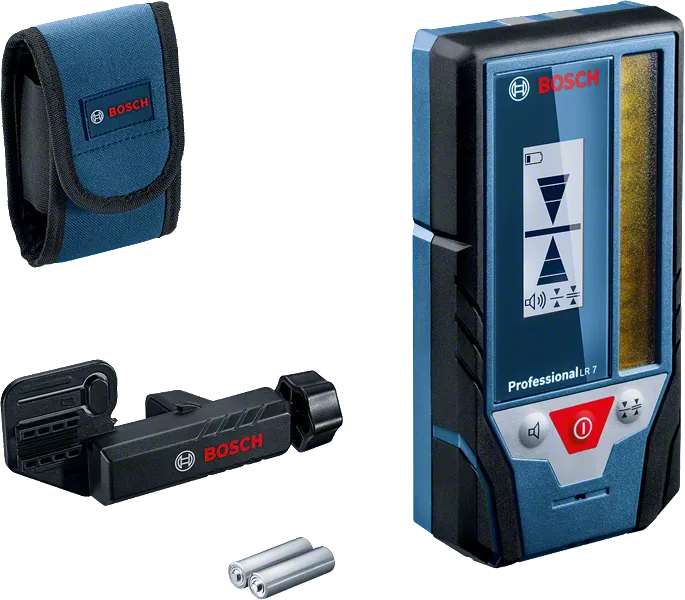

What’s Included in this Package
LR 7 Professional
LR 7 Professional
Order number: 0 601 069 J00
787.00 EUR Recommended retail price excluding VAT.

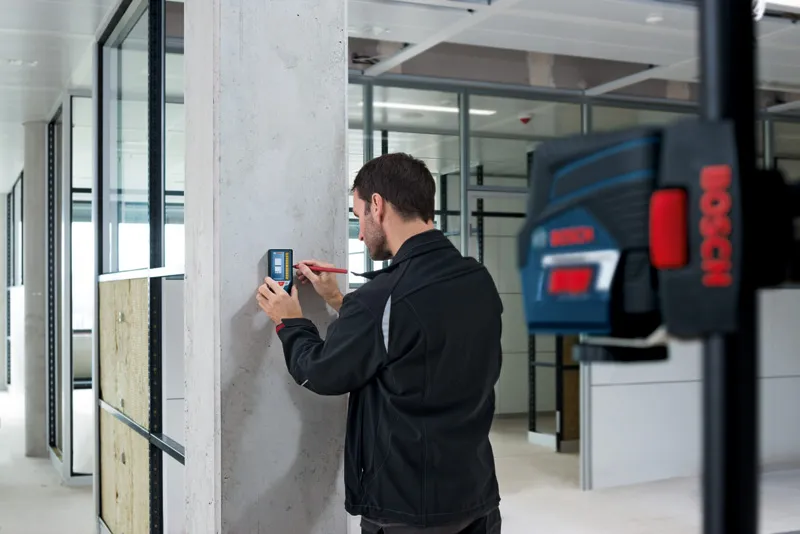

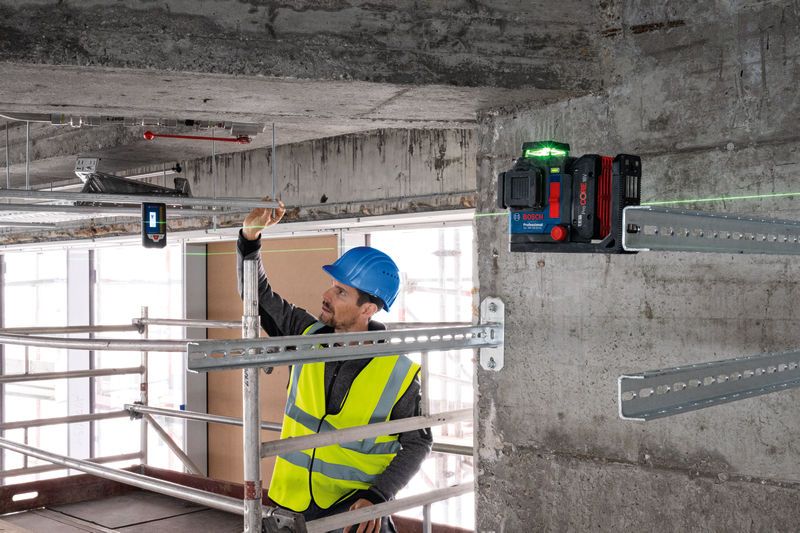

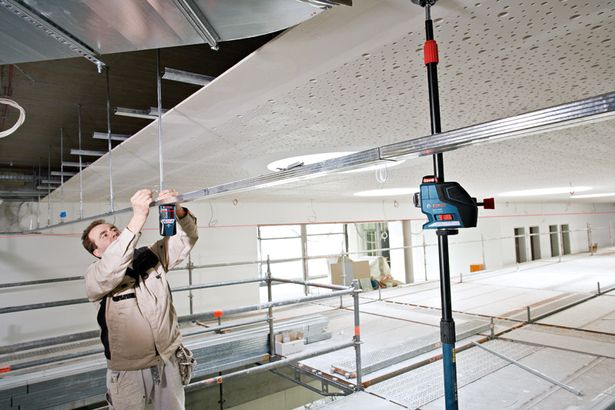

The LR 7 in action!
