Metal Drill Bits

HSS Twist Drill Bit Ground Set, Mini X-Line, 7-piece

For rotary drills/drivers

  • 135-degree self-centring split-point tip combines active cutting and perfect centring without wandering
  • Precision-ground bit made of HSS enables fast results

Materials

Steel
Cast iron
Choose your Variant

3 options

Variants overview (4)
Find a local dealer

HSS Twist Drill Bit Ground Set, Mini X-Line, 7-piece
For rotary drills/drivers

Fits tools of most brands

imageAlt
imageAlt
imageAlt

Cylindrical shank compatible with three-jaw drill chucks.

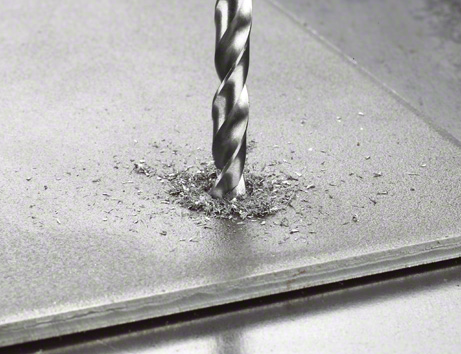

Drilling with the Maximum Precision

HSS Twist Drill Bit offers solid drilling for standard usage with metal

  • Precision-ground bit made of HSS enables fast results
  • No need to pre-punch or pilot drill up to 10 mm-diameter
  • Manufactured to DIN 338, drill bit Type N (flute angle) with a 135-degree tip, diameter tolerance h8
View more

Variant Overview

Available product variations: 4

Part number القطر مم طول قطاع العمل مم مقاس (مقاسات) الطقم مم Pack quantity
2 607 019 114 2.0 / 3.0 / 4.0 / 5.0 / 6.0 - - 5 قطعة Find a local dealer
2 608 595 517 2.0 / 3.0 / 4.0 / 5.0 / 6.0 - - 5 قطعة Find a local dealer
2 608 587 013 1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 / 4.5 / 5.0 / 5.5 / 6.0 / 6.5 / 7.0 / 7.5 / 8.0 / 8.5 / 9.0 / 9.5 / 10.0 12 / 18 / 24 / 30 / 33 / 39 / 43 / 47 / 52 / 57 / 57 / 63 / 69 / 69 / 75 / 75 / 81 / 81 / 87 172.0 x 115.0 x 42 19 قطعة Find a local dealer
2 608 587 017 1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 / 4.5 / 5.0 / 5.5 / 6.0 / 6.5 / 7.0 / 7.5 / 8.0 / 8.5 / 9.0 / 9.5 / 10.0 / 10.5 / 11.0 / 11.5 / 12.0 / 12.5 / 13.0 12 / 18 / 24 / 30 / 33 / 39 / 43 / 47 / 52 / 57 / 57 / 63 / 69 / 69 / 75 / 75 / 81 / 81 / 87 / 87 / 94 / 94 / 101 / 101 / 101 200.0 x 115.0 x 58 25 قطعة Find a local dealer

out of products

Maximum Precision
