Bosch Professional Power Tools & Accessories

Rotary hammers

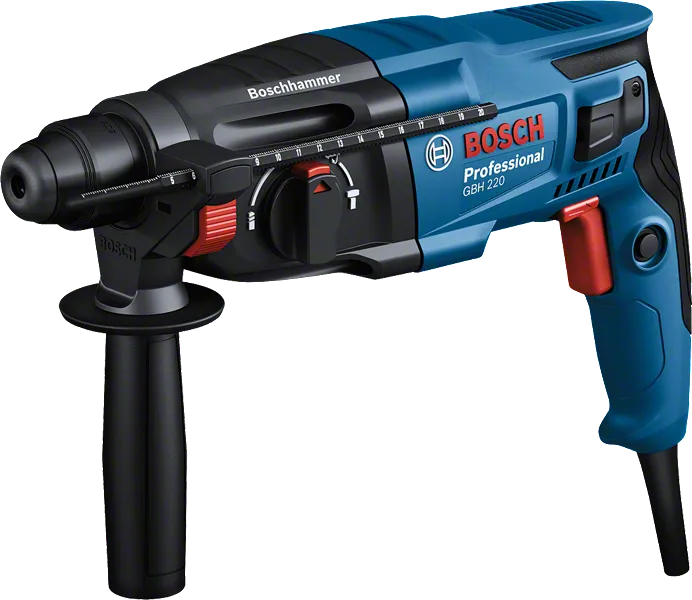

GBH 220 Professional

Rotary Hammer with SDS plus

So compact, so powerful – Bosch’s rotary hammer now within reach

Powerful 720 W motor and 2.0 J of impact energy for effective hammer drilling in concrete (up to 22-mm diameter)
Three-mode rotary hammer for hammer drilling, drilling, and chiselling – ensuring versatility and convincing results
Compact rotary hammer offers professional Bosch hammer performance within reach

Functions & key features

Your Selection

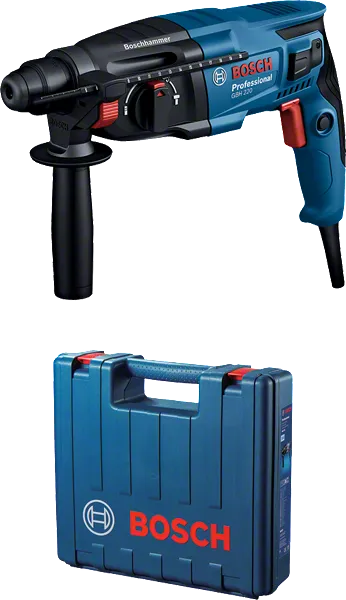

in carrying case

Change variant

Check availability on location

Find a local dealer

Your Selected Variant

in carrying case 0 611 2A6 0L0

Find a local dealer

Select a variant

Your Selection

in carrying case

Order number: 0 611 2A6 0L0

Find a local dealer

Included in this variant

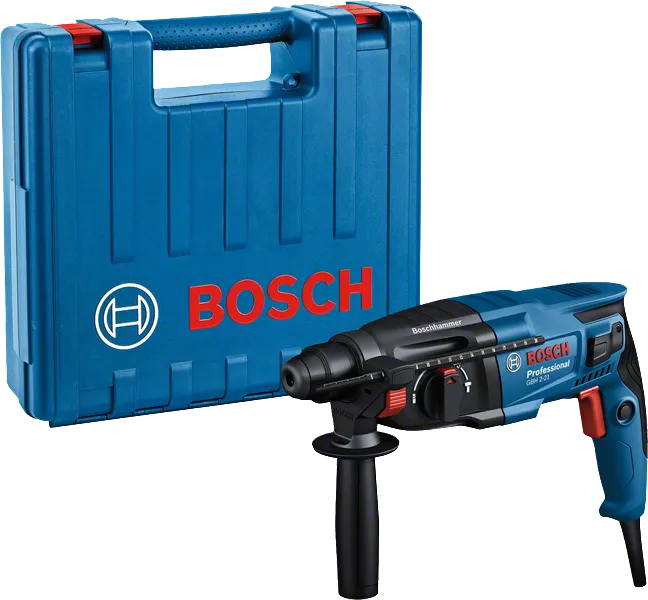

Carrying case

Your selection

Your Selection

in carrying case

Order number: 0 611 2A6 060

Find a local dealer

Included in this variant

Depth gauge

Order number: 2 603 001 009
Auxiliary handle

Order number: 1 619 P16 286
Carrying case

Order number: 1 619 P10 938
Machine cloth (spare part number: 1 619 200 413)

Select Variant

Technical data

Performance data
Impact rate at rated speed	0 – 4,800 bpm

Additional data
Rated input power	720 W
Impact energy (according to EPTA 05/2016)	2 J
Weight	2.3 kg
Tool holder	SDS plus

Drilling range
Drilling dia. concrete, hammer drill bits	4 – 22 mm
Max. drilling diameter in metal	13 mm
Max. drilling diameter in wood	30 mm

Total vibration values (Hammer drilling in concrete)
Vibration emission value ah	14.7 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Chiselling in concrete)
Vibration emission value ah	11.9 m/s²
Uncertainty K	1.5 m/s²

Hammer drilling in concrete
Vibration emission value ah	14.7 m/s²
Uncertainty K	1.5 m/s²

Chiselling in concrete
Vibration emission value ah	11.9 m/s²
Uncertainty K	1.5 m/s²

GBH 220 Professional: Further information

Product Highlights

Bosch’s GBH 220 Professional rotary hammer with SDS-plus technology is the ideal compact entry-level solution for hammer drilling. Its powerful 720 W motor and 2.0 J of impact energy make for effective hammer drilling in concrete of up to 22 mm in diameter. Versatility and convincing results are safeguarded by the three-mode rotary hammer for hammer drilling, drilling, and chiselling. This compact rotary hammer offers professional Bosch hammer performance within reach.
