Bosch Professional Power Tools & Accessories

Drills

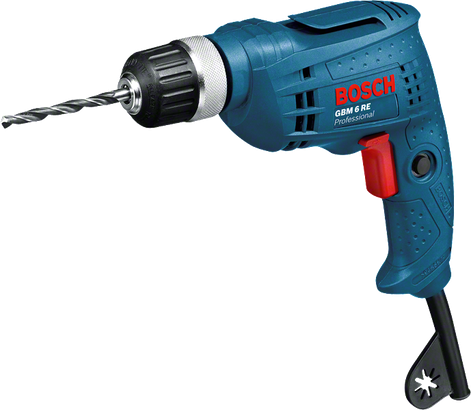

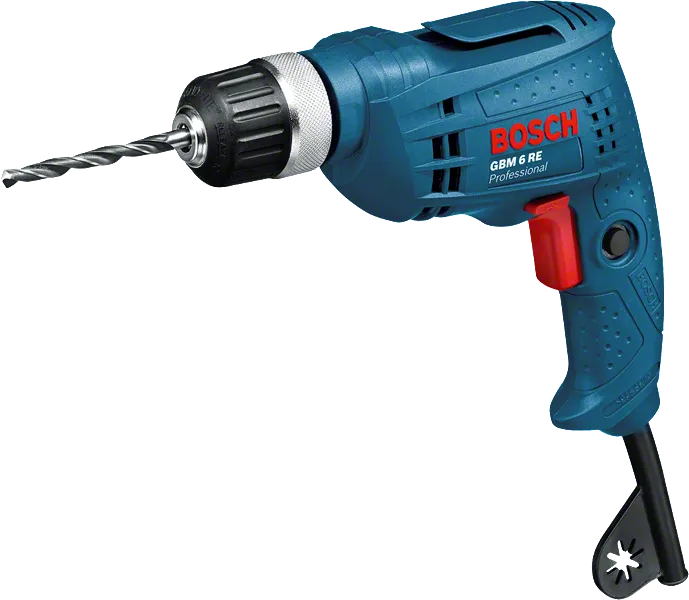

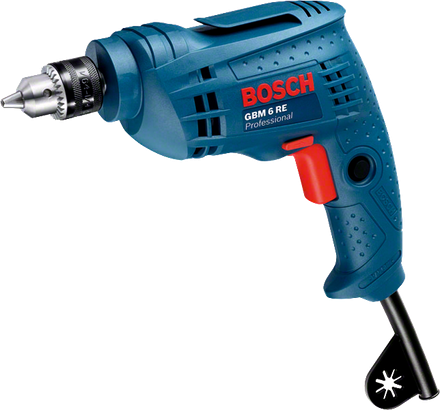

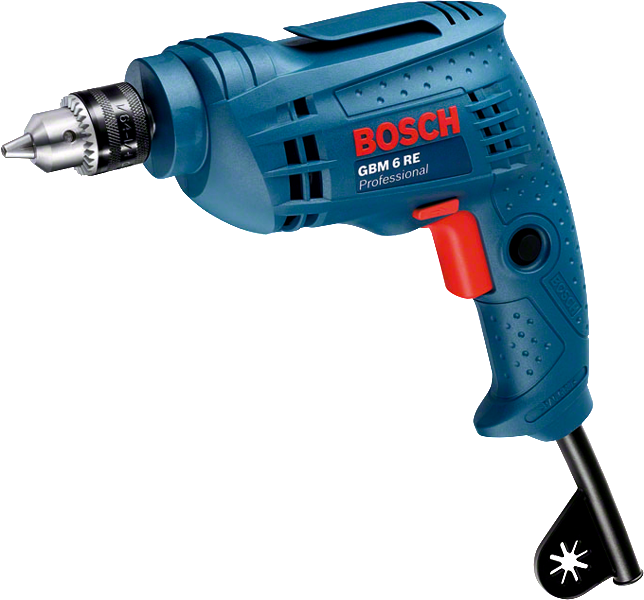

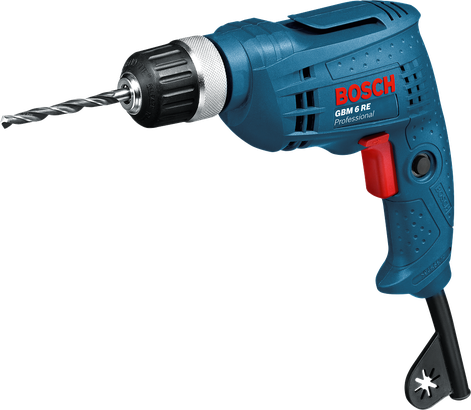

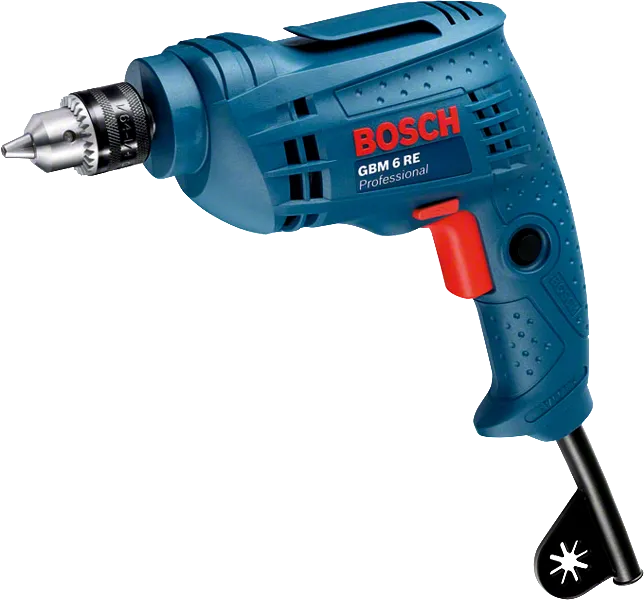

GBM 6 RE Professional

Drill

The fast and precise tool

Very high speed (no-load speed: 4,000 rpm) for small drilling diameters
Drill spindle fixed in bearing for high precision
Compact design and low weight for easier handling when drilling rows of holes

Functions & key features

Your Selection

with Keyed chuck 1.5 - 10 mm (spare part number 2 609 110 796)

Show variant

Check availability on location

Find a local dealer

Your Selected Variant

with Keyed chuck 1.5 - 10 mm (spare part number 2 609 110 796) 0 601 472 6P0

Find a local dealer

GBM 6 RE Professional

Your Selection

with Keyed chuck 1.5 - 10 mm (spare part number 2 609 110 796)

Order number: 0 601 472 6P0

Find a local dealer

Included in this variant

Keyed chuck 1.5 - 10 mm (spare part number 2 609 110 796)

Your selection

Technical data

Additional data
Rated input power	350 W
Weight	1.2 kg
Drill chuck, version	Keyed chuck
Voltage, electrical	240 V
No-load speed, 1st gear	0 – 4,000 rpm
Power output	136 W
Rated speed	3,116 rpm
Rated torque	12.3 Nm

Drilling range
Drilling diameter in wood	15 mm
Drilling diameter in aluminium	8 mm
Drilling diameter in steel	6.5 mm

Total vibration values (Drilling in metal)
Vibration emission value ah	6.9 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Screwdriving)
Vibration emission value ah	4 m/s²
Uncertainty K	1.5 m/s²

Noise/vibration information
Sound pressure level	82 dB(A)
Sound power level	93 dB(A)
Uncertainty K	5 dB

Drilling in metal
Vibration emission value ah	6.9 m/s²
Uncertainty K	1.5 m/s²

Screwdriving
Vibration emission value ah	4 m/s²
Uncertainty K	1.5 m/s²

GBM 6 RE Professional: Further information

Product Highlights

The GBM 6 RE Professional is a corded 1-geared rotary drill designed for precision work. Its reliable 350 W motor and very high speed make it ideal for small diameter drilling. This rotary drill’s lightweight and compact tool body provides convenience in handling, particularly for drilling in series. Furthermore, this particular drill's spindle is fixed within the bearings, ensuring stability in operation and thus enabling high-precision drilling.

Equipment & Application

This tool is intended for drilling in metal and wood.
