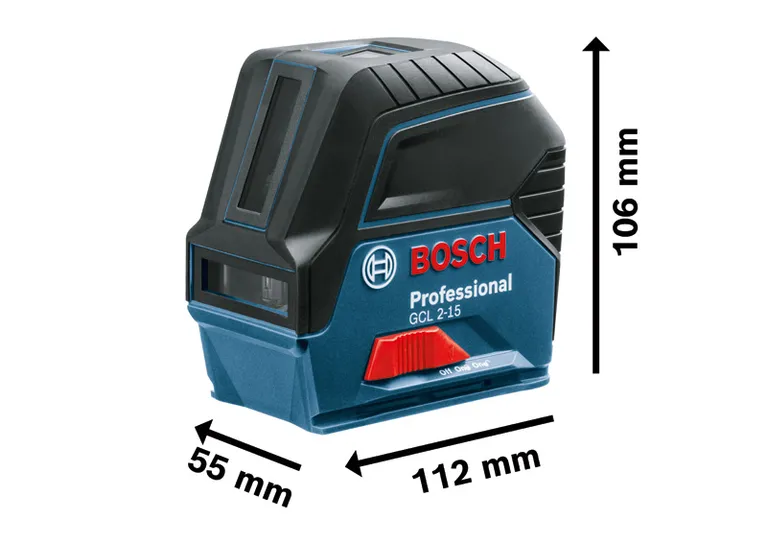

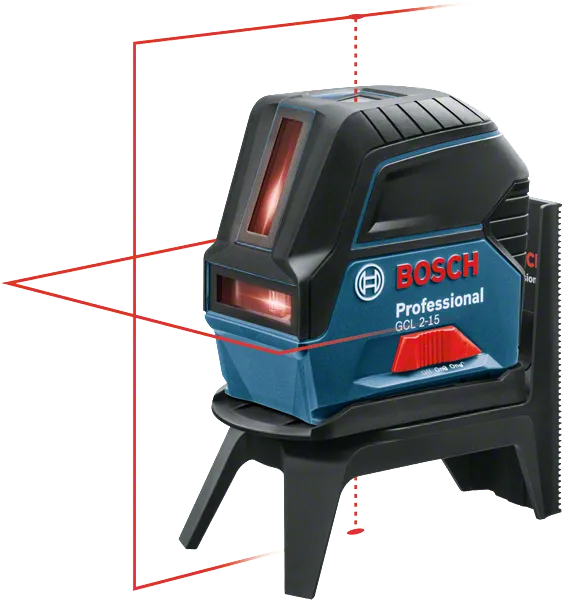

Combi Laser GCL 2-15 Professional

Compact and versatile for short-distance levelling applications

Technical data
Additional data
Accuracy ± 0.3 mm/m* (*plus use-dependent deviation)
Projection 2 lines / 2 points
Working range up to 15   m
Operating temperature -10 – 50   °C
Storage temperature -20 – 70   °C
Laser diode 630 – 650 nm, < 1mW
Laser class 2
Working range of laser points, max. 10 m (top), 10 m (bottom)
Self-levelling range ± 4°
Levelling time 4   s
Dust and splash protection IP 54
Power supply 3 x 1.5 V LR6 (AA)
Operating time (max.) 6 h in cross line and point mode, 8 h in cross line mode, 12 h in line and point mode, 16 h in line mode, 22 h in point mode
Tripod thread 1/4", 5/8"
Weight, approx. 0.49   kg
Colour of laser line red
Plumb point accuracy ± 0.7 mm/m* (*plus use-dependent deviation)
Working range, value 15   m

Advantages

Compact and versatile for short-distance levelling applications

  • Both horizontal and vertical lines are perfect for short-distance levelling applications
  • Enjoy precise transfer applications thanks to two centred plumb points
  • Rotating mount RM 1 Professional allows laser lines to be easily positioned around the plumb points

Functions

Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon

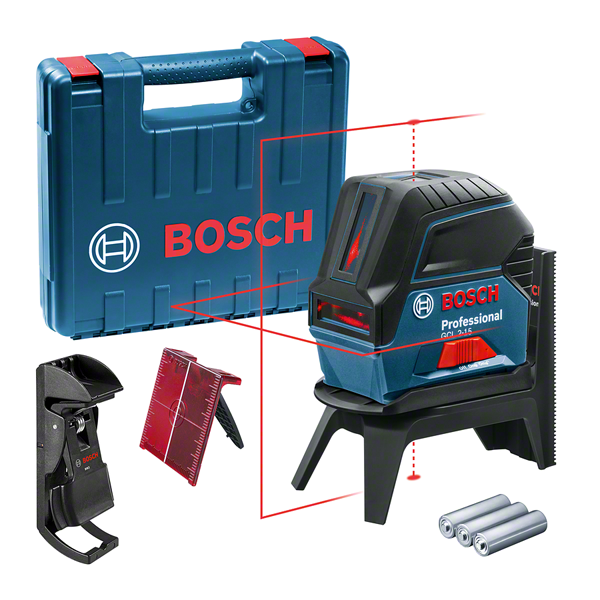

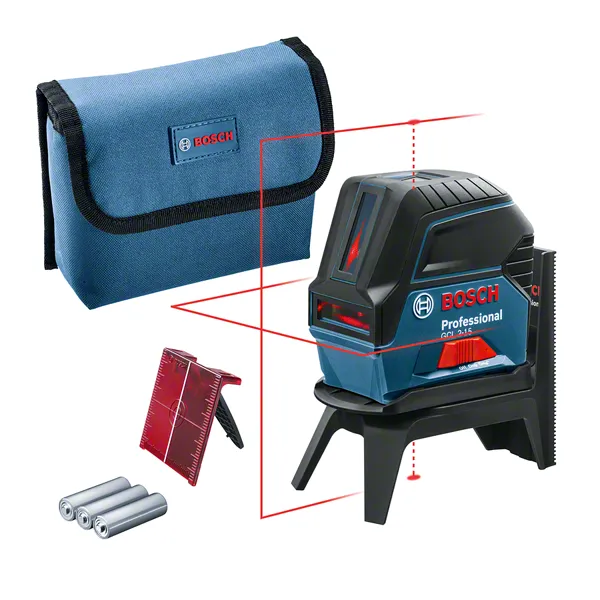

What’s Included in this Package
in carrying case with 3 x battery (AA), rotating mount
in carrying case with 3 x battery (AA), rotating mount
Order number: 0 601 066 E02
  • Carrying case

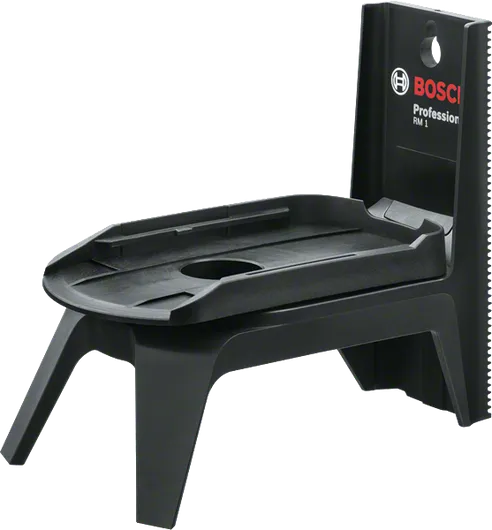

  • Rotating mount RM 1 Professional 0 601 092 600
  • Ceiling clamp
  • Laser target plate
  • 3 x 1.5 V LR6 battery (AA)
Product variations (2)

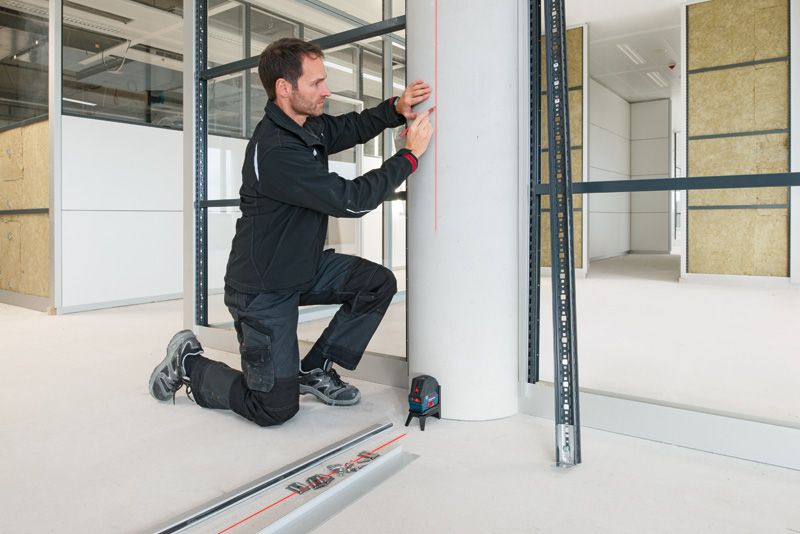

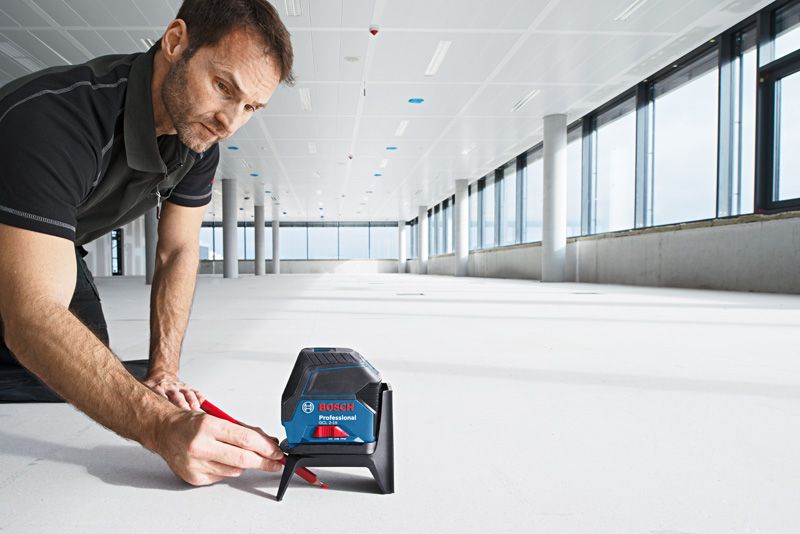

The GCL 2-15 in action!
