Combi lasers

GCL 25 Professional

Combi Laser

The easy solution for all levelling and transfer jobs over short distances

  • Extremely versatile: cross line laser and five-point laser in one
  • Easy to operate using intuitive user interface
  • Compact and ergonomic design
See technical details

Functions & key features

Line configuration
Laser class 2
IP54 dust and splash water protection
Tripod mount for 5/8" and 1/4" tripod thread
Power supply 4 x AA battery

Your Selection

  • with 4 x battery (AA), laser target plate
Change variant Find a local dealer

with 4 x battery (AA), laser target plate 0 601 066 B00

Select a variant

Your Selection

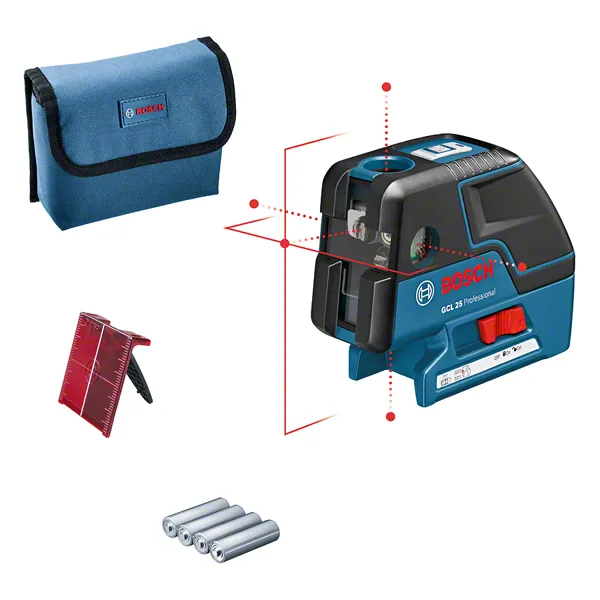

with 4 x battery (AA), laser target plate

Order number: 0 601 066 B00

Find a local dealer

Your Selection

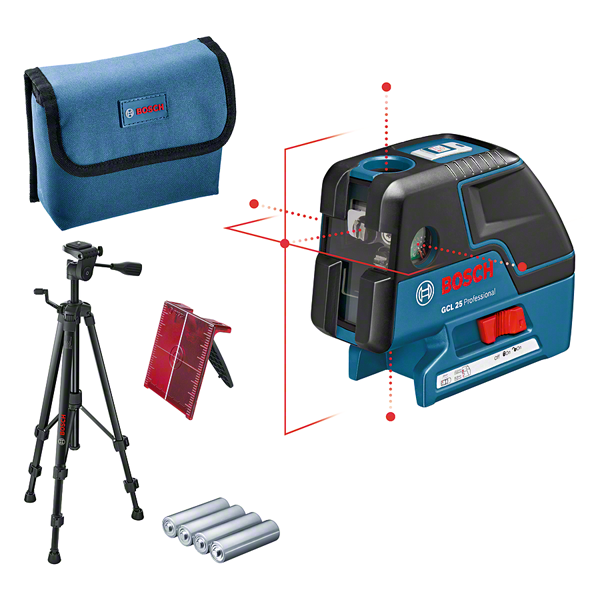

with 4 x battery (AA), tripod

Order number: 0 601 066 B01

Find a local dealer

Technical data

Additional data

Dust and splash protection IP 54
Working range 10 m
Accuracy Laser lines and horizontal point beams: ± 0.3 mm/m* ; Vertical point beams: ± 0.5 mm/m* (*plus use-dependent deviation), Horizontal laser line: ± 0.2 mm/m* ; Vertical laser lines: ± 0.3 mm/m* (*plus use-dependent deviation)
Projection 2 lines / 5 points
Working range, value 10 m
Laser diode 630 – 650 nm, < 1mW
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range of laser points, max. 10 m (top), 5 m (bottom), 30 m horizontal
Self-levelling range ± 4°
Levelling time 4 s
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 12 h in line and point mode, 24 h in 5-point mode, 30 h in line mode
Tripod thread 1/4", 5/8"
Weight, approx. 0.6 kg
Colour of laser line red
Color of plumb points red
Plumb point accuracy ± 0.7 mm/m* (*plus use-dependent deviation)
