Technical data
| Additional data | |
|---|---|
| No-load speed | 30,000 rpm |
| Rated input power | 500 W |
| Tool holder | Collets up to 8 mm diameter |
| Power output | 280 W |
| Spindle collar diameter | 38 mm |
| Weight | 1.7 kg |

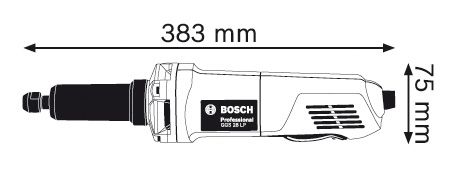

| Tool dimensions (length) | 383 mm |
| Tool dimensions (height) | 75 mm |
| Max. collet diameter | 8 mm (only 6 mm included) |
| Max. grinding tool diameter | 40 mm |
| Spanner size of locking nut | 19 mm² |
| Spanner size of grinding spindle | 13 mm² |
| Switch | PROtection Switch |
| Total vibration values (Surface grinding up to diameter of 25) | |
|---|---|
| Vibration emission value ah | 6 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Surface grinding up to diameter of 50) | |
|---|---|
| Vibration emission value ah | 20 m/s² |
| Uncertainty K | 1.5 m/s² |
Advantages
Great user protection at tough applications: The new GGS 28LP with safety switch!
- High user protection due to safety switch which shuts off the tool immediately when letting the switch go
- Fast work progress due to powerful 500 W motor
- Ideal for grinding in narrow spaces with a extended long grinding spindle
Functions
What’s Included in this Package
with collet
Order number:
0 601 225 070
- Collet 6 mm 2 608 570 084
- Spanner 13 mm (spare part number 3 607 950 025)
- Spanner 19 mm (spare part number 3 607 950 024)
