Angle measurers and inclinometers

GIM 60 L Professional

Digital Inclinometer

Laser-accurate incline transfer over longer distances

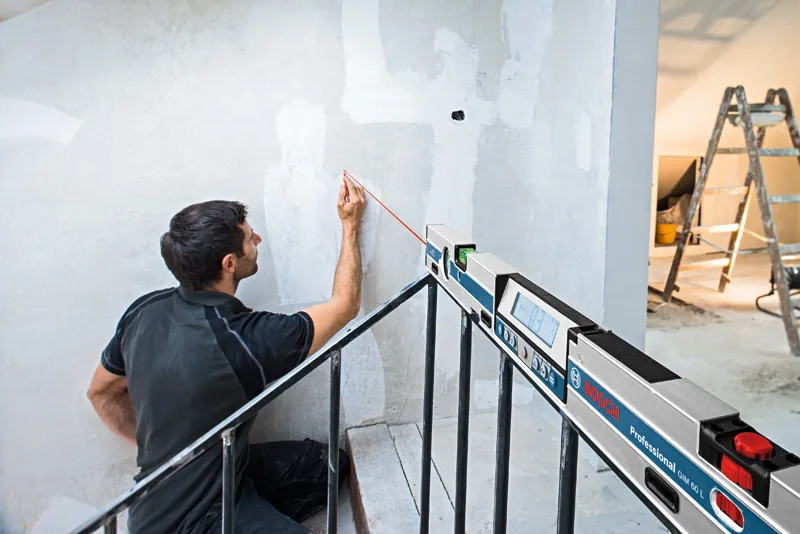

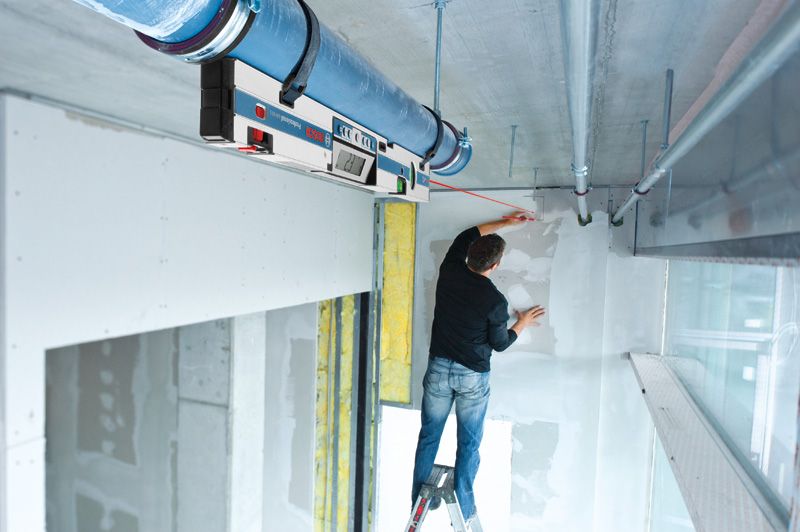

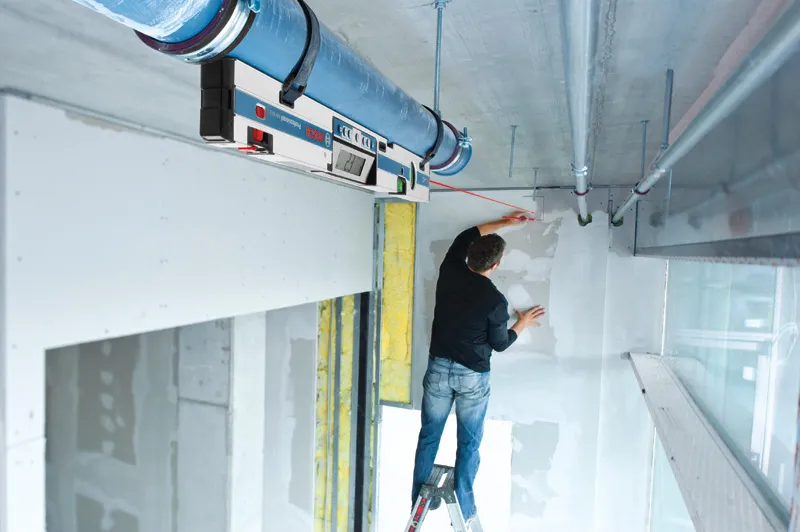

  • Integrated point laser for incline measurement up to a distance of 30 m
  • Strong magnets and two straps for securely fastening the instrument to workpieces
  • Incline mechanism for fine adjustment on uneven surfaces
See technical details

Functions & key features

Levelling mechanism Levelling mechanism
Magnetic Magnets for mounting on magnetic surfaces
Hold and Copy Hold/Copy function
IP protection 54 Dust and splash protection IP54
Laser class 2 Laser class for measuring tools.

Your Selection

  • with 4 x battery (AAA), Protective Bag
Show variant Find a local dealer

with 4 x battery (AAA), Protective Bag 0 601 076 900

GIM 60 L Professional

Your Selection

with 4 x battery (AAA), Protective Bag

Order number: 0 601 076 900

Find a local dealer

Technical data

Additional data

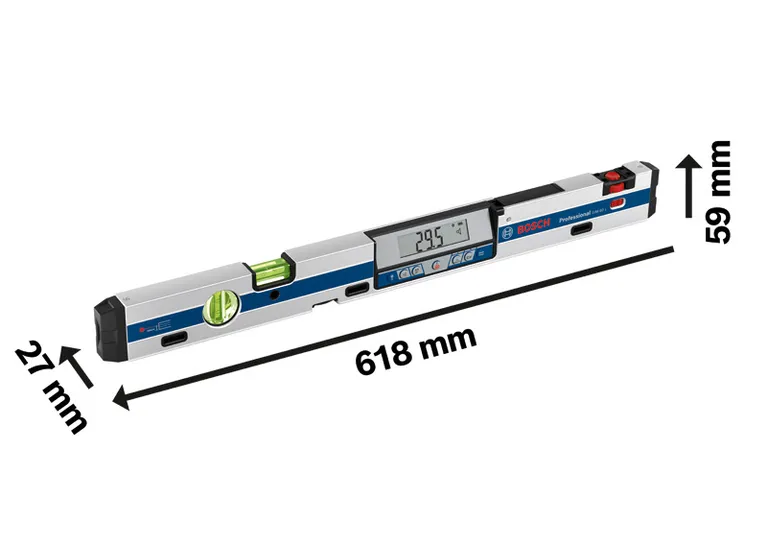

Length 60 cm
Measurement range 0 – 360° (4 x 90°)
Electronics measurement accuracy 0°/90° ± 0.05°
Electronics measuring accuracy at 1– 89° ± 0.1°
Working range (laser) 30 m
Weight approx. 0.91 kg
Laser type 635 nm, < 1 mW
Laser range 30 m
Laser class 2
Levelling accuracy of laser ± 0,5 mm/m
Units of measurement °, %, mm/m
Tripod thread 1/4"
