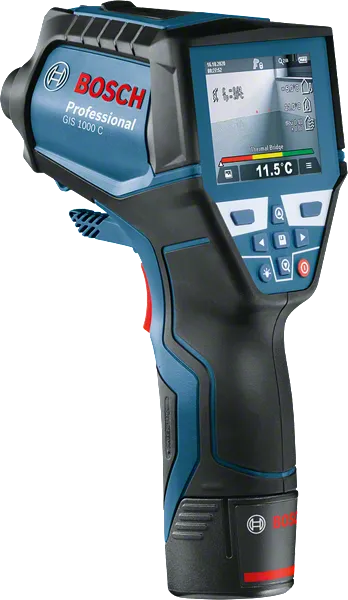

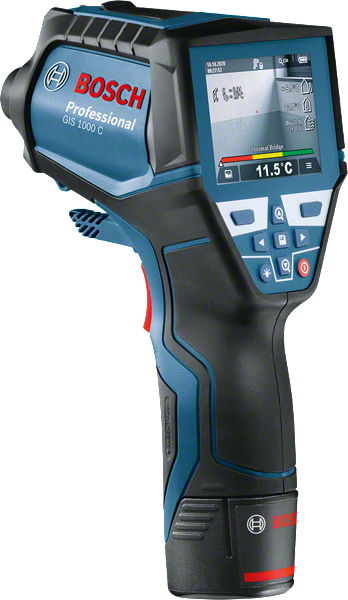

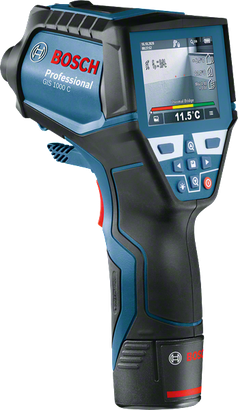

Thermo Detector GIS 1000 C Professional

The all-round thermo detector for precise and versatile measurements

Technical data
Additional data
Measuring application Spot temperature measurement, Thermal bridge, Dew point
Battery voltage 12   V
Measurement range -40 °C … +1000 °C
Measuring accuracy of IR ± 1.0 °C* (*plus use-dependent deviation)
Data transfer MicroUSB, Bluetooth™ Smart
Optics (Ratio of meas. distance : meas. spot) 50:1
Resolution 0.1   °C
Measuring accuracy of relative humidity ± 2 %** (**plus use-dependent deviation)
Laser diode Laser class 2, 635 nm
Frame buffer (number of images) >200
Memory type Internal memory
File format of image .jpg
Shock protection 1   m
Weight 0.56   kg
Supported Android devices Smartphone with Android 6.0 or higher
Supported iOS devices iPhone with iOS 11 or higher
Display type TFT LCD
Size of display 2,8"
Operating temperature -10 – 50   °C
Storage temperature -20 – 70   °C
Working range 0.1 – 5   m


The all-round thermo detector for precise and versatile measurements

  • Integrated camera instantly shows and documents measured values in photos

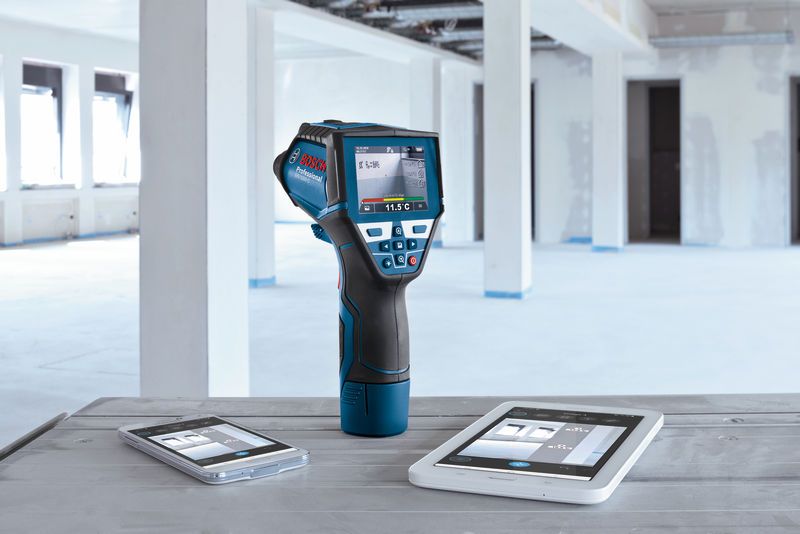

  • Practical data transfer and storage via Bosch Thermal App or USB
  • Precise results due to five different modes covering all applications


 Compatible since 2005: all of our batteries are compatible with new and existing Bosch Professional tools in the same voltage class.
Simply.Connected. - Simply.Efficient. thanks to smartphone connection and Bosch App
Dual power source
 All Bosch Professional 10.8V tools, batteries & chargers are 100% compatible with all Bosch Professional 12V tools, batteries & chargers

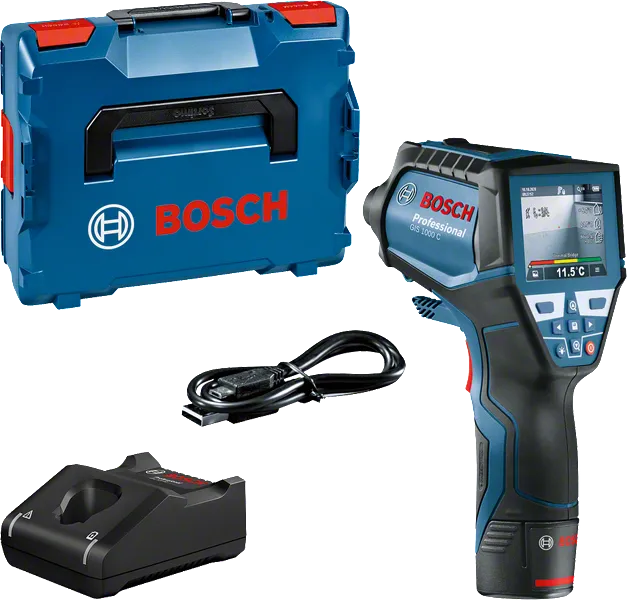

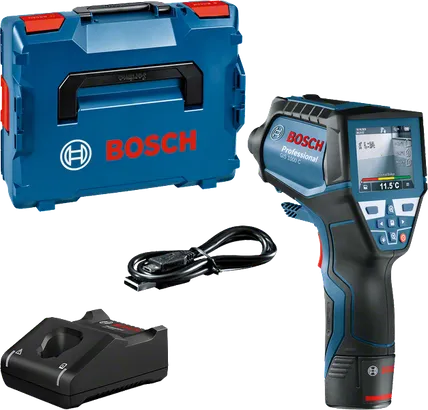

What’s Included in this Package
in L-BOXX 136 with Accessory, Quick-start card
in L-BOXX 136 with Accessory, Quick-start card
Order number: 0 601 083 301
  • Quick charger GAL 12V-40 Professional 1 600 A01 9R3
  • L-BOXX 136 1 600 A01 2G0
  • 1 x battery GBA 12V 2.0Ah 1 600 Z00 02X
  • L-BOXX inlay accessories
  • L-BOXX inlay for tool
  • Quick-start card
  • Micro USB cable 2 609 120 670
Product variations (3)

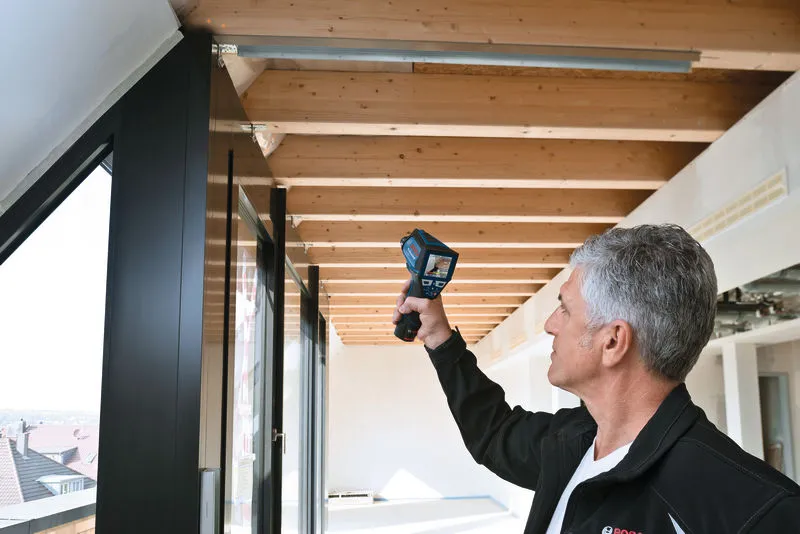

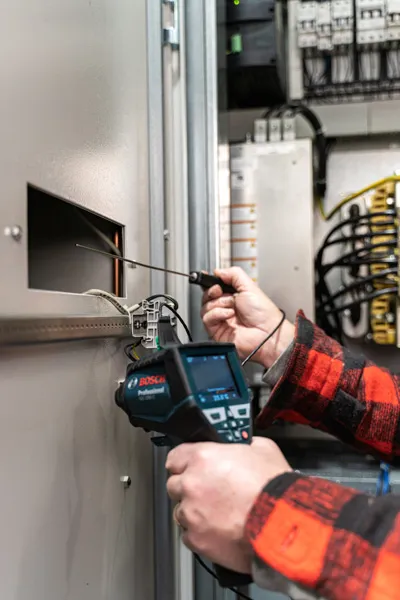

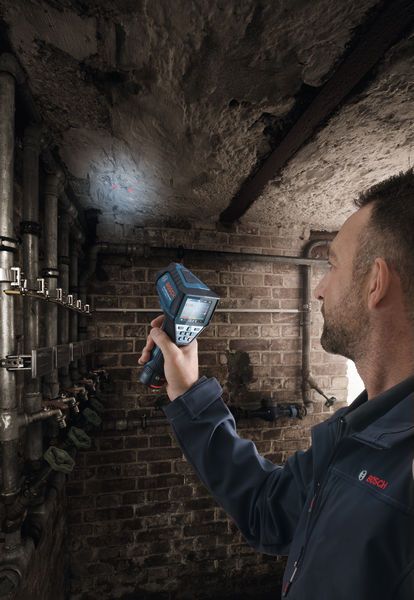

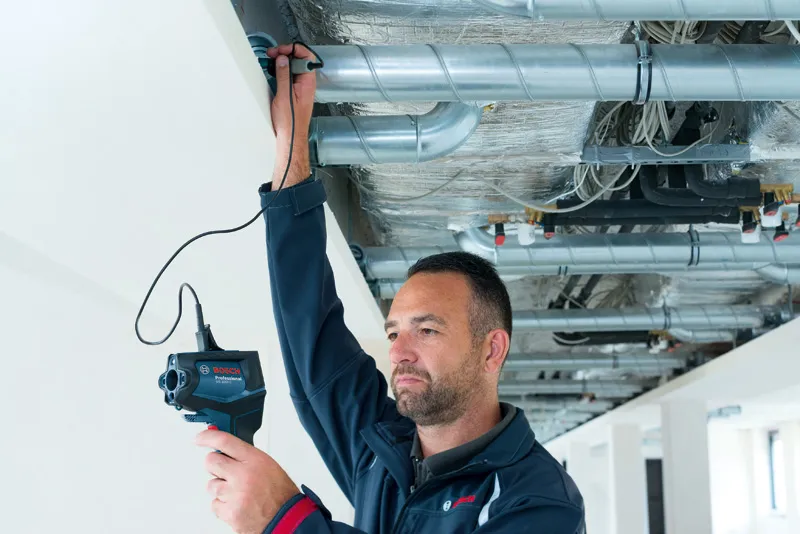

The GIS 1000 C in action!
