Technical data
| Additional data | |
|---|---|
| Working range* | up to 30 m |
| Working range with receiver* | up to 120 m |
| Accuracy* | +/- 0.3 mm/m*/** (*for the four horizontal intersection points ; **plus use-dependent deviation) |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Tripod thread | 1/4",5/8" |
| Weight, approx. | 0.82 kg |
| Colour of laser line | green |

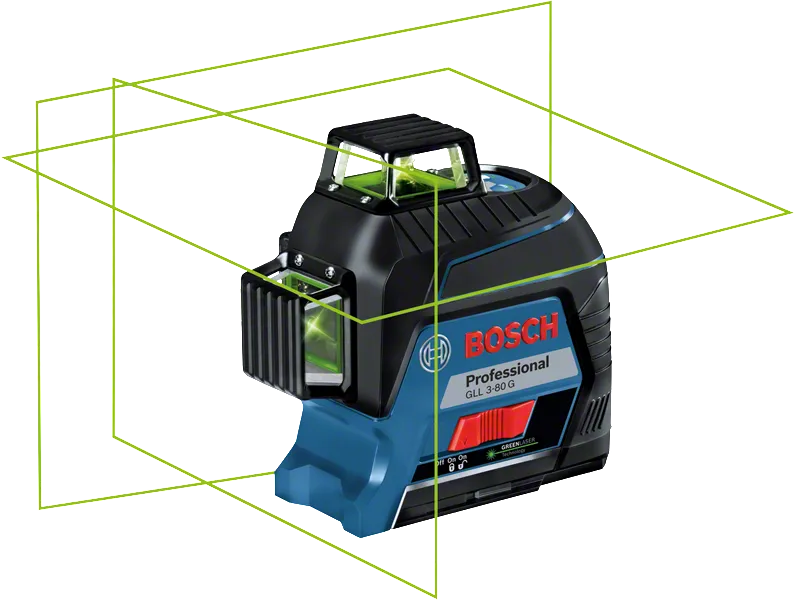

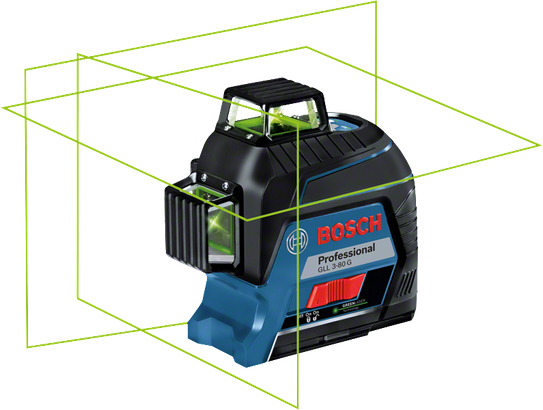

| Projection | 3 x 360° line |
* Highlighted Data
Advantages

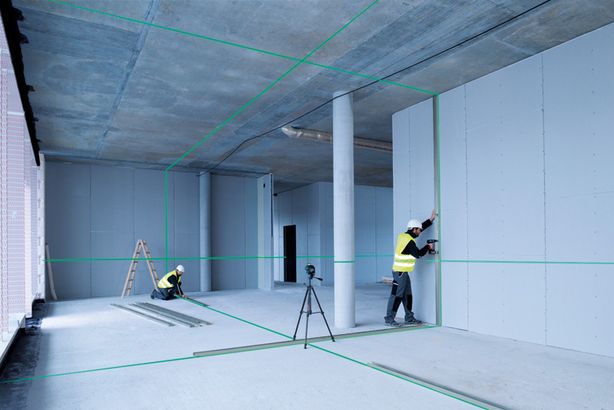

3 x 360° bold green lines for optimal visibility
- Bright green lines provide up to four times better visibility than red lines
- Perfect for simultaneous horizontal and vertical levelling applications thanks to three lines, for highly efficient work
- Intuitive user interface makes it easy to operate
Functions

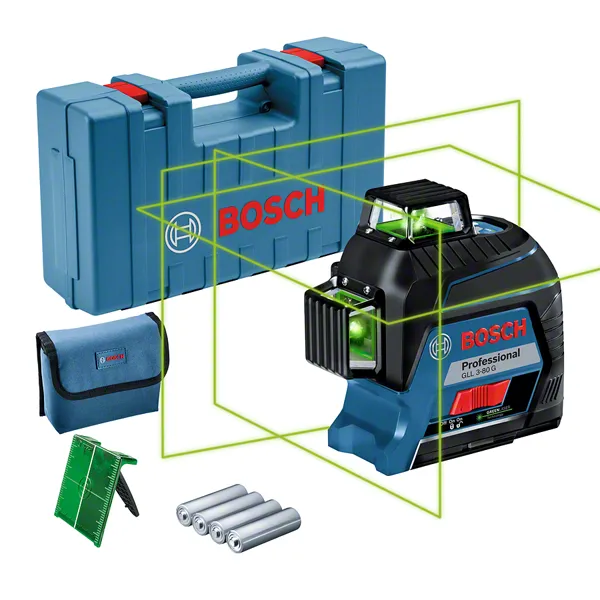

What’s Included in this Package
in carrying bag with 4 x battery (AA), laser target plate
Order number:
0 601 063 Y00
- 4 x 1.5 V LR6 battery (AA)
- Laser target plate
- Pouch
- Carrying case
