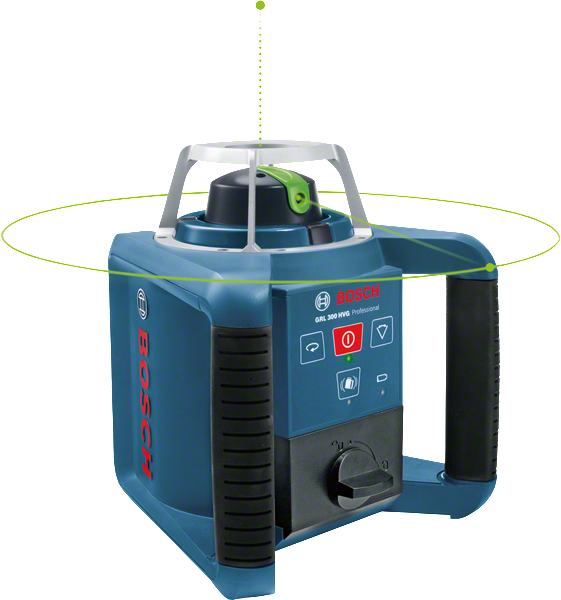

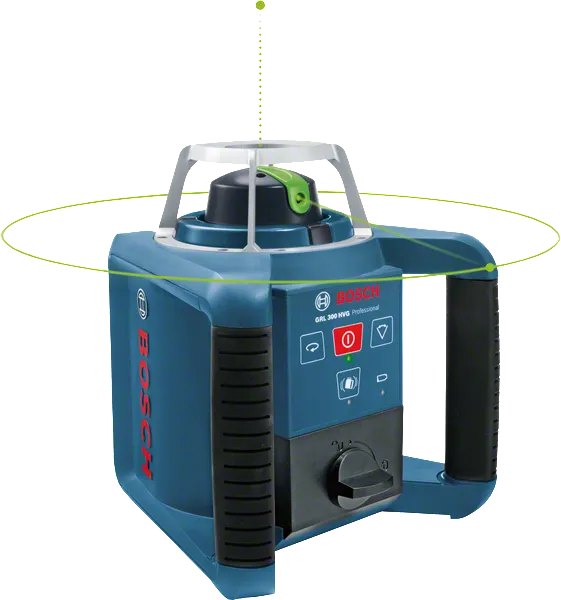

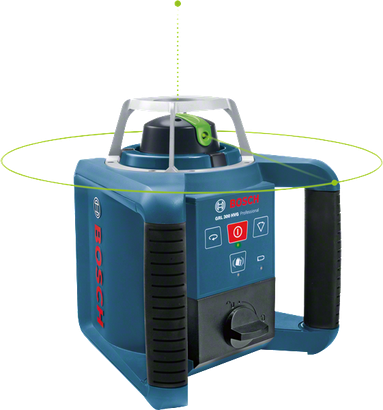

Rotation Laser GRL 300 HVG Professional

Outstanding visibility for indoor applications

4,069.00 SAR Recommended retail price excluding VAT.

Technical data
Additional data
Working range* 100   m
Working range with receiver* 300 m (Diameter)
Accuracy* ± 0.1 mm/m
Laser diode 532 nm, < 5 mW
Operating temperature, from 0   °C
Operating temperature, up to 40   °C
Operating temperature 0 – 40   °C
Storage temperature, from -20   °C
Storage temperature, up to 70   °C
Storage temperature -20 – 70   °C
Laser class 3R
Working range with receiver, value 300   m
Working range with receiver, appendage (Diameter)
Working range without receiver, value 100   m
Working range without receiver, appendage (Diameter)
Working range without receiver 100 m (Diameter)
Self-levelling range ± 5° (8%)
Levelling time 15   s
Dust and splash protection IP 54
Rotation speed 150, 300, 600 rpm
Power supply 2 x 1.2 V HR20 (D) (9 Ah), 2 x 1.5 V LR20 (D)
Operating time (max.) Rechargeable batteries (NiMH) 20 h
Tripod thread 5/8"

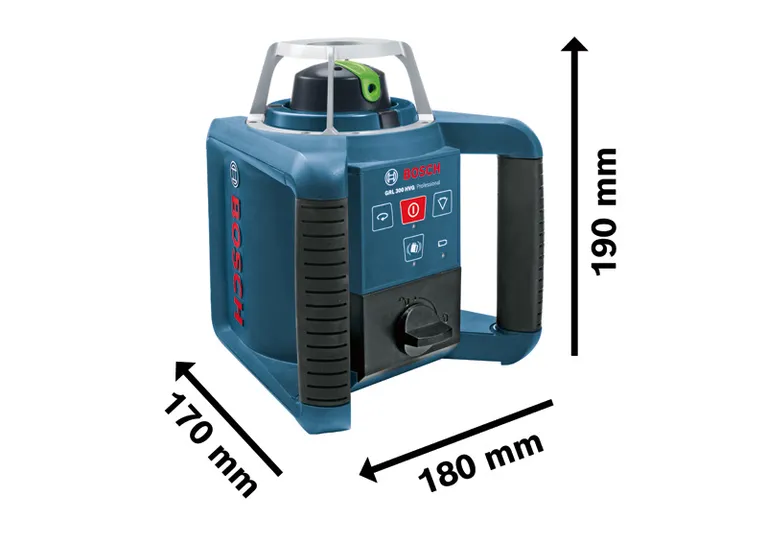

Weight, approx. 1.8   kg
Colour of laser line green
Compatible laser receivers LR 1G

* Highlighted Data

Advantages

Outstanding visibility for indoor applications

  • Green laser line: up to four times better visibility than a red line
  • Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
  • The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations

Functions

Laser class 3 Laser class for measuring tools.
Shock Warning Shock warning function
Battery Indicator Battery indicator
Self Levelling 8% Self-levelling ± 8%
Angle Function Fan angle in line mode 10°/25°/50°/0°
Working range of GRL 300 HVG Range with receiver 300 m
Working range of GRL 300 HVG Working range Ø 100 m
GRL 300 HVG Point, line and rotation mode in horizontal position
GRL 300 HVG Point, line and rotation mode in vertical position
Rotation mode of GRL 300 HVG Rotation speed 150, 300, 600 rpm

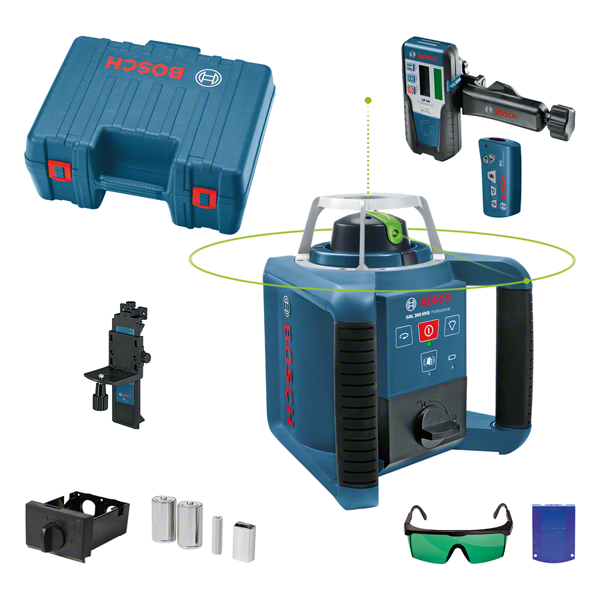

What’s Included in this Package
in carrying case with battery, accessory set
in carrying case with battery, accessory set
Order number: 0 601 061 701
  • Battery compartment (spare part number 1 608 M00 05D)
  • Carrying case (spare part number 1 608 M00 05F)
  • Charger set with adapter (spare part number 1 608 M00 05E)
  • Holder also available separately as an accessory (spare part number 1 608 M00 05A)
  • Laser target (blue) (spare part number 1 608 M00 05K)
  • Laser viewing glasses (green) (spare part number 1 608 M00 05J)

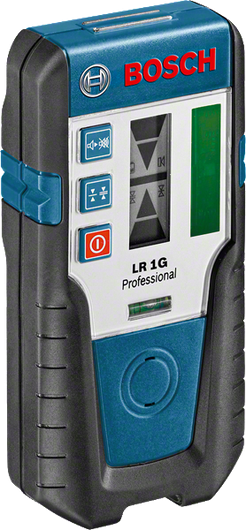

  • Laser receiver LR 1G Professional 0 601 069 700

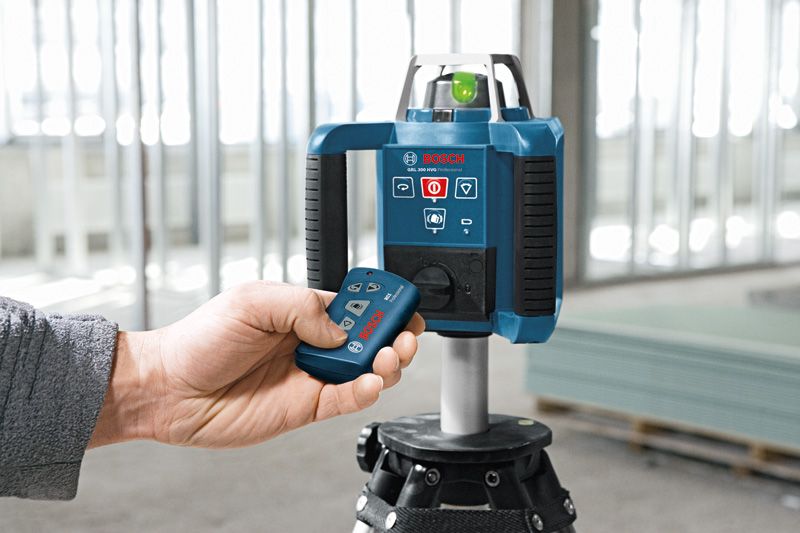

  • Remote control RC1 Professional 0 601 069 900
  • Universal mount WM 4 Professional 0 601 092 400
  • 1 x NiMH battery (spare part number 1 608 M00 05G)
  • 1 x 9 V block battery (6LR61)
  • 2 x 1.5 V LR20 battery
  • 1 x 1.5 V LR6 battery (AA)
4,069.00 SAR Recommended retail price excluding VAT.

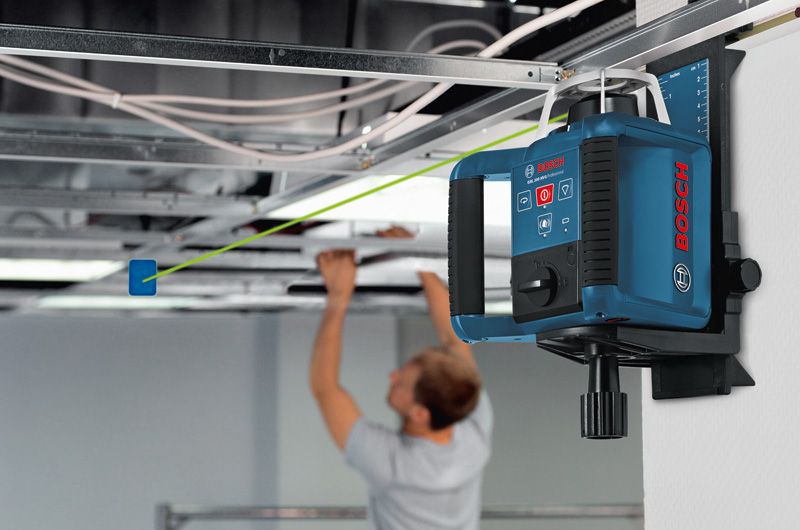

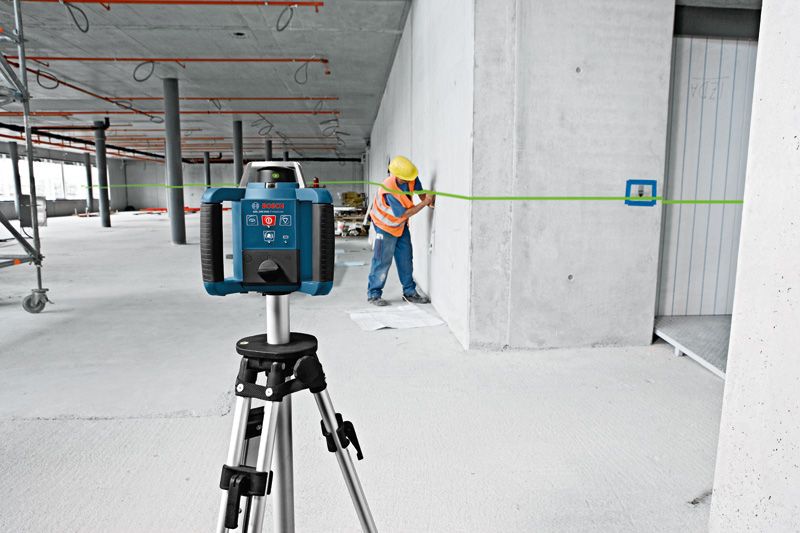

The GRL 300 HVG in action!
