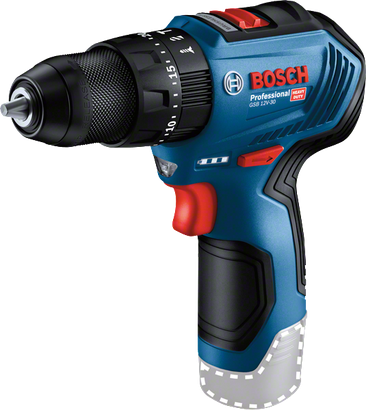

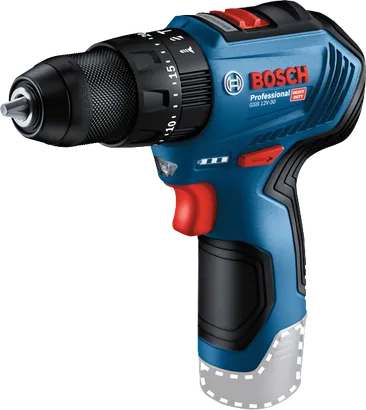

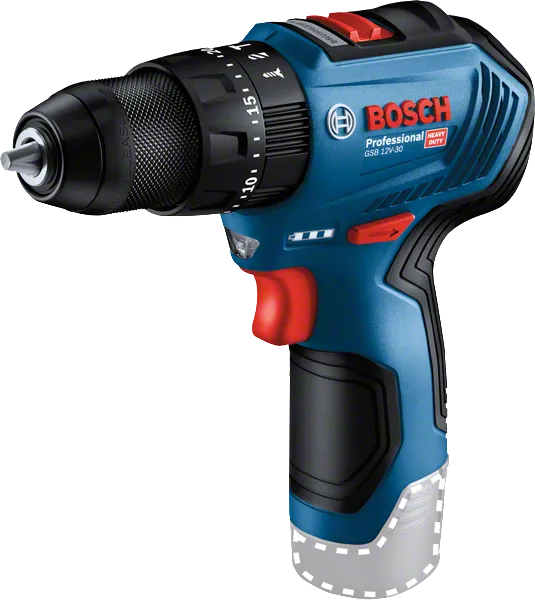

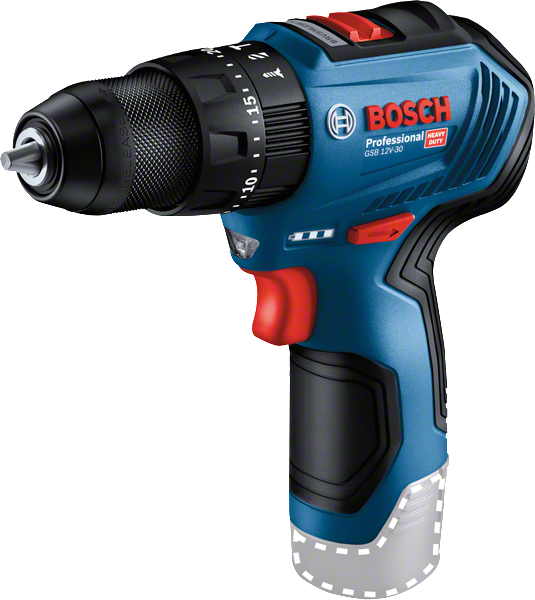

Cordless Combi GSB 12V-30 Professional

Impressive features, powerful results

Technical data
Additional data
Battery voltage* 12   V
Torque (soft/hard/max.) 18/30/-   Nm
No-load speed (1st gear / 2nd gear) 0 – 420 / 0 – 1,600   rpm
Battery type Lithium-ion
Max. impact rate 24,000   bpm
Chuck capacity, min./max. 1 / 10   mm
Weight excl. battery 0.82   kg
Torque settings 20+2
Tool holder Three-jaw chuck
Drilling diameter
Max. drilling diameter in aluminium 10   mm
Max. drilling diameter in wood 20   mm
Max. drilling diameter in steel 10   mm
Max. drilling diameter in masonry* 8   mm
Max. screw diameter* 8   mm
Screw diameter
Max. drilling diameter in aluminium 10   mm
Max. drilling diameter in wood 20   mm
Max. drilling diameter in steel 10   mm
Max. drilling diameter in masonry* 8   mm
Max. screw diameter* 8   mm
Total vibration values (Drilling in metal)
Vibration emission value ah 2.1   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Impact drilling in masonry)
Vibration emission value ah 10.6   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Screwdriving)
Vibration emission value ah 1   m/s²
Uncertainty K 1.5   m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.

Advantages

Impressive features, powerful results

  • High-end features within reach when screwdriving and drilling
  • Brushless motor for longer tool life
  • High torque and rapid drilling speeds for quick and powerful results

Functions

Longer motor life - more runtime - more power thanks to brushless motor
Icon
Easy and precise control of the RPM thanks to variable speed
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox
 Illuminating of the work area
Autolock chuck 1.5 - 10.0 mm
What’s Included in this Package
in cardboard box
in cardboard box
Order number: 0 601 9G9 102
  • Cardboard box
The GSB 12V-30 in action!
