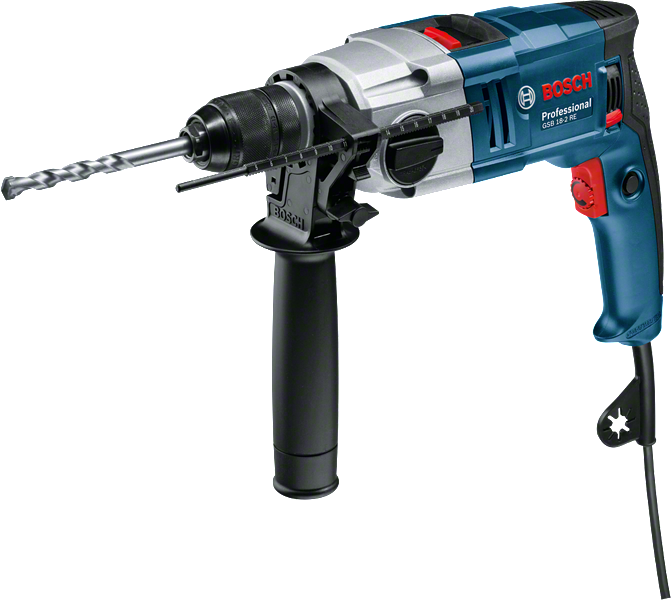

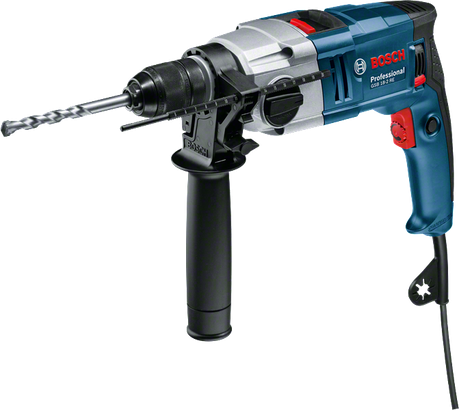

Impact Drill GSB 18-2 RE Professional

The fastest and most versatile tool in its class

Technical data
Additional data
Rated input power 800   W
Weight 2.6   kg
Tool dimensions (length) 347   mm
Rated speed 740 / 1,930   rpm
Rated torque 4.8 / 1.8   Nm
Chuck capacity, min./max. 1.5 – 13   mm
Max. torque 24.0 / 14.0   Nm
No-load speed, 1st gear 0 – 1,100   rpm
No-load speed, 2nd gear 3,000   rpm
Power output 420   W
Drill spindle connecting thread 1/2" – 20 UNF
Tool dimensions (width) 217   mm
Impact rate at no-load speed 0 – 17,600 / 48,000   bpm
Drilling range
Drilling dia. in stone 18 / 14   mm
Drilling diameter in masonry 18 / 14   mm
Drilling diameter in concrete 16 / 12   mm
Drilling diameter in wood 35 / 22   mm
Drilling diameter in steel 13 / 6   mm
Total vibration values (Drilling in metal)
Vibration emission value ah 3   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Impact drilling in concrete)
Vibration emission value ah 17.5   m/s²
Uncertainty K 1.7   m/s²
Total vibration values (Screwdriving)
Vibration emission value ah 2.5   m/s²
Uncertainty K 1.5   m/s²

Advantages

The fastest and most versatile tool in its class

  • Powerful 2-speed impact drill (800 W) for the fastest work progress
  • Sturdy metal gear housing for a long lifetime
  • Anti-rotation mechanical overload clutch for a high level of work safety

Functions

Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Forward / reverse rotation for inserting and removing screws
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox
Comfortable handling of the tool thanks to softgrip
Woodworking The professional power tools for woodworking from Bosch.
What’s Included in this Package
in carrying case with depth stop, Accessory
in carrying case with depth stop, Accessory
Order number: 0 601 1A2 1P0
  • Carrying case 2 605 438 524
  • Voltage 240 V
  • Depth stop 210 mm 2 603 001 019
  • Keyed chuck 13 mm (spare part number 1 617 S00 W5H)
  • Auxiliary handle (spare part number 1 617 S00 VV1)
