For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 230
Number of teeth 64
Width of cut (b1) mm 2.8
Choose a pack size 1 Pcs

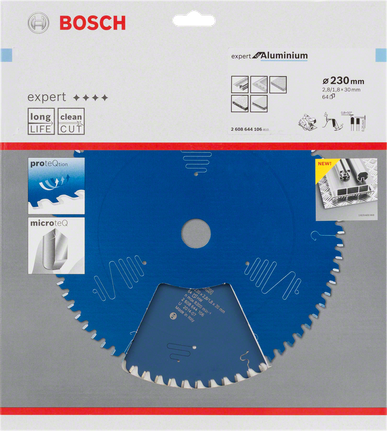

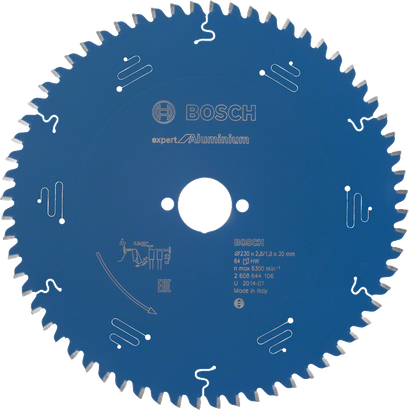

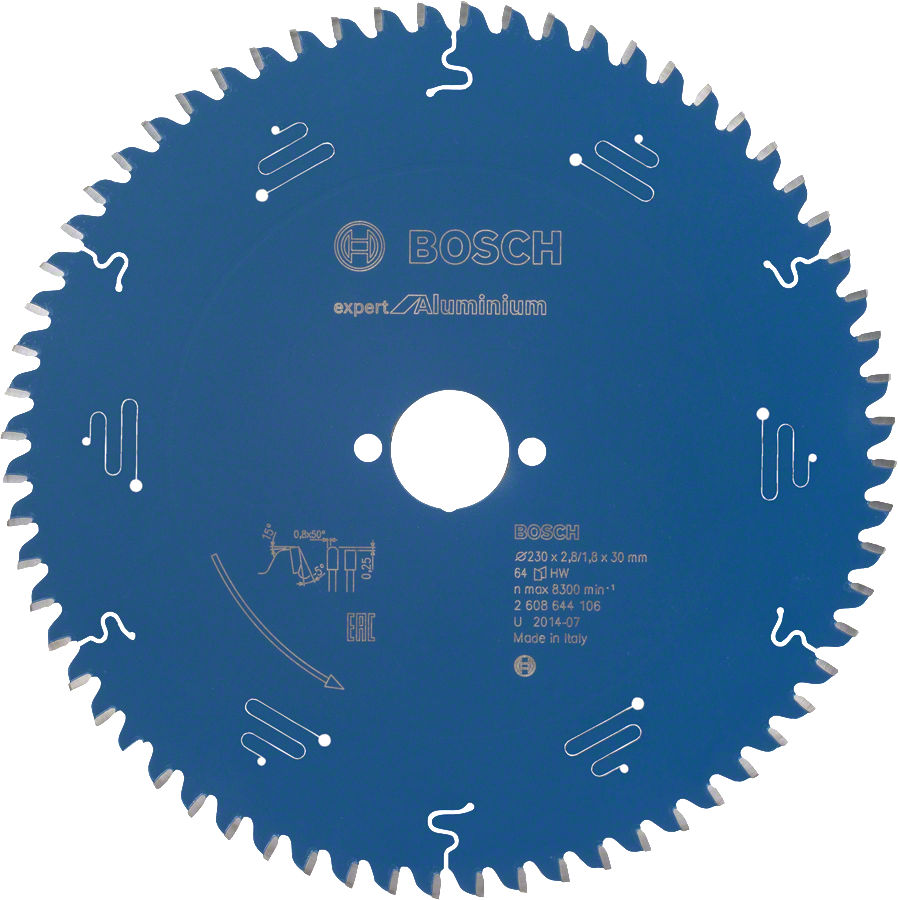

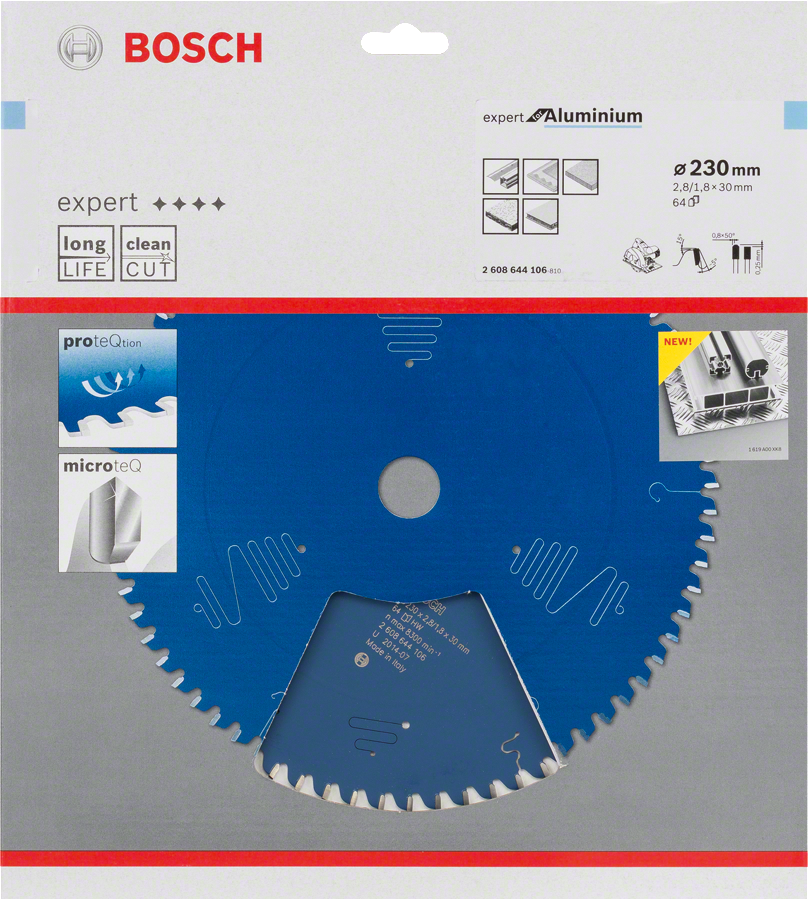

Expert for Aluminium Circular Saw Blade performs perfect cuts in aluminium
Available product options: 1
| Part number | Outer diameter mm | Bore size mm | Width of cut (b1) mm / Base bl. thickness (b2) mm | Number of teeth | Pack quantity | Price | ||
|---|---|---|---|---|---|---|---|---|
| 2 608 644 106 | 230 | 30 | 2.8/1.8 | 64 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608644106 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 230 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 64 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 8300 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
