HSS Twist Drill Bit Ground Set, Mini X-Line, 7-piece

For rotary drills/drivers

Order number 2 607 018 727

Maximum Precision

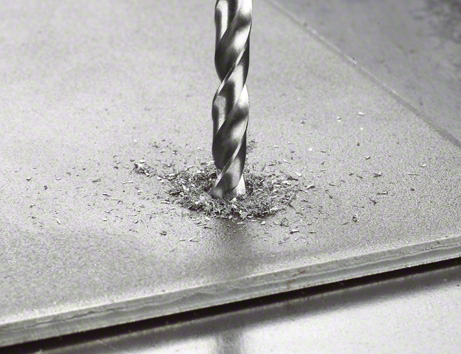

  • HSS Twist Drill Bit offers solid drilling for standard usage with metal
  • 135-degree self-centring split-point tip combines active cutting and perfect centring without wandering
  • Precision-ground bit made of HSS enables fast results
  • No need to pre-punch or pilot drill up to 10 mm-diameter
  • Manufactured to DIN 338, drill bit Type N (flute angle) with a 135-degree tip, diameter tolerance h8
View more
Materials
Steel
Cast iron

Selected variant

340 TND

Recommended retail price including VAT

Find a local dealer
Available product options(1)

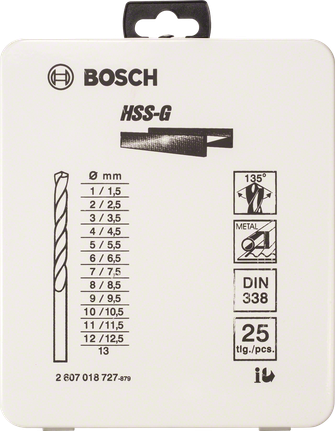

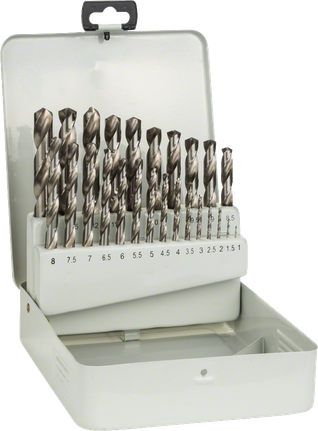

25-piece metal drill bit set HSS-G, DIN 338, 135° in metal cassette 1 - 13 mm 2 607 018 727

340 TND

Recommended retail price including VAT

Find a local dealer

Fits tools of most brands

Drill bit aligning with a drill chuck for installation.
Blue rotary drill chuck with an inserted masonry drill bit.
Close-up of a drill chuck holding a spiral drill bit.

Cylindrical shank compatible with three-jaw drill chucks

Product Options

Available product options: 1

Expand Part number Diameter mm Working length mm تعيين وصف Pack quantity Availability
2 607 018 727 1.00; 1.50; 2.00; 2.50; 3.00; 3.50; 4.00; 4.50; 5.00; 5.50; 6.00; 6.50; 7.00; 7.50; 8.00; 8.50; 9.00; 9.50; 10.00; 10.50; 11.00; 11.50; 12.00; 12.50; 13.00 12; 18; 24; 30; 33; 39; 43; 47; 52; 57; 57; 63; 69; 69; 75; 75; 81; 81; 87; 87; 94; 94; 101; 101; 101 25-piece metal drill bit set HSS-G, DIN 338, 135° in metal cassette included diameters (mm): 1; 1,5; 2; 2,5; 3; 3,5; 4; 4,5; 5; 5,5; 6; 6,5; 7; 7,5; 8; 8,5; 9; 9,5; 10; 10,5; 11; 11,5; 12; 12,5; 13 included working lengths (mm): 12; 18; 24; 30; 33; 39; 43; 47; 52; 57; 57; 63; 69; 69; 75; 75; 81; 81; 87; 87; 94; 94; 101; 101; 101 25 Pcs Find a local dealer
