Digital Inclinometer GIM 60 L Professional

Laser-accurate incline transfer over longer distances

Technical data
Additional data

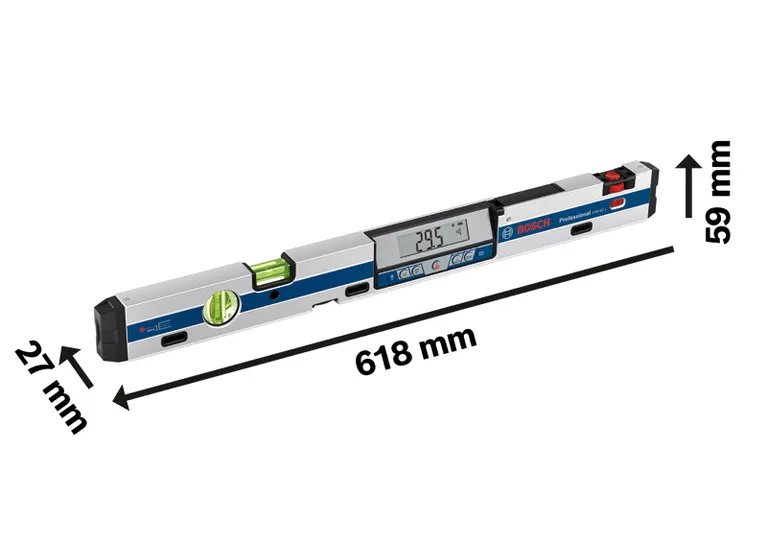

Length 60   cm
Measurement range 0 – 360° (4 x 90°)
Electronics measurement accuracy 0°/90° ± 0.05°
Electronics measuring accuracy at 1– 89° ± 0.1°
Working range (laser) 30   m
Weight approx. 0.91   kg
Laser type 635 nm, < 1 mW
Laser range 30   m
Laser class 2
Levelling accuracy of laser ± 0,5   mm/m
Units of measurement °, %, mm/m
Tripod thread 1/4"


Laser-accurate incline transfer over longer distances

  • Integrated point laser for incline measurement up to a distance of 30 m
  • Strong magnets and two straps for securely fastening the instrument to workpieces
  • Incline mechanism for fine adjustment on uneven surfaces


Laser class 2 Laser class for measuring tools.
Magnetic Magnets for mounting on magnetic surfaces
Levelling mechanism Levelling mechanism
Securing straps Securing straps for safe mounting on workpieces
Hold and Copy Hold/Copy function
Measuring range of angles 0°-360° Angle measuring range 0°-360°
IP protection 54 Dust and splash protection IP54
Measuring accuracy of laser ± 0.5 mm/m Measuring accuracy ± 0.5 mm/m
Measuring range of laser max. 30 m Measuring range maximum 30 m
What’s Included in this Package
with 4 x battery (AAA), Protective Bag
with 4 x battery (AAA), Protective Bag
Order number: 0 601 076 900
  • Protective Bag
  • 4 x 1.5 V LR03 battery (AAA)

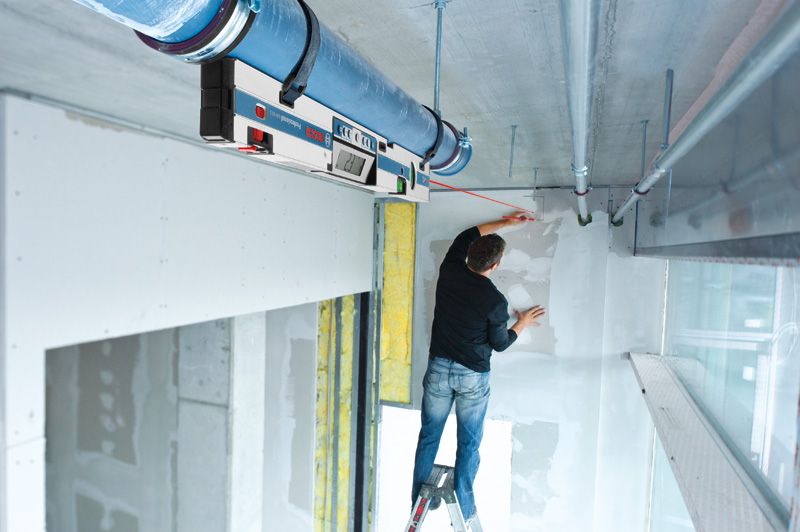

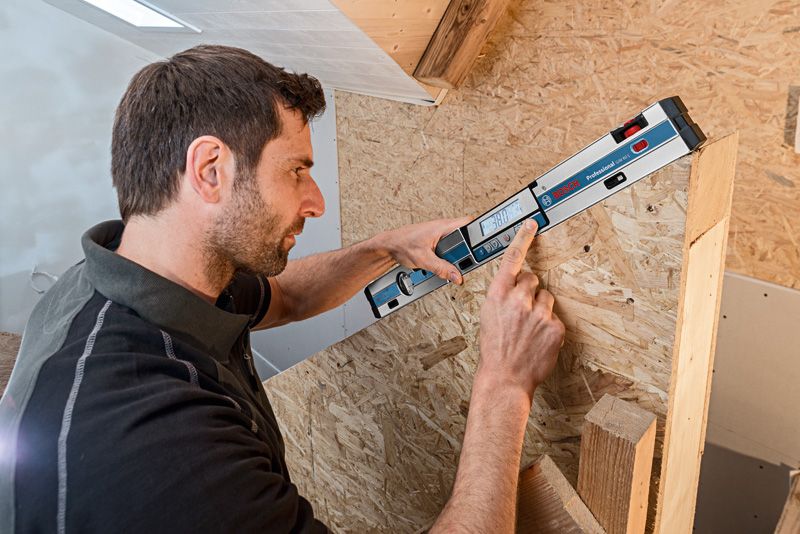

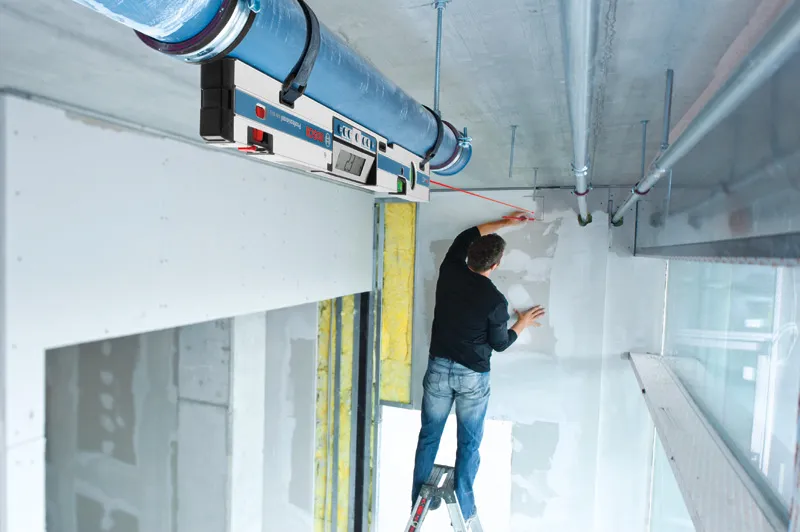

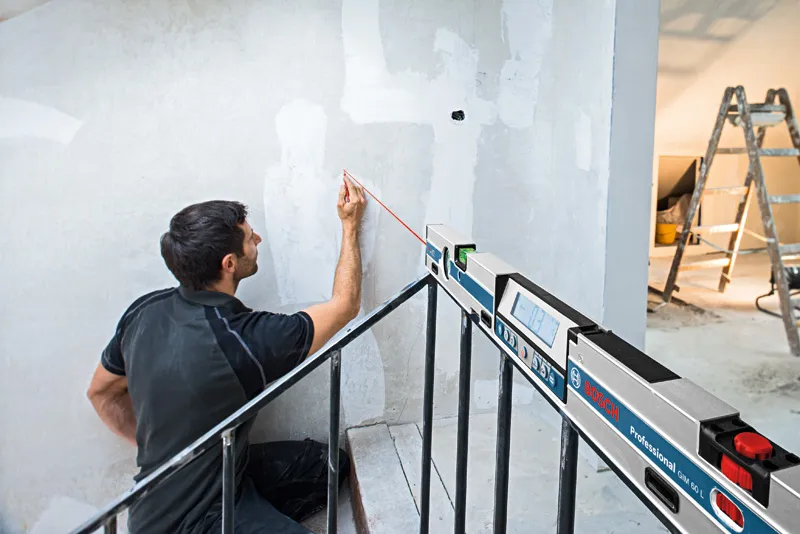

The GIM 60 L in action!
