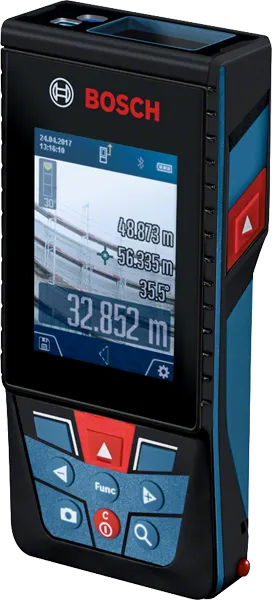

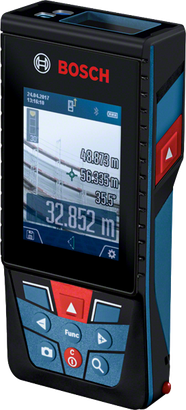

Laser Measure GLM 120 C Professional

The smart solution for measuring and documenting surroundings, even outdoors

Technical data
Additional data
Digital viewfinder integrated
Measurement time, typical < 0.5 s
Units of measurement m/cm/mm/ft/inch/ft-inch
Measurement range 0.08 – 120.00   m
Laser diode 650 nm, < 1 mW
Laser class 2
Measurement accuracy, typical ± 1.5 mm* (*plus use-dependent deviation)
Measurement range of incline measurement 0 – 360° (4 x 90°)
Measuring accuracy (typical) ± 0.2°* (*plus use-dependent deviation)
Measurement time, max. 4   s
Power supply 1 x 3.6 V Li-Ion battery (3120 mAh)
Automatic deactivation 5   min
Weight, approx. 0.21   kg
Memory capacity (values) 50
Dust and splash protection IP 54
Tripod thread 1/4"
Data transfer Bluetooth™ 4.2 Low Energy
Laser colour Red
Measuring range, up to 120   m

Advantages

The smart solution for measuring and documenting surroundings, even outdoors

  • Digital viewfinder with zoom function allows for precision over large distances, outdoors and in complex surroundings
  • High-contrast IPS colour display provides optimal readability

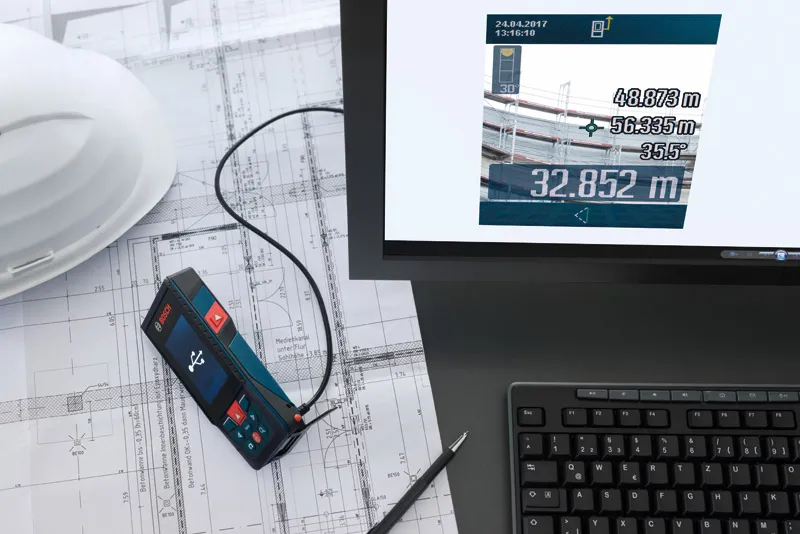

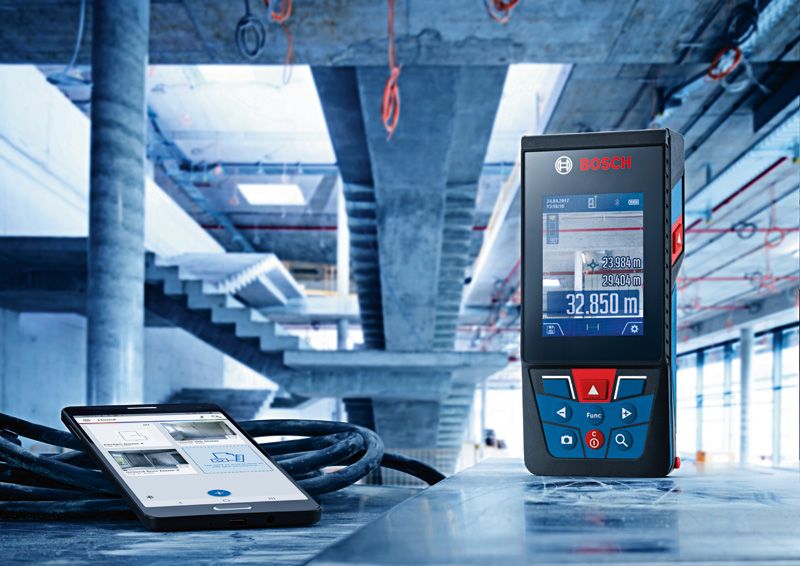

  • Remote controlling for rapid measurements and MeasureOn App for simple results documentation

Functions

Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
IP54 dust and splash water protection
Icon
Icon
Icon

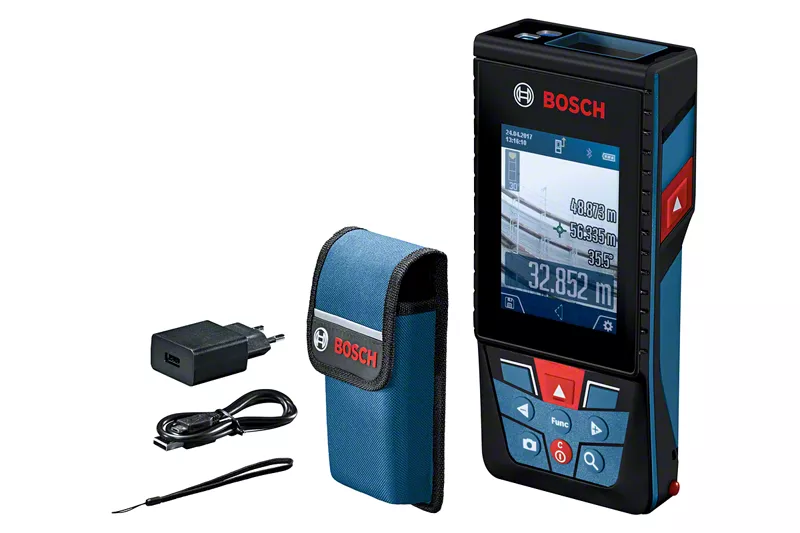

What’s Included in this Package
with carrying accessory
with carrying accessory
Order number: 0 601 072 F00
  • Carrying Strap
  • Micro USB cable
  • Micro USB charger
  • Manufacturer’s certificate
  • Protective Bag
The GLM 120 C in action!
