Impact Drill
Your Selection
Your Selection
Order number: 0 601 19C 700
Recommended retail price including VAT

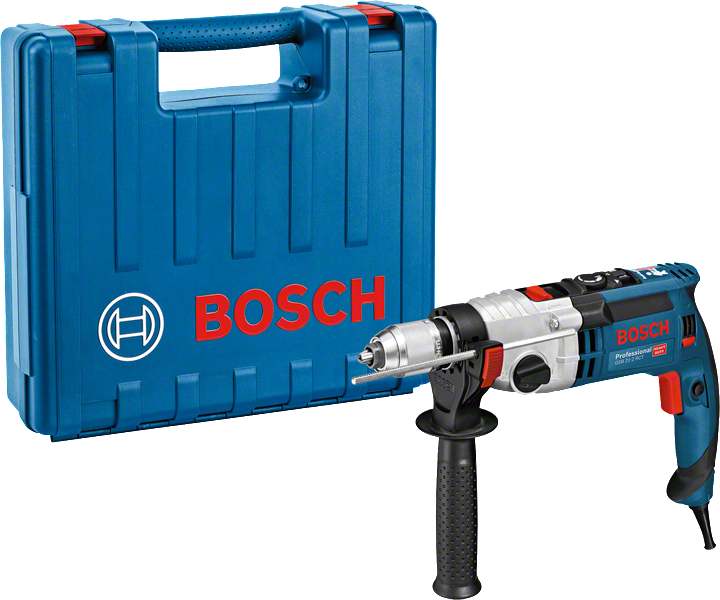

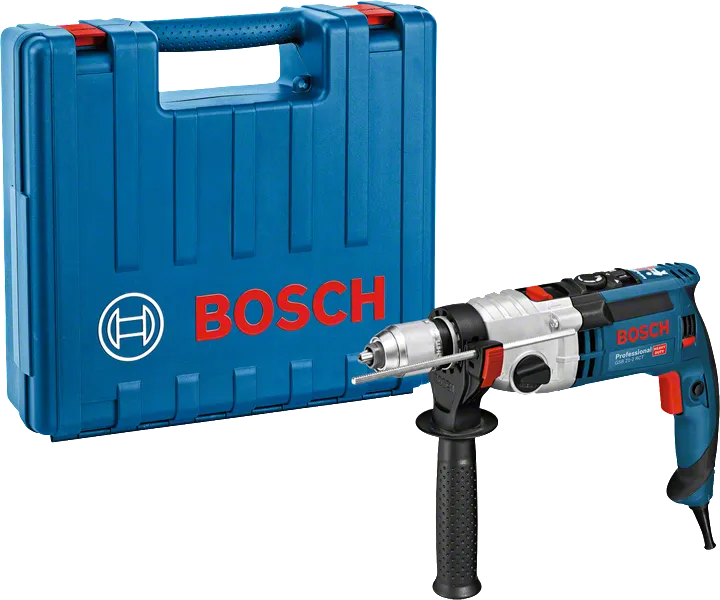

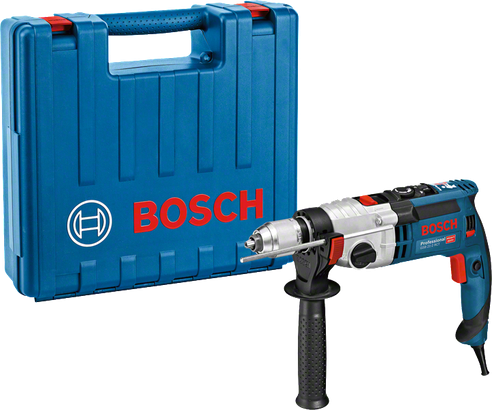

Included in this variant
Additional data |
|
---|---|
Rated input power | 1300 W |
Weight | 2.85 kg |
Voltage, electrical | 230 V |
No-load speed, 1st gear | 0 – 900 rpm |
No-load speed, 2nd gear | 3,000 rpm |
Power output | 695 W |
Impact rate at no-load speed | 0 – 15,300 / 51,000 bpm |
Rated speed | 3,000 rpm |
Rated torque | 7.8 / 2.6 Nm |
Drill spindle connecting thread | 1/2"-20 UNF |
Chuck capacity, min./max. | 1.5 – 13 mm |
Max. torque | 43.0 Nm |
Drilling range |
|
---|---|
Drilling diameter in wood | 40 / 25 mm |
Drilling diameter in steel | 16 / 10 mm |
Drilling diameter in masonry | 24 / 16 mm |
Total vibration values (Drilling in metal) |
|
---|---|
Vibration emission value ah | 5.6 m/s² |
Uncertainty K | 1.5 m/s² |
Total vibration values (Impact drilling in concrete) |
|
---|---|
Vibration emission value ah | 14.6 m/s² |
Uncertainty K | 1.8 m/s² |
Total vibration values (Screwdriving) |
|
---|---|
Vibration emission value ah | 2.5 m/s² |
Uncertainty K | 1.5 m/s² |
Total vibration values (Thread-cutting) |
|
---|---|
Vibration emission value ah | 2.5 m/s² |
Uncertainty K | 1.5 m/s² |
Noise/vibration information |
|
---|---|
Sound pressure level | 95 dB(A) |
Sound power level | 106 dB(A) |
Uncertainty K | 5 dB |
Drilling in metal |
|
---|---|
Vibration emission value ah | 5.6 m/s² |
Uncertainty K | 1.5 m/s² |
Impact drilling in concrete |
|
---|---|
Vibration emission value ah | 14.6 m/s² |
Uncertainty K | 1.8 m/s² |
Screwdriving |
|
---|---|
Vibration emission value ah | 2.5 m/s² |
Uncertainty K | 1.5 m/s² |
Thread-cutting |
|
---|---|
Vibration emission value ah | 2.5 m/s² |
Uncertainty K | 1.5 m/s² |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 95 dB(A); Sound power level 106 dB(A). Uncertainty K= 5 dB.

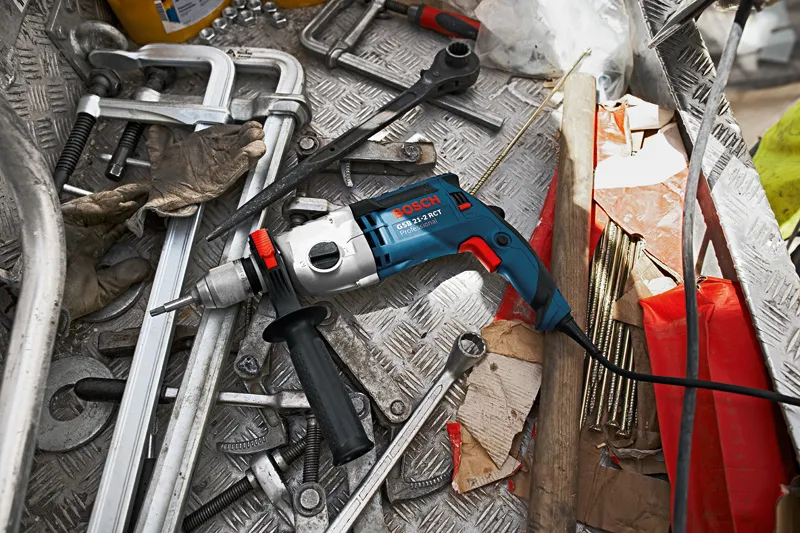

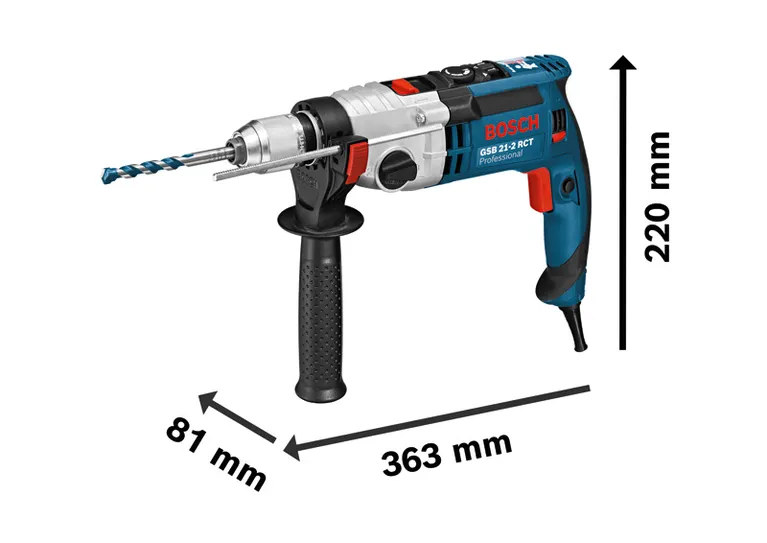

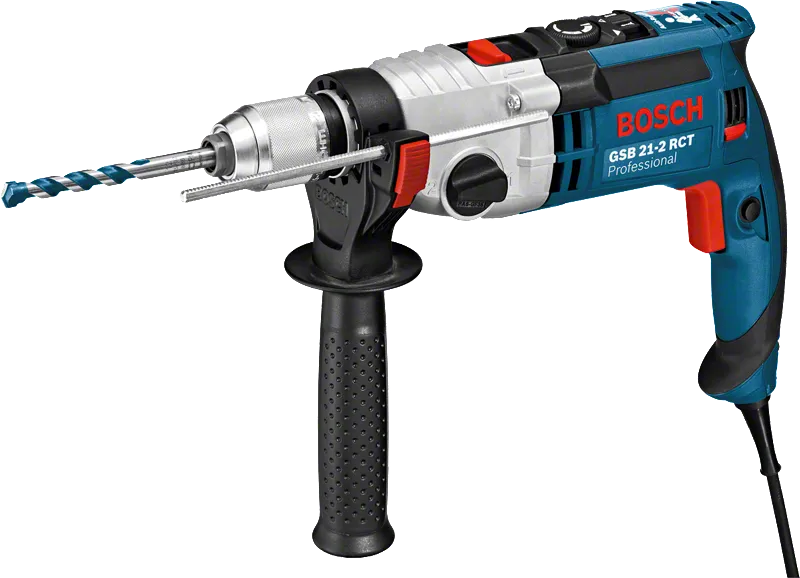

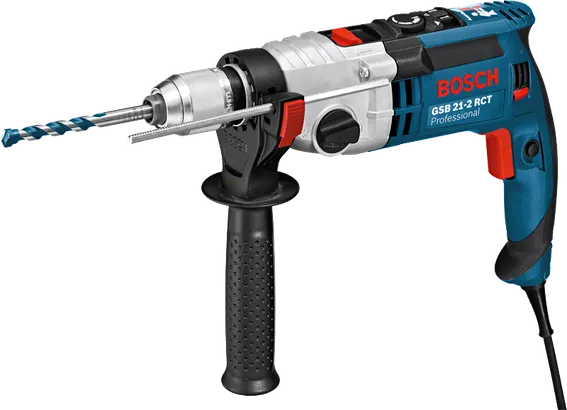

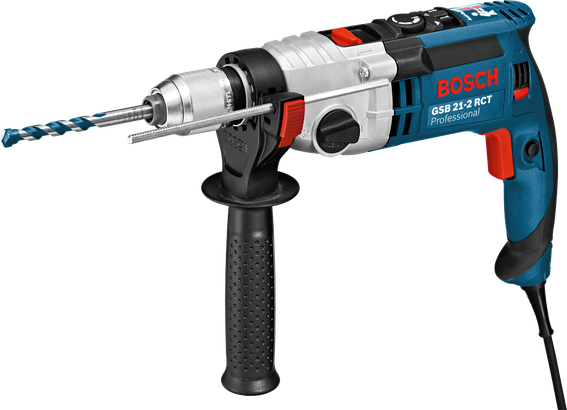

The GSB 21-2 RCT Professional is a 2-gear corded impact drill with constant speed and torque control designed for the toughest jobs. Its strong 1,300 W motor with high torque makes it ideal for heavy-duty applications. It features constant speed that conveniently maintains the selected work speed even under intense load. The impact drill’s torque control enables torque pre-selection for high precision work.
This tool is intended for drilling in concrete, stone, and masonry. It is compatible with the dust attachment GDE 16 Cyl Professional.
