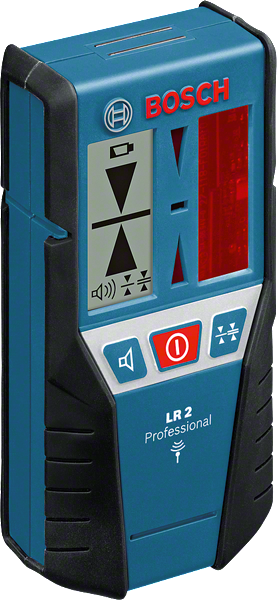

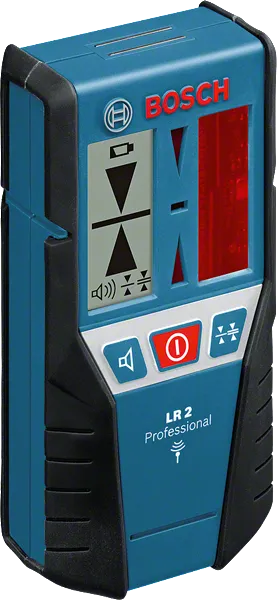

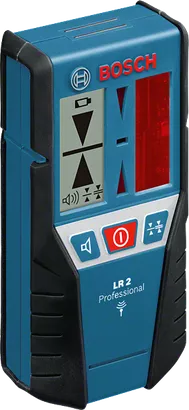

High-performance Receiver LR 2 Professional

Increased benefit with accessories

Technical data
Additional data
Range of* 5 – 50 m
Power supply* 1 x 9 V 6LR61 Block
Dust and splash protection* IP 54
Remote control -
Receiver +
Range, from 5 m
Range, up to 50 m
Weight, approx. 270 g

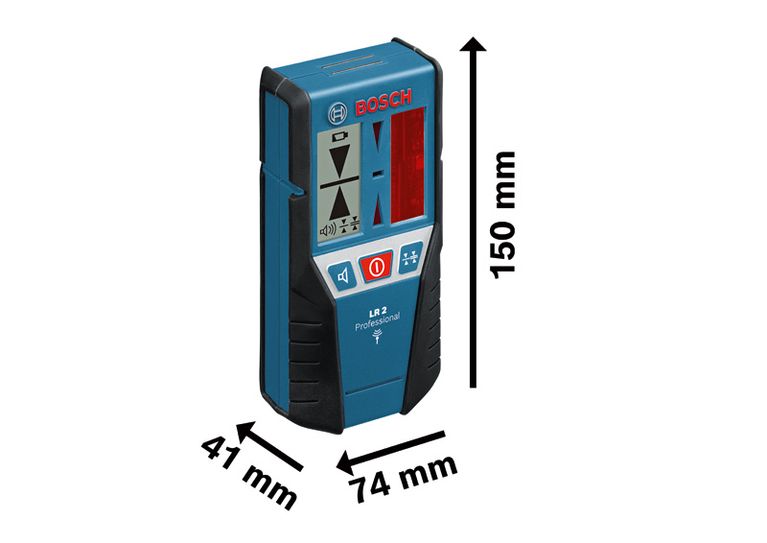

Tool dimensions (width) 41 mm
Tool dimensions (length) 74 mm
Tool dimensions (height) 150 mm
Measuring accuracy, fine ± 1 mm
Measuring accuracy, rough ± 3 mm
Measuring accuracy (fine/rough) ± 1 mm/± 3 mm

* Highlighted Data

Advantages

Increased benefit with accessories

  • Handy receiver for ranges of up to 50 m
  • Easily attached to a staff
  • Alignment of the laser beam plane, visual (display and LEDs) and audible signals, for working in various lighting conditions

Functions

Accuracy Measuring accuracy ± 1.0/3.0 mm

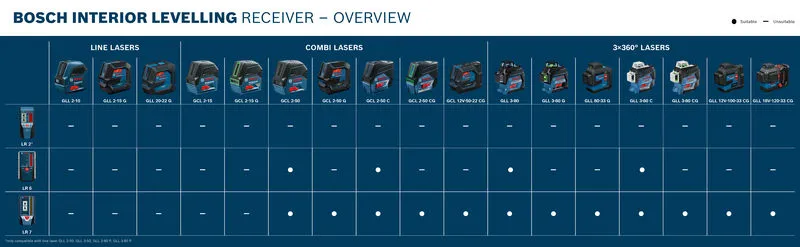

Working range of GLL 2-50 + LR2 receiver Range with receiver 50 m
Working range of GLL 2-80 P + LR2 receiver Range with receiver 40 m

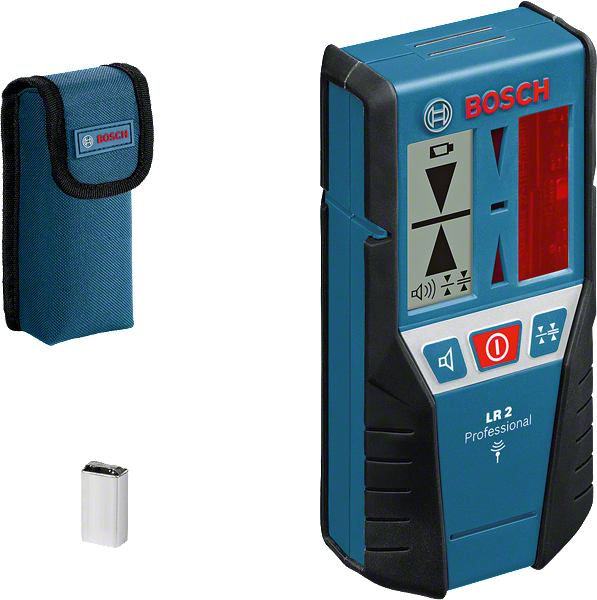

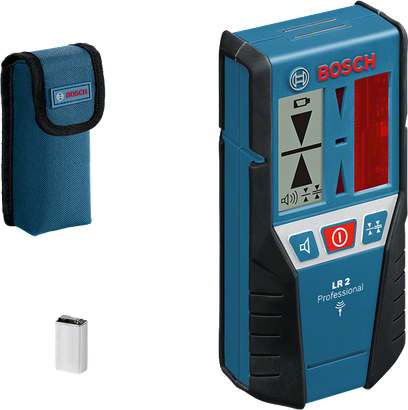

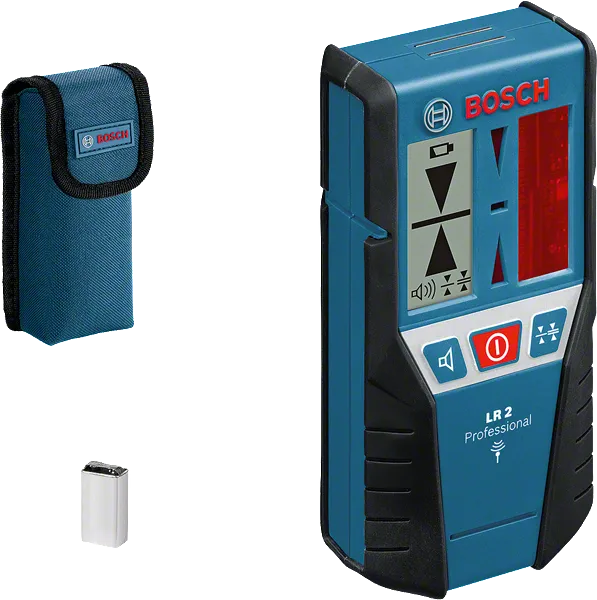

What’s Included in this Package
with 1 x battery (6LR61)
with 1 x battery (6LR61)
Order number: 0 601 069 100
  • 1 x 9 V block battery (6LR61)

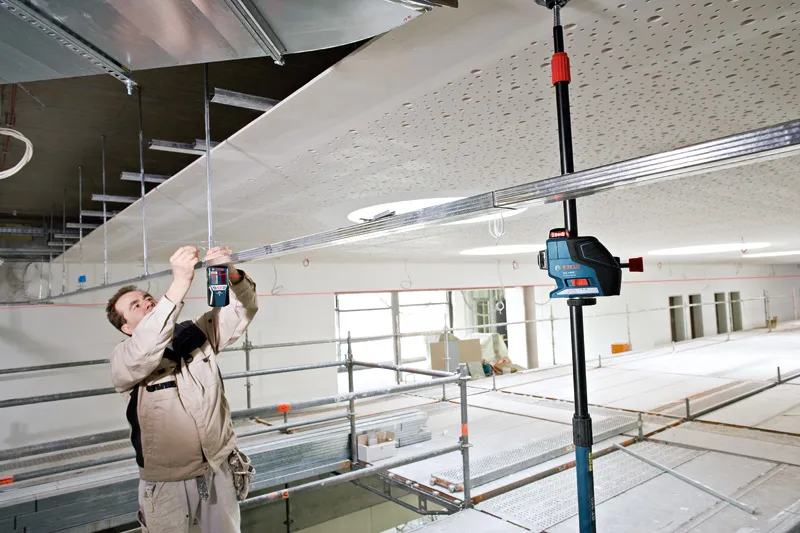

The LR 2 in action!
