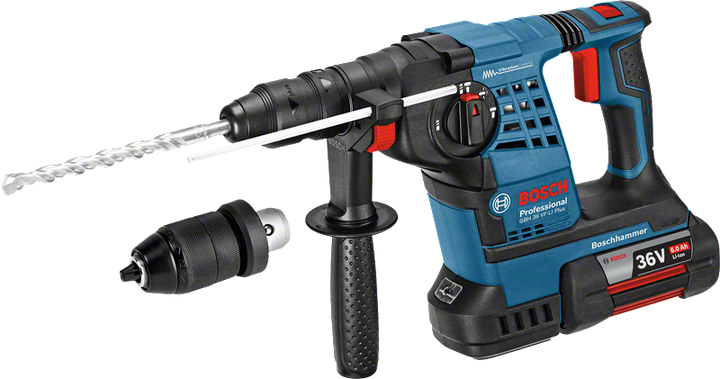

Cordless Rotary Hammer with SDS plus GBH 36 V-LI Plus Professional

Endless power and absolute control

Technical data
Additional data
Battery voltage* 36   V
Max. impact energy* 3.2   J
Impact rate at rated speed 0 – 4,200   bpm
Rated speed 0 – 940   rpm
Tool holder SDS plus
Drilling range
Drilling dia. in concrete with hammer drill bits* 4 – 28   mm
Opt. app. range in concrete with hammer drill bits 8 – 18   mm
Max. drilling diameter in metal 13   mm
Max. drilling diameter in wood 30   mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 14.5   m/s²
Uncertainty K 1.5   m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 90 dB(A); Sound power level 101 dB(A). Uncertainty K= 3 dB.

Advantages

Endless power and absolute control

  • Up to 50% faster work rate due to higher single impact energy and 100% more lifetime (compared to predecessor GBH 36 VF-LI)
  • Absolute control if the drill bit jams thanks to Bosch KickBack Control (KBC) and in sensitive materials thanks to Bosch Electronic Precision Control (EPC)
  • Comes complete with a keyless chuck, making it also suitable for straight-shank drill bits in wood and metal

Functions

Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
No self-discharge, no memory effect and a higher energy density thanks to Li-Ion battery technology
Optimal protection of the cells against excessive heat due to special, heat conductive housing
Optimal power transmission for small hammers
Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
Enhanced tool control for superior results in delicate materials even with impact - thanks to performance adjustment with slow ramp-up and reduced maximum performance
Easy and precise control of the RPM thanks to variable speed
Best work results with constant speed thanks to electronic regulation of speed - even under load
Forward / reverse rotation for inserting and removing screws
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Battery charge level indicator shows the level of remaining battery charge
Auxiliary handle
Icon
Comfortable handling of the tool thanks to softgrip
Combi hammer with chisel function No rotary motion; impact effect only
Convenient adjustment of the chisel position enabling you to adapt it to each work situation
Woodworking The professional power tools for woodworking from Bosch.
What’s Included in this Package
in carrying case with 2 x 6.0 Ah Li-ion battery, accessory set
in carrying case with 2 x 6.0 Ah Li-ion battery, accessory set
Order number: 0 611 906 00A
  • Auxiliary handle 2 602 025 191
  • Carrying case 1 600 A00 4E5
  • Depth stop 1 613 001 003
  • Quick charger GAL 3680 CV 2 607 225 900
  • 2 x battery GBA 36V 6.0Ah 1 600 A00 L1M
