For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 4 options
Number of teeth 4 options
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs

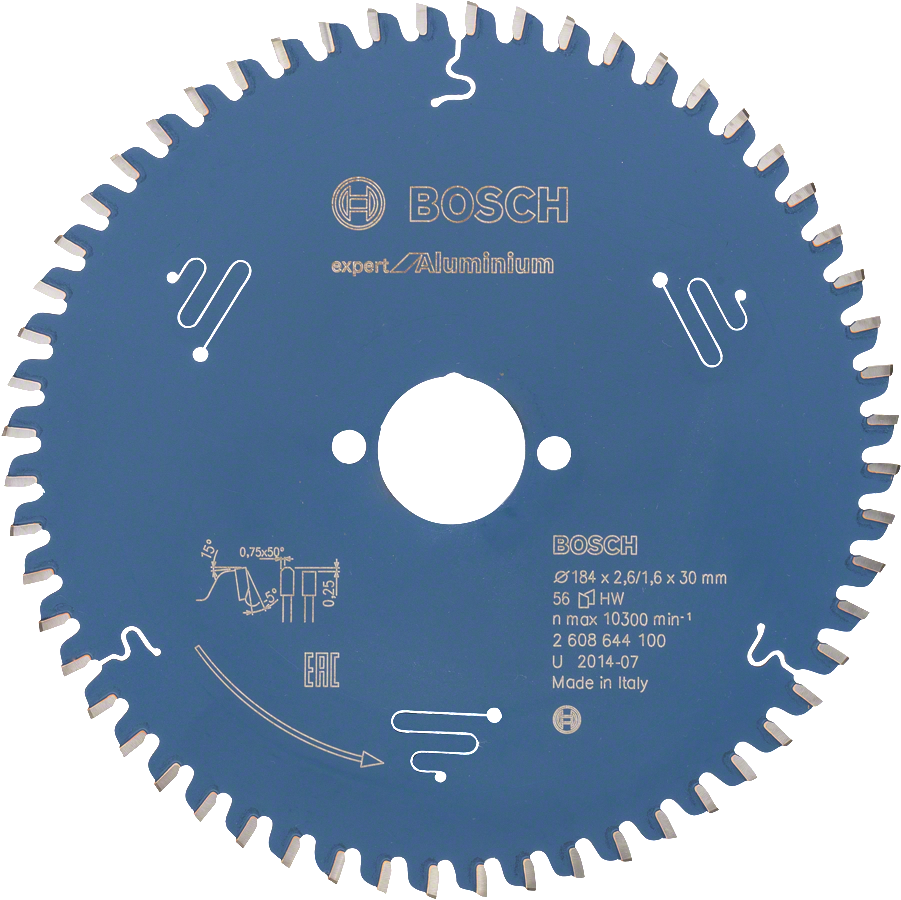

Expert for Aluminium Circular Saw Blade performs perfect cuts in aluminium
Available product options: 5
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|
| 2 608 644 101 | 190 | 20 | 2.6/1.6 | 56 | 1 Pcs | Find a local dealer | |
| 2 608 644 102 | 190 | 30 | 2.6/1.6 | 56 | 1 Pcs | Find a local dealer | |
| 2 608 644 105 | 210 | 30 | 2.8/1.8 | 72 | 1 Pcs | Find a local dealer | |
| 2 608 644 106 | 230 | 30 | 2.8/1.8 | 64 | 1 Pcs | Find a local dealer | |
| 2 608 644 107 | 235 | 30 | 2.6/1.8 | 80 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608644101 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 56 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608644102 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 56 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608644105 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 72 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 9000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |

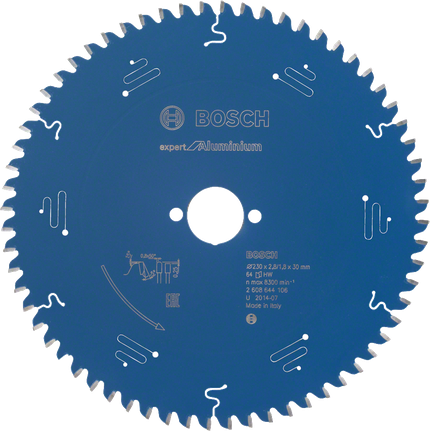

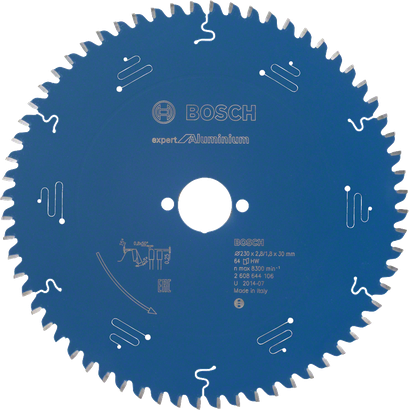

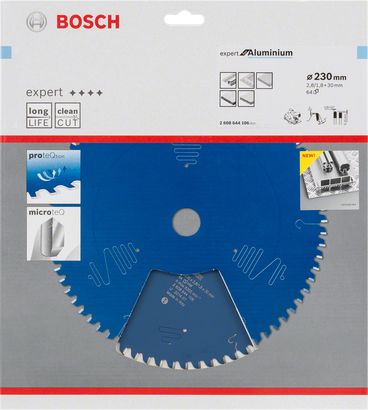

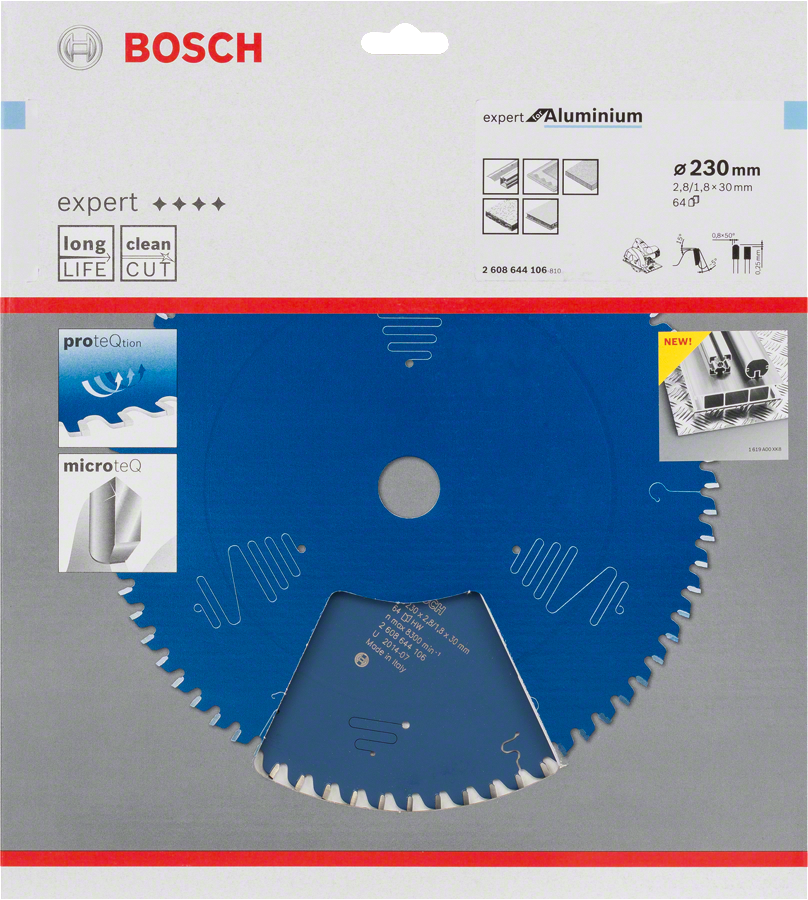

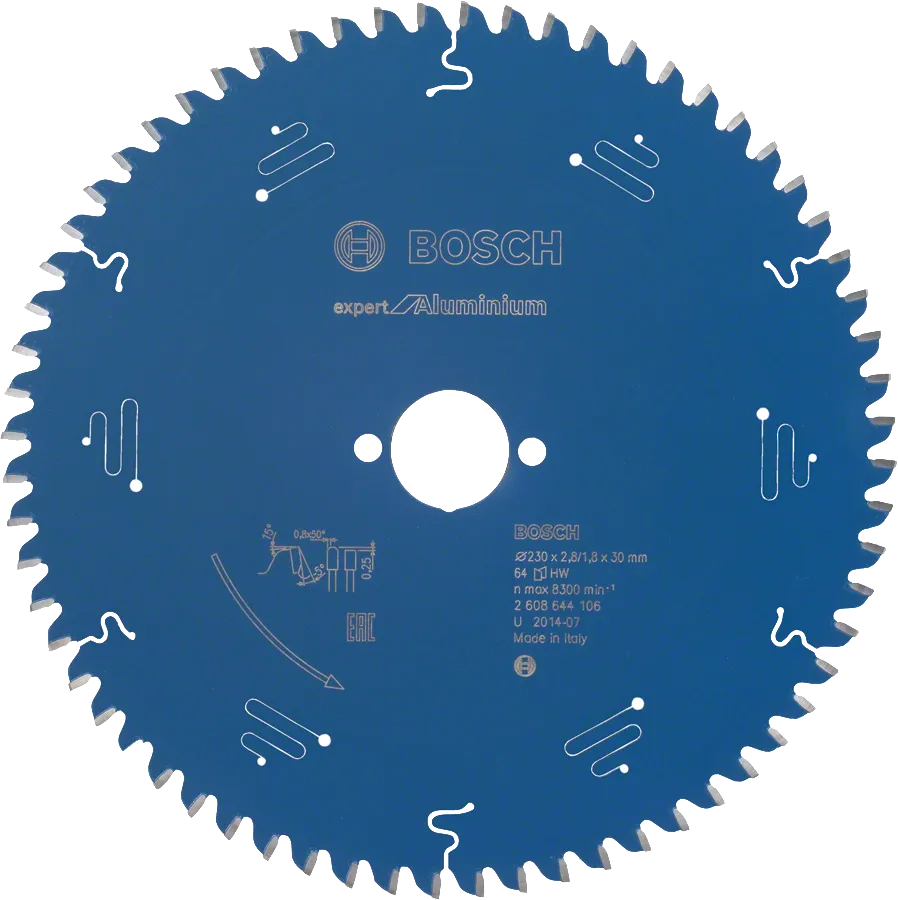

| Part number 2608644106 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 230 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 64 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 8300 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608644107 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 235 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.8 |
| Number of teeth | 80 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 8100 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
