For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 2 options
Number of teeth 2 options
Width of cut (b1) mm 1.5
Choose a pack size 1 Pcs

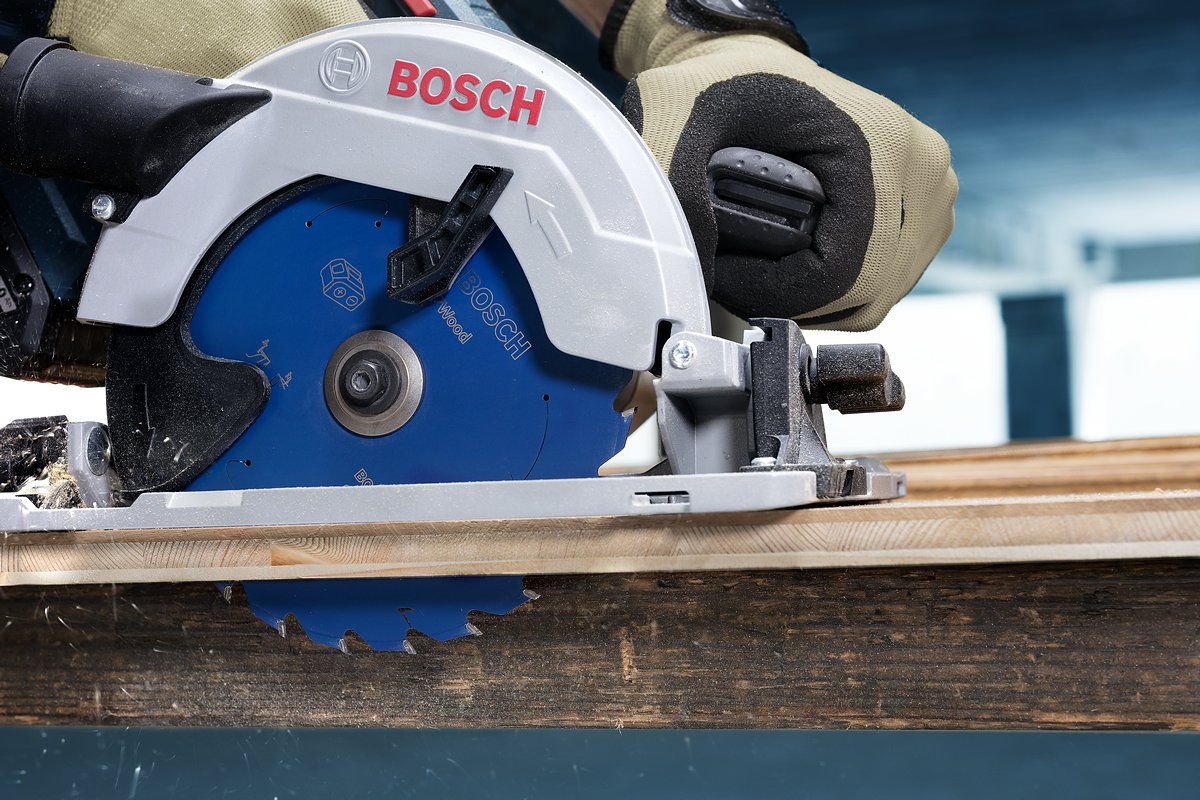

Expert for Wood Circular Saw Blade for cordless saws and dry-cutters maximises battery runtime
Available product options: 4
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Bore with reduction ring mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|
| 2 608 644 503 | 160 | 20 | 15.875 | 1.5/1 | 1 Pcs | Find a local dealer | |
| 2 608 644 504 | 160 | 20 | 15.875 | 1.5/1 | 1 Pcs | Find a local dealer | |
| 2 608 644 507 | 165 | 20 | 15.875 | 1.5/1 | 1 Pcs | Find a local dealer | |
| 2 608 644 508 | 165 | 20 | 15.875 | 1.5/1 | 1 Pcs | Find a local dealer |
out of products

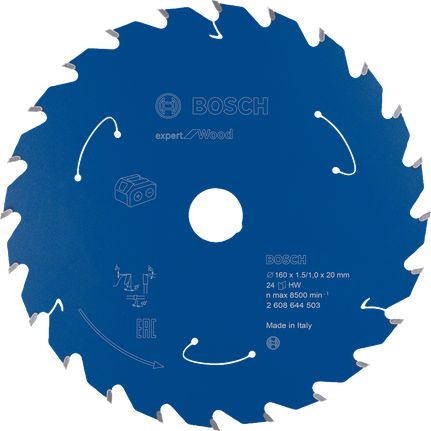

| Part number 2608644503 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 15.875 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.5/1 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8500 |
| Cutting result | Coarse cut |
| Hook angle ° α | 25 |
| Relief angle ° β | 10 |

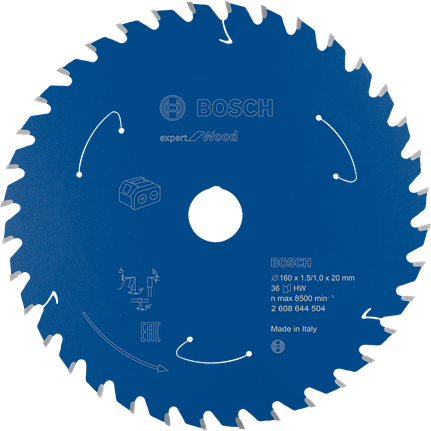

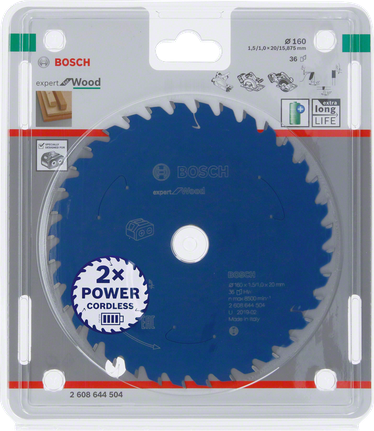

| Part number 2608644504 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 15.875 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.5/1 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 13 |

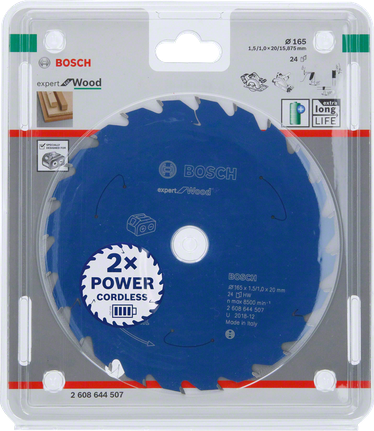

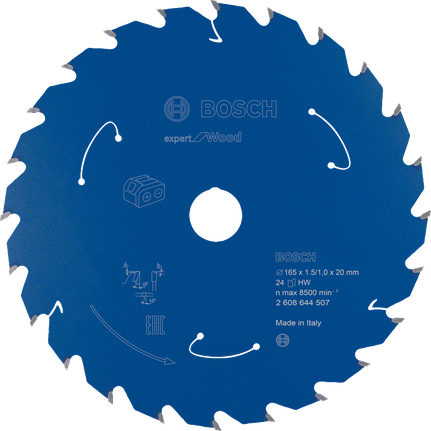

| Part number 2608644507 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 15.875 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.5/1 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8500 |
| Cutting result | Coarse cut |
| Hook angle ° α | 25 |
| Relief angle ° β | 10 |

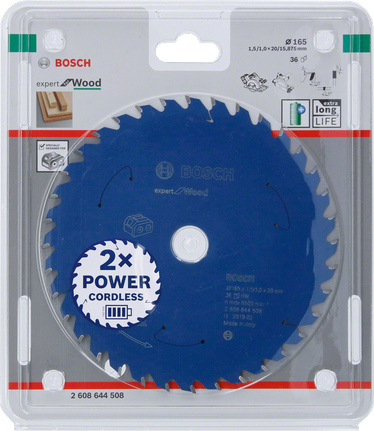

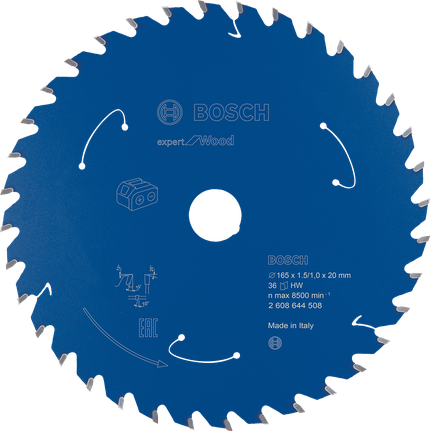

| Part number 2608644508 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 15.875 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.5/1 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 13 |
