For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 8 options
Number of teeth 7 options
Width of cut (b1) mm 5 options
Choose a pack size 1 Pcs
Expert for Wood Circular Saw Blade offers a long lifetime with high cutting performance in wood
Available product options: 45
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|

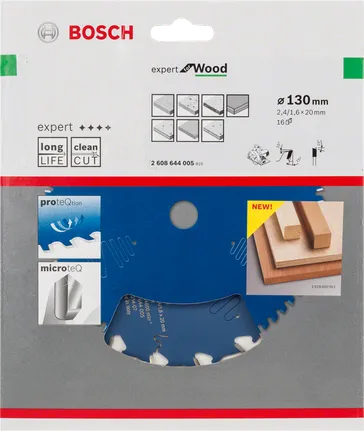

| 2 608 644 005 | 130 | 20 | 2.4/1.6 | 16 | 1 Pcs | Find a local dealer | |
| 2 608 644 006 | 130 | 20 | 2.4/1.6 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 644 007 | 130 | 20 | 2.4/1.6 | 36 | 1 Pcs | Find a local dealer | |
| 2 608 644 013 | 160 | 20 | 1.8/1.3 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 644 014 | 160 | 20 | 1.8/1.3 | 36 | 1 Pcs | Find a local dealer | |
| 2 608 644 015 | 160 | 20 | 1.8/1.3 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 644 016 | 160 | 20 | 2.2/1.6 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 644 017 | 160 | 20 | 2.2/1.6 | 36 | 1 Pcs | Find a local dealer | |
| 2 608 644 018 | 160 | 20 | 2.2/1.6 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 644 019 | 160 | 20 | 2.6/1.6 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 644 020 | 160 | 20 | 2.6/1.6 | 36 | 1 Pcs | Find a local dealer | |
| 2 608 644 021 | 160 | 20 | 2.6/1.6 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 644 022 | 165 | 20 | 2.6/1.6 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 644 023 | 165 | 20 | 2.6/1.6 | 36 | 1 Pcs | Find a local dealer | |
| 2 608 644 024 | 165 | 20 | 2.6/1.6 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 644 025 | 165 | 30 | 2.6/1.6 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 644 026 | 165 | 30 | 2.6/1.6 | 36 | 1 Pcs | Find a local dealer | |
| 2 608 644 027 | 165 | 30 | 2.6/1.6 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 644 035 | 184 | 16 | 2.6/1.6 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 644 036 | 184 | 16 | 2.6/1.6 | 40 | 1 Pcs | Find a local dealer | |
| 2 608 644 037 | 184 | 16 | 2.6/1.6 | 56 | 1 Pcs | Find a local dealer | |

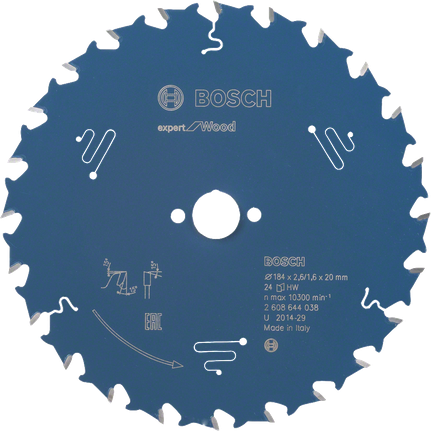

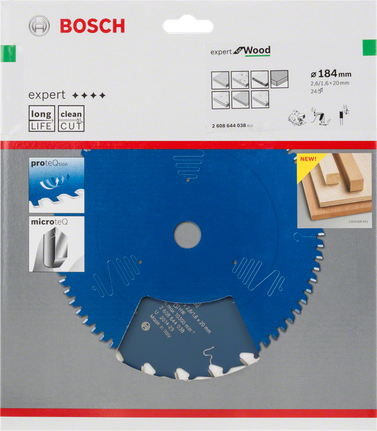

| 2 608 644 038 | 184 | 20 | 2.6/1.6 | 24 | 1 Pcs | Find a local dealer | |

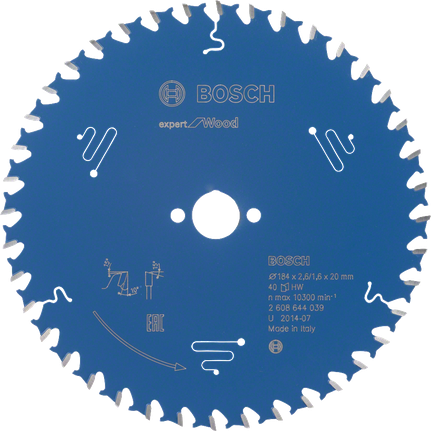

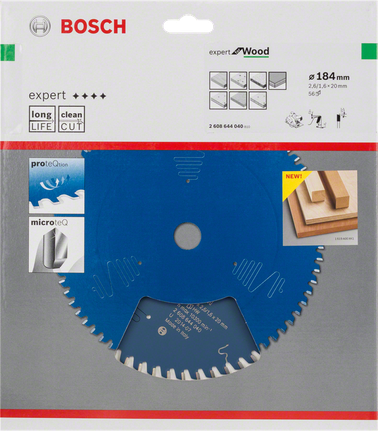

| 2 608 644 039 | 184 | 20 | 2.6/1.6 | 40 | 1 Pcs | Find a local dealer | |

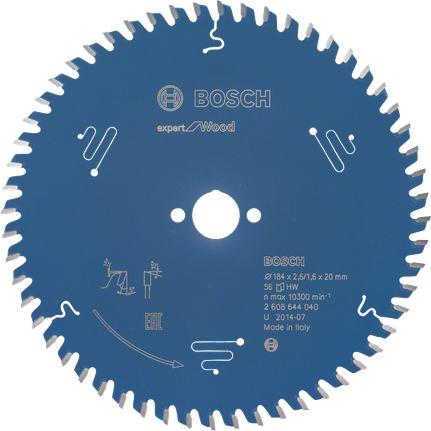

| 2 608 644 040 | 184 | 20 | 2.6/1.6 | 56 | 1 Pcs | Find a local dealer | |

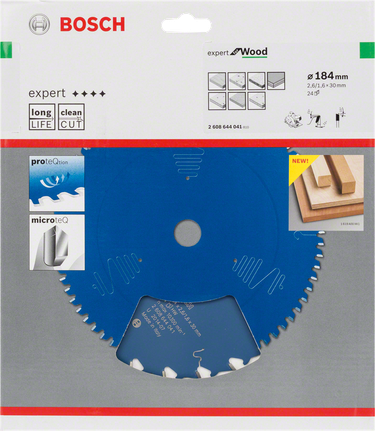

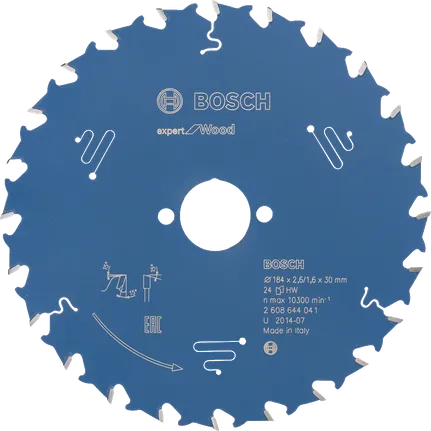

| 2 608 644 041 | 184 | 30 | 2.6/1.6 | 24 | 1 Pcs | Find a local dealer | |

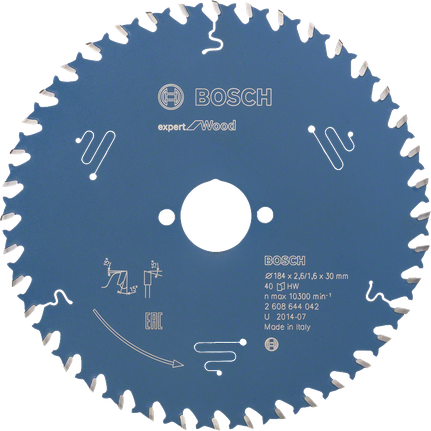

| 2 608 644 042 | 184 | 30 | 2.6/1.6 | 40 | 1 Pcs | Find a local dealer | |

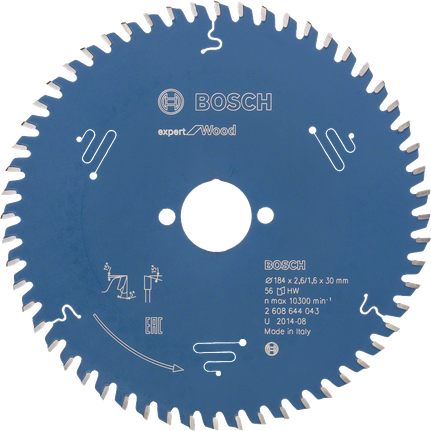

| 2 608 644 043 | 184 | 30 | 2.6/1.6 | 56 | 1 Pcs | Find a local dealer | |
| 2 608 644 044 | 190 | 20 | 2.6/1.6 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 644 045 | 190 | 20 | 2.6/1.6 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 644 046 | 190 | 20 | 2.6/1.6 | 56 | 1 Pcs | Find a local dealer | |
| 2 608 644 047 | 190 | 30 | 2.6/1.6 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 644 048 | 190 | 30 | 2.6/1.6 | 40 | 1 Pcs | Find a local dealer | |
| 2 608 644 049 | 190 | 30 | 2.6/1.6 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 644 050 | 190 | 30 | 2.6/1.6 | 56 | 1 Pcs | Find a local dealer | |
| 2 608 644 056 | 210 | 30 | 2.4/1.8 | 40 | 1 Pcs | Find a local dealer | |
| 2 608 644 057 | 210 | 30 | 2.4/1.8 | 56 | 1 Pcs | Find a local dealer | |
| 2 608 644 058 | 210 | 30 | 2.8/1.8 | 30 | 1 Pcs | Find a local dealer | |
| 2 608 644 059 | 210 | 30 | 2.8/1.8 | 40 | 1 Pcs | Find a local dealer | |
| 2 608 644 060 | 210 | 30 | 2.8/1.8 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 644 061 | 210 | 30 | 2.8/1.8 | 56 | 1 Pcs | Find a local dealer | |
| 2 608 644 062 | 230 | 30 | 2.8/1.8 | 36 | 1 Pcs | Find a local dealer | |

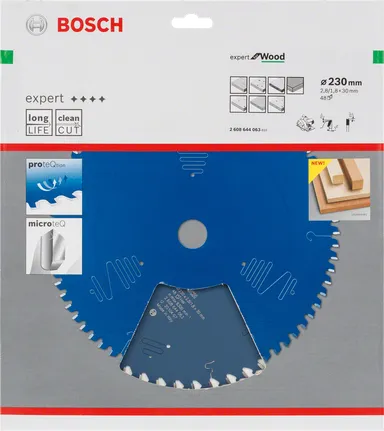

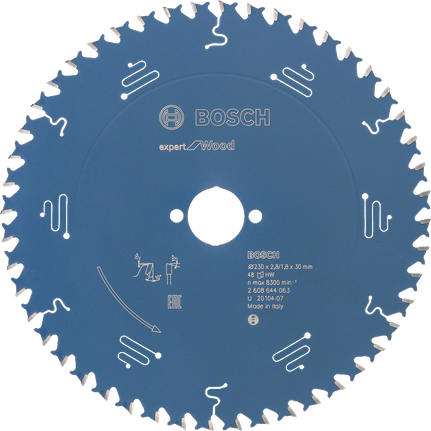

| 2 608 644 063 | 230 | 30 | 2.8/1.8 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 644 064 | 235 | 30 | 2.8/1.8 | 36 | 1 Pcs | Find a local dealer | |
| 2 608 644 065 | 235 | 30 | 2.8/1.8 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 644 066 | 235 | 30 | 2.8/1.8 | 56 | 1 Pcs | Find a local dealer |
out of products

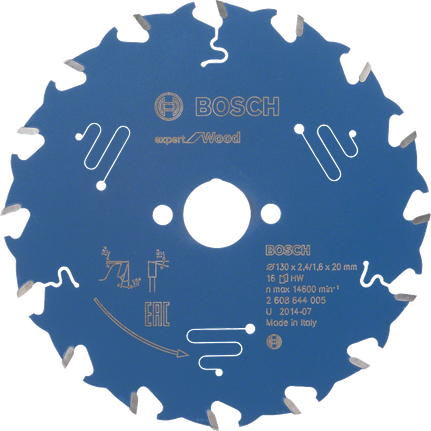

| Part number 2608644005 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 130 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.6 |
| Number of teeth | 16 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 14600 |
| Cutting result | Very coarse cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608644006 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 130 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 14600 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Part number 2608644007 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 130 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.6 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 14600 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |

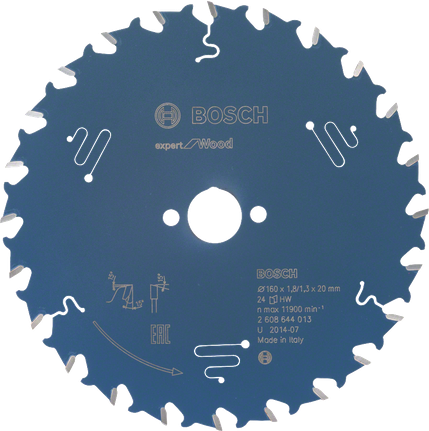

| Part number 2608644013 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.3 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608644014 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.3 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |

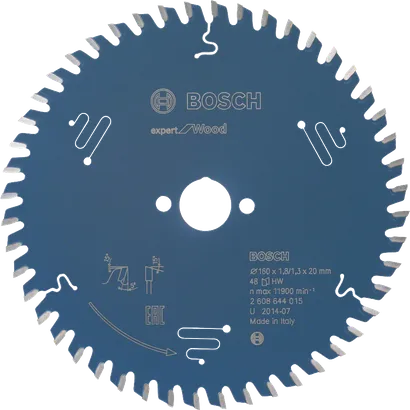

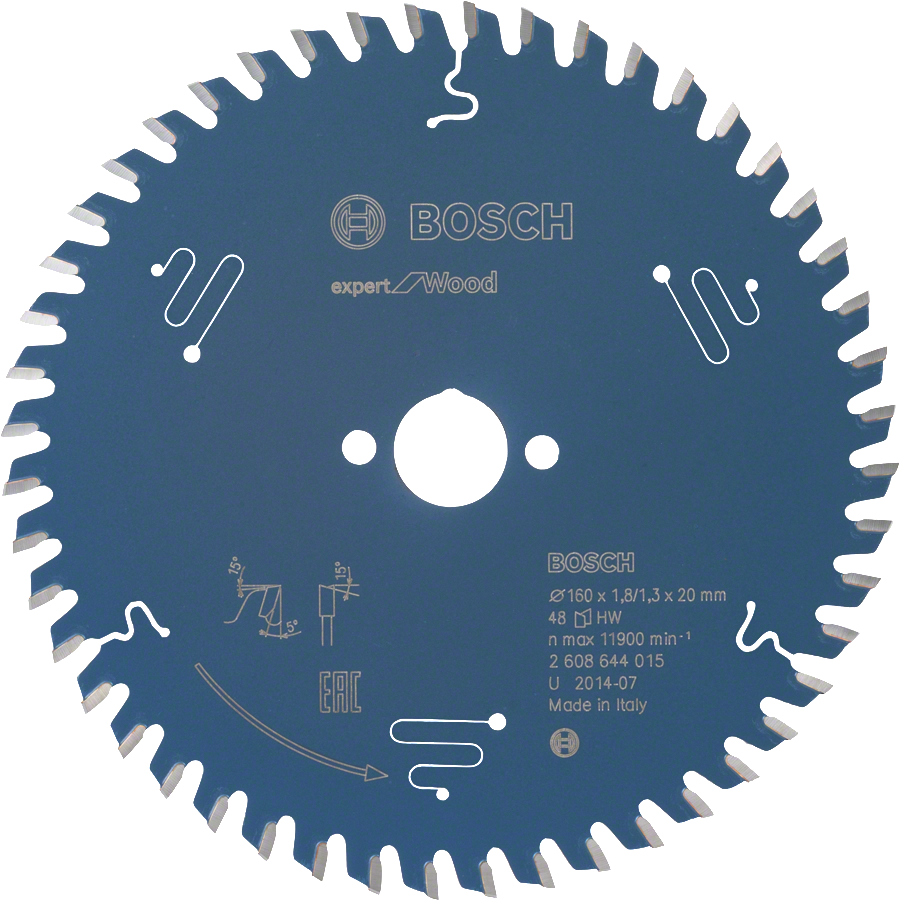

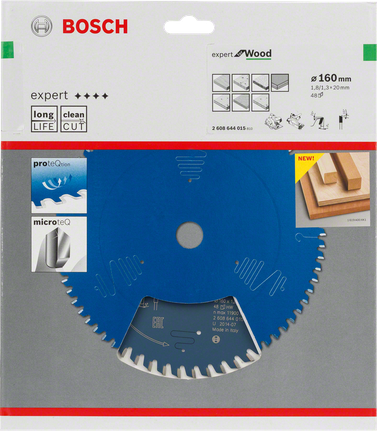

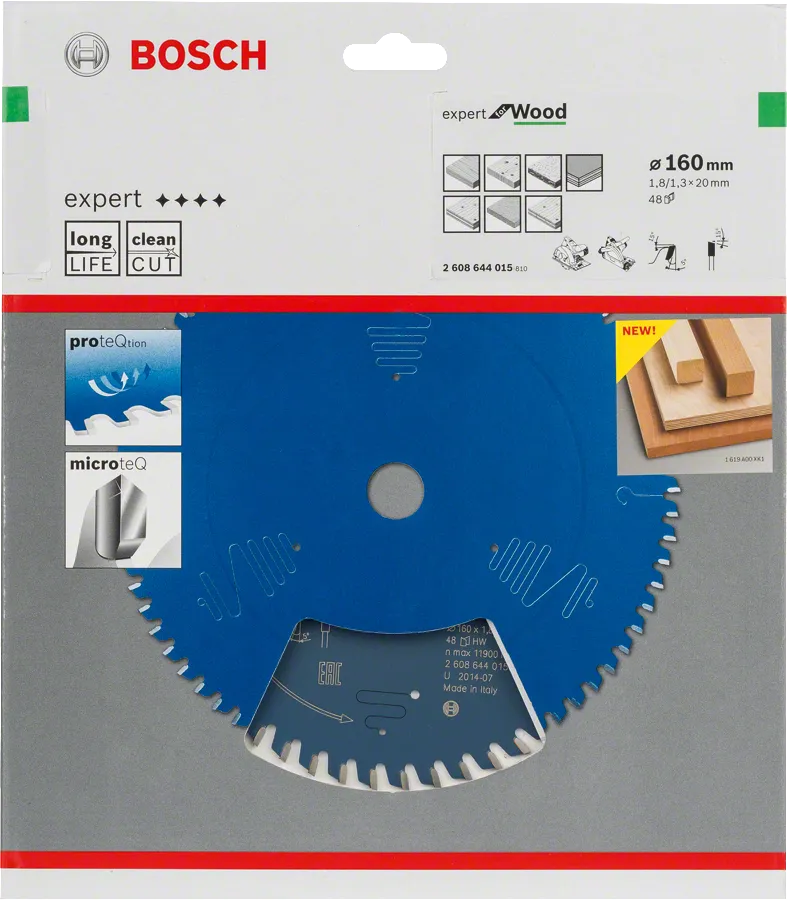

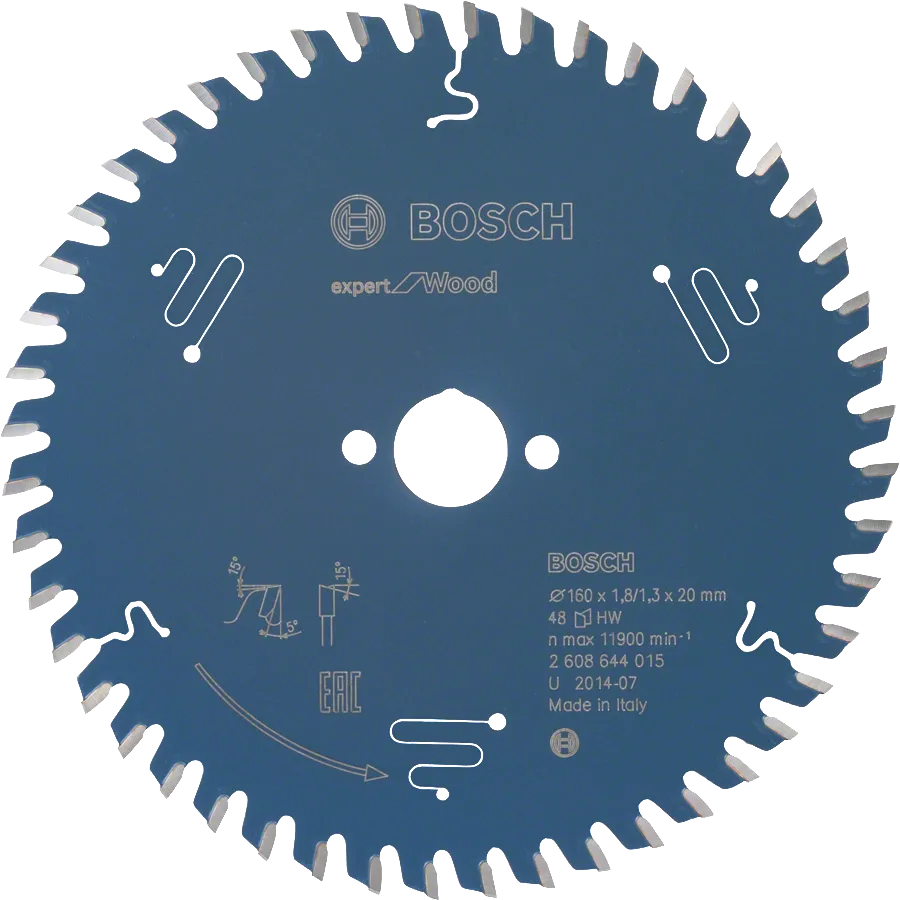

| Part number 2608644015 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.3 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Part number 2608644016 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608644017 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Part number 2608644018 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Part number 2608644019 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608644020 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Part number 2608644021 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Part number 2608644022 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608644023 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Part number 2608644024 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Part number 2608644025 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608644026 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Part number 2608644027 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Part number 2608644035 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10300 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608644036 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10300 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Part number 2608644037 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 56 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10300 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Part number 2608644038 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10300 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608644039 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10300 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Part number 2608644040 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 56 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10300 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Part number 2608644041 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10300 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608644042 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10300 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608644043 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 56 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10300 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Part number 2608644044 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608644045 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Part number 2608644046 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 56 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Part number 2608644047 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608644048 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Part number 2608644049 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Part number 2608644050 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 56 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Part number 2608644056 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Part number 2608644057 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 56 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Part number 2608644058 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 30 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9000 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608644059 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Part number 2608644060 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Part number 2608644061 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 56 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Part number 2608644062 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 230 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8300 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608644063 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 230 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8300 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Part number 2608644064 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 235 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8100 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608644065 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 235 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8100 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Part number 2608644066 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 235 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 56 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8100 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
.png "Thermo cameras & detectors")
