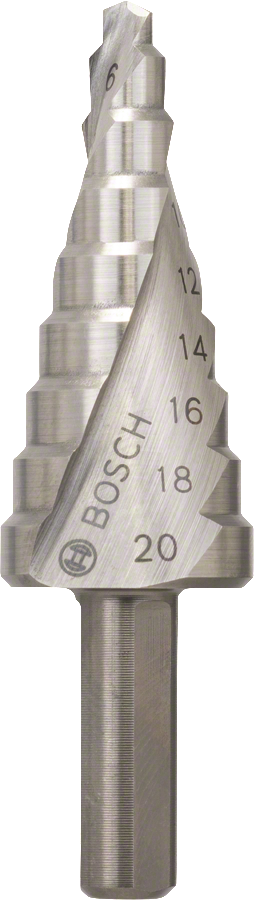

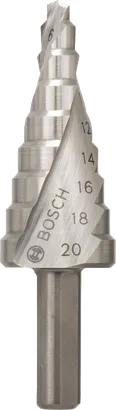

HSS Step Drill Bit, 3-flat Shank

For rotary drills/drivers

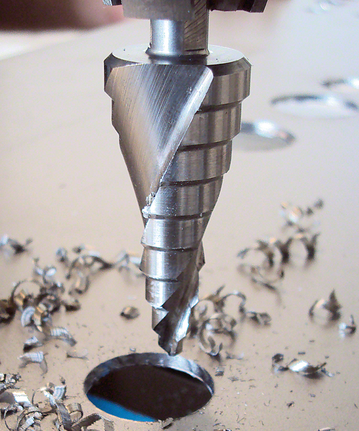

HSS Step Drill Bit performs smooth drilling in several diameters with one drill bit

  • Pre-punching is not necessary as the split-point tip allows for an easy start
  • CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
  • 3-flat shank prevents slipping in the chuck of rotary drills and drivers

Materials

Metal pipes and profiles
Non-ferrous metals
Aluminium
Plastics
Metal sandwich

Select options

Step diameter (range) mm

Step height mm

Shank diameter mm

Choose a pack size

Select options

Step diameter (range) mm 4 options

Step height mm 4

Shank diameter mm 3 options

Choose a pack size 1 Pcs

Available product options (5)
from
136.60 AED
Recommended retail price excluding VAT
Find a local dealer
HSS Step Drill Bit, 3-flat Shank
from
136.60 AED
Recommended retail price excluding VAT
Find a local dealer

Smooth Drilling in Several Diameters with One Drill Bit

HSS Step Drill Bit performs smooth drilling in several diameters with one drill bit

  • CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
  • Highest cutting smoothness due to axial and radial relief grinding
  • Made of HSS for a long lifetime. Laser-markings for hole diameters.
  • Made of HSS for a long lifetime. Laser-markings for hole diameters. 3-flat shank for high-torque transmission, no slipping
View more

Product Options

Available product options: 5

Part number Version Step diameter (range) mm Step height mm Shank diameter mm Pack quantity

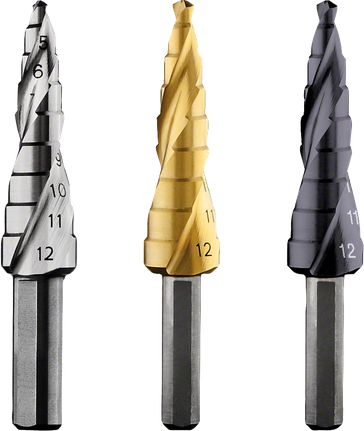

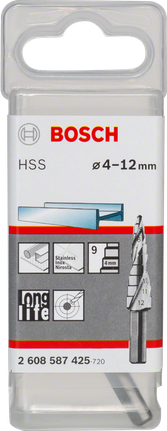

2 608 587 425 HSS 4-12 4 6.0 1 Pcs Find a local dealer

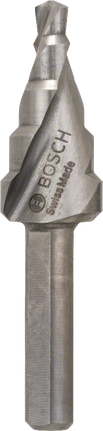

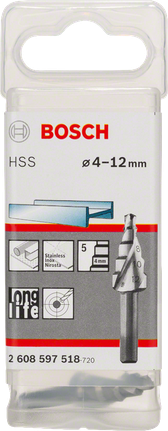

2 608 597 518 HSS 4-12 4 6.0 1 Pcs Find a local dealer

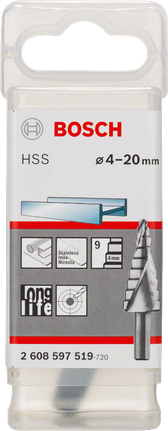

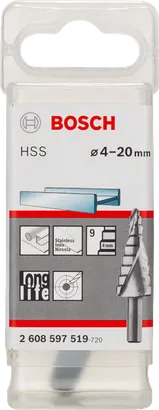

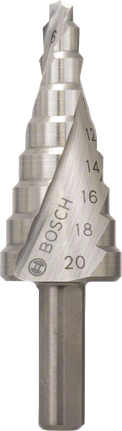

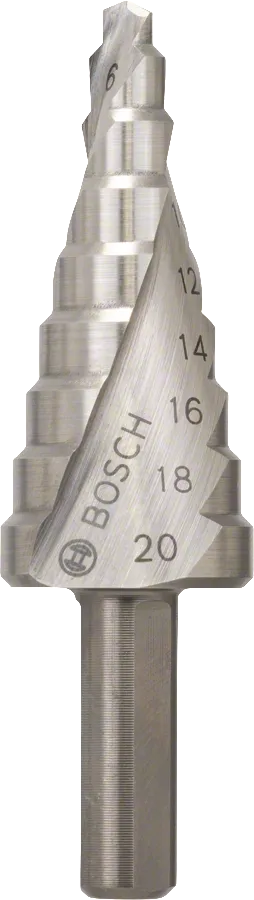

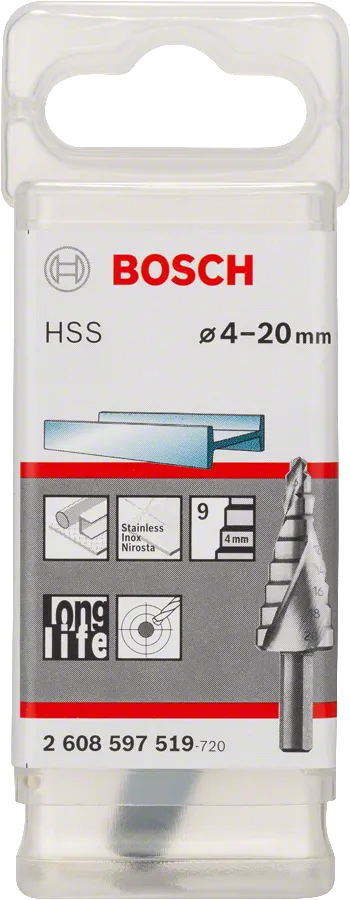

2 608 597 519 HSS 4-20 4 8.0 1 Pcs Find a local dealer

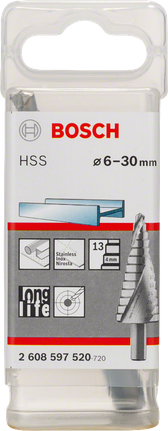

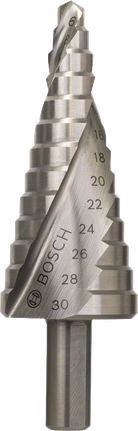

2 608 597 520 HSS 6-30 4 10.0 1 Pcs Find a local dealer

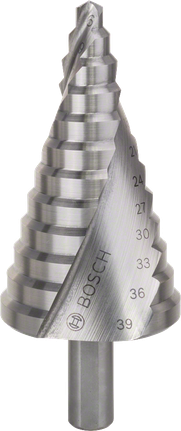

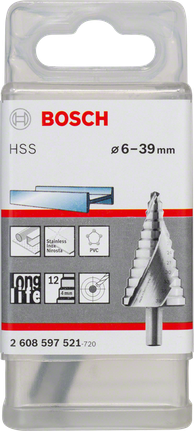

2 608 597 521 HSS 6-39 4 10.0 1 Pcs Find a local dealer
