Metal Drill Bits

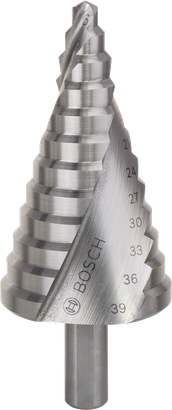

HSS Step Drill Bit, 3-flat Shank

For rotary drills/drivers

HSS Step Drill Bit performs smooth drilling in several diameters with one drill bit

  • Pre-punching is not necessary as the split-point tip allows for an easy start
  • CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
  • 3-flat shank prevents slipping in the chuck of rotary drills and drivers

Materials

Metal pipes and profiles
Non-ferrous metals
Aluminium
Plastics
Metal sandwich
Select options

Step diameter (range) mm 6-39

Step height mm 4

Shank diameter mm 10.0

Choose a pack size 1 Pcs

Available product options (5)
Recommended retail price excluding VAT
Find a local dealer

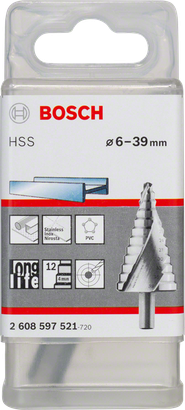

HSS step drill bits 2 608 597 521
Recommended retail price excluding VAT

Smooth Drilling in Several Diameters with One Drill Bit

HSS Step Drill Bit performs smooth drilling in several diameters with one drill bit

  • CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
  • Highest cutting smoothness due to axial and radial relief grinding
  • Made of HSS for a long lifetime. Laser-markings for hole diameters.
  • Made of HSS for a long lifetime. Laser-markings for hole diameters. 3-flat shank for high-torque transmission, no slipping
View more

Product Options

Available product options: 5

Part number Version Step diameter (range) mm Step height mm Shank diameter mm Pack quantity Price
2 608 587 425 HSS 4-12 4 6.0 1 Pcs Find a local dealer
2 608 597 518 HSS 4-12 4 6.0 1 Pcs 136.60 AED Find a local dealer
2 608 597 519 HSS 4-20 4 8.0 1 Pcs 177.40 AED Find a local dealer
2 608 597 520 HSS 6-30 4 10.0 1 Pcs 293.40 AED Find a local dealer
2 608 597 521 HSS 6-39 4 10.0 1 Pcs Find a local dealer
