Angle Measurer GAM 270 MFL Professional

Angle meter and inclinometer with laser-accurate transfer

1,249.00 AED Recommended retail price excluding VAT

Technical data
Additional data
Measurement range 0-270°

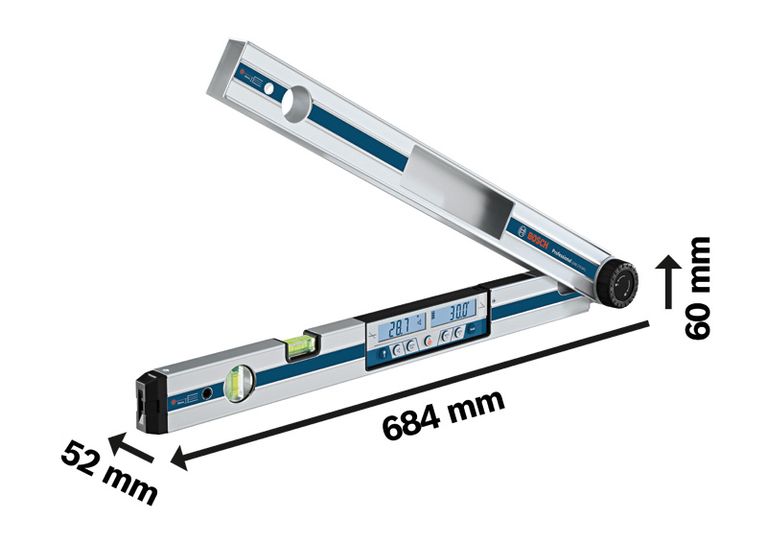

Arm length 60   cm
Measurement accuracy, angles ± 0.1°
Power supply 4 x 1.5V AA
Battery power, approx. 50   h
Automatic deactivation, approx. 30   min
Weight, approx. 1.7   kg

Advantages

Angle meter and inclinometer with laser-accurate transfer

  • Digital angle measurer and inclinometer in one
  • Calculates mitre angles without the need for accessories
  • Inclinometer with laser up to a range of 30 m

Functions

Measuring range of laser max. 30 m Measuring range maximum 30 m
MTR1/MTR2 Automatic calculation of mitre angles at the press of a button
Lock Function GAM Lock function for locking the angle measurer at a certain angle
Hold Hold function for intermediate storage of measured values
Flip Display Rotating readout on display
Display lighting Illuminated display
Measuring accuracy of angles ± 0.1° Measuring accuracy ± 0.1°
Measuring accuracy of laser ± 0.5 mm/m Measuring accuracy ± 0.5 mm/m
Distance of laser to plane the tool is resting on Laser 30 mm above plane the tool is resting on
Measuring range of angles 0°–270° Angle measuring range 0°-270°
Laser warning notice 1:2015-05; 635 nm Laser warning notice
IP protection 54 Dust and splash protection IP54
What’s Included in this Package
with 4 x battery (AA), accessory set
with 4 x battery (AA), accessory set
Order number: 0 601 076 400
  • Leg extension
  • Protective Bag
  • 4 x 1.5 V LR6 battery (AA)
1,249.00 AED Recommended retail price excluding VAT

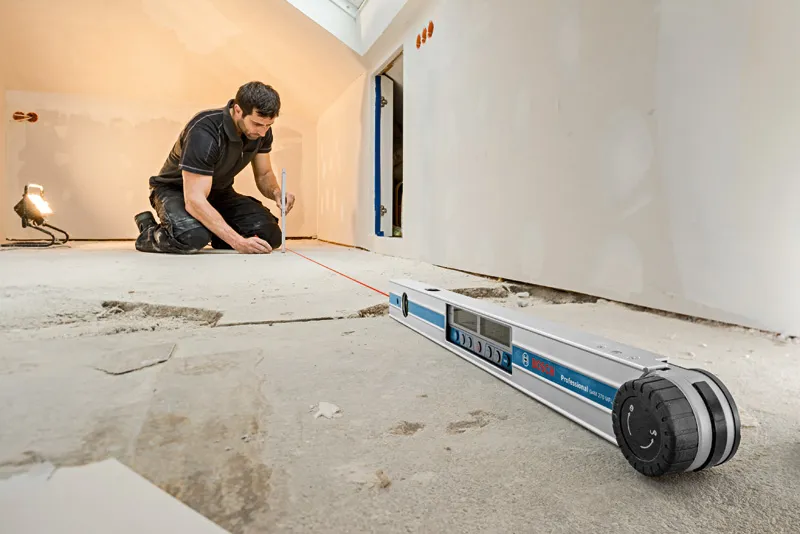

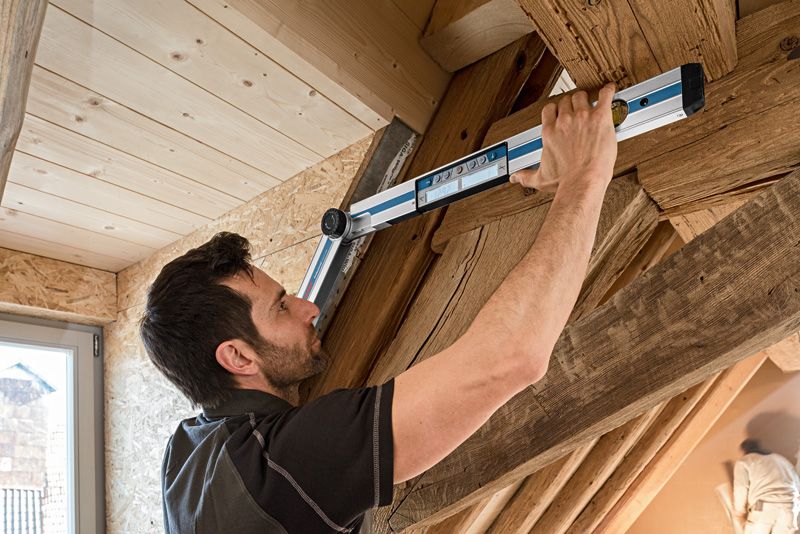

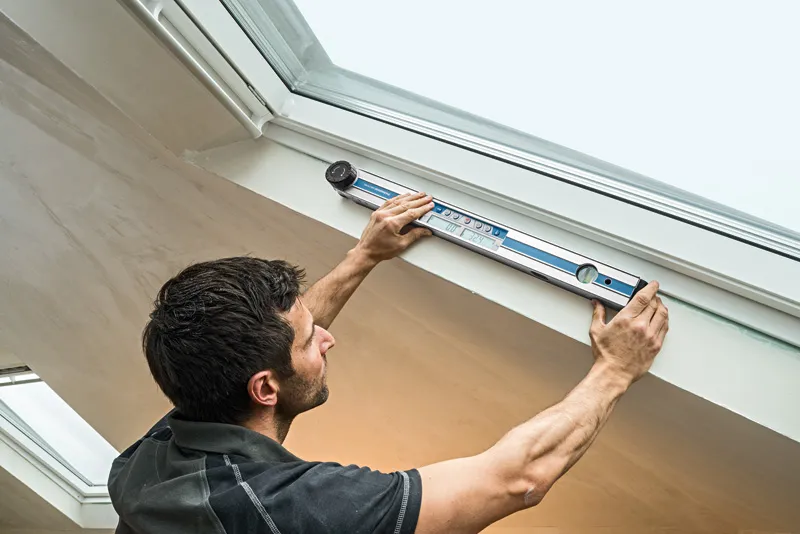

The GAM 270 MFL in action!
