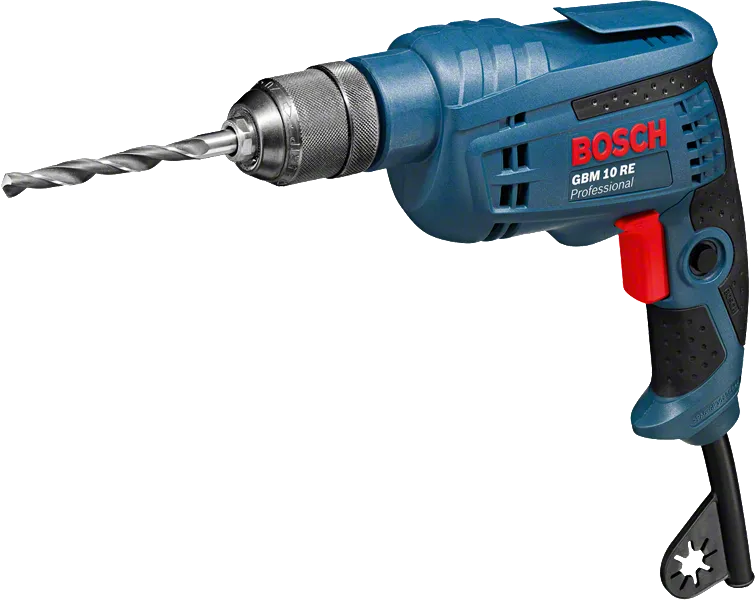

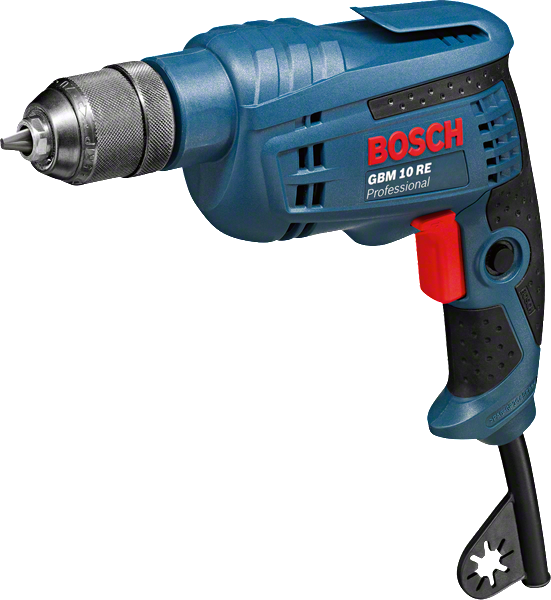

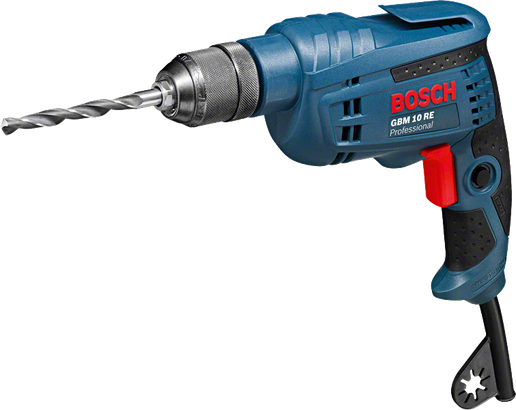

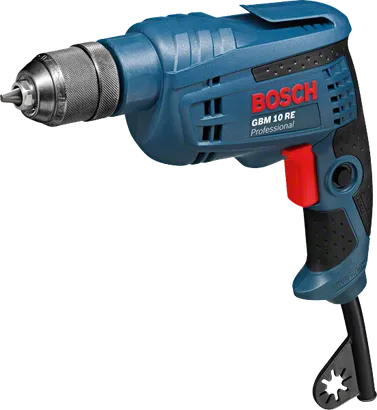

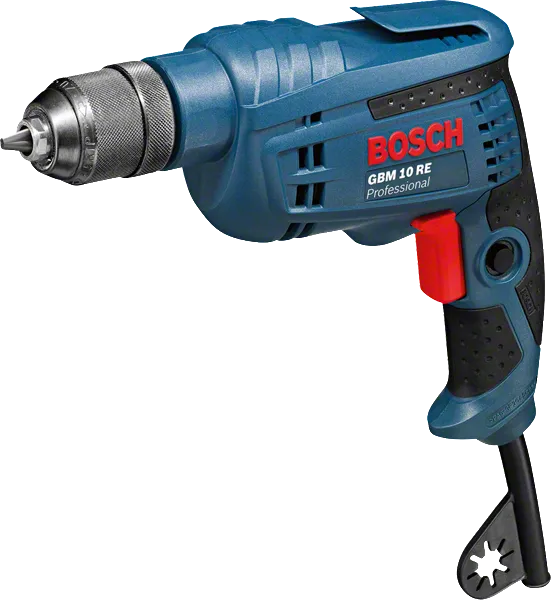

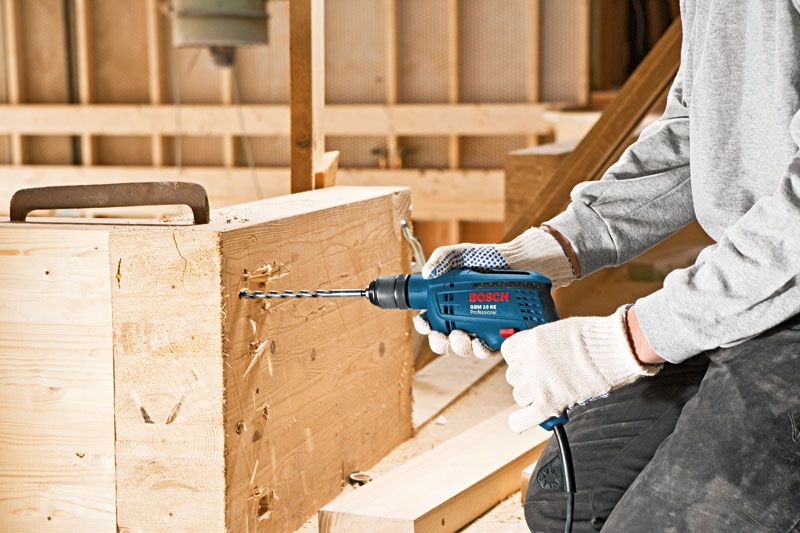

GBM 10 RE Professional

Drill

The powerful and compact tool

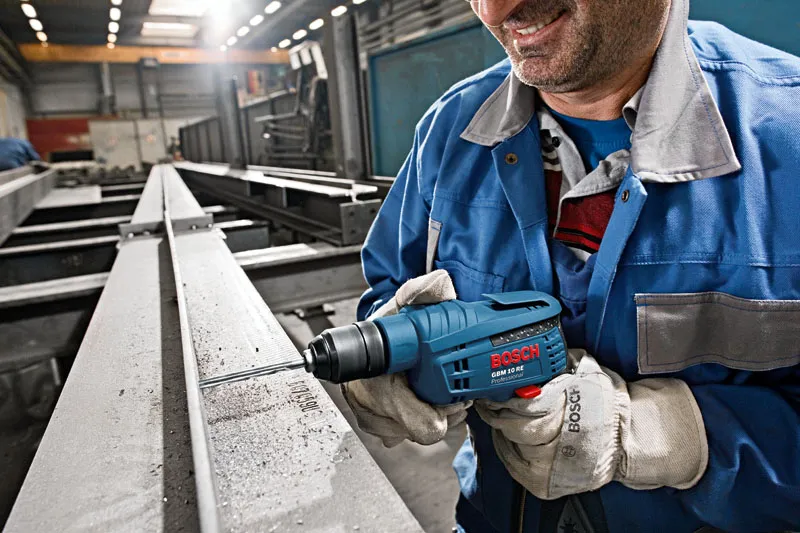

Powerful motor, ideal for drilling holes up to 10 mm in diameter in metal
Drill spindle fixed in bearing for high precision
Compact design and low weight for optimum handling in medium-duty drilling applications

See technical details

Functions & key features

Your Selection

with Keyless chuck 1 – 10 mm (spare part number 2 609 110 750)

Show variant

289.00 AED Recommended retail price excluding VAT

Check availability on location

Find a local dealer

Your Selected Variant

with Keyless chuck 1 – 10 mm (spare part number 2 609 110 750) 0 601 473 600

289.00 AED Recommended retail price excluding VAT

Find a local dealer

GBM 10 RE Professional

Your Selection

with Keyless chuck 1 – 10 mm (spare part number 2 609 110 750)

Order number: 0 601 473 600

289.00 AED

Recommended retail price excluding VAT

Find a local dealer

Included in this variant

Keyless chuck 1 – 10 mm (spare part number 2 609 110 750)

Your selection

Technical data

Additional data
Rated input power	600 W
Weight	1.7 kg
Voltage, electrical	230 V
No-load speed, 1st gear	0 – 2,600 rpm
Power output	360 W
Rated speed	1,676 rpm
Rated torque	20.0 Nm
Drill spindle connecting thread	1/2"
Chuck capacity, min./max.	1 – 10 mm

Drilling range
Drilling diameter in wood	25 mm
Drilling diameter in steel	10 mm
Drilling diameter in aluminium	10 mm

Total vibration values (Drilling in metal)
Vibration emission value ah	4.8 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Screwdriving)
Vibration emission value ah	2.8 m/s²
Uncertainty K	1.5 m/s²

Noise/vibration information
Sound pressure level	83 dB(A)
Sound power level	94 dB(A)
Uncertainty K	5 dB

Drilling in metal
Vibration emission value ah	4.8 m/s²
Uncertainty K	1.5 m/s²

Screwdriving
Vibration emission value ah	2.8 m/s²
Uncertainty K	1.5 m/s²
