Drills
GBM 13-2 RE
GBM 13-2 RE
GBM 13-2 RE

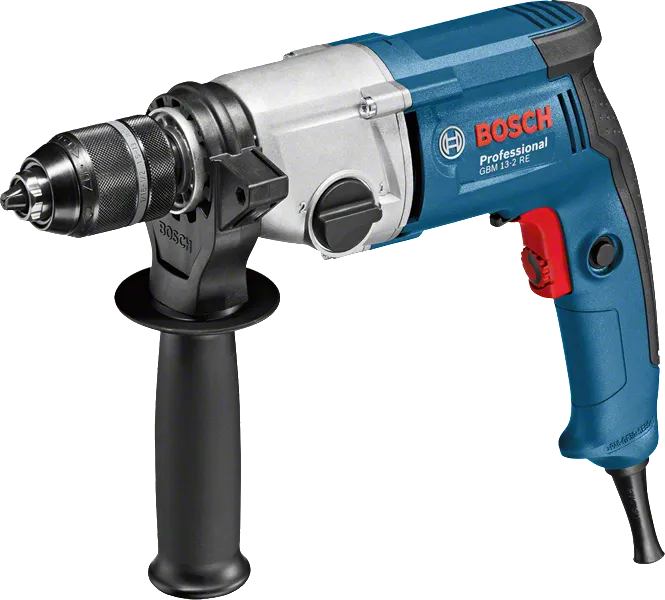

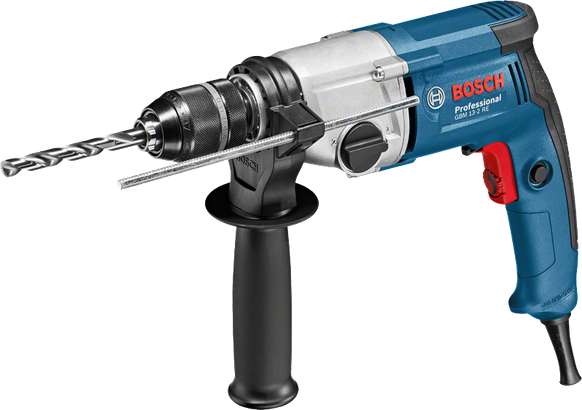

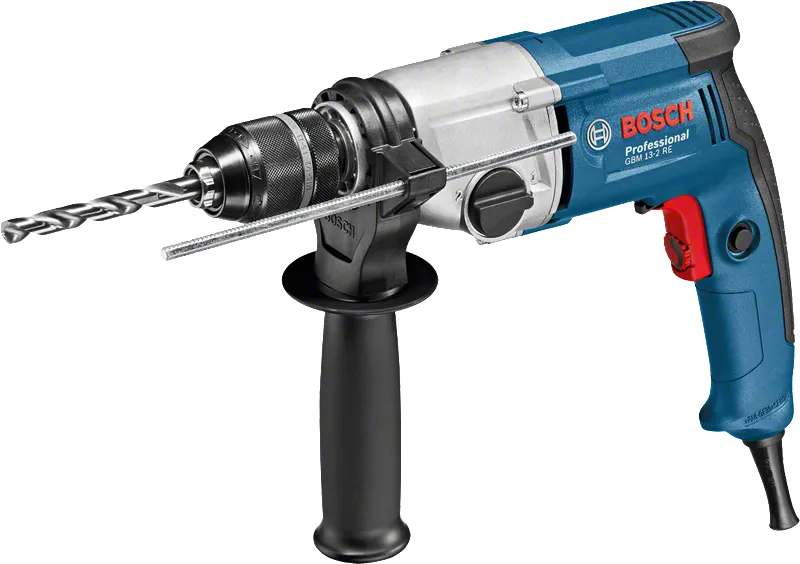

GBM 13-2 RE Professional

Drill

The powerful and precise tool with 2 gears

  • A fast work rate for drilling holes of up to 13 mm in steel thanks to powerful 750 watt motor and high torque
  • Precise work results due to compact, ergonomic design and metal keyless chuck
  • Versatile applications thanks to 2-speed gearbox and speed preselection with setting wheel

Functions & key features

Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Forward / reverse rotation for inserting and removing screws
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox
Easy and precise control of the RPM thanks to variable speed

Your Selection

  • in cardboard box with chuck, Accessory
Show variant
1,029.00 AED Recommended retail price excluding VAT
Check availability on location
Find a local dealer
in cardboard box with chuck, Accessory 0 601 1B2 070
1,029.00 AED Recommended retail price excluding VAT
Find a local dealer

GBM 13-2 RE Professional

Your Selection

in cardboard box with chuck, Accessory

Order number: 0 601 1B2 070

1,029.00 AED

Recommended retail price excluding VAT

Find a local dealer

Included in this variant

  • Voltage 240 V
  • Cardboard box
  • Keyless chuck 13 mm
    Order number: 2 608 572 105
  • Auxiliary handle
    Order number: 2 602 025 190
  • Depth stop 210 mm
    Order number: 1 613 001 010
Your selection

Technical data

Additional data
Rated input power 710 W
Weight 2.4 kg
Drill chuck, version Keyless chuck
Voltage, electrical 220–240 V
Spindle collar diameter 43 mm
Bit holder 1/2"-20 UNF
Power output 365 W
No-load speed, 1st gear 0 – 1,000 rpm
No-load speed, 2nd gear 3,200 rpm
Rated speed 500 / 1,750 rpm
Rated torque 6.8 / 2.5 Nm
Drill spindle connecting thread 1/2"-20 UNF
Max. torque 39.5 / 12.5 Nm
Show more

GBM 13-2 RE Professional: Further information

Product Highlights

The GBM 13-2 RE Professional is a corded 2-geared rotary drill designed for precision drilling. Its powerful 750 W motor and high torque deliver fast work progress, enabling the drilling of holes in steel of up to 13 mm in diameter. It features a compact and ergonomic design providing good tool handling for precise work. This rotary drill also features a 2-speed gearbox and a speed preselection setting wheel for accurate performance in versatile applications.

Equipment & Application

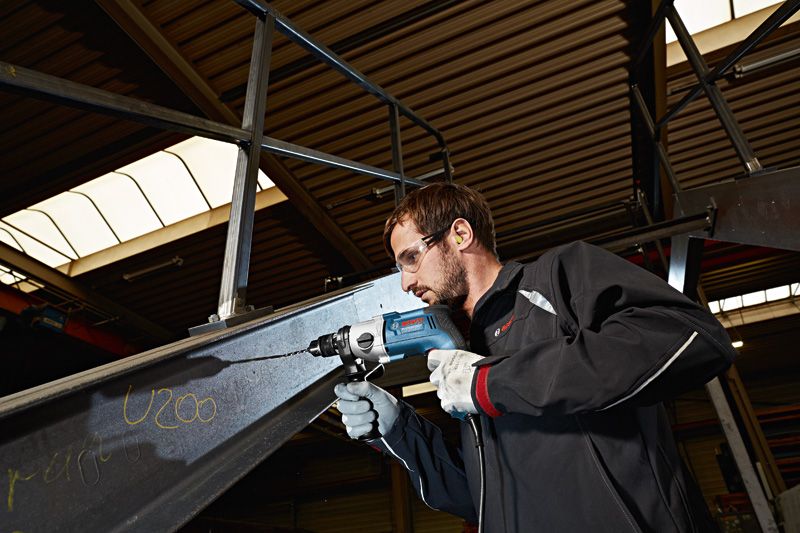

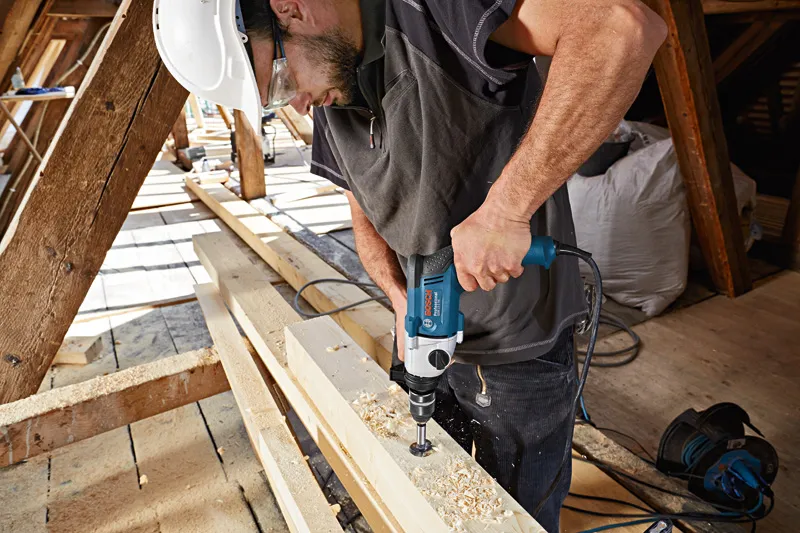

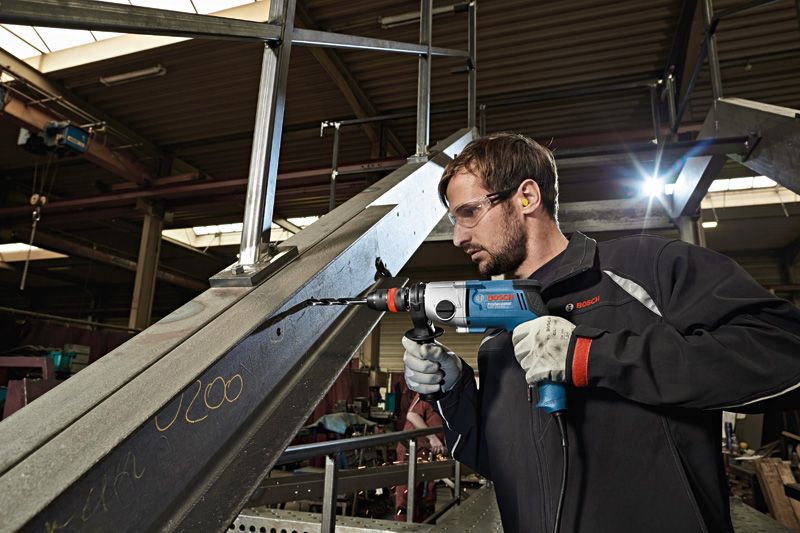

This tool is intended for drilling in metal and wood.

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Order number

Part number

3601AB2070

Product name

GBM 13-2 RE

Description

Drill

Yes, the part number matches.
I'm looking for a spare part for this product.

Go to spare part

No, the part number does not match.
I'm looking for a spare part for a different product.

Browse spare parts catalogue

Fits to GBM 13-2 RE Professional

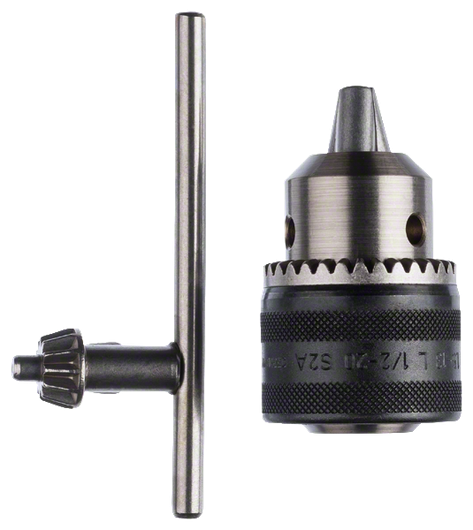

Keyed Drill Chuck

Keyed Drill Chuck

For rotary drills/drivers

Keyed Drill Chuck is a simple and reliable solution for fixing drill bits for any type of job

Variants: 10
from  65.80 AED Recommended retail price excluding VAT

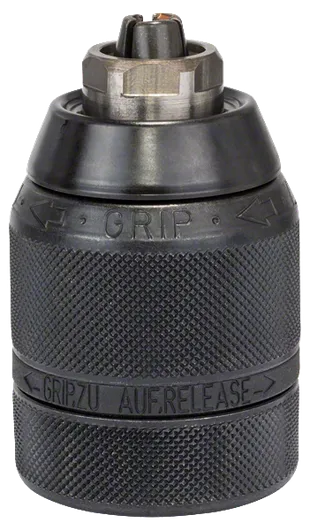

Keyless Drill Chuck

Keyless Drill Chuck

For rotary drills/drivers

Keyless Drill Chuck offers comfortable, keyless operation for maximum ease of use

Variants: 11

Downloads

User Manual

Instruction manual | GBM 13-2 RE (PDF 2.9 MB) Instruction manual | GBM 13-2 RE (PDF 4.0 MB)
