Technical data
| Additional data | |
|---|---|
| Rated input power* | 1,200 W |
| Weight | 14.7 kg |
| No-load speed | 50 – 250 / 510 / 470 / 740 rpm |
| Power output | 1,000 W |
| Rated speed | 120 / 185 / 265 / 420 rpm |
| Rated torque | 80.0 / 52.0 / 36.0 / 32.0 Nm |
| Drill spindle connecting thread | MT 2 – DIN 228 |
| Tool dimensions (width) | 196 mm |
| Tool dimensions (length) | 274 mm |
| Tool dimensions (height) | 444 mm |
| Max. torque | 58.0 / 29.0 / 120.0 / 93.0 Nm |
| Drilling range | |
|---|---|
| Drilling diameter in aluminium | 50 mm |
| Drilling diameter in wood* | 70 mm |
| Drilling diameter in steel* | 1.5 / 50 mm |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 90 dB(A); Sound power level 110 dB(A). Uncertainty K= 3 dB.
Advantages
Precise, efficient and convenient - the ideal solution for metal drilling
- Convenient, durable, highly efficient and safe: Laser technology offers a fast target set-up, powerful motor for durable and efficient precise drilling, power supply cut-off system to prevent electric shock
- Smart HMI system: Service display alert for preventive maintenance (carbon brush change) and load alert indicator for a long tool lifetime
- Ideal for tough metal core drilling: High magnetic force gives a strong support to the drilling
Functions

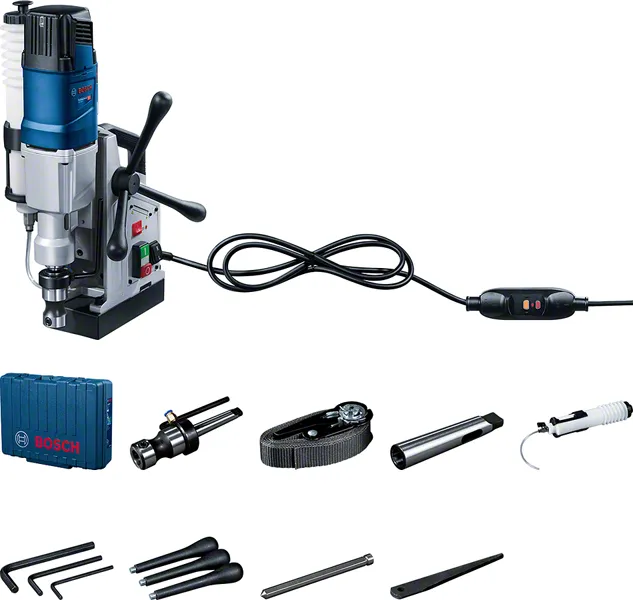

What’s Included in this Package
GBM 50-2 Professional
Order number:
0 601 1B4 0L0
- Adapter for annular cutter (spare part number 1 619 PB3 771)
- Hex key 3 mm (spare part number 1 619 PB3 772)
- Hex key 4 mm (spare part number 1 619 PB3 773)
- Hex key 6 mm (spare part number 1 619 PB3 774)
- MT2 drill drift (spare part number 1 619 PB3 776)

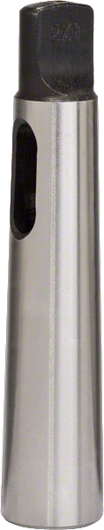

- Reduction sleeve (MT2/MT1) (spare part number 1 619 PB3 777)
- Pilot pin (spare part number 1 619 PB3 778)
- Safety strap (spare part number 1 619 PB3 779)
- Coolant tank (spare part number 1 619 PB3 763)
- Coolant tank holder (spare part number 1 619 PB4 127)
- Carrying case (spare part number 1 619 PB4 107)
- Crank handle (spare part number 1 619 PB3 747)
