Combi lasers

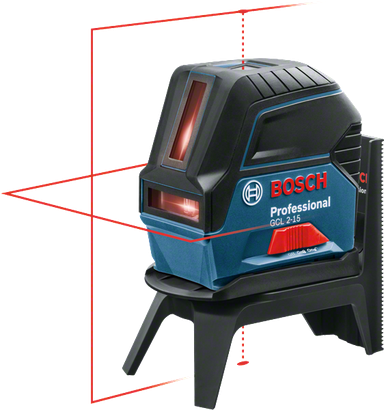

GCL 2-15 Professional

Combi Laser

Compact and versatile for short-distance levelling applications

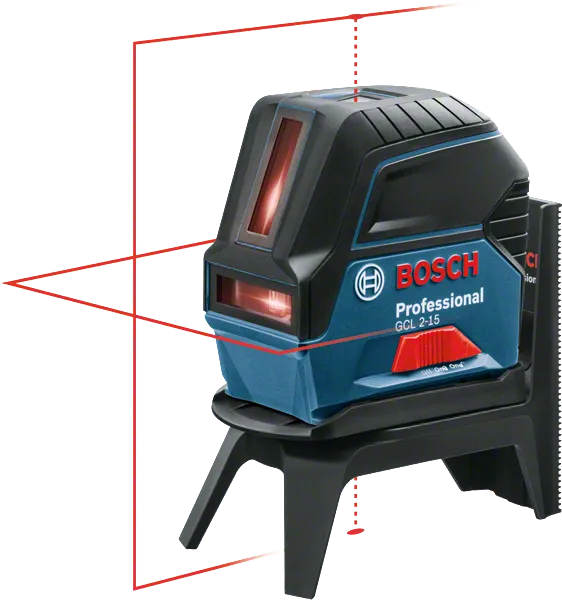

  • Both horizontal and vertical lines are perfect for short-distance levelling applications
  • Enjoy precise transfer applications thanks to two centred plumb points

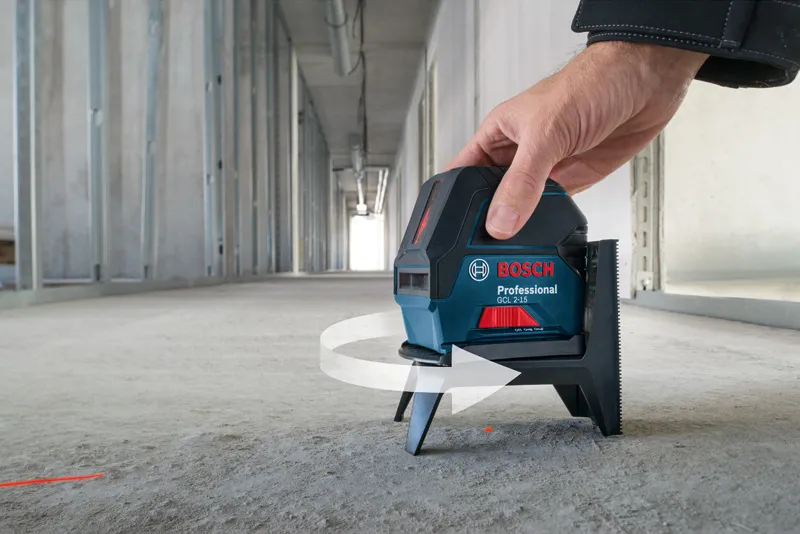

  • Rotating mount RM 1 Professional allows laser lines to be easily positioned around the plumb points

Functions & key features

Working range up to 15 m
Tripod mount for 5/8" and 1/4" tripod thread
Laser class 2
Easy line positioning around the plumb dot
Slide mechanism

Your Selection

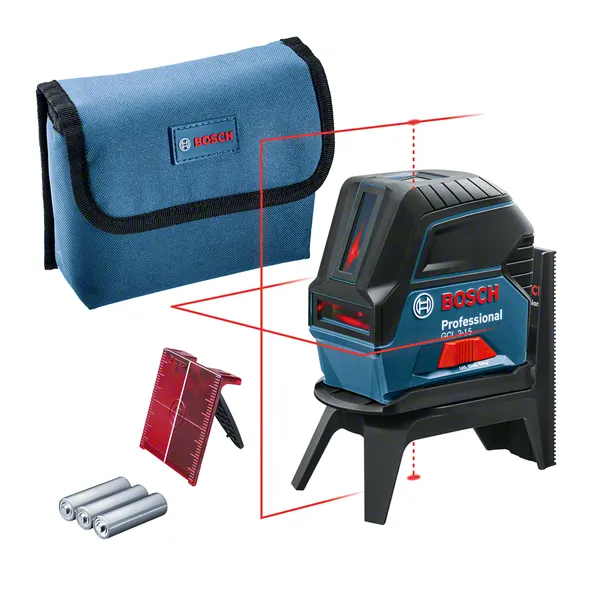

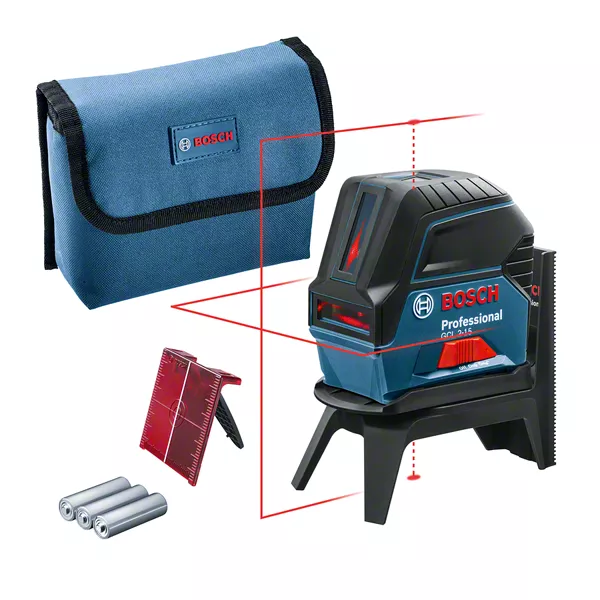

  • with 3 x battery (AA), laser target plate
Change variant
679.00 AED
Recommended retail price excluding VAT
Find a local dealer

with 3 x battery (AA), laser target plate 0 601 066 E00
679.00 AED
Recommended retail price excluding VAT

Select a variant

Your Selection

GCL 2-15
with 3 x battery (AA), laser target plate

Order number: 0 601 066 E00

679.00 AED
Recommended retail price excluding VAT
Find a local dealer

Included in all variants

  • Rotating mount RM 1 Professional
    Order number: 0 601 092 600
  • 3 x 1.5 V LR6 battery (AA)
  • Laser target plate

Additional in this variant

  • Protective Bag

Your Selection

GCL 2-15

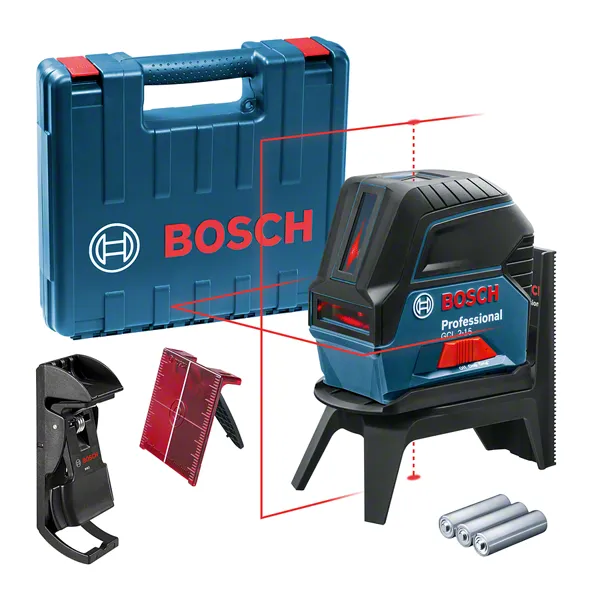

in carrying case with 3 x battery (AA), rotating mount

Order number: 0 601 066 E02

709.00 AED
Recommended retail price excluding VAT
Find a local dealer

Included in all variants

  • Rotating mount RM 1 Professional
    Order number: 0 601 092 600
  • 3 x 1.5 V LR6 battery (AA)
  • Laser target plate

Additional in this variant

  • Ceiling clamp
  • Carrying case

Technical data

Additional data

Dust and splash protectionnull IP 54
Working rangenull up to 15 m
Accuracynull ± 0.3 mm/m* (*plus use-dependent deviation)
Projectionnull 2 lines / 2 points
Working range, valuenull 15 m
Laser diodenull 630 – 650 nm, < 1mW
Operating temperaturenull -10 – 50 °C
Storage temperaturenull -20 – 70 °C
Laser classnull 2
Working range of laser points, max.null 10 m (top), 10 m (bottom)
Self-levelling rangenull ± 4°
Levelling timenull 4 s
Power supplynull 3 x 1.5 V LR6 (AA)
Operating time (max.)null 6 h in cross line and point mode, 8 h in cross line mode, 12 h in line and point mode, 16 h in line mode, 22 h in point mode
Tripod threadnull 1/4", 5/8"

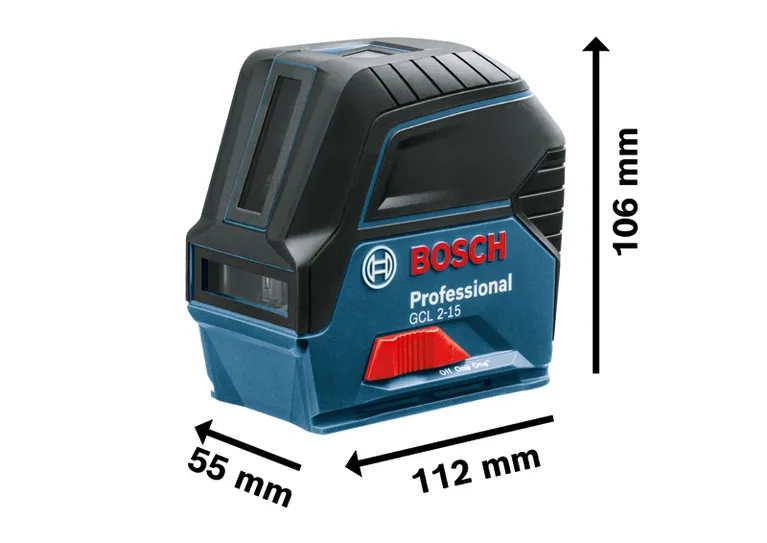

Weight, approx.null 0.49 kg
Colour of laser linenull red
Plumb point accuracynull ± 0.7 mm/m* (*plus use-dependent deviation)
GCL 2-15

GCL 2-15 Professional: Further information

Product Highlights

The combi laser GCL 2-15 Professional convinces through its compact design and is especially suitable for short-distance levelling applications. By projecting both horizontal and vertical laser lines and two centred plumb points, this combi laser supports completing levelling tasks quickly. Its plumb points make precise transfer applications easy and convenient. Aligning the laser lines around the plumb points is simple thanks to its rotating mount RM 1 Professional.

Equipment & Application

The GCL 2-15 Professional is suitable for various applications such as mounting shelves and windows, installing drainage pipes, and laying floors. It also offers point transfers for light mountings.

Additional Information

The GCL 2-15 Professional provides a line laser working range of up to 15 m and self-levels in less than 4 seconds. This combi laser is ideal for use with the RM 1 Professional, which can be swiftly attached via a simple slide mechanism. It is robust thanks to IP54 dust and splash water protection. When switching off the tool, the pendulum’s lock-mechanism allows for safe transportation.
