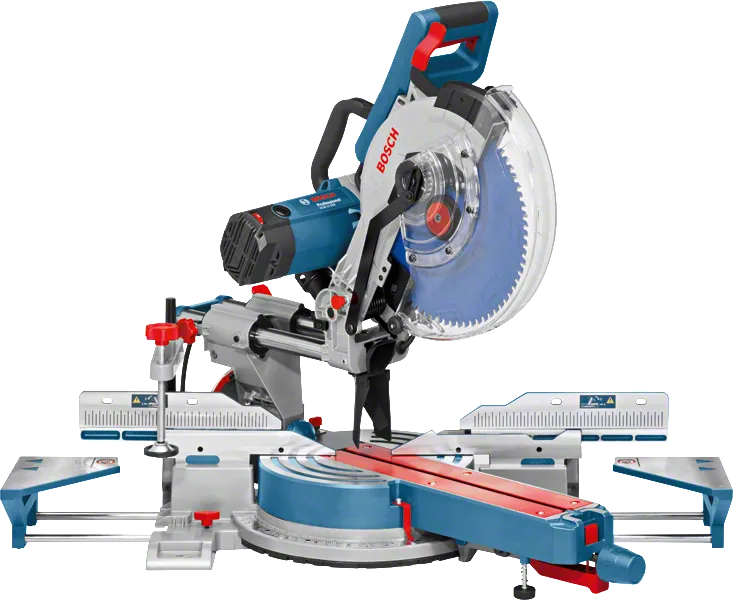

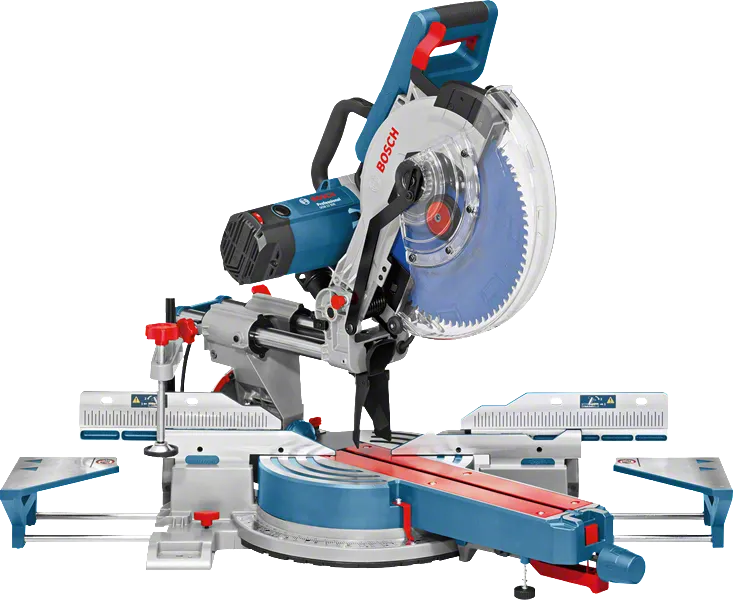

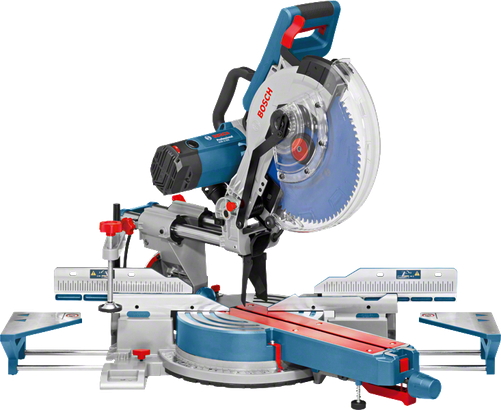

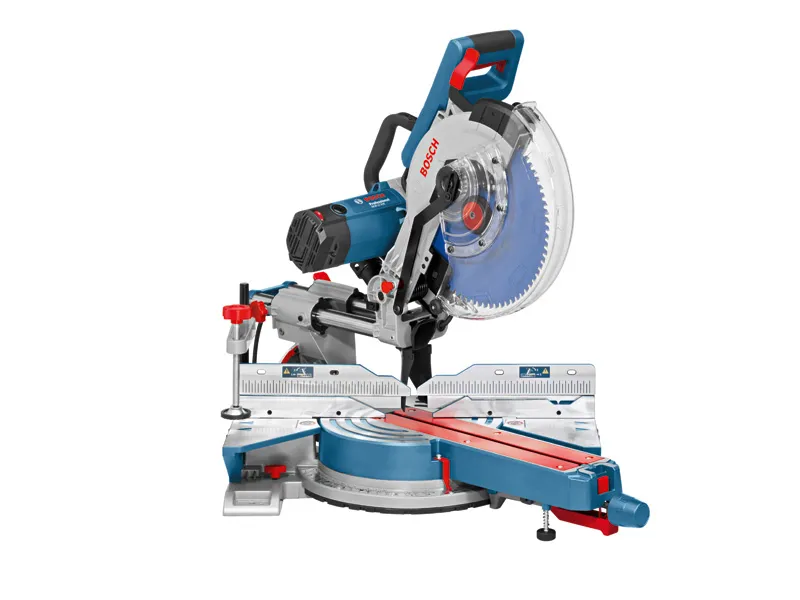

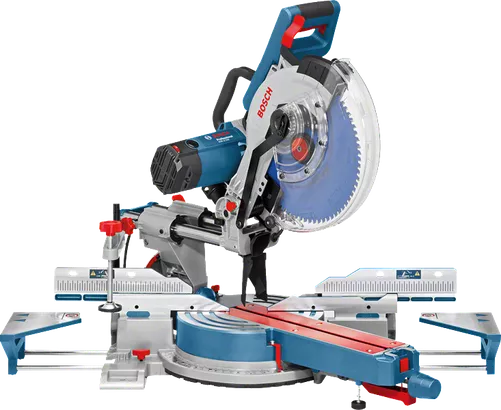

Sliding Mitre Saw GCM 12 SDE Professional

High cutting capacity and variable speed for a wide variety of applications

Technical data
Additional data
Mitre setting* 52 ° L / 60 ° R

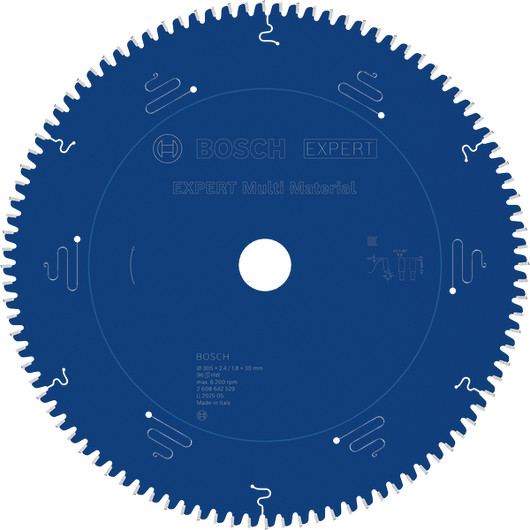

Saw blade diameter* 305 mm
Bevel setting* 47 ° L / 47 ° R
Rated input power 1,800 W
Cutting capacity, 0° 85 x 370 mm
Cutting capacity 0° with spacer (max. vertical) 120 x 200 mm
Cutt. cap. 0° w/ spacer (max. horizontal), height 70 mm
Cutt. cap. 0° w/ spacer (max. horizontal), width 400 mm
Cutting capacity 0° with spacer (max. horizontal) 70 x 400 mm
Cutting capacity, 45° mitre 85 x 250 mm
Cutting capacity, 45° incline 60 x 360 mm

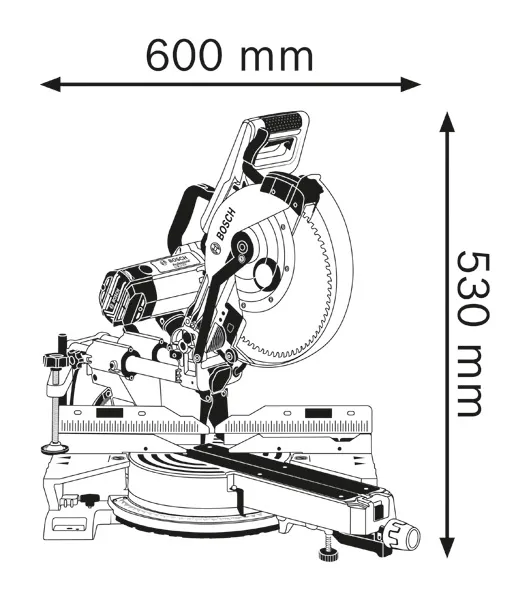

Tool dimensions (width x length x height) 860 x600 x530 mm
No-load speed 3,100 – 4,000 rpm
Saw blade bore diameter 30 mm
Weight 28.6 kg
Total vibration values (Sawing wood)
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 92 dB(A); Sound power level 105 dB(A). Uncertainty K= 3 dB.

Advantages

High cutting capacity and variable speed for a wide variety of applications

  • Vertical cutting capacity of 120 mm
  • Variable speed for adapting the cutting speed to the material
  • SDS saw blade changes

Functions

Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor
Efficient work with high user protection Effective work with high user protection, also works when power failure and ensures that the tool stops significantly faster than without a braking system.
 Soft start as the load and torque of the motor are temporarily reduced during start-up.
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Easy bevel angle adjustment due to preset angle stops
 No additional tools are required for configuring the tool, allowing for user-friendly operation
Easy set up thanks to laser projection of cutting line
Icon

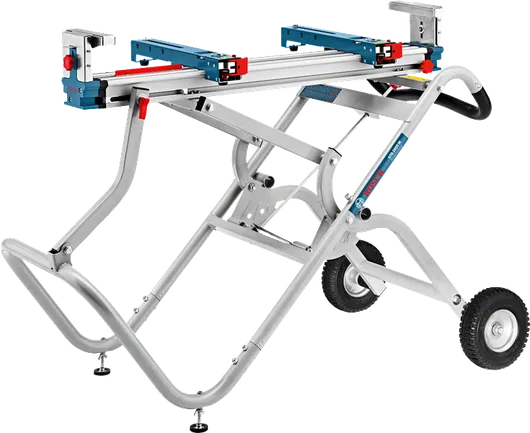

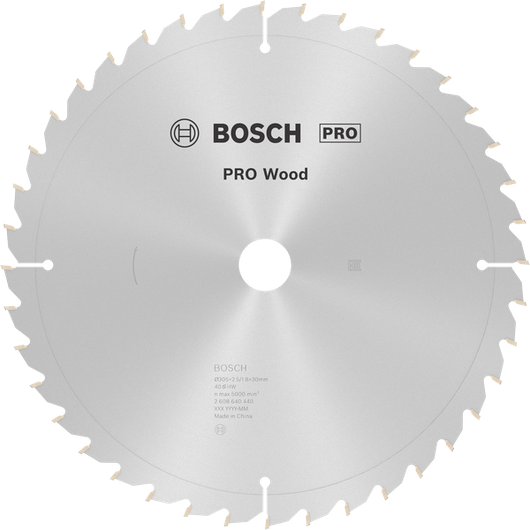

What’s Included in this Package
with (Voltage 240 V)
with (Voltage 240 V)
Order number: 0 601 B23 170
  • Voltage 240 V

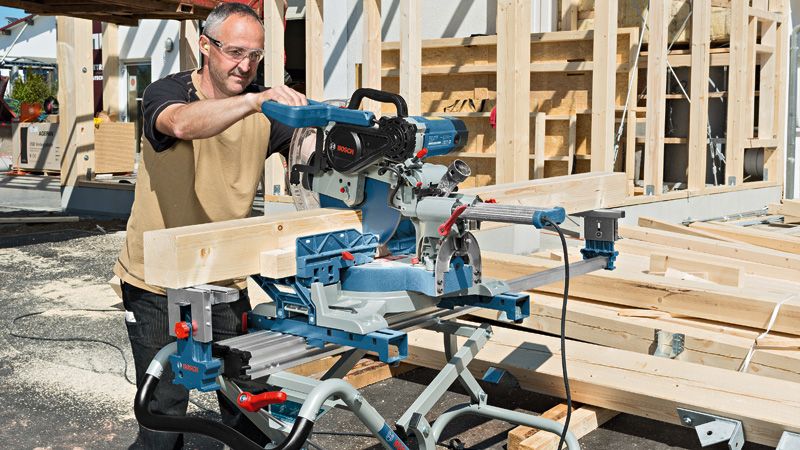

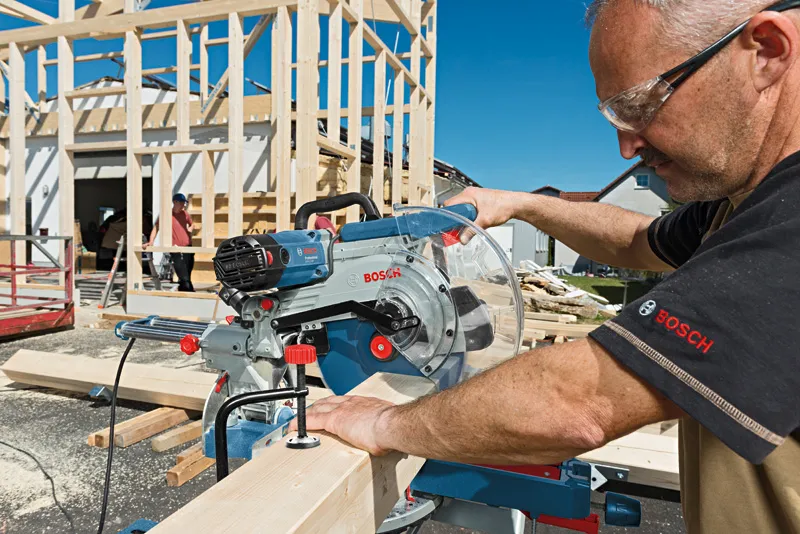

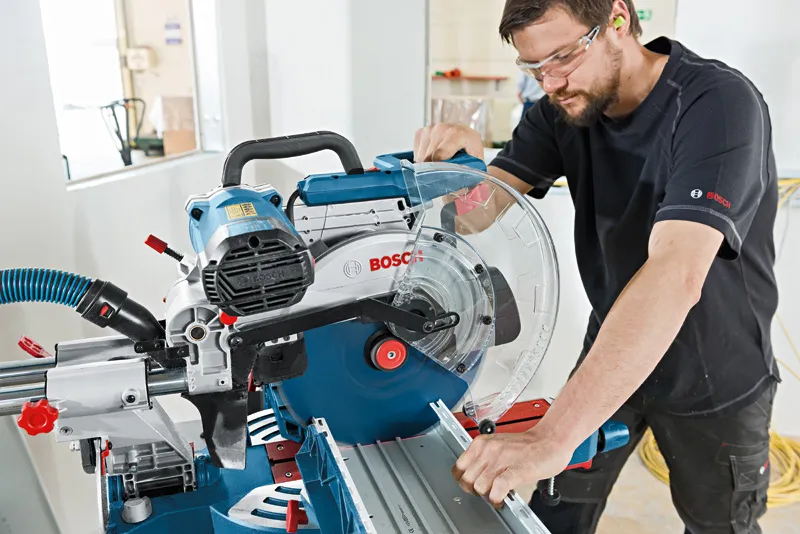

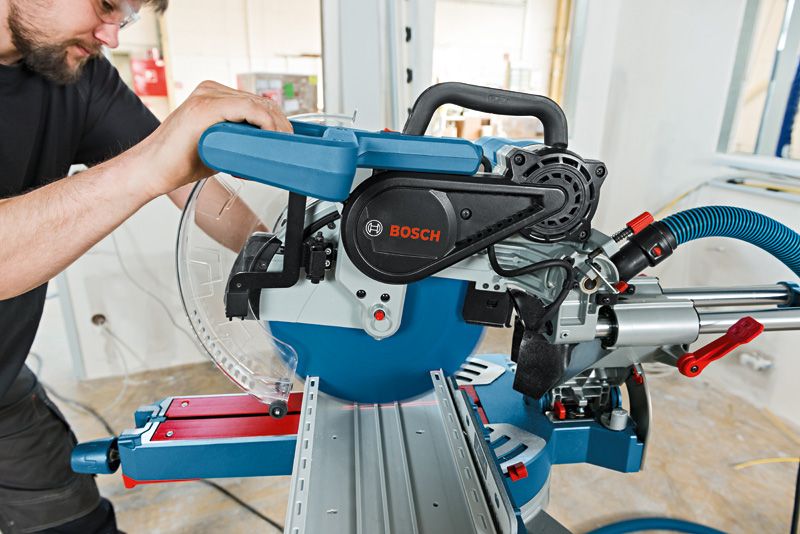

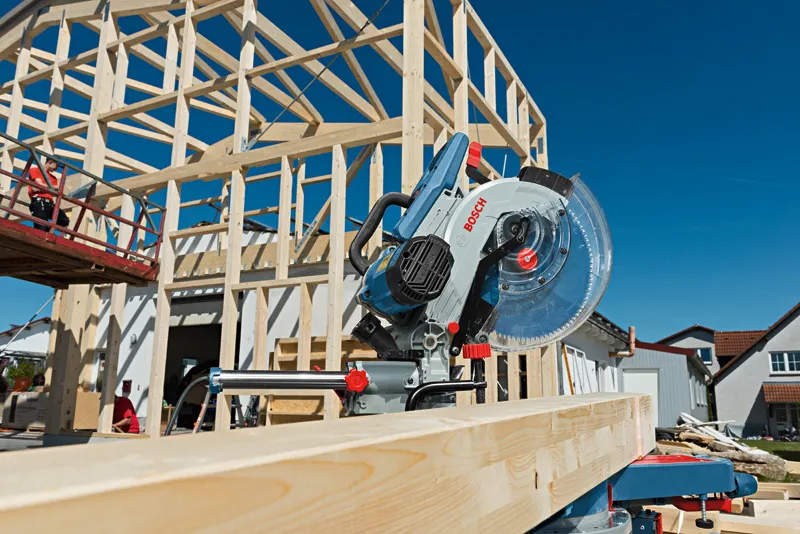

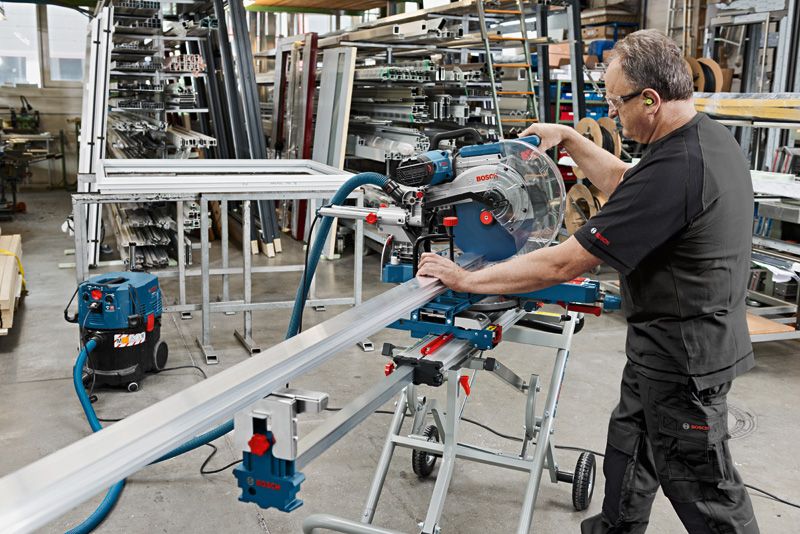

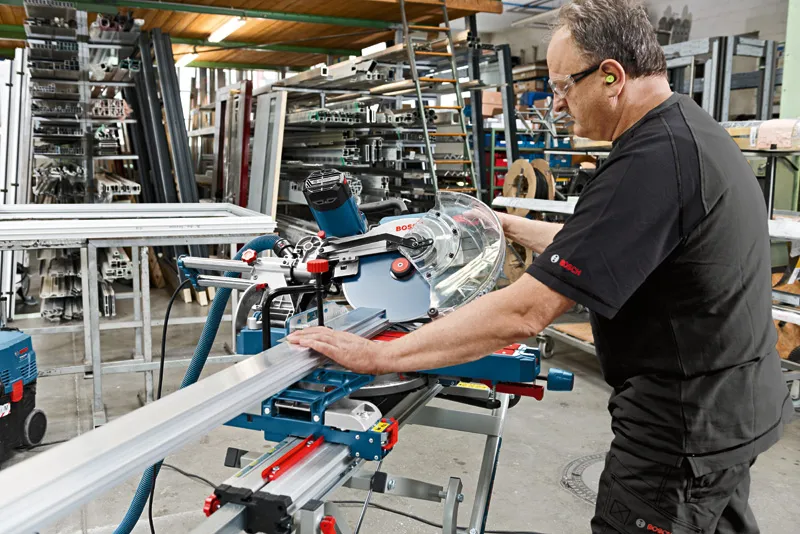

The GCM 12 SDE in action!
